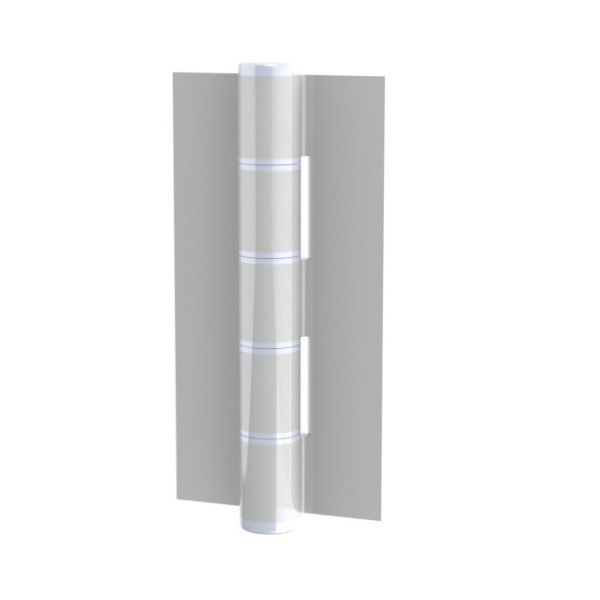

**10 Pack** McCallum Aluminum Concealed Butt Hinge Satin A140 AB4526

10 Pack McCallum Aluminum Concealed Butt Hinge Satin A140 AB4526

Price	$125.55
	Collect 375 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	See delivery details

Quantity

Add to wishlist

10 Pack McCallum Aluminum Concealed Butt Hinge Satin AB4526
A140

10 x Hinge w/ screws

Application:

Suitable for Aluminum doors and partitions in medium usage
situations

Specifications:

Alloy: High strength T.6 minimum tensile 254 mpa
Pin Dia: 4.7mm 304 Stainless Steel with machined chamfer both ends
Bushes: Flanged nylon
Knuckle: Round
Aluminum Endcaps: Pressed-in interference fit
Maximum Weight Capacity: 20 kg (turn over for further information)
Finish: Satin Natural Anodised

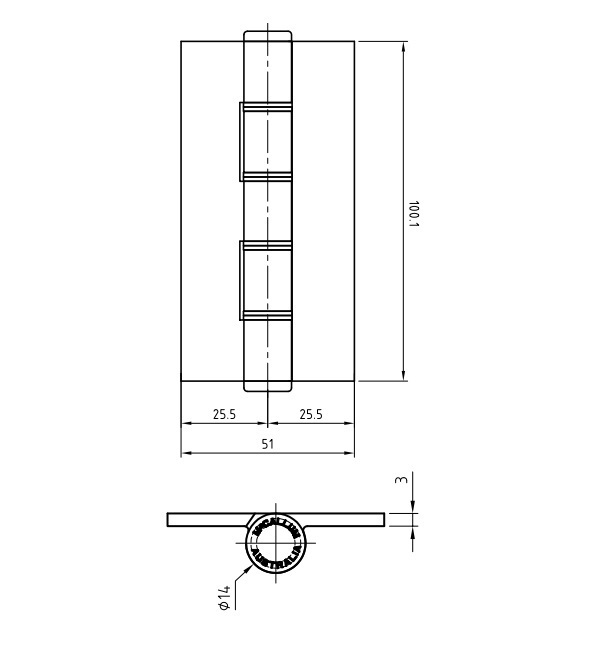

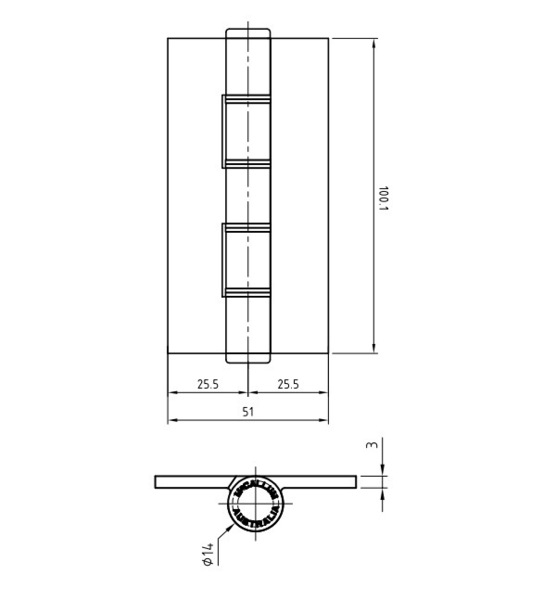

Dimensions: 100mm x 52mm

Installation Guide Only:

Door thickness: Minimum 35mm
When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible. For excessive usage, a fourth hinge may be required.
Standard Door: 2040mm (H) x 820mm (W)

Fixing:

Fastening screws not supplied
Concealed fix
Pop rivets are not recommended

SKU: MCCA140P10
