1 Pair 3 To 1 3 branch Waterproof T Branch Cable Connectors Solar PV Panel Connector Male & Female

1 Pair 3 To 1 3 branch Waterproof T Branch Cable Connectors Solar PV Panel Connector Male & Female

Be the first to review this product

Hurry! 8 items left!

Price	$13.46
	Collect 39 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

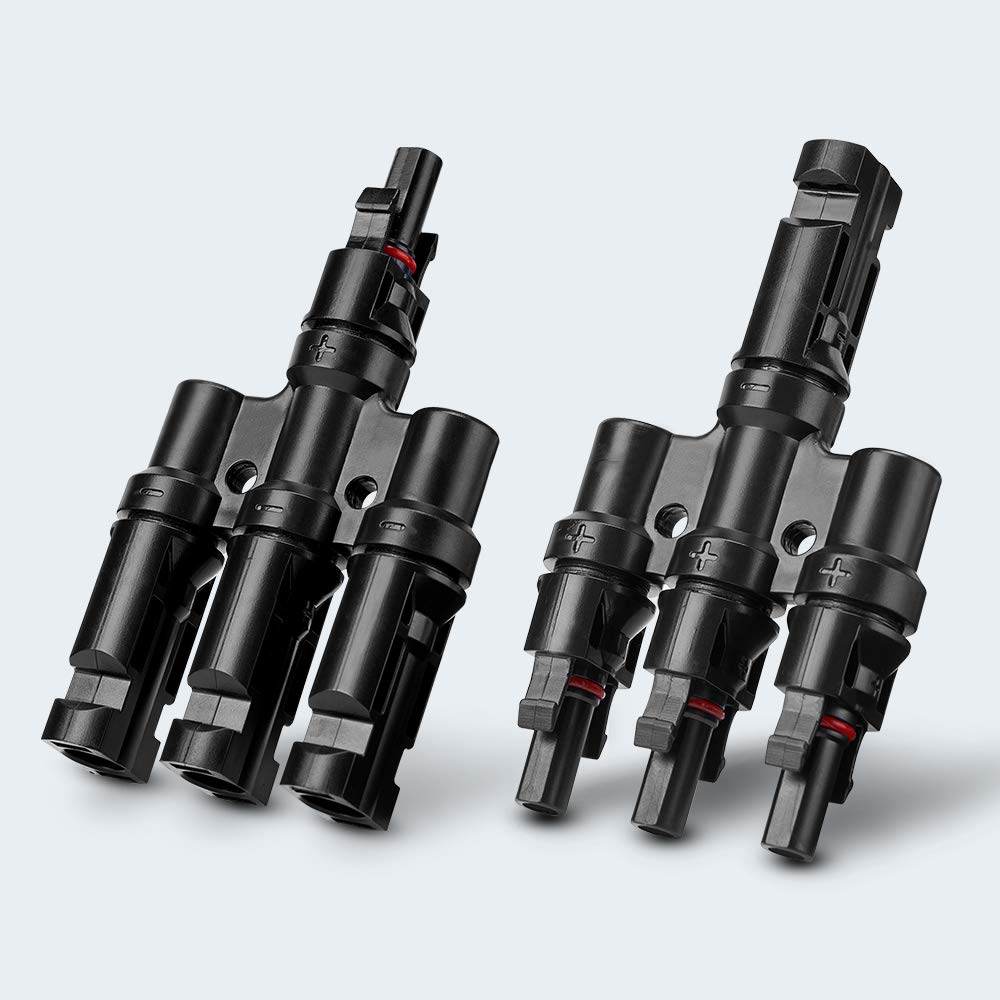

SOLAR Y BRANCH CONNECTORS
1 male to 3 female(M/FFF) and 1 female to 3 male(F/MMM), it is compatible with solar cables or connectors in 14AWG to 10AWG, it could be used for paralleling solar panels.

WATERPROOF AND DURABLE

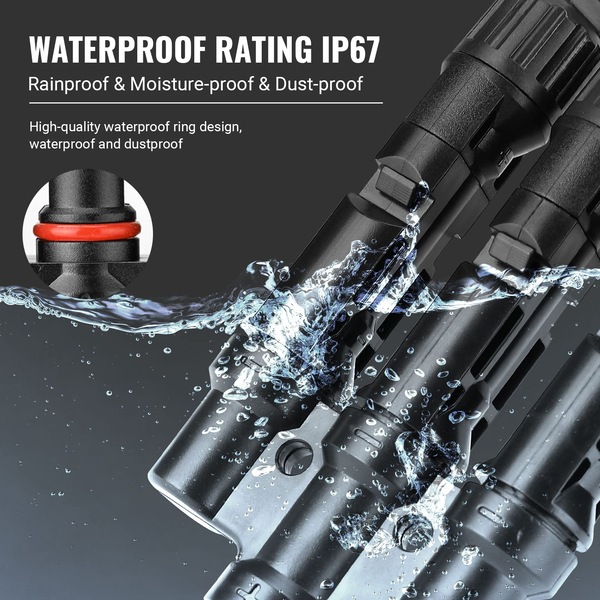

An IP67 waterproof ring on the male connector is perfect to seal out water and dust to prevent corrosion. The connector is stable and safe with the built-in lock which is durable in outdoors environment.

HIGH SECURITY

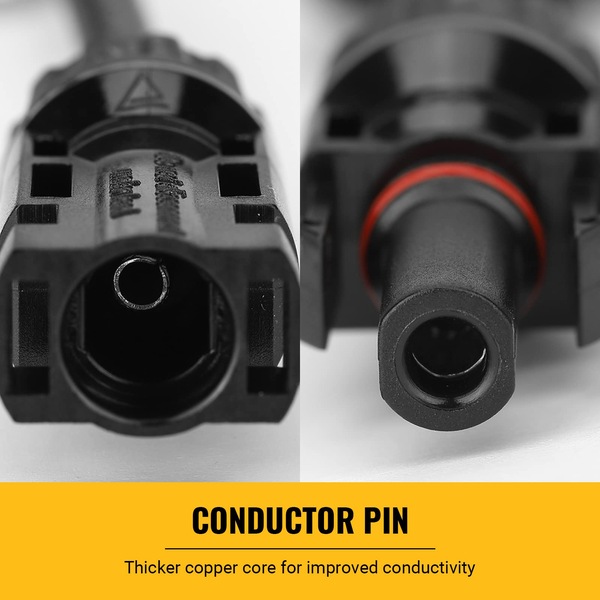

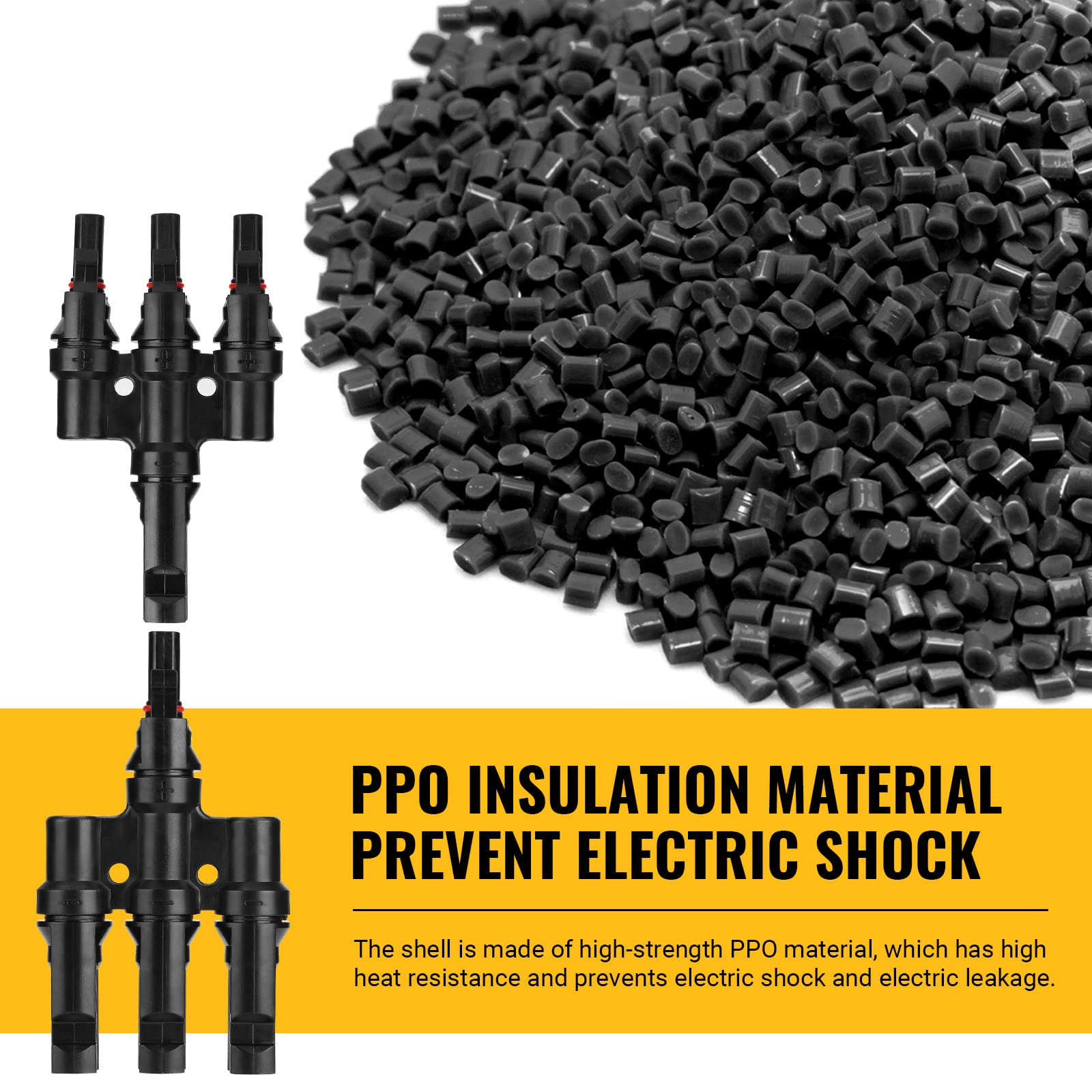

The connector is made with PPO material, the contact is made with Copper, silver plated. Good material makes sure that it can keep working stably in the temperature range from -40 degree to +90 degree.

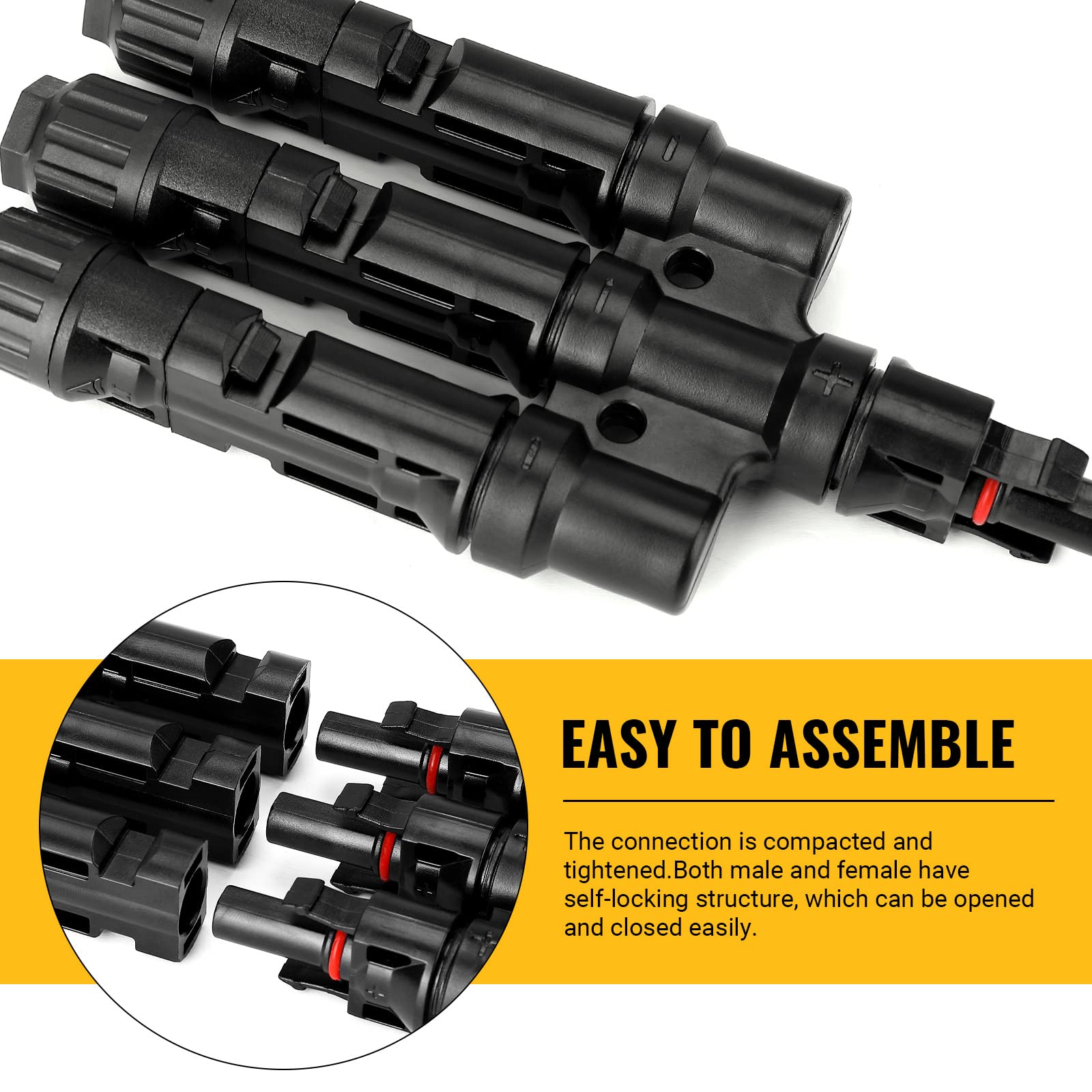

EASY INSTALL - Plug and play. Press your fingers to either side of the built-in lock on the male connector can connect and disconnect the connector easily, without using other tools.

Wide Applicability
Compatible with 14AWG--10AWG solar connectors.
Suitable for most PV products on the market.
CE and TUV certified Hard plastic.
Quick and simple assembly processing
The stable self-locking system which is easy to lock and open.
Corrosion-resistant connectors for long-term usage.

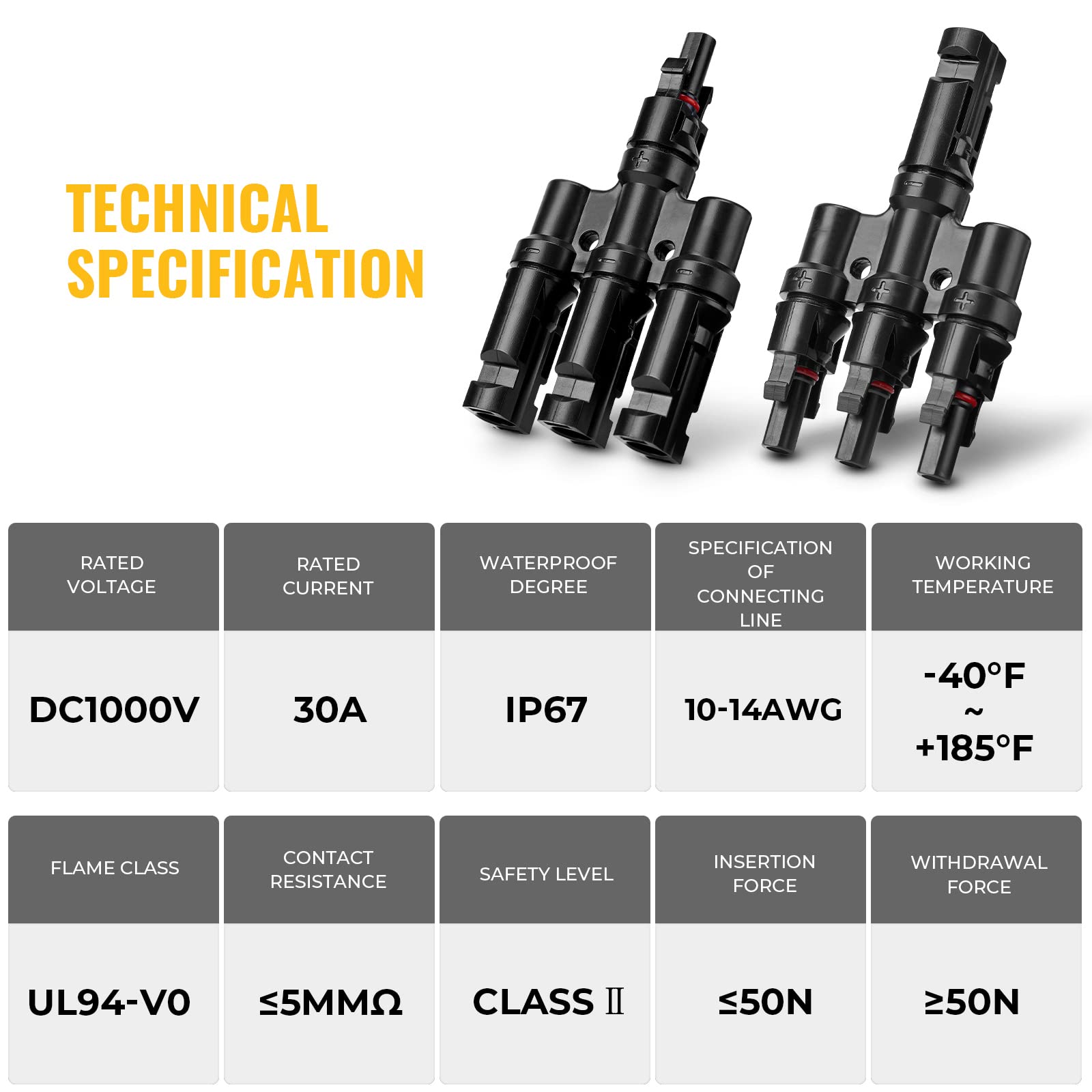

Specification:
Withstanding voltage: 1000V DC(TUV), 600V(UL)
Contact Resistance: 1m
Protection Class: Class II
Temperature: -40 degree to +90 degree
Flame Class: UL94-V0 or UL94-5VA
Each Conntector weight: 74g

Package Includes:
1 Pair of 3 Branch Connectors (1* MMMF Solar Branch Connectors,1* FFFM Solar Branch Connectors)

SKU: SONACONN-3P
