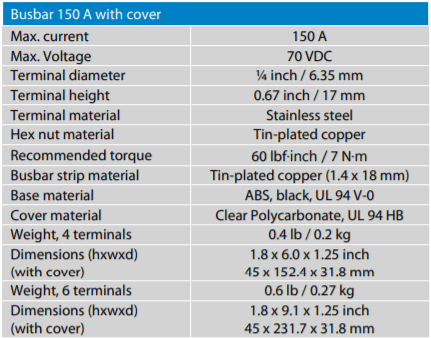

Specifications:
Specifications
| Max. Current |
150 A |
| Max. Voltage |
70 VDC |
| Terminal Diameter |
¼ inch / 6.35 mm |
| Terminal Height |
0.67 inch / 17 mm |
| Terminal Material |
Stainless steel |
| Hex Nut Material |
Tin-plated copper |
| Recommended Torque |
60 lbf·inch / 7 N·m |
| Busbar Strip Material |
Tin-plated copper (1.4 x 18 mm) |
| Base Material |
ABS, black, UL 94 V-0 |
| Cover Material |
Clear Polycarbonate, UL 94 HB |
| Weight, 4 Terminals |
0.4 lb / 0.2 kg |

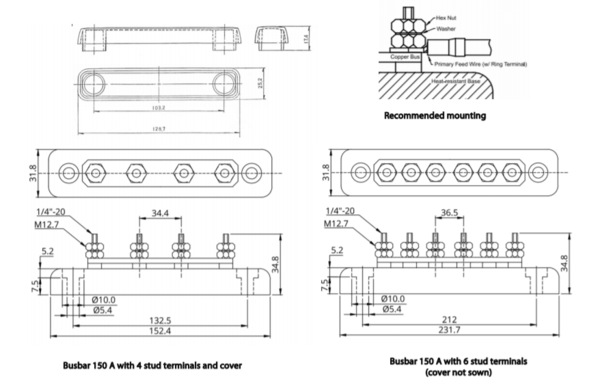

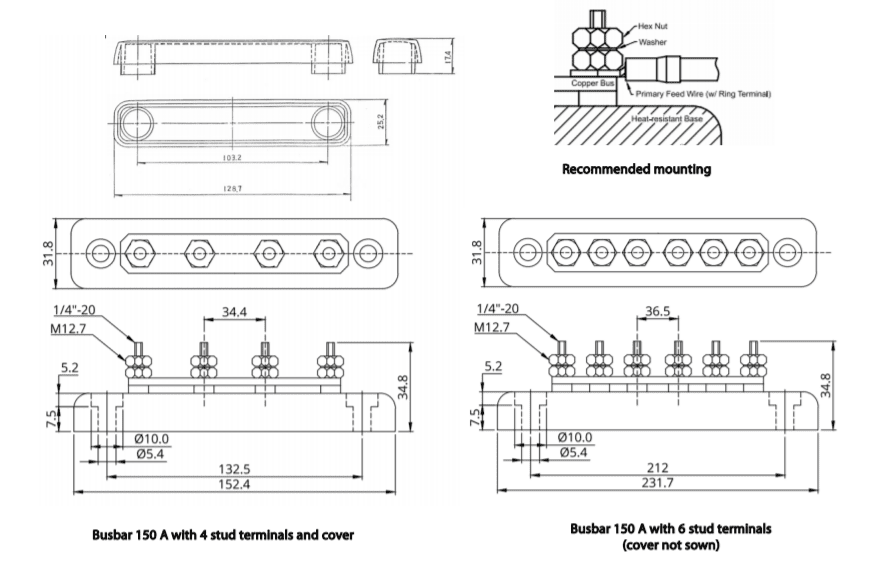

| Dimensions (HxWxD), 4 Terminals (with cover) |
1.8 x 6.0 x 1.25 inch / 45 x 152.4 x 31.8 mm |
