Using manufacturer's default configuration and the recommended FPV gear, it is 100% under 250 grams.
To the untrained eye, she will look like a harmless toy but, -we and you know- this is a super capable FPV ship that will even let you do long range like the bigger sisters. Being so light, it's a blessing for beginners since they will find that is really hard to break it. Also, coupled with NEW Kopilot Lite and the VC400 camera, you will get a ready to go FPV system, solder and hassle free.
Now you can enjoy more than 30 minutes FPV action (with a 18650 2S1P 3500mAh) or a super thrilling proximity mission (on 3S setup), everything under 250 grams. Since the wingspan is only 570mm, you don't even need to think about the portability, this thing is bicycle-ready!
Forget about those sketchy DIY projects, and spend your time flying a fantastic wing that will perform like a much bigger plane, without the worries of being pointed as a criminal.

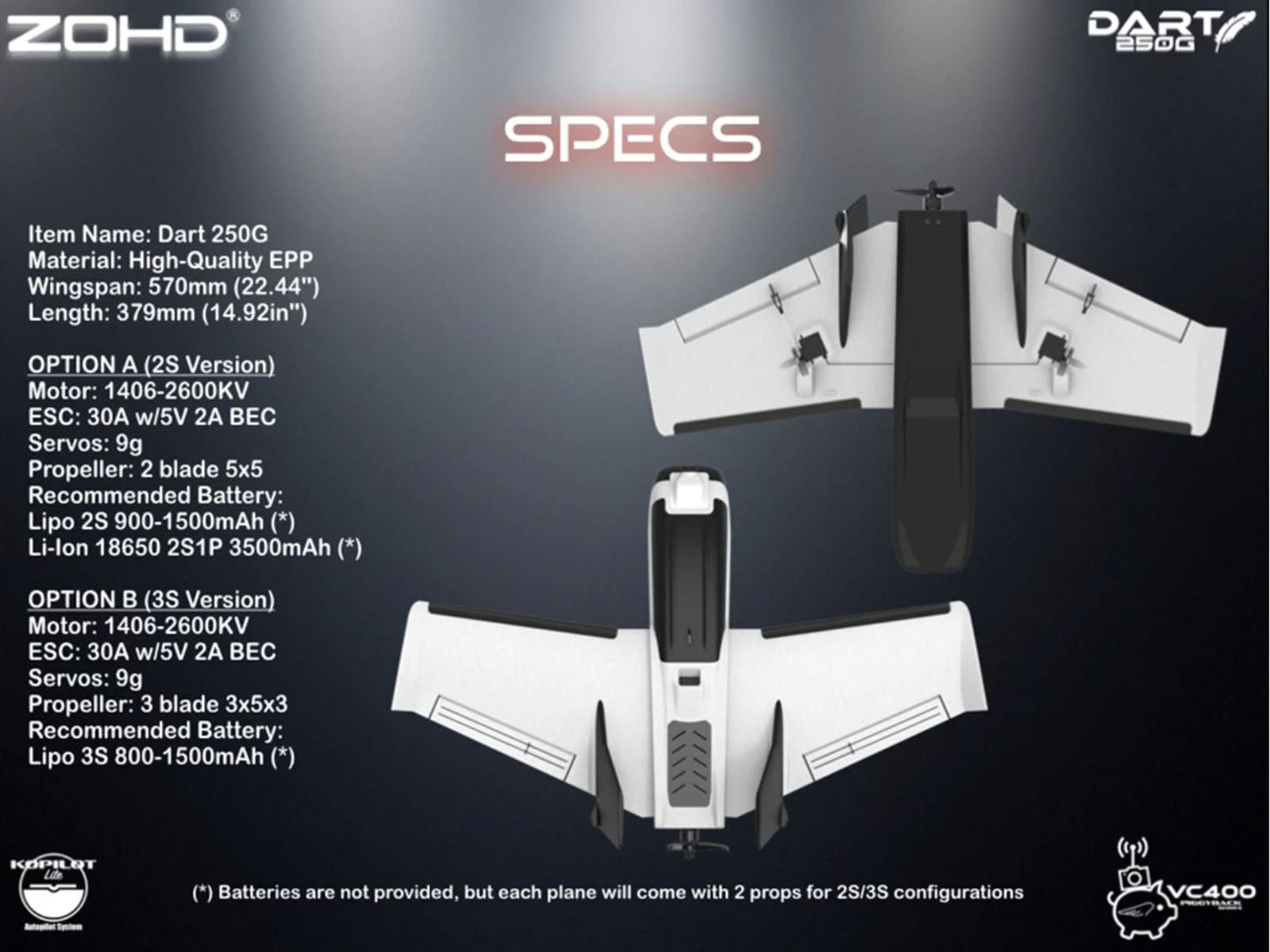

Description of Dart 250G:
Brand Name: ZOHD KIT
Item Name: Dart 250G
Material: High-Quality EPP
Wingspan: 570mm (22.44'')
Length: 379mm (14.92in'')ZOHD Dart 250G - Kit : 89gZOHD Dart 250G - PNP: 138g (including motor, esc, servos, prop.)
Recommended Devices (not included in KIT version)
Motor: 1406-2600KV
ESC: 30A w/5V 2A BEC,
Servos: 9g
Propeller: 2 blade 5x5 / 3 blade 3x5x3
Recommended Battery: (not included in any version): Lipo 2S 3S 900-1500mAh, Li-Ion 18650 2S1P 3500mAh
Recommended RC system: (not included in any version): Supported Receiver: PWM, PPM, S-Bus.

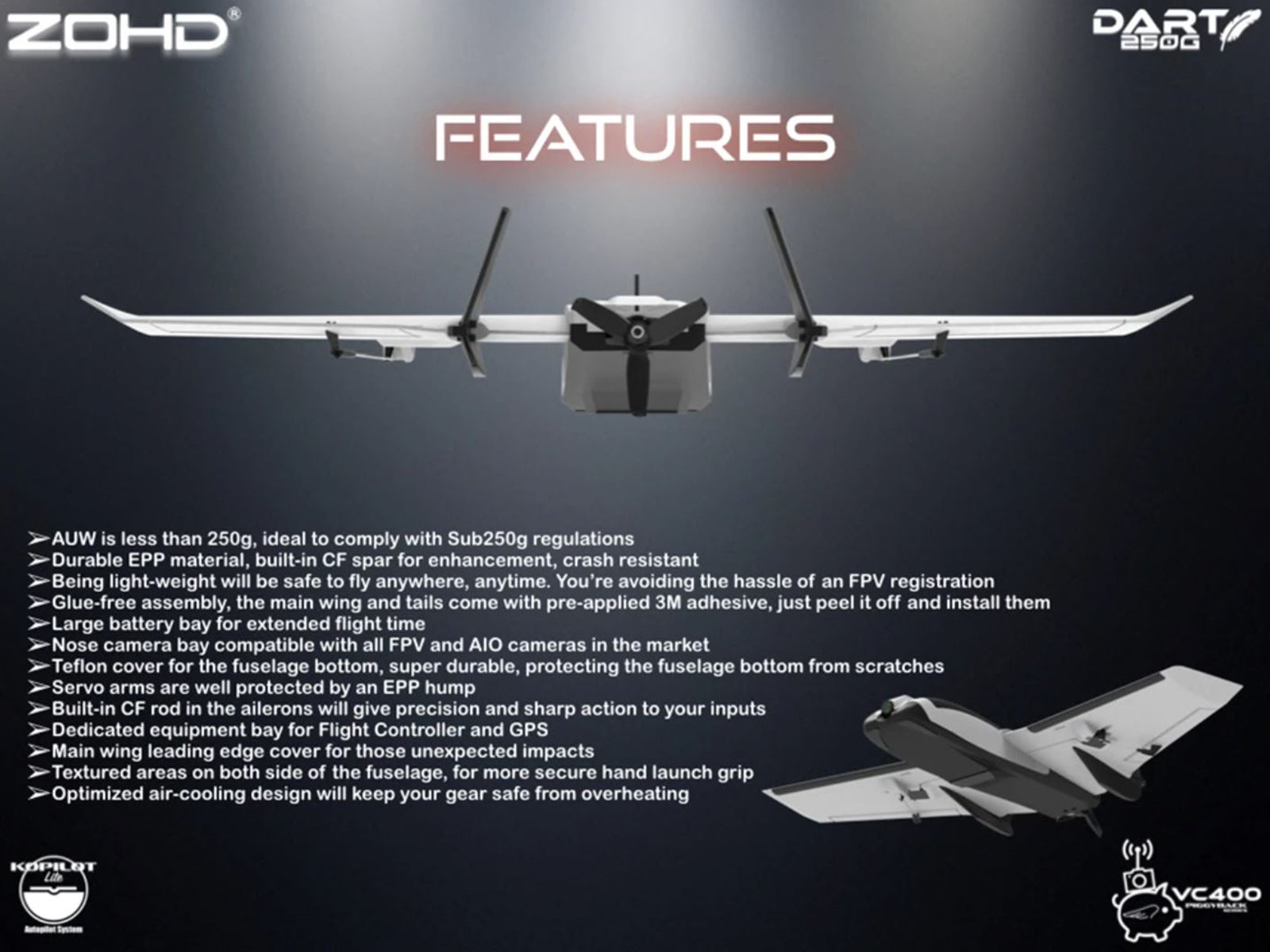

Features:
1. AUW is less than 250g, ideal to comply with Sub250g regulations

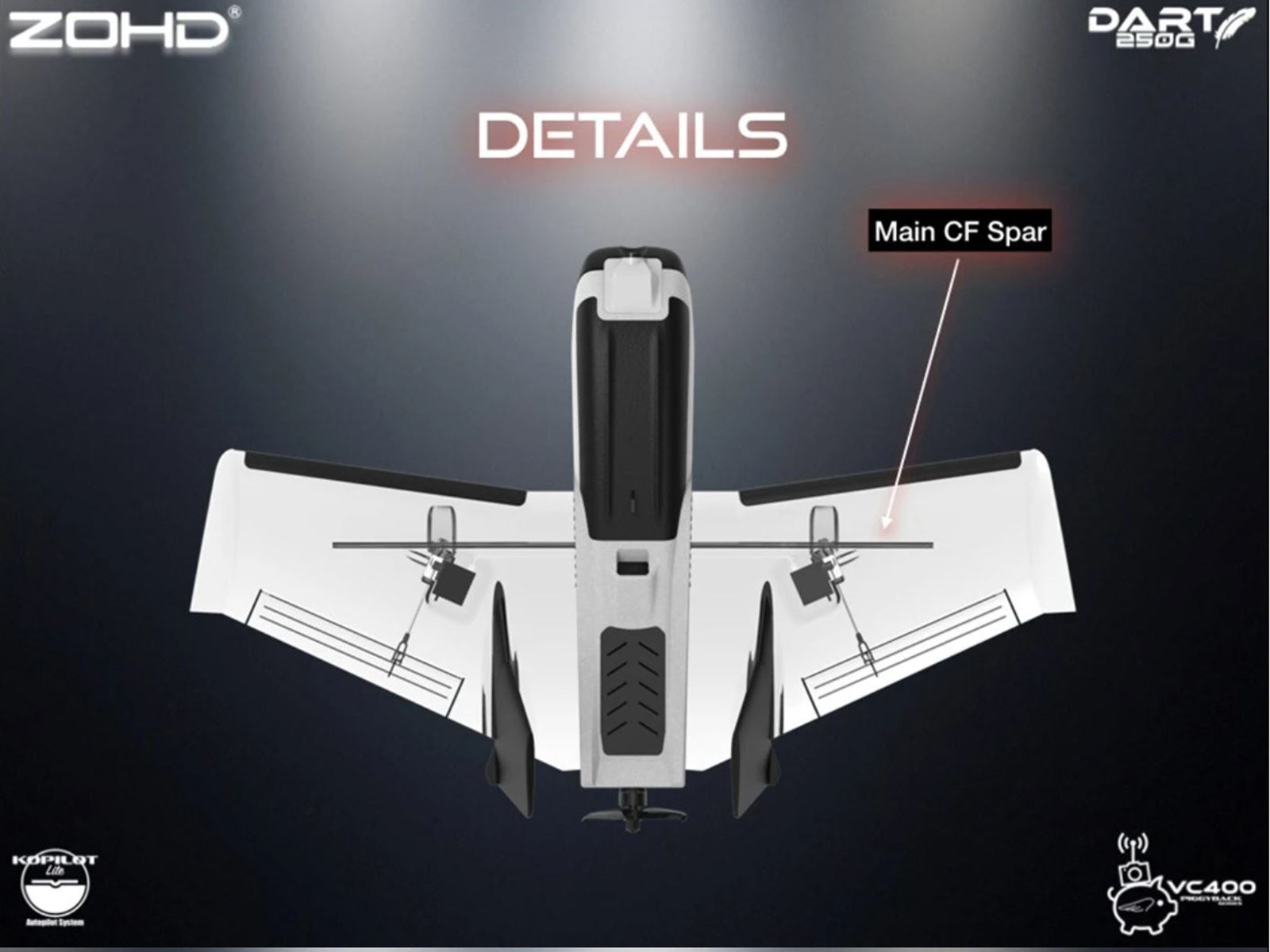

2. Durable EPP material, built-in CF spar for enhancement, crash resistant
3. Being light-weight will be safe to fly anywhere, anytime. You're avoiding the hassle of an FPV registration

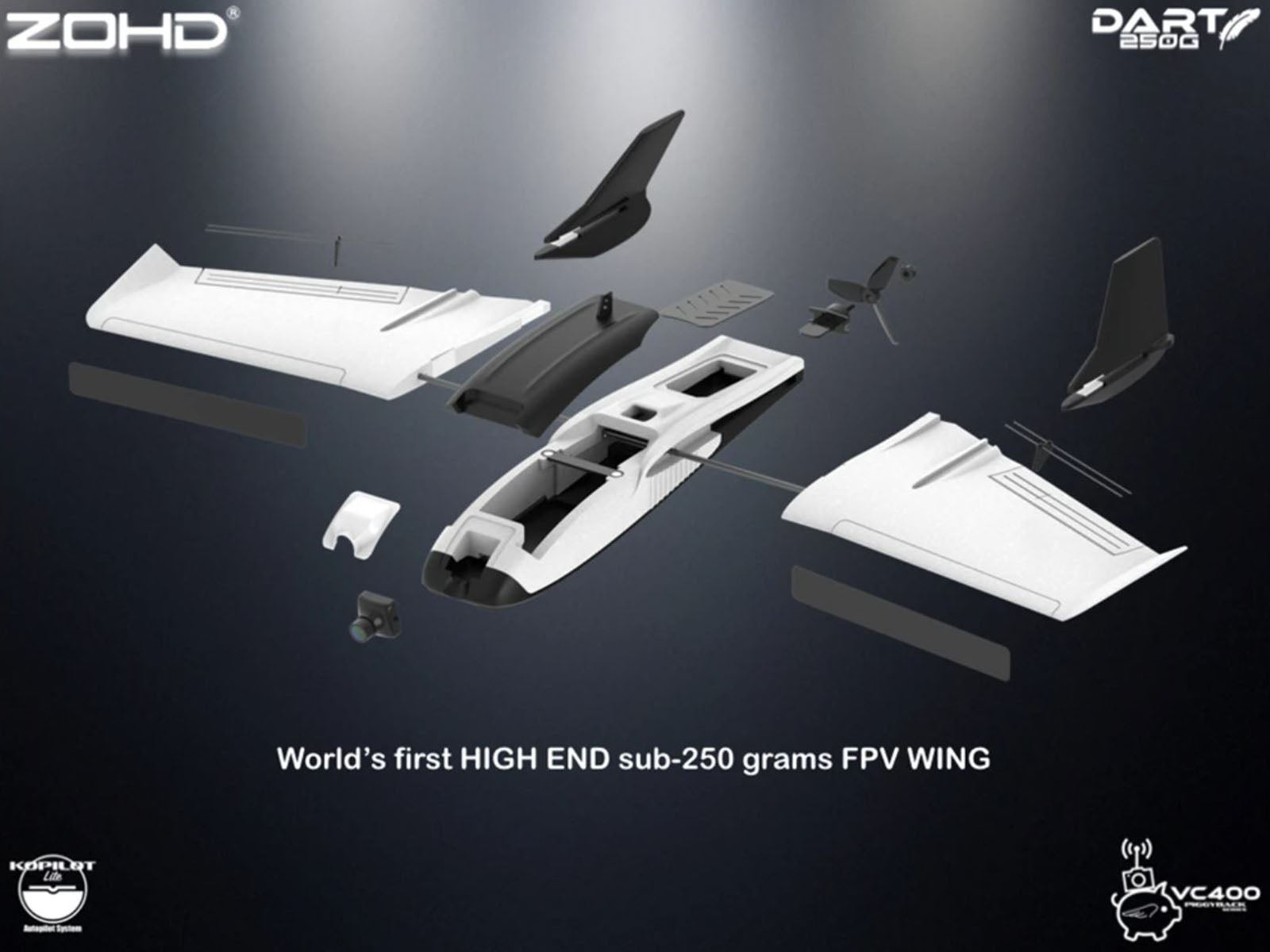

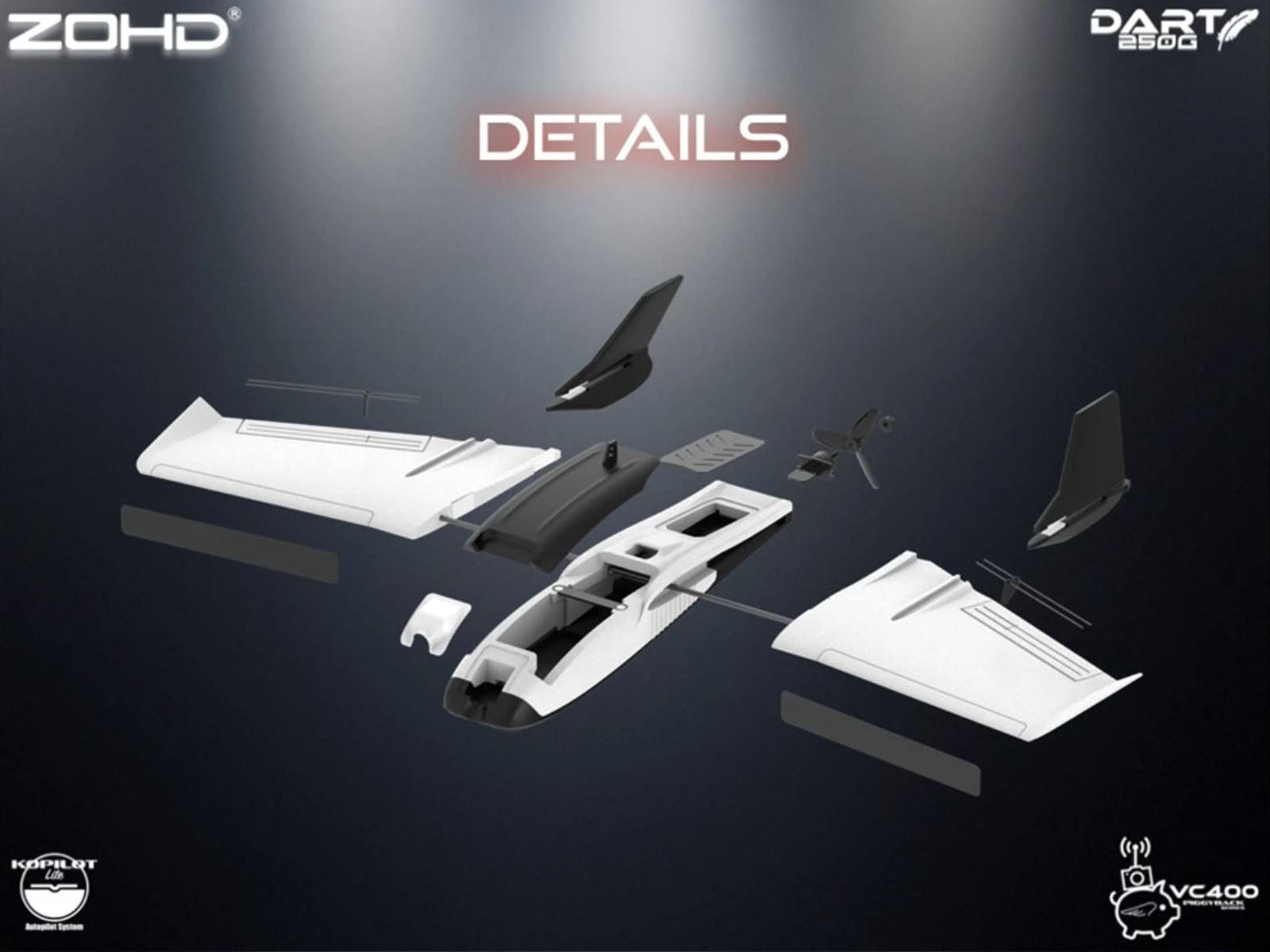

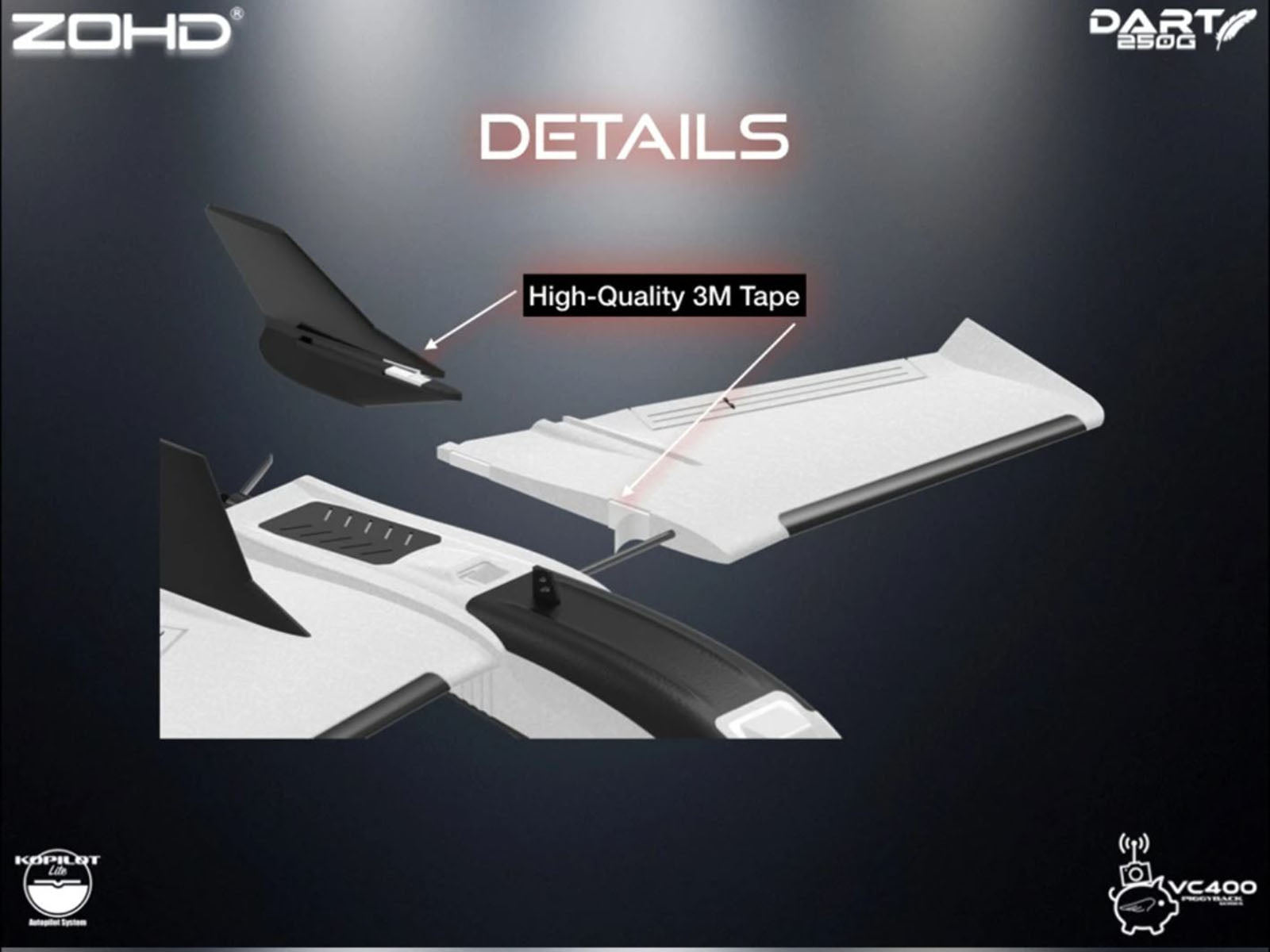

4. Glue-free assembly, the main wing and tails come with pre-applied adhesive tape, just peel it off and install them

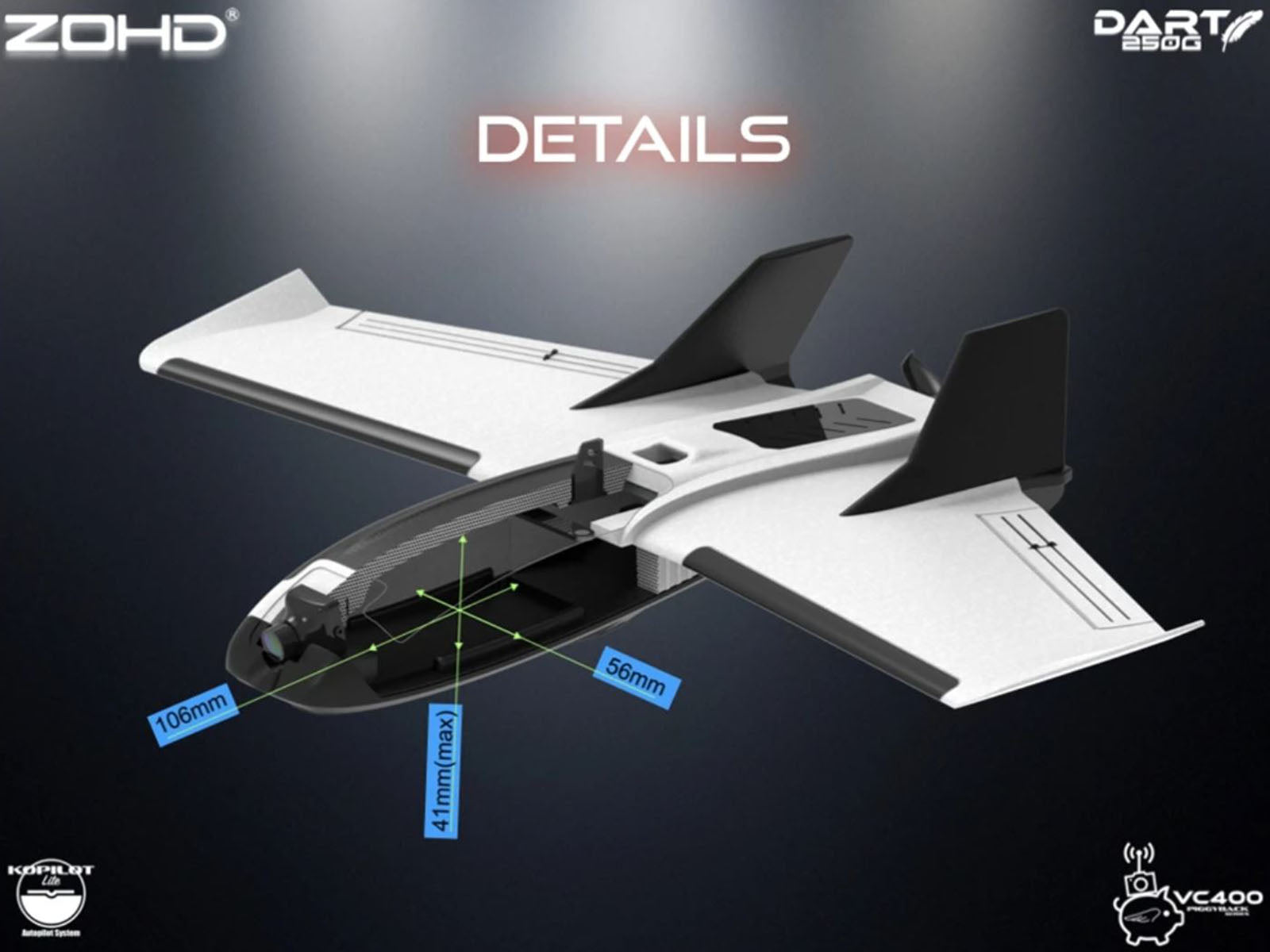

5. Large battery bay for extended flight time

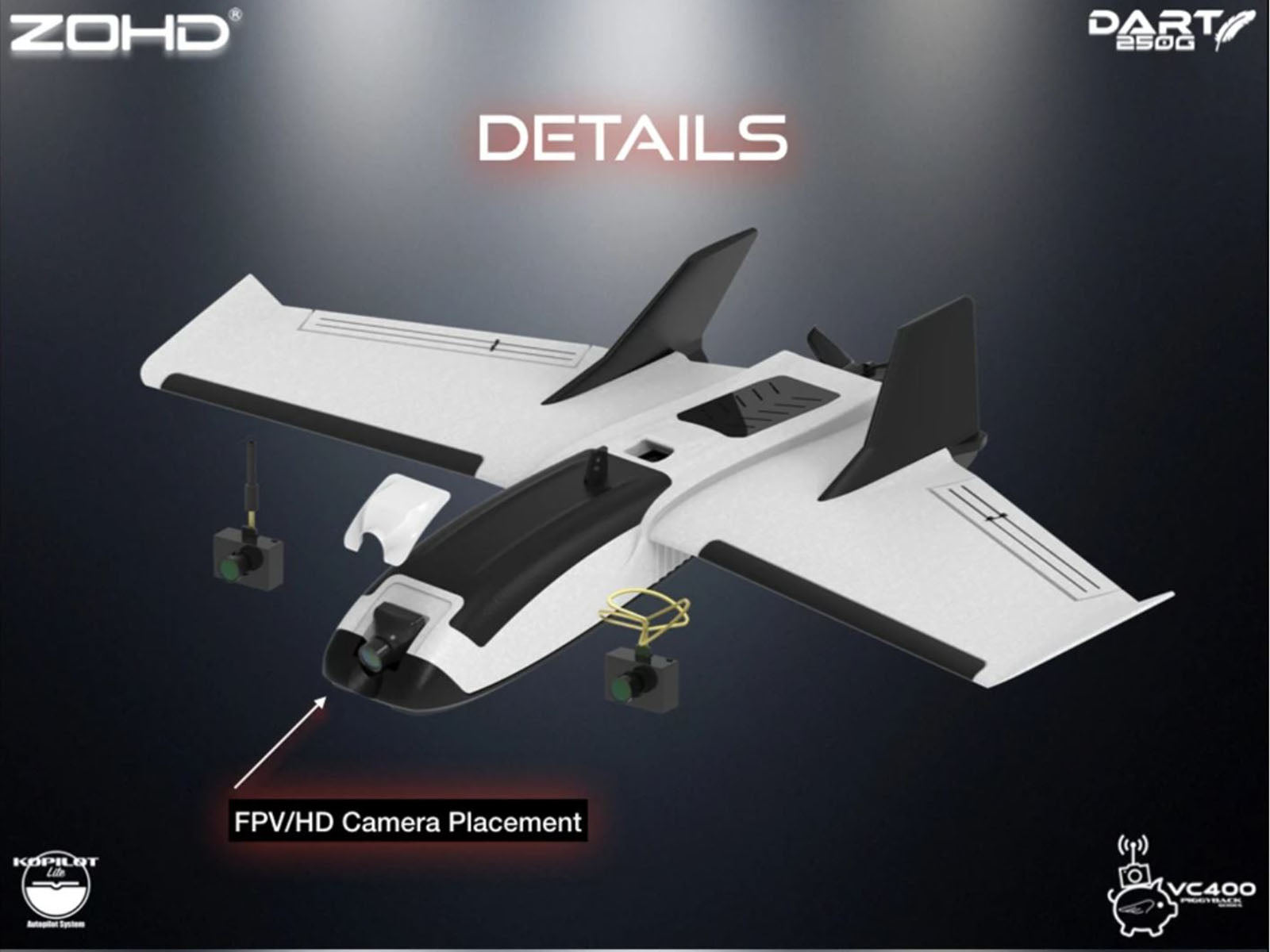

6. Nose camera bay compatible with all FPV and AIO cameras in the market

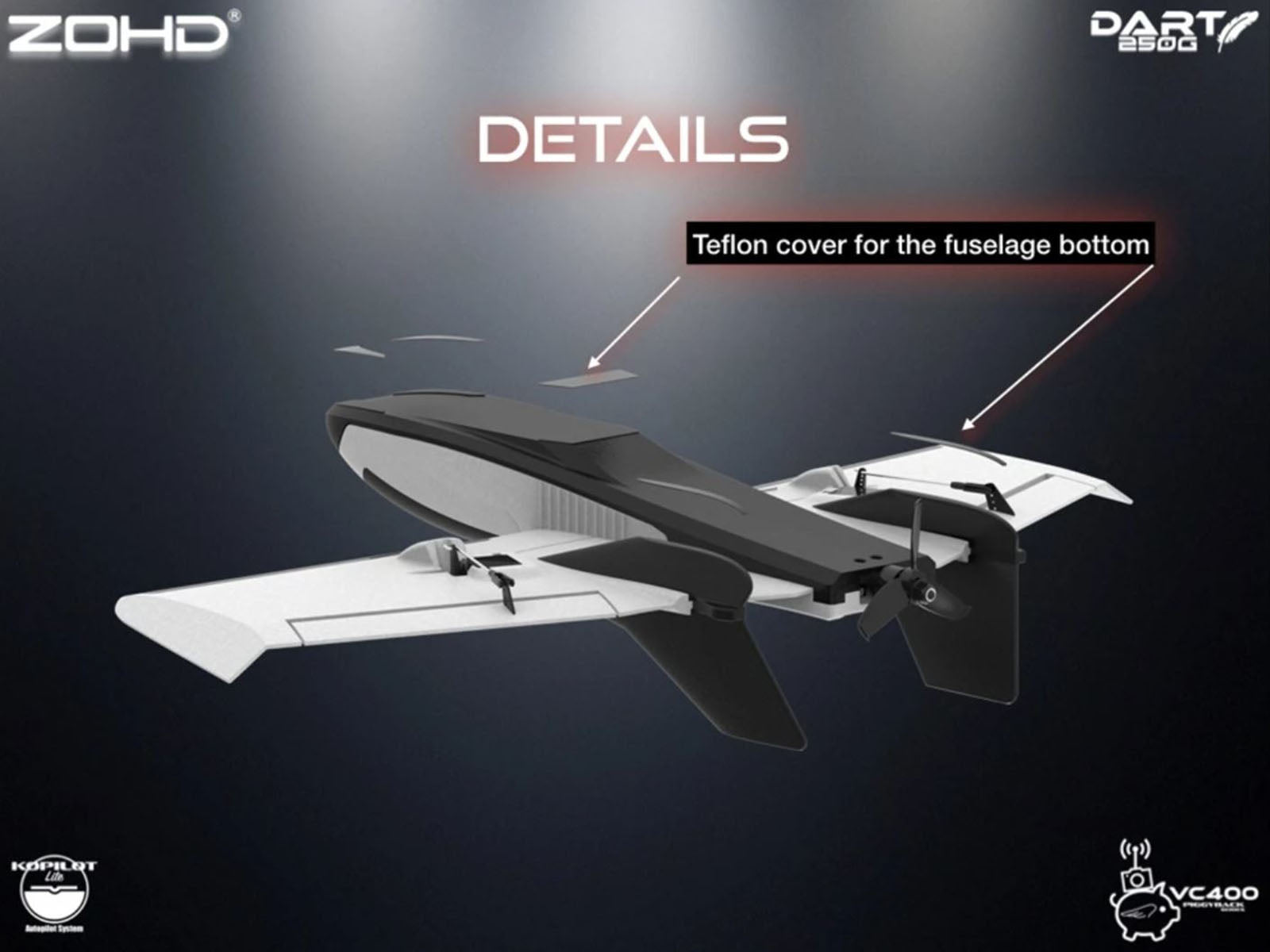

7. Cover for the fuselage bottom, super durable, protecting the fuselage bottom from scratches

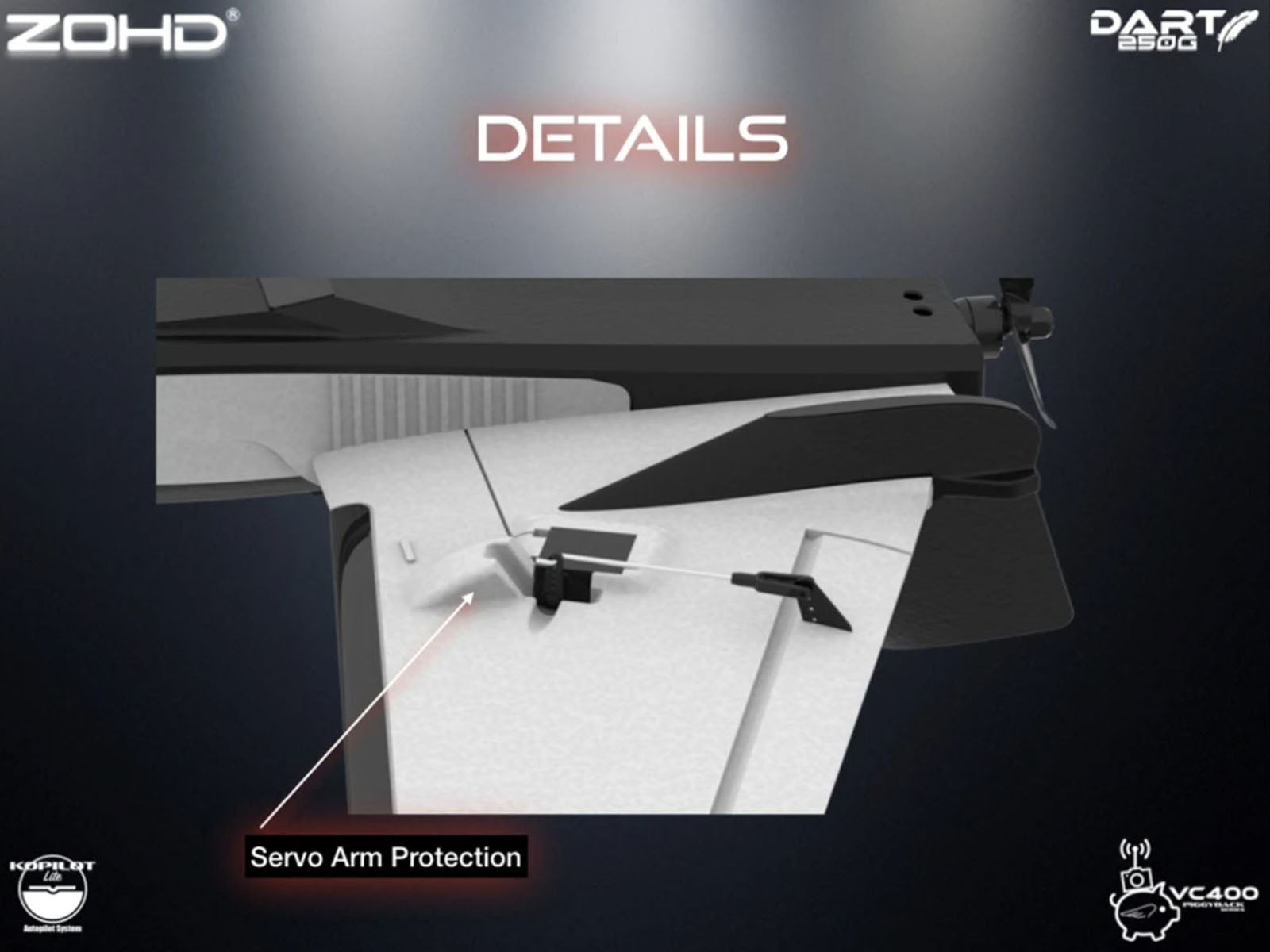

8. Servo horns are well protected by an EPP hump

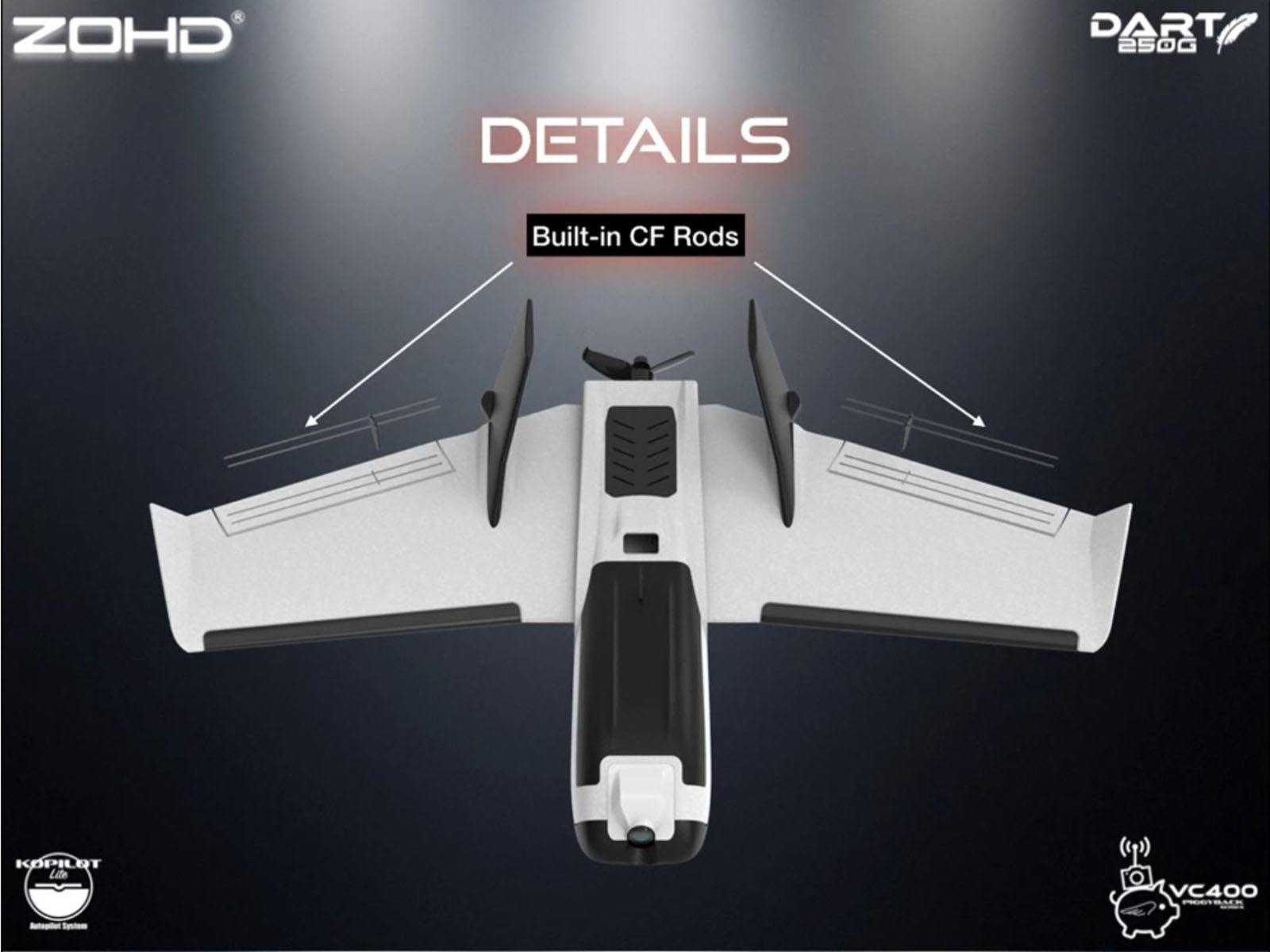

9. Built-in CF rod in the ailerons will give precision and sharp action to your inputs

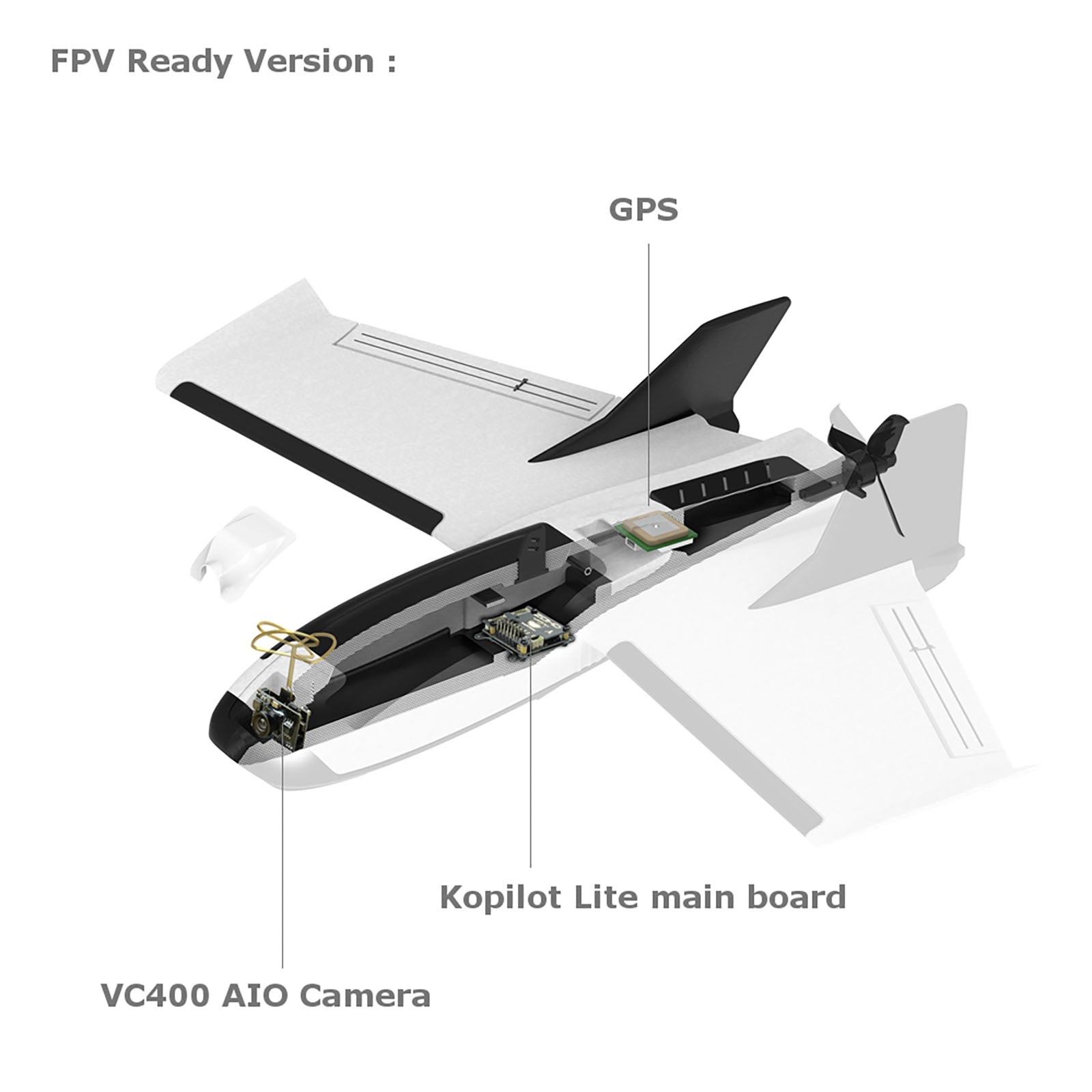

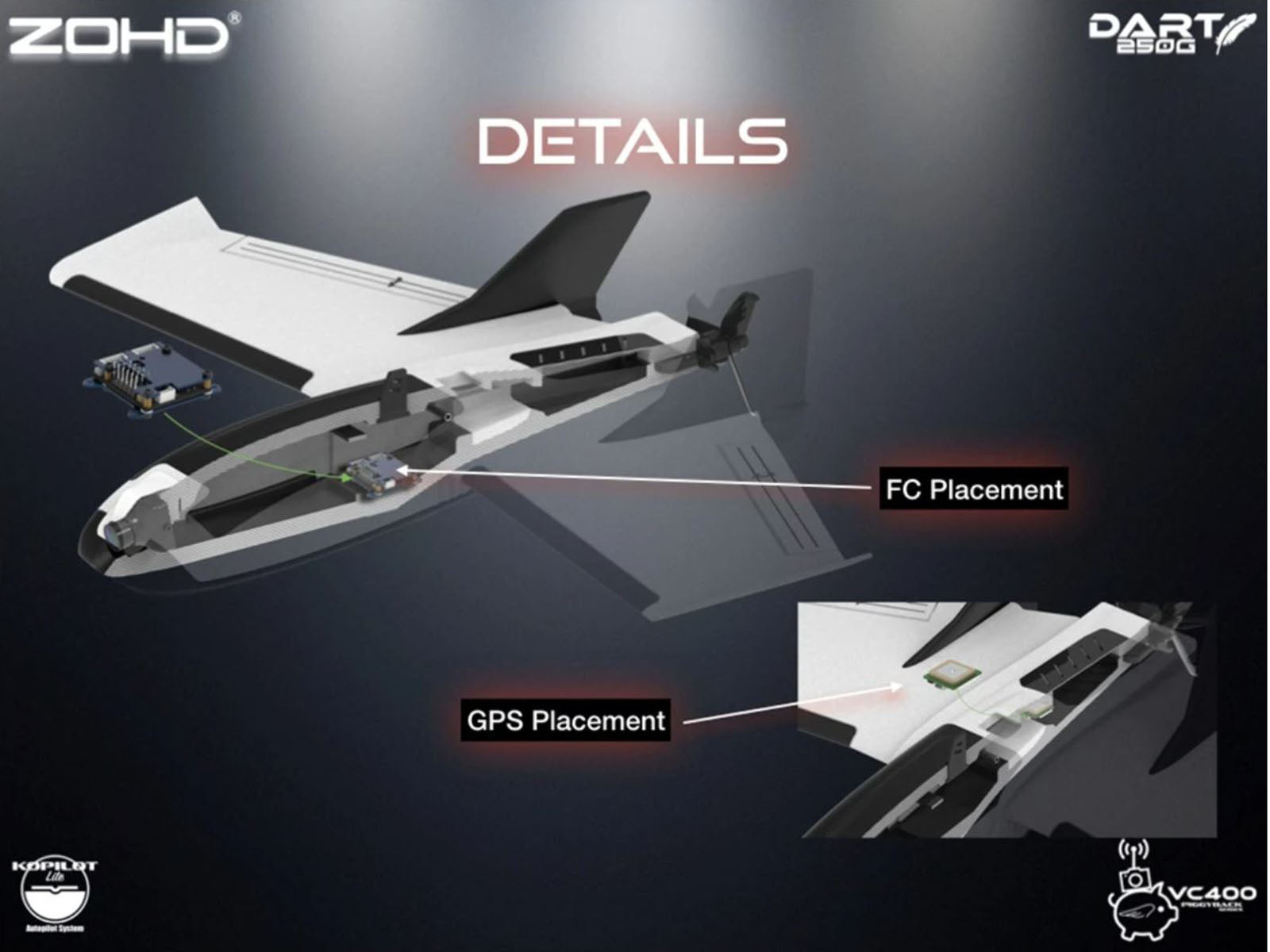

10. Dedicated equipment bay for Flight Controller and GPS

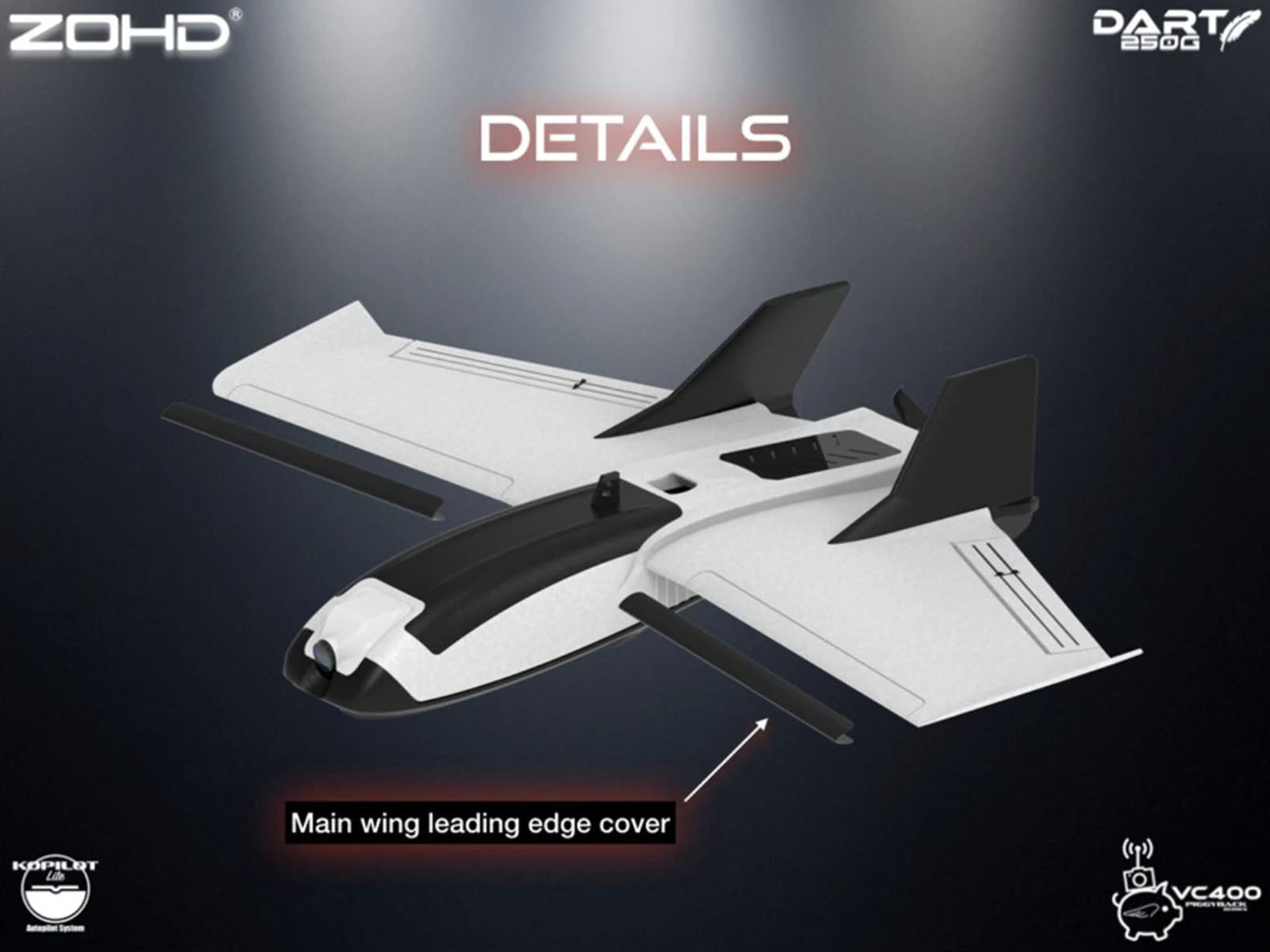

11. Main wing leading edge cover for those unexpected impacts
12. Textured areas on both side of the fuselage, for more secure hand launch grip

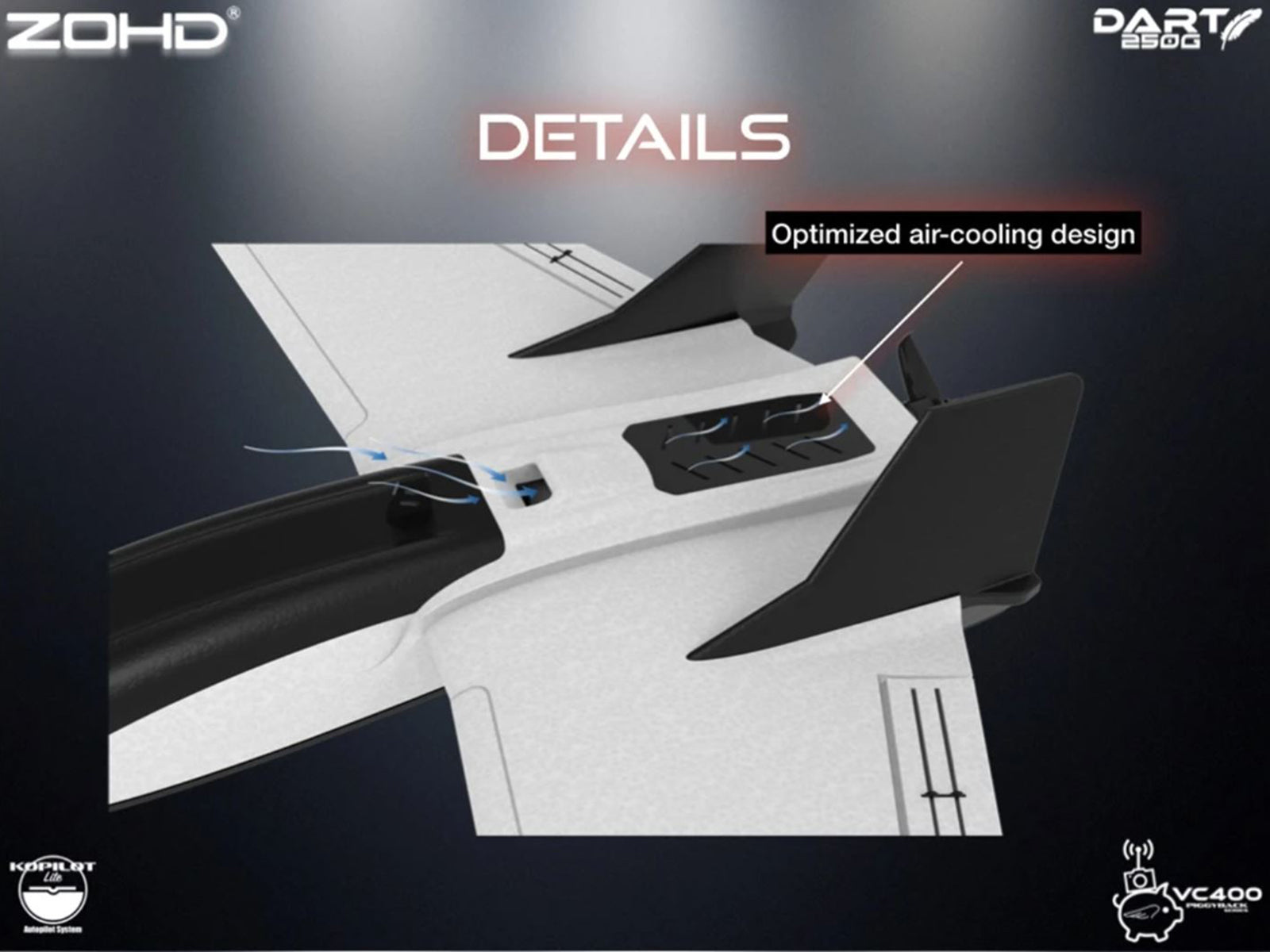

13. Optimized air-cooling design will keep your gear safe from overheating
Package Includes:
KIT Includes:
1 x Dart 250G plane KIT Unassembled with EPP foam and all hardware.
PNP Includes:
1 x Dart 250G plane PNP with pre-installed motor, esc, servos, propeller, hardware.
