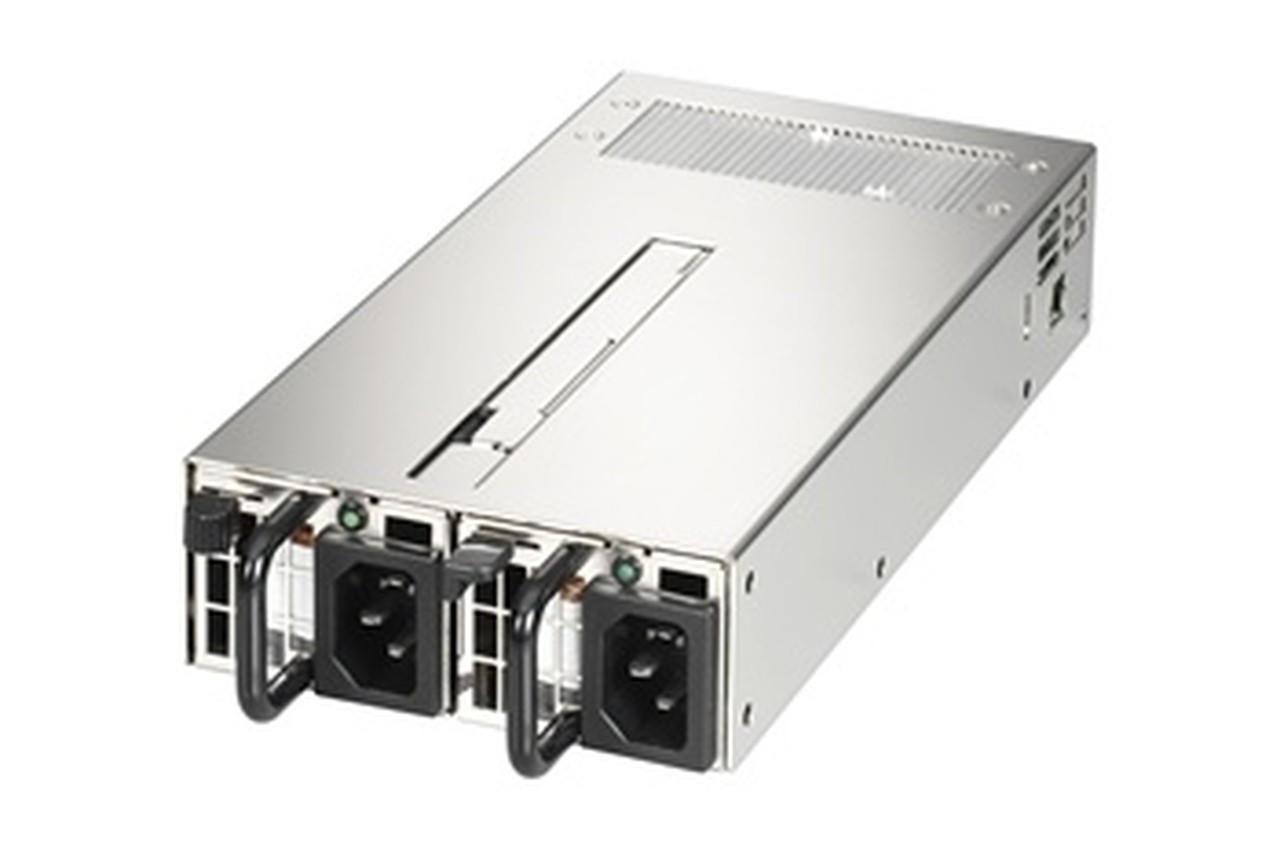

ZIPPY 1U REDUNTANT 120W PSU R1T2-5120V0H 215 X 106 X41.5 mm For Server

ZIPPY 1U REDUNTANT 120W PSU R1T2-5120V0H 215 X 106 X41.5 mm For Server

Hurry! 2 items left!

Price	$792.34
	Collect 2376 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/01/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

ZIPPY 1U REDUNTANT 120W PSU R1T2-5120V0H 215 X 106 X41.5 mm For Server FEATURES * TEMPERATURE RANGEï¼OPERATING 0ï½50, STORAGE -20~80 * HOLD UP TIMEï¼WHEN POWER SHUTDOWN DC OUTPUT 12V MUST BE MAINTAIN 17MSEC IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE * THE MAXIMUM POWER SUPPLY SYSTEM EFFICIENCY SHALL BE 86%, MEASURED AT NOMINAL INPUT VOLTAGE 230 V AND FULL LOADING(+12V:10A). * LEAKAGE CURRENT: 3.5 MA. MAX. AT NOMINAL VOLTAGE 250VAC * REMOTE ONOFF CONTROL * POWER GOOD SIGNALï¼ON DELAY 100mS TO 550mSï¼OFF DELAY 1Ms * OVER POWER PROTECTIONï¼110ï½150% MAX * OVER VOLTAGE PROTECTION: +5V5.7~6.5V, +3.3V3.7~4.1V, +12V12.8~15V * SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V, +5VSB * SAFETY: MEET UL&CUL, TUV, CCC * WARNING METHOD: AUDIO ALARM(BUZZER SOUND, RESETABLE), FALUT LED, TTL * THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. OUTPUT WATTAGE 120W BEST SOLUTION FOR Server DIMENSION 215x106x41.5(mm) 8.46x4.17x1.63(inch) INPUT SPEC VOLTAGEï¼ 90ï½264VAC FULL RANGE FREQUENCYï¼ 47ï½63HZ INPUT CURRENTï¼2A (RMS) FOR 115 VAC 1A (RMS) FOR 230 VAC INRUSH CURRENTï¼35A MAX. FOR 115 VAC PER MODULE 70A MAX. FOR 230 VAC PER MODULE DC OUTPUT SPEC Output Voltage Output Current Min. Output Current Max. Regulation Load Regulation Line Output Ripple & Noise Max.[P-P] +5V 0 10 ±5% ±1% 50mV +12V 2 10 ±5% ±1% 120mV +3.3V 0 10 ± 5% ±1% 50mV -12V 0 0.3 ±10% ± 1% 120mV +5VSB 0.1 3 ±5% ±1% 50mV

SKU: 51308
