3-Stage Planetary
The real 3-Stage Planetary enables differential,deceleration (growth),reversal,and more. The combined use of multiple groups of planetary wheel systems can achieve a very large speed ratio,which can achieve coaxial deceleration (growth).

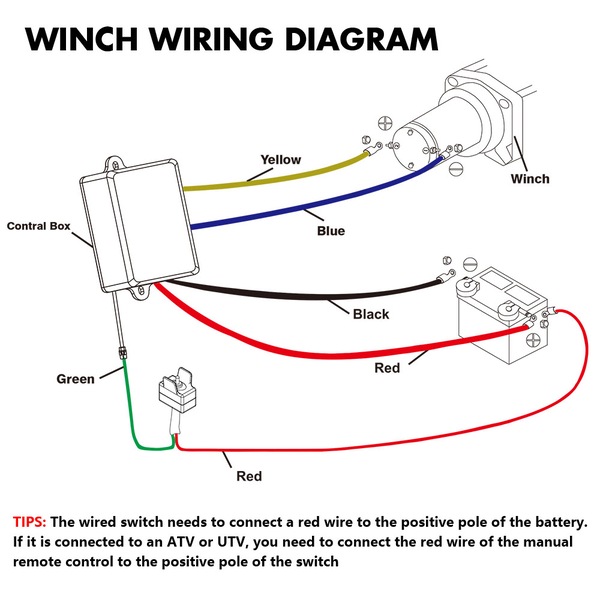

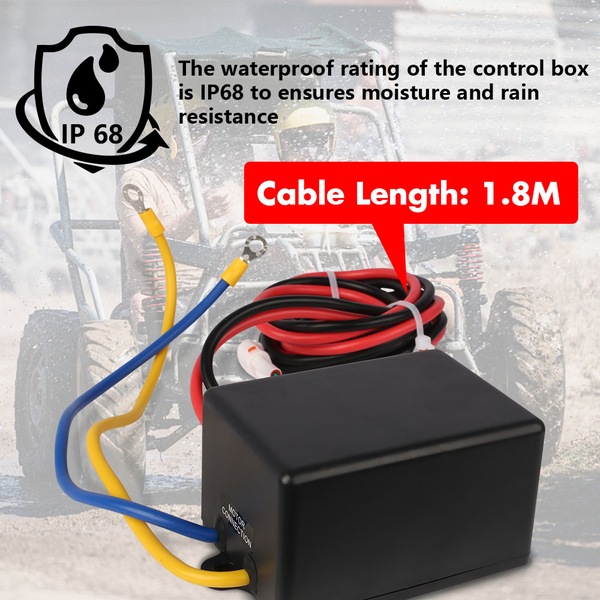

Control Box
Contact material agcdo ensures high current conduction provides. Protection on current, voltage and temperature.

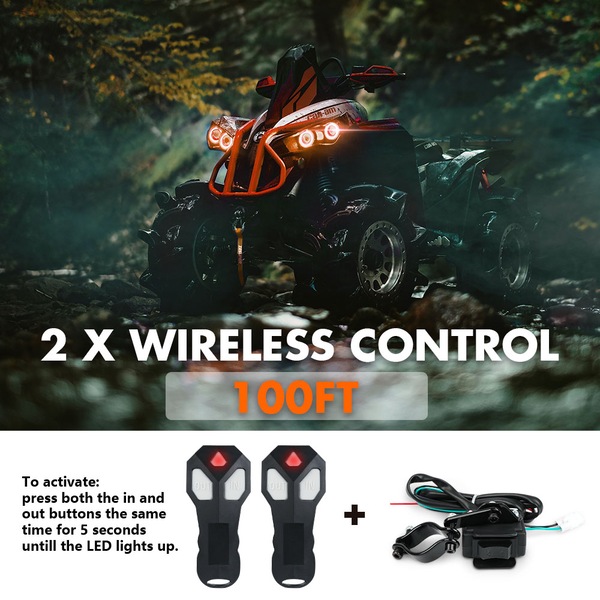

remote control
The winch is equipped with one hand switch and one wireless remote to ensure that the winch is installed on the vehicle and will not be affected by unexpected situations outdoors.

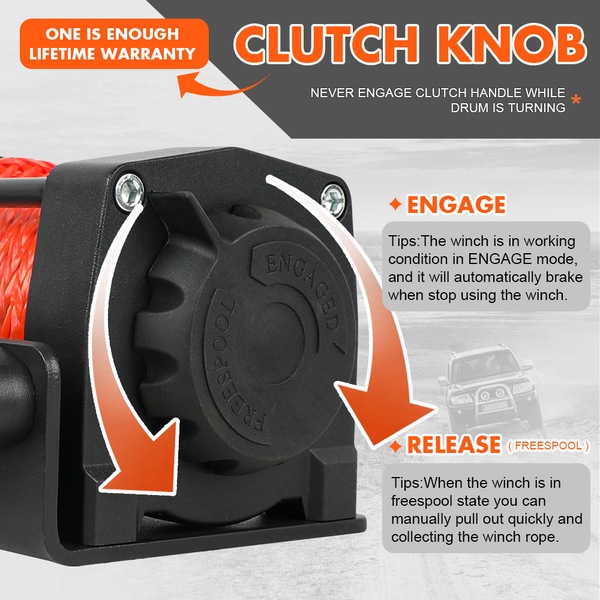

1.To engage the clutch, turn the Clutch Knob clockwise completely until it stops.
2.To release the clutch(freespool), turn the Clutch Knob counterclockwise completely until it stops.
Gear Ratio: 136:1
Sound Rating??85 dB
Hook: 1/4??Clevis, with Spring-oaded Safety Latch
Weight: 9kg
Power IN & Power OUT??Yes
Mounting Pattern: 3" x 4.88 (76.2mm x 124 mm)
Gear train: 3-Stage Planetary
Battery: 12VDC, Minimum 12 Ah
Application??ATV/UTV/BOAT
Fairlead??Roller with nylon bushings
Braking: Auto. Load Holding
Rated Single Line Pull: 3500LB(1588KG)
Wire Rope: 3/16"x 50 (4.8mm x 15.2m)
Drum (Dia. X L)??2?? X 2.9?? (50mm X 85mm)
Overall Dimensions(LXDXH):13.3" x4.25" x4.5"(338 x 108 x 114 mm)
1* 3500LBS Winch
1* Winch Mounting Plate
1* Hand Remote
1* Fairlead
1* Set of Bolts
1* User Manual
1* Control Box
1* Wireless Remote
4* Joint Protective Cap
