Xiaomi Mi Smart Laser Measure laser and measurements at a distance of up to 40m, 1.23-inch LCD screen with built-in battery [BHR5596GL]
3x

Xiaomi Mi Smart Laser Measure laser and measurements at a distance of up to 40m, 1.23-inch LCD screen with built-in battery [BHR5596GL]

Hurry! 18 items left!
Price
$69.26
Collect 207 Everyday Rewards points
Score 3x points on every order
Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply
Log in to MyDeal to link your card
Shipping
Unable to calculate delivery for , please Contact Us Delivery unavailable to Change

Quantity
Maximum item limit (18) has been reached.

Xiaomi Mi Smart Laser Measure laser and measurements at a distance of up to 40m, 1.23-inch LCD screen with built-in battery

Xiaomi Smart Laser Measure - Easy measurement anytime and anywhere
One-tap real-time measurement 3mm high precision Intelligent real-life measurement Synchronous storage of data
- ±3mm high precision measurement*
- 10 smart measurement functions in the Mi Home/Xiaomi Home app
- 3000 measurements when fully charged*
- 100000 industrial grade durability tests


Real time ranging to measure wherever you want
After a brief press to emit the laser, the length can be read in real time. The measure adoptes a precise and stable Class II laser*, which reaches the distance as close as 5cm and as far as 40m. Measure anything anytime.


Dual-emission with single receiver - Millimetre-level measurement precision
Equipped with a dual-emission single-receiving laser head. The complex procedures of Laser emission > Calibration > Data Display can be completed instantly. Data precision drops within ±3mm.
- Dual-emission single-receiving
- ±3mm laser precision*


Quick measurement with one hand in different scenarios
From large areas like a new home or a warehouse, to the door and window sizes, you can tap to see the results on the measure immediately.

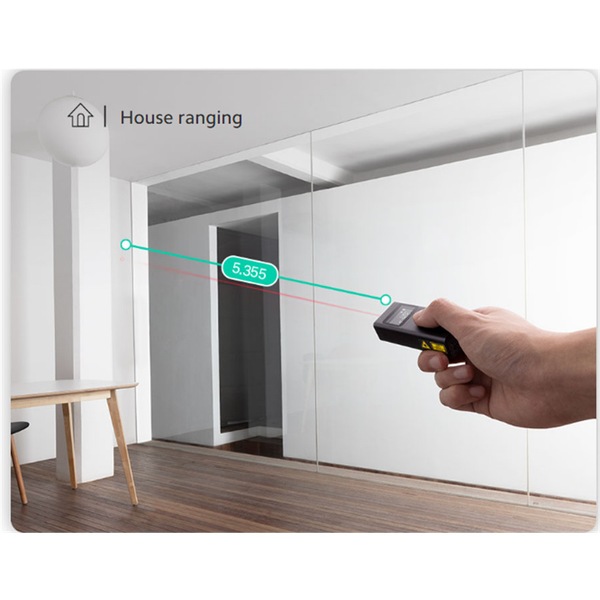

House ranging

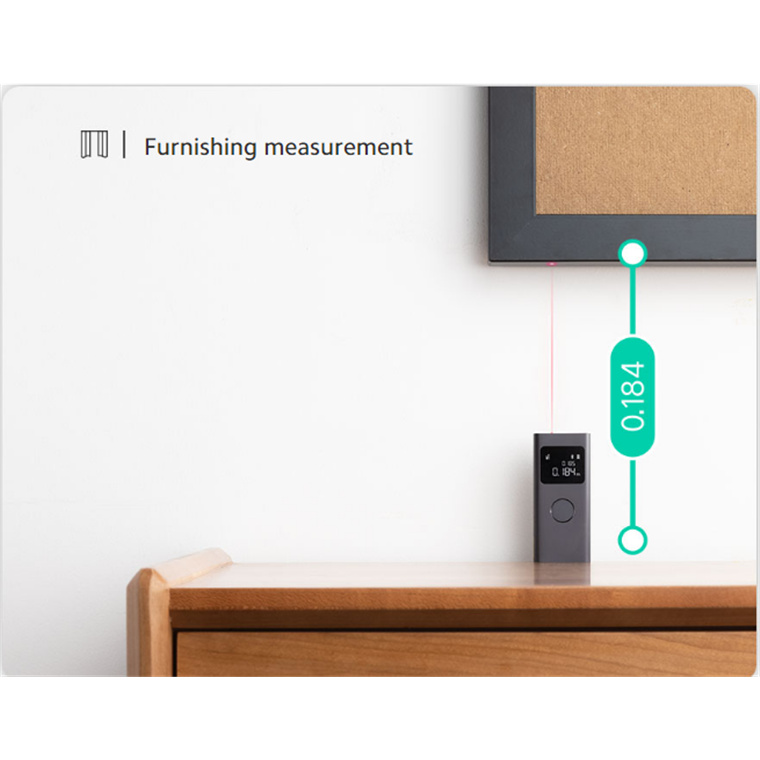

Furnishing measurement

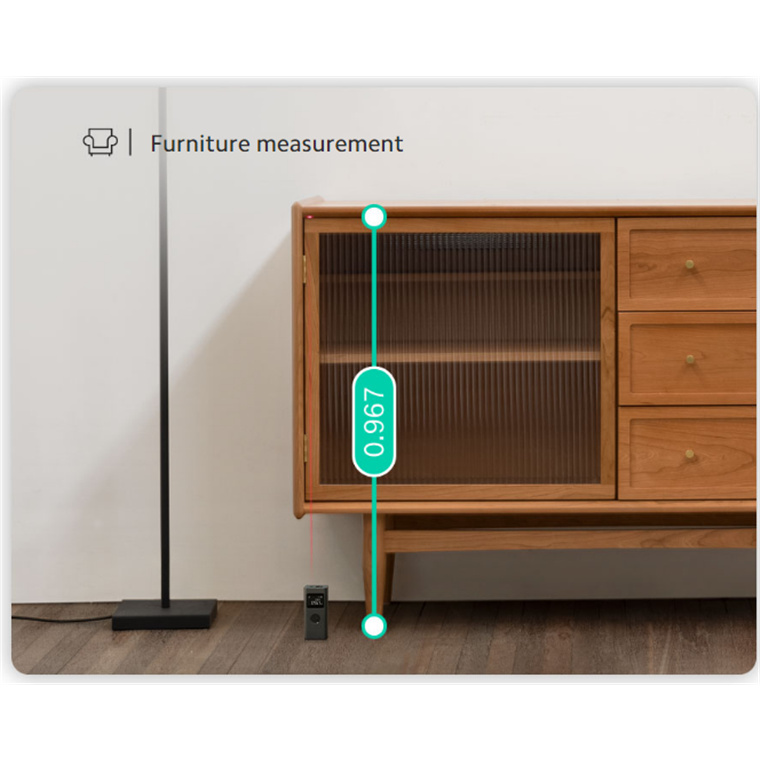

Furniture measurement

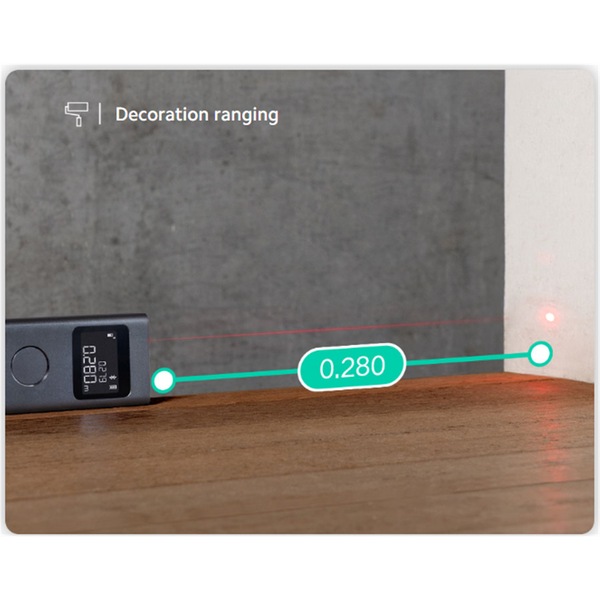

Decoration ranging


Expand the functions via the Mi Home/Xiaomi Home app
By connecting a smartphone via Bluetooth, you can link the laser measure with Mi Home/Xiaomi Home app to realise more functions such as data synchronisation/remarks, length/area/volume calculation, floor plan mapping, map sharing, and effect viewing.
*The Mi Home/Xiaomi Home app connected to the measure should be version 6.9.200 or higher. If the version is outdated, please upgrade it before use.
Floor plan with real-time mapping and surveying
You can draw the floor plan directly in Mi Home/Xiaomi Home app or draw and measure with photos. The measured data will be automatically marked to the selected line, and the app will intelligently adjust the line based on the data marked.
Remote control measurement with your smartphone
Your smartphone can be used as "a remote control for measuring distance" to remotely control the measure. It does a great help when the measure must be placed at a fixed point or cannot be meaure the super smooth plane, a narrow gap and or the vertical distance.
Easy calculation of area/volume/length
You can flexibly select existing length, width, and height data for the area and volume calculation, or simply add or subtract to calculate the length. Multidimensional scales are at hand.
Preview with home appliance recommendations
The innovative "See the Effect" function can intelligently recommend suitable home appliances according to the room size and display the effect in real scenes.

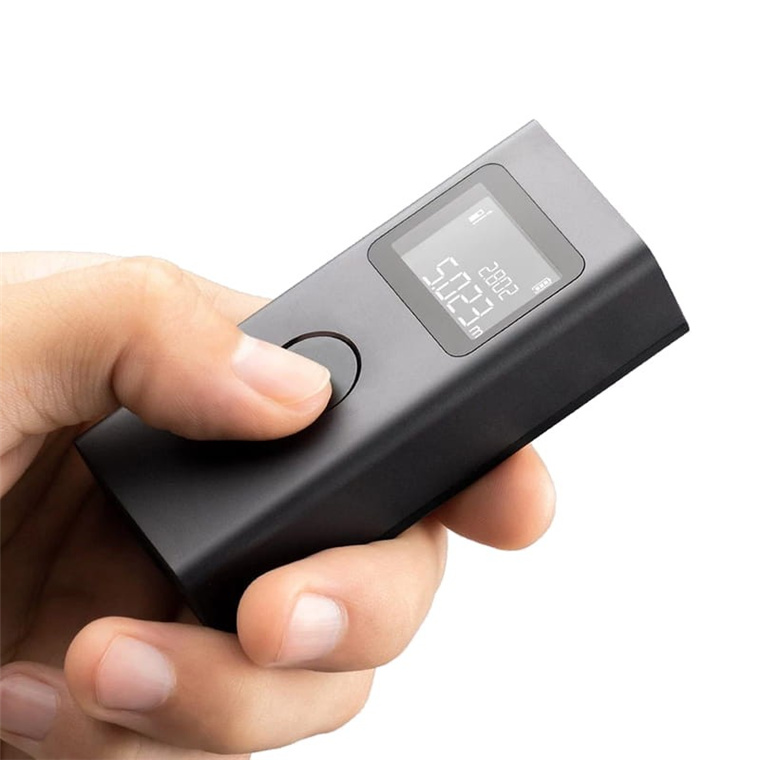

Single button design - Easy to operate with one button only
It only has one control button. Long press 2 seconds to start, short press to measure, and double tap to switch the front and back benchmarks. The single-button design makes it easy for you.
Xiaomi Smart Laser Measure
- Long press 2 seconds to turn on/off
- Short press to start/end recording measurement data
- Double tap to switch the front and back benchmarks

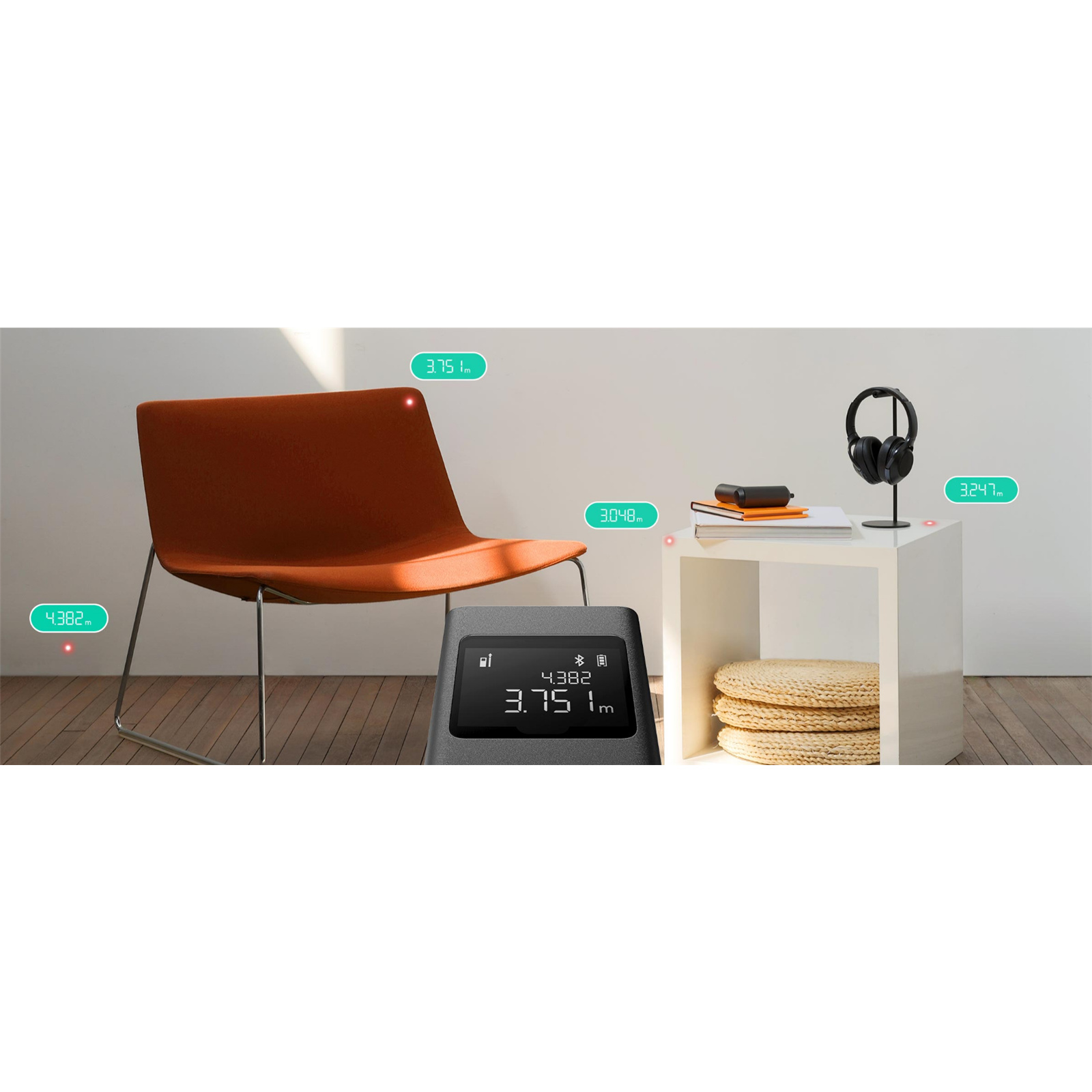

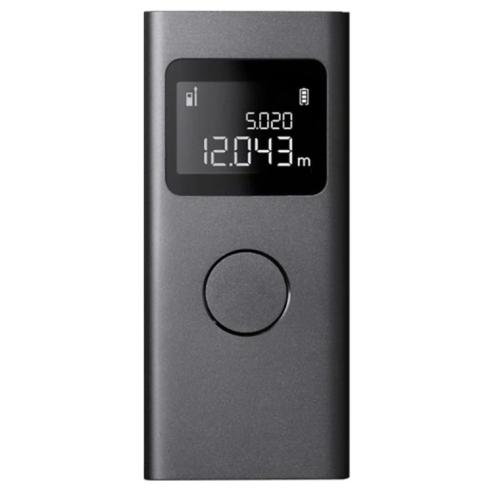

High brightness LCD display - Clear and easy
With the high brightness LCD display, the current measurement data, historical measurement data, measurement benchmark, measurement unit, battery status, and Bluetooth connection status are clear at a glance.


Dual matte finish - Wear and scratch resistance
Lightweight aluminium alloy with high-strength engineering plastics create a delicate matte appearance. Delicate matte texture surface with comfortable touch


Wireless lithium battery - Type-C port for easy charging - Long-lasting battery life
370mAh high-capacity lithium battery for measuring 3000 sets of data at full charge. Type-C charging port can share charger cable with other electronic devices like smartphone.


Notes:
*±3mm high-precision measurement: The measurement accuracy data is related to the actual measurement distance and can be calculated by the formula ±(3mm + 5 x 10 - 5 D*).
*The minimum of measurement range needs to be measured by the front-end benchmark.
*After fully charged, use the key tester to perform the "turn on + laser emission + measurement data + turn off" actions every 10 seconds, until there is no electricity. It can be cyclically tested 3000 times
*The Class II laser has slight radiation and will not cause permanent damage to the retina of the eyes, but please do not look directly into the beam.
*"D" represents the actual distance, indoor standard reflective surface environment. The measurement results may be inaccurate in harsh environments, such as strong sunlight, excessive environmental temperature fluctuation, weak reflection effect, and low battery power. In such cases, it is better to use the target reflector. There are other conditions that affect the measurement: the objective lens or laser tube is blocked by foreign objects; the measurement target is unclear, such as water glass and mirror; the laser jitters during measurement.
*All data referred to on this page, unless otherwise specified, is from the HOTO Laboratory. Data may vary or be inaccurate due to differences in the objective environment and other factors.

Product name

Xiaomi Smart Laser Measure

Product model

MJJGCJYD001QW

Measurement range

0.05*-40m

Measurement precision

±(3mm + 5 x 10-5 D*)

Minimum display unit

0.001m

Measurement unit

m

Laser type

The wavelength is 630-680nm

Lithium-ion battery

3.7V, 370mAh

Display

1.23-inch LCD screen

Bluetooth transmission distance

About 8m (without obstacles)

Standard implemented

GB 4793.1-2007, GB 7247.1-2012

Product dimensions

80 x 35 x 21mm

Product net weight

About 60g

Charging parameters

5V=1A

Operating power

0.7W (MAX.)

Charging time

About 100min

Automatic turn off time

180s

Automatic turn off laser time

180s

Operating temperature

-10°C-50°C

Storage temperature

-20°C-60°C

Storage humidity

20%-80%RH

CMIT ID

2021DP6853

Package contents

Laser measure x1
Charging cable x1
User manual x1
Warranty card x1
- MPN: BHR5596GL
GTIN: 6934177761218
