Main Features
Highlights
1, Allwinner H313 Quad Core ARM Cortex A53
2, GPU:G31 OPenGL3.2
3, Android 10.0 OS
4, Support H.265, 4K, HD 2.0, USB2.0
5, Support 100M Ethernet, 2.4GHz Wifi
6,Support Firmware Wireless Upgrade Function(OTA)
There are Two Options for X96Q Box:
A: 1GB+8GB+2.4GHz Wifi (No BT)
B: 2GB+16GB+2.4GHz Wifi (No BT)

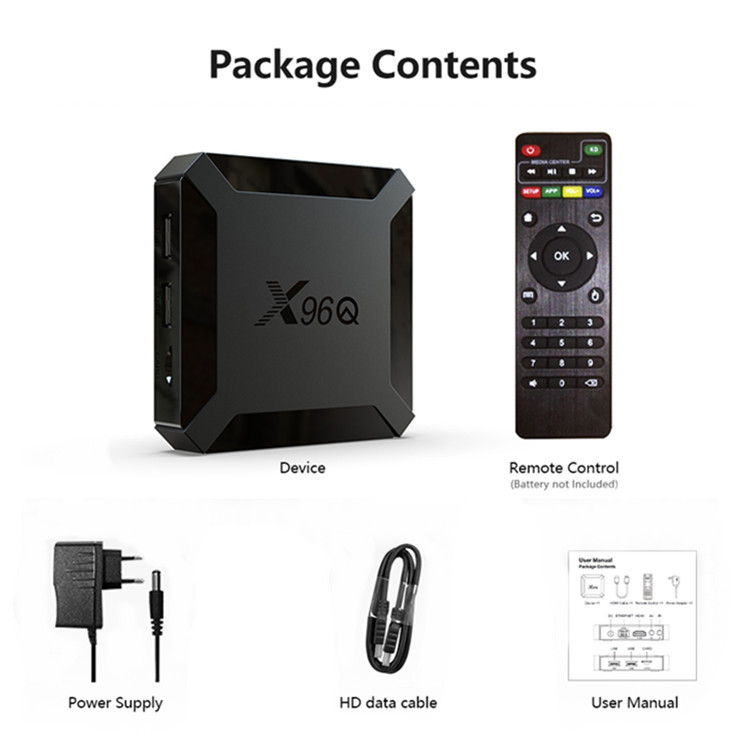

Packing List
? 1 X96Q TV box
? 1 remote control
? 1 x power supply
? 1 x HD cable
? 1 x user manual
Please choose the right power plug for your needs:

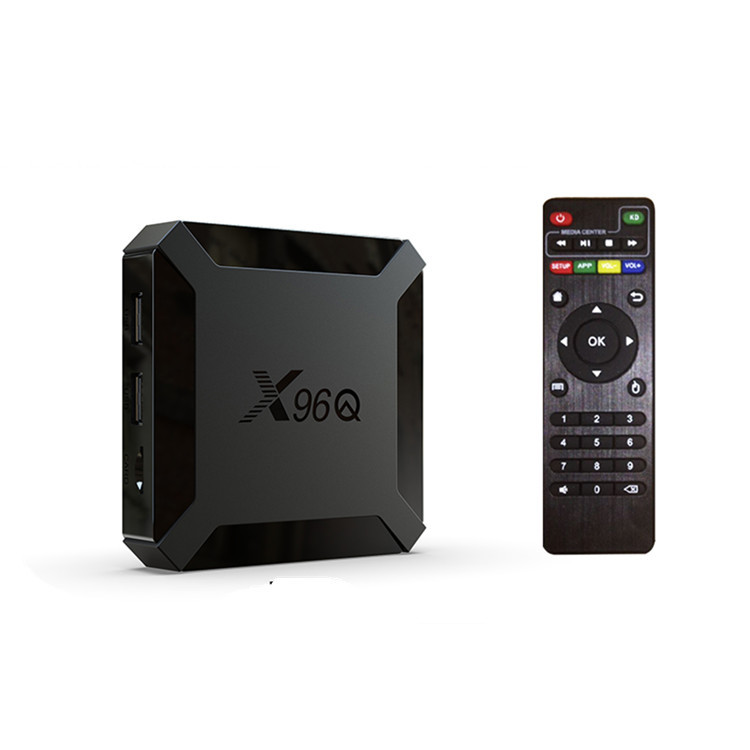

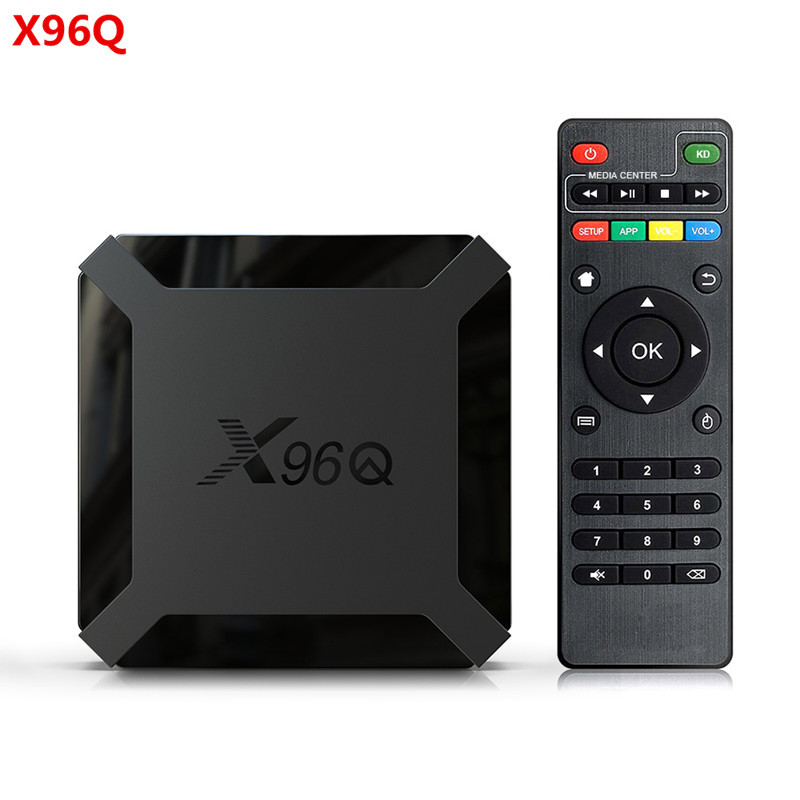

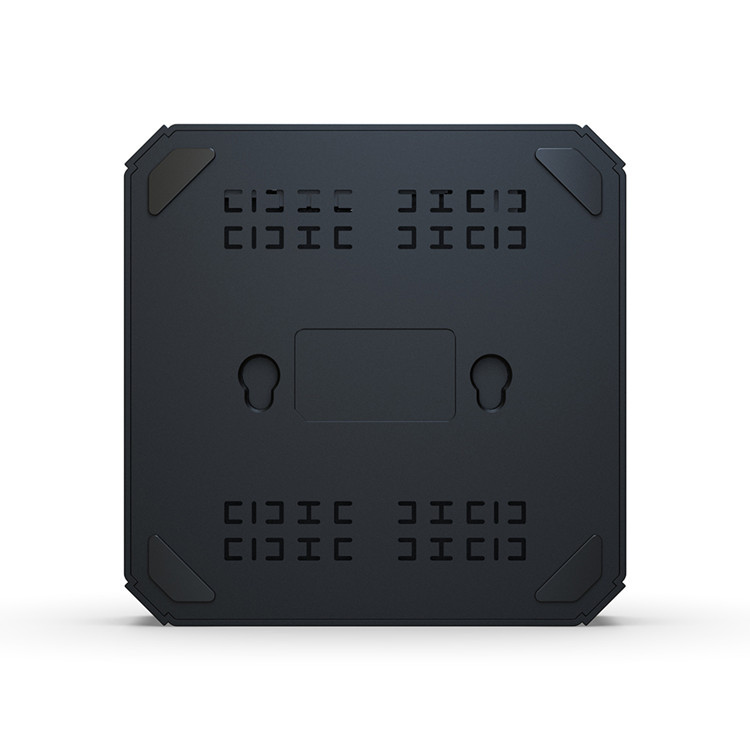

Photo explanation
Function & Features
X96Q (H313)
CPU
Allwinner H313 Quad Core ARM Cortex A53
GPU
G31 OPenGL ES3.2
Memory
DDR3��1GB (Option: 2GB)
Flash
eMMC��8GB (Option:16GB )
WiFi
IEEE 802.11 b/g/n
Moudle
Plastic : Black Color

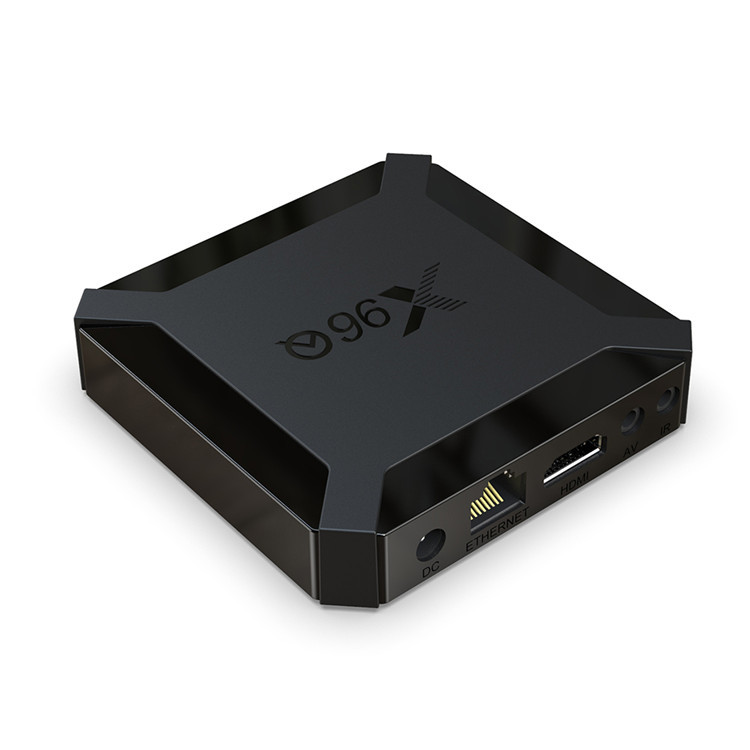

I/O
1xHDMI
4Kx2K UHD Output, HDMI 2.0A
1xAV OUT
480i/576i standard definition output
2xUSB
1x USB Host Port ,1xUSB Device
1xIR Reciver
Remote Reciver Connect
1xRJ45
Ethernet Interface
1xTF CARD
Support 4GB/8GB/16GB/32GB/64GB
Power
DC 5V/2A��LED indicator��Working ��Blue; Standby��Red
Software
OS
Android 10.0
Video
? Supports video decoding up to 4K@60fps
? Supports multi-formats:
- H.265 Main10@L5.1 up to 4K@60fps
- VP9 Profile 2 up to 4K@30fps
- AVS2 JiZhun 10bit Profile up to 4K@30fps
- H.264 BP/MP/HP@L4.2 up to 4K@30fps
- H.263 BP up to 1080p@60fps
- MPEG-4 SP/ASP@L5 up to 1080p@60fps
- MPEG-2 MP/HL up to 1080p@60fps
- MPEG-1 MP/HL up to 1080p@60fps
- Xvid up to 1080p@60fps
- Sorenson Spark up to 1080p@60fps
- VP8 up to 1080p@60fps
- AVS/AVS+ JiZhun Profile up to 1080p@60fps
- WMV9/VC1 SP/MP/AP up to 1080p@60fps
- JPEG HFIF file format up to 45MPPS
H.264 BP/MP/HP
? H.264 supports I/P frame, and only supports single reference frame
? MJPEG/JPEG baseline
? Maximum 16-megapixel(4096 x 4096) resolution for H.264 encoding
? H.264 encoding capability: 1080p@60fps
? JPEG snapshot performance of 1080p@60fps independently
? Supports the constant bit rate(CBR)ariable bit rate(VBR) bit rate control mode, ranging from 256kbit/s to
100Mbit/s
? Encoding of eight regions of interest(ROIs)
Audio
Supports MP3, AAC, WMA, RM, FLAC, Ogg
Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output
? Two DAC channels
? Supports 1 audio output interface (differential LINEOUTP/N or single-end LINEOUTL/LINEOUTR)
? One Audio HUB, supporting internal mixing function
? Embedded 3 I2S/PCM (I2S0 for extended audio codec, I2S2 for BT, I2S3 for digital power amplifier)
? Supports Left-justified, Right-justified, Standard I2S mode, PCM mode, and TDM mode
? I2S mode supports 8 channels, and 32-bit/192kbit sample rate
? I2S and TDM modes support maximum 16 channels, and 32-bit/96kbit sample rate
? One OWA OUT interface, supporting 16-/20-/24-bit inputs and outputs
? Integrated digital microphone(DMIC), supporting maximum 8 digital PDM microphones
HD JPEG��BMP��GIF��PNG��TIF
Language
English French German Spanish Italian etc multilateral languages
If you choose TV BOX + I8, your package will include the 2.4GHZ keyboard below.
Main Features
- 2.4GHz wireless connection, smart and portable size
- To enjoy PC multi-media entertainment at home
- Multi-media remote control and touchpad functional handheld keyboard
- Touchpad DPI adjustable functions
- Built-in intelligent power manage software for power conservation
- To share large TV and projector screen
- Ergonomic design, Perfect shape
- Comparable to the real notebook touchpad
- Touchpad:This product was added to the innovative function of the mouse wheel, when you press the Fn button with your fingers touch anywhere in the sliding region, can facilitate the realization of the mouse wheel functions
NOTE: Work with AAA battery (Battery is not included)
Package List
1 x Mini wireless Backlit keyboard
1 x Wireless receiver
1 x User manua
If you choose TV BOX + MT1, your package will include the Backlit voice remote control below.
Basic Functions:
?The 2.4G keypad function
?The Infrared keyboard function
?The 360 degree Non-directional remote control
? The Voice control function
?The Infrared learning function(you can learn it through the ��power�� button)
?LED backlight function
Notes:
1��Please ensure the energy of battery is adequate, when the battery low, the sensitivity of the air mouse will under the influence or the air mouse will unusable
2��Use distance: the real use distance of the air mouse will influenced by the using surroundings, please ensure the receiver will not shelter from metal object or disturb by other electronic equipment.
3) Only power button can be programmed for IR learning.If you use the Voice remote control on android tv box. Please install "google assitant"
Package list:
1 x MT1 Voice Control Airmouse
1 x USB Dongle
1 x User manua
Buy TV BOX + MT12 voice remote control, your package will include the voice remote contro below
Basic Functions:
?The 2.4G keypad function
?The Infrared keyboard function
?The 360 degree Non-directional remote control
? The Voice control function
?The Infrared learning function(you can learn it through the ��power�� button)
Notes:
1��Please ensure the energy of battery is adequate, when the battery low, the sensitivity of the air mouse will under the influence or the air mouse will unusable
2��Use distance: the real use distance of the air mouse will influenced by the using surroundings, please ensure the receiver will not shelter from metal object or disturb by other electronic equipment.
3) Only power button can be programmed for IR learning.If you use the Voice remote control on android tv box. Please install "google assitant"
Package list:
1 x MT12 Voice Control Airmouse
1 x USB Dongle
1 x User manua
