Color Management for Imaging and Prepress
Equipped with industry-leading technology, the i1Pro 3 delivers more accurate and reliable results than any other device in its category and is two times faster than its predecessor.
For designers, photographers, or prepress professionals who rely on accurate color throughout a digital workflow, the i1Publish Pro 3 is the must-have solution to profile and calibrate cameras, monitors, projectors, scanners, and both RGB and CMYK+ printers. Get the most color accurate displays, prints and proofs, with repeatable results every time.
Accommodating a broad range of proficiencies and expertise, i1Publish Pro 3 Plus provides complete power and control to create the highest quality ICC profiles. Choose between a basic, wizard-driven interface, or an advanced user-driven interface to create high quality, precise, custom color profiles.
Benefits:
- Offers a custom, full-spectrum LED light source, which allows for single-pass scanning and improves device reliability and accuracy.
- Measures M0, M1, and M2 simultaneously in a single-pass, cutting scanning time in half.
- Reads smaller patches than the i1Pro 2 with improved accuracy.
- Features an ergonomic design for easy cleaning and accurate measurements.
- Benefit from perfect printed colors every time with RGB, CMYK and CMYK + any 4 with intelligent iterative profiling technology for best quality results and advanced controls for black generation and separations.
- Provides real-time user feedback to ensure accurate measurement position and a self-check tool to adjust and correct minor shifts.

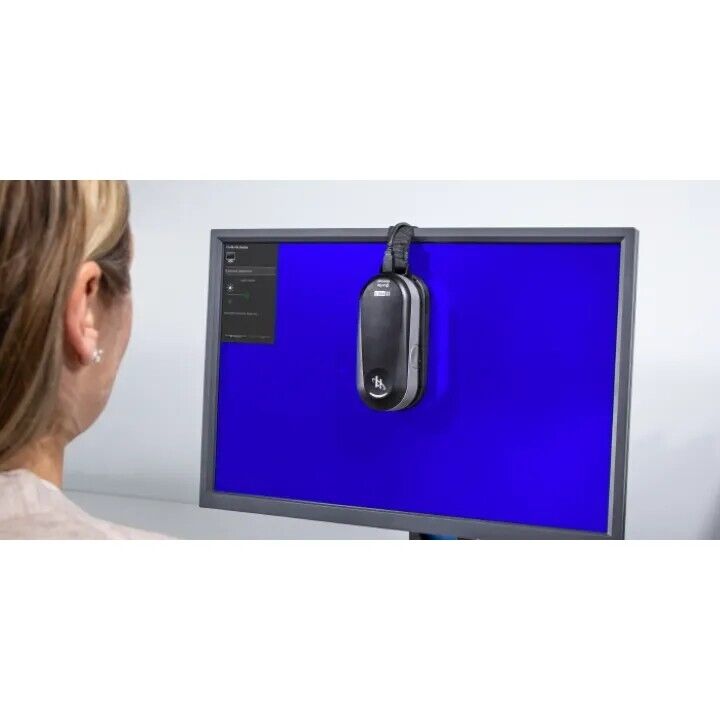

- Achieve true colors on all modern laptop and desktop display technologies, such as LED, Plasma, RG Phosphor, OLED and Wide Gamut up to 5000 NITs.
- Quickly check color output quality with the ColorChecker Proof visual assessment target, included with i1Publish.

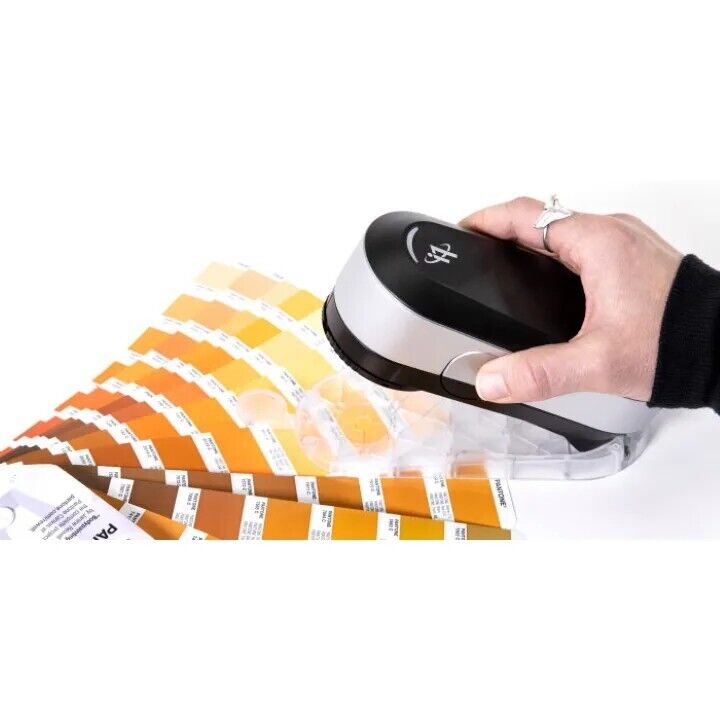

- Capture spot colors off virtually any surface - ideal for creative design or corporate brand requirements* - and keep your PANTONE libraries up-to-date, accurate and ready to use in Adobe(R) and
- Quark(R) creative applications with PANTONE Color Manager for color palette creation and swatch bridging software.

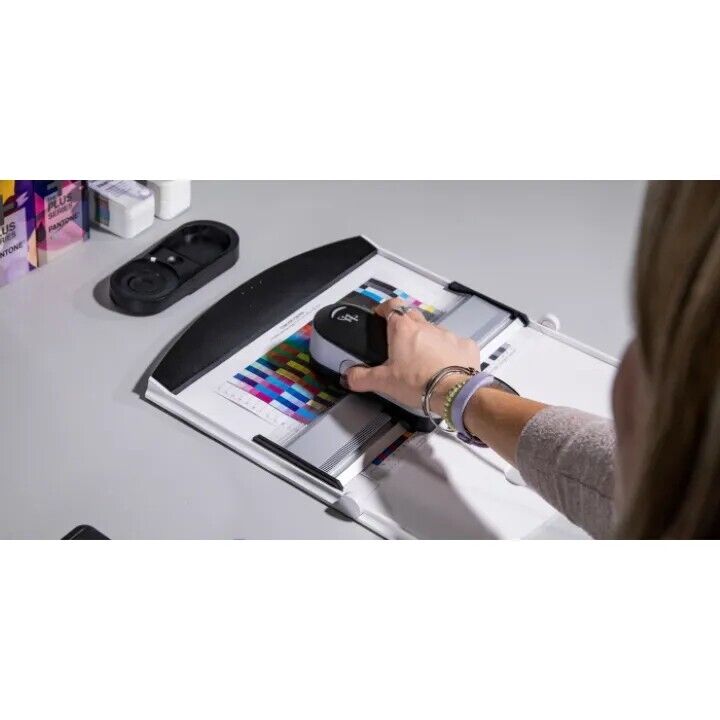

- Optimizes automated file creation in less time and material waste during production when combined with the i1iO Generation 3 automated scanning table.
1Publish Pro 3 also includes many display and printer profiling and quality assurance functions. When printing CMYK, take advantage of device link profiling to optimize CMYK files across various devices, preserving the black channel and inks. When it's time to repurpose multiple CMYK files, device link profiles ensure reliable color. For an even more controlled and accurate color workflow, i1Publish Pro 3 also includes X-Rite's ColorChecker Camera Calibration software and ColorChecker target for producing custom camera profiles. It also includes PANTONE Color Manager software for easy capture and management of spot colors, keeping PANTONE libraries up to date with color palette creation and swatch bridging software.
Specifications:
- Aperture: Measurement aperture: 4.5 mm (0.18 Inch) diameter (effective measurement aperture during scanning is depending on the patch size and measurement speed)
- Available Disk Space: 2GB
- Calibration: Manual on external ceramic white reference (included)
- Communication Interface: USB 1.1
- Connectivity: Powered USB port
- Dimensions (length, width, height): i1Pro device: 162 mm x 69 mm x 64 mm (6.4 Inch x 2.7 Inch x 2.5 Inch)
- Display Resolution: 1024x768 pixels or higher
- Experience Level: Intermediate to Advanced
- Humidity: 30 to 85% RH (non-condensing)
- Illumination Spot Size: 3 mm (0.12 Inch)
- Inter-Instrument Agreement: 0.3 dE00 avg, 0.8 dE00 max (deviation from X-Rite manufacturing standard at a temperature of 23oC (73.4oF) on 12 BCRA tiles (D50, 2o))
- Internet Connection: Required for software install, download and automatic update
- Languages Supported: Chinese (Simplified), English, French, German, Italian, Japanese, Korean, Portuguese, Spanish
- Light Source: i1Pro3 Plus LED Illumination (including UV)
- Macintosh: MacOS X 10.11x, 10.12x, 10.13x, 10.15 (with latest upgrades installed)
- Measurement Conditions: M0 - UV included - ISO 13655:2017* M1 - D50 - ISO 13655:2017 * M2 - UV excluded Filter - ISO 13655:2017
- Measurement Frequency in Scanning Mode: 400 measurements per second
- Measurement Geometry: 45o/0o ring illumination optics, ISO 13655:2017
- Media Thickness: 1mm or less
- Memory: 2GB Minimum
- Number of Displays Supported per Workstation: Up to 4
- Operating Temperature Range: 10oC to 35oC50oF to 95oF
- Patch Size: Minimal Patch Size in Scanning Mode: 7 x 7 mm (0.28 Inch x 0.28 Inch) (Width x Height) with sensor ruler 10 x 7 mm (0.40 Inch x 0.28 Inch) (Width x Height) without sensor ruler
- Photometric Range: 10nm; Sampling interval 3.5nm
- Processor: MAC: Intel(R) Core 2 Duo CPU or better; WINDOWS: Intel(R) Core 2 Duo or AMD Athlon(TM) XP or better
- Scan Length: Maximum 260mm (10.24 Inch)
- Scanner Target Support: Yes
- Scanning Capability: Yes
- Security: User must have Administrator rights to install and uninstall the application
- Short Term Repeatability - White: 0.05 dE00 on white (D50,2o, mean of 10 measurements every 3 seconds on white)
- Single Pass Scan: Yes
- Software Development Kit: Available for OEM customers
- Software Modes: Basic & Advanced
- Spectral Analyzer: i1(R) technology with built-in wavelengths c...
