X-Rite I1Basic Pro 3 Spectral Color Accuracy Display Measurement Tool EO3BAS

X-Rite I1Basic Pro 3 Spectral Color Accuracy Display Measurement Tool EO3BAS

Be the first to review this product

Price	$4001.40
	Collect 12003 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	See delivery details

Quantity

Add to wishlist

X-Rite i1Basic Pro 3 is an affordable, professional-level spectral color measurement solution including display and projector profiling and print quality assurance.

Product Features
Leading the Market in Color Profiling Solutions Designed for imaging professionals who rely on accurate color for their displays and projectors who want to track and verify monitor and print quality and who need to capture spot color measurement, the i1Basic Pro 3 is the answer.

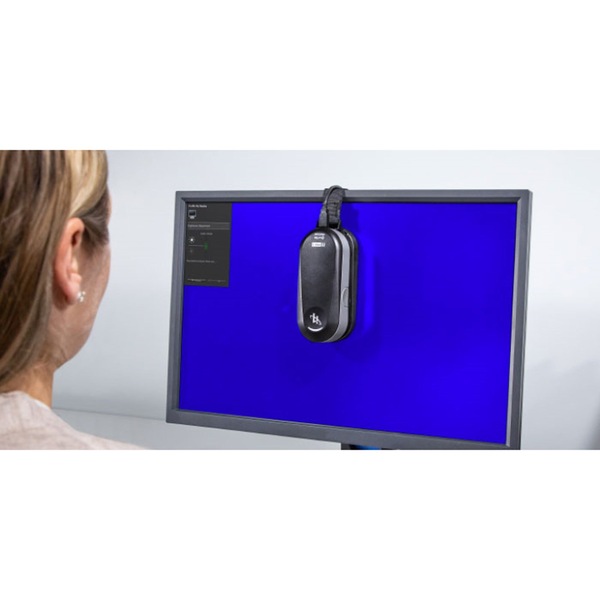

The i1Basic Pro 3 calibrates and matches up to four displays connected to a single computer and unlimited displays connected to different computers for consistent viewing.

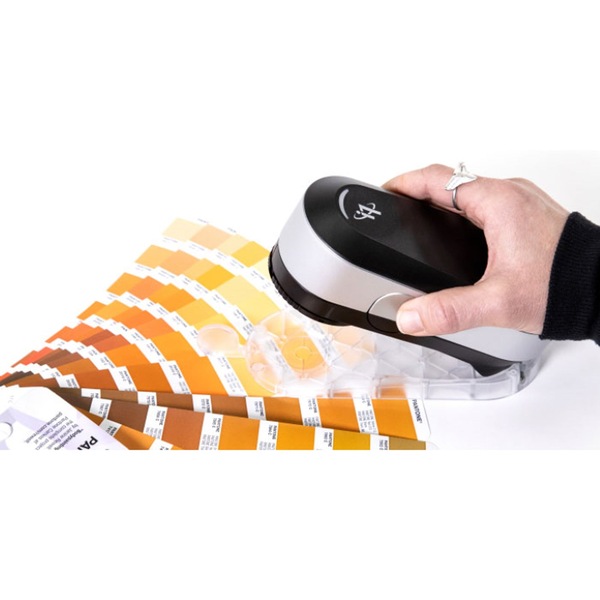

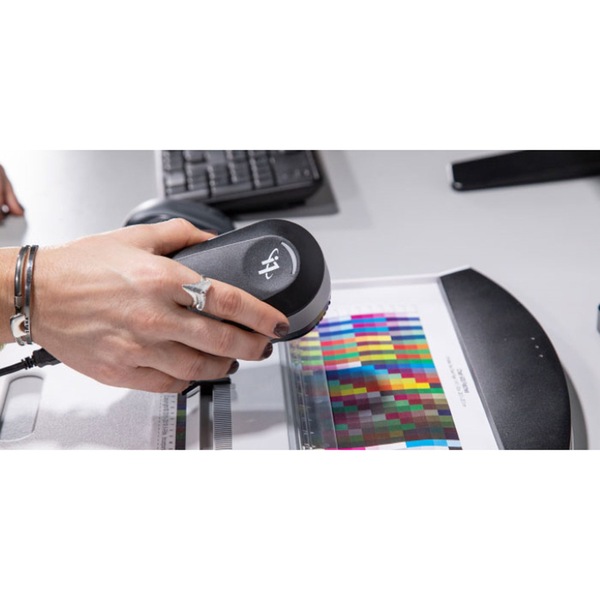

With the i1Basic Pro 3, you can quickly and easily create custom monitor and projector profiles that ensure the colors you view are true, verify soft proofs and print quality with built-in Quality Assurance (QA) tools, and easily capture and manage spot colors.
Benefits:
Offers a custom, full-spectrum LED light source, which allows for single-pass scanning and improves device reliability and accuracy. Measures M0, M1, and M2 simultaneously in a single-pass, cutting scanning time in half. Features an ergonomic design for easy cleaning and accurate measurements. Reads smaller patches than the i1Pro 2 with improved accuracy. Provides real-time user feedback to ensure accurate measurement position and a self-check tool to adjust and correct minor shifts. PANTONE Color Manager software enables accurate capture and management of spot colors and helps users build palettes of best match PANTONE colors that are auto-extracted from their own images. Includes download link for i1Profiler software featuring basic and advanced modes for professionally calibrated and profiled monitors (including presets for video production workflows), projectors and scanners. Support for measuring high brightness displays (up to 5000nits), improve emissive measurement, resulting in the best possible calibration and profiling of monitors and projectors. Easy upgrade to i1Publish software to add complete printer (RGB, CMYK, CMYK + any four) profiling and quality control functionality, and camera profiling capabilities. Easy transfer of licenses from i1Photo Pro 2 and i1Publish Pro 2. Optimizes automated file creation in less time and material waste during production when combined with the i1iO Generation 3 automated scanning table. Built upon the success of X-Rite's i1Pro 2 spectrophotometer as the de facto industry standard for more than a decade, i1Pro 3 features the next generation of industry-leading technology delivering increased accuracy, ease of use and an expanded professional-level feature set including the latest developments in ISO standardization. The i1Pro 3 is equipped with the X-Rite Graphic Arts Standard (XRGA) to make it faster and easier for companies and professionals involved in digital production printing to adhere to ISO standards and have confidence that data sent or received from all links in the supply chain are reliable and repeatable, reducing waste and rework. It provides real-time user feedback to ensure accurate measurement and a self-check tool that adjusts and corrects for minor shifts.

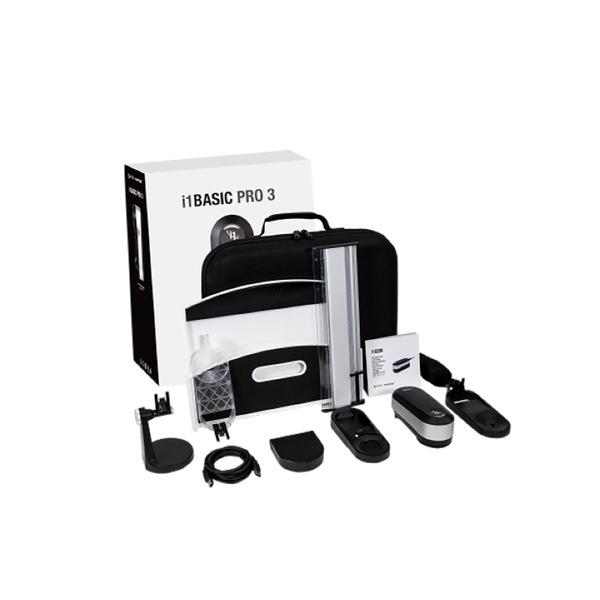

i1Basic Pro 3 includes the i1Pro 3 Spectrophotometer; i1Profiler Software; PANTONE Color Manager Software; and robust i1 accessories (Ambient Light Measurement Head, Monitor Holder, Scanning Ruler, Backup Board, Spot Color Positioning Target, Soft Carrying Case).

Specifications
Aperture: Measurement aperture: 4.5 mm (0.18") diameter (effective measurement aperture during scanning is depending on the patch size and measurement speed)
Available Disk Space: 2GB
Calibration: Manual on external ceramic white reference (included)
Communication Interface: USB 1.1
Connectivity: Powered USB port
Dimensions (length, width, height): i1Pro device: 162 mm x 69 mm x 64 mm (6.4" x 2.7" x 2.5")
Display Resolution: 1024x768 pixels or higher
Experience Level: Intermediate to Advanced
Humidity: 30 to 85% RH (non-condensing)
Illumination Spot Size: 3 mm (0.12")
Inter-Instrument Agreement: 0.3 E00* average, 0.8 E00* max. (deviation from X-Rite manufacturing standard at a temperature of 23oC (73.4oF) on 12 BCRA tiles (D50, 2o))
Internet Connection: Required for software install, download and automatic update
Languages Supported: Chinese (Simplified), English, French, German, Italian, Japanese, Korean, Portuguese, Spanish
Light Source: i1Pro3 Plus LED Illumination (including UV)
Macintosh: MacOS X 10.11x, 10.12x, 10.13x, 10.15 (with latest upgrades installed)
Measurement Conditions: M0 - UV included - ISO 13655:2017 * M1 - D50 - ISO 13655:2017 * M2 - UV excluded Filter - ISO 13655:2017
Measurement Frequency in Scanning Mode: 400 measurements per second
Measurement Geometry: 45o/0o ring illumination optics, ISO 13655:2017
Media Thickness: 1mm or less
Memory: 2GB Minimum
Number of Displays Supported per Workstation: Up to 4
Operating Temperature Range: 10oC to 35oC 50oF to 95oF
Patch Size: Minimal Patch Size in Scanning Mode: 7 x 7 mm (0.28" x 0.28") (Width x Height) with sensor ruler 10 x 7 mm (0.40" x 0.28") (Width x Height) without sensor ruler
Photometric Range: 10nm; Sampling interval 3.5nm
Processor: MAC: Intel(R) Core 2 Duo CPU or better; WINDOWS: Intel(R) Core 2 Duo or AMD Athlon(TM) XP or better
Scan Length: Maximum 260mm (10.24")
Scanner Target Support: Yes
Scanning Capability: Yes
Security: User must have Administrator rights to install and uninstall the application
Short Term Repeatability - White
0.05 dE00 on white (D50,2o, mean of 10 measurements every 3 seconds on white)
Single Pass Scan: Yes
Software Development Kit: Available for OEM customers
Software Modes: Basic & Advance...

GTIN: 7640111923107
