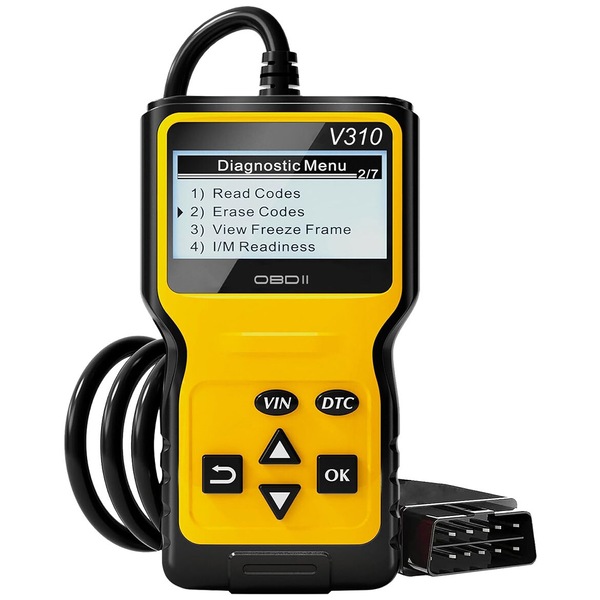

Wired Diagnostic Scanner V310 Car OBD2 Code Reader Check Engine Light Fault Scan Tool 12V

The Wired Diagnostic Scanner V310 is a budget-friendly OBD2 code reader that helps you quickly diagnose and clear check engine light issues. It offers accurate fault codes, real-time data, and a user-friendly design with an LCD and a built-in DTC library. Ideal for OBD II-compliant vehicles, the V310 saves time and money by allowing you to troubleshoot problems yourself.

• Read/Clear Fault Codes
  • Helps you identify why the check engine light is on, read and clear engine fault codes in seconds. Turn off the check engine light MIL, and reset the monitors.
• Accurate Diagnosis
  • Quickly scan the engine system in seconds so you know exactly what's wrong, reading and clearing stored pending codes.
• Save Money
  • Dealerships and Mechanics charge just to tell you what's wrong, but with your own scan tool, you can diagnose issues yourself, saving diagnostic fees.
• Multi-Function
  • Not only read and clear codes but you can also view freeze frame, I/M readiness, vehicle information, data stream, real-time curve, get vehicle speed information, calculate load value, engine coolant temperature, get engine RPM.
• DTC Button
  • With Built-in OBD2 DTC lookup library, which helps you determine the cause of the engine light.
• VIN Button
  • Allows you to scan a vehicle's identification number to access important vehicle information, which offers help and convenience to users for repair or parts replacement.
• LCD Display
  • Designed with a clear display LCD screen, white backlight and contrast adjustment.
• User Friendly Design
  • The 6 hotkeys can totally control the whole car diagnostic scanner operation; No battery or battery chager is required, OBD reader gets the power directly from your vehicle through the OBDII Data Link Connector.
• For OBD II Compliant Vehicles
• Wide Compatibility
  • Supports 9 OBD II protocols.
  1. SAE J1850 PWM (41.6Kbaud)
  2. SAE J1850 VPW (10.4Kbaud)
  3. ISO9141-2 (5 baud init, 10.4Kbaud)
  4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
  5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
  6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
  7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
  8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
  9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
• ABS / Airbag codes NOT Supported
  • It can read and clear check engine information which is part of the OBDII system, but it cannot work with non-OBDII systems, including ABS / Airbag / Oil Service Light, etc.

• Model Number: V310
• Display: Backlit, 128 * 64-pixel display
• Working temperature: 0~60℃ (32~140℉) S
• Storage temperature: -20~70℃ (-4~158℉)
• Power supply: 12V
• Product Size: Length: 155mm, Width: 85mm, Height: 25mm
• Cable Length: 1 metre
• Weight: 0.198Kg (0.431b)
• Package Size: 258 X 175 X 62mm

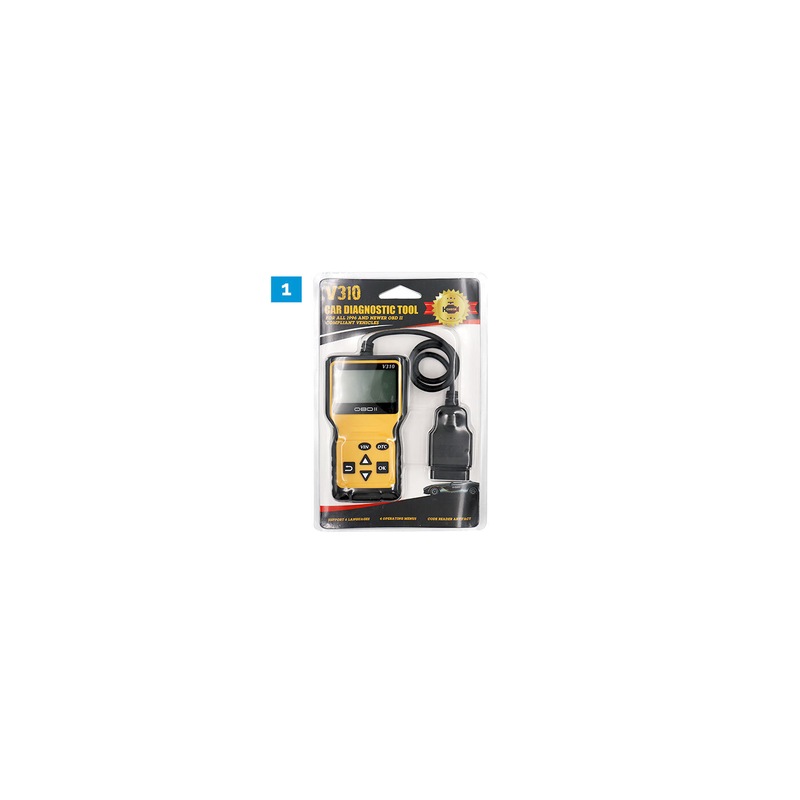

1. 1x V310 Diagnostic Tool
