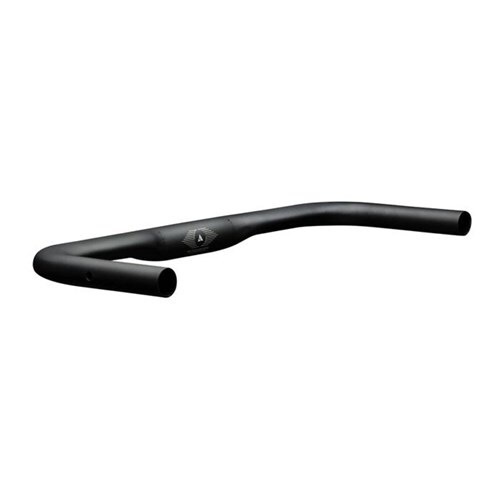

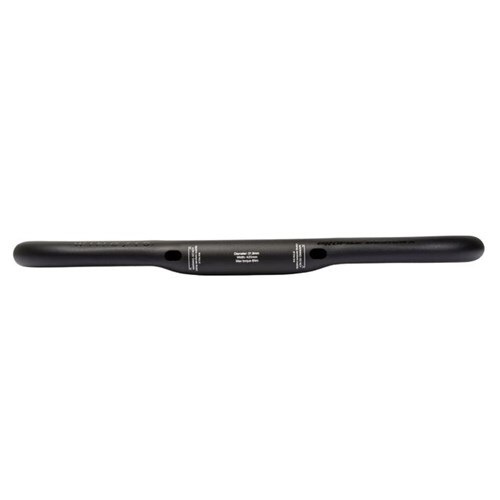

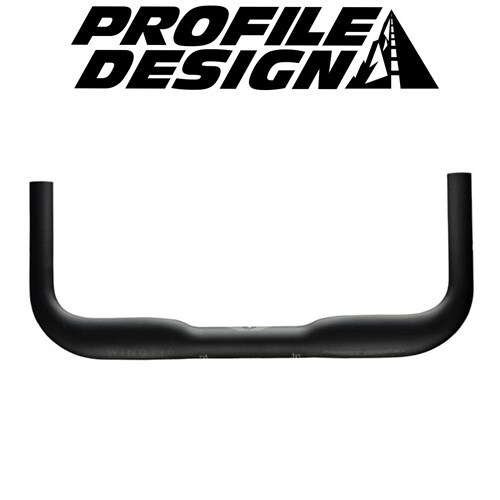

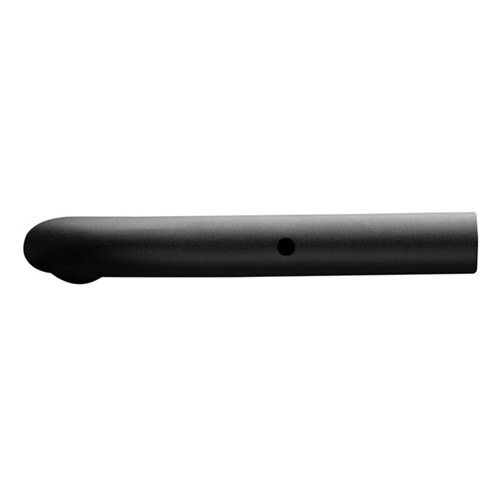

WING/10a Base Bar - 36cm

WING/10a Base Bar - 36cm

Be the first to review this product

Price	$149
	Collect 447 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

The WING/10a offers great fit versatility - allowing the rider to fine-tune the grip height for their riding style and comfort preferences. The straight hand grips are part of the flippable design that allows the grip height to be modified by 10mm. For optimal aero performance, the bar should be set in the low position to increase the separation from the armrests.Aero The Wing/10a employs a truncated airfoil (Kamm Tail) to stay within UCI regulations while offering the performance of a much deeper section. This, along with tidying up the underside of the wing where the cables used to exit has led to a small improvement in performance. For optimal aero performance the bar should be set in the low position to increase the separation from the armrests.Fit Data The WING/10a is available in the following widths: 36, 38, 40, 42, 44The straight hand grips are part of the flippable design that allows the grip height to be modified by 10mm. The grip length can also be trimmed by up to 30mm. The WING/10a offers the greatest fit versatility of any alloy basebar weve previously made, allowing the rider to fine tune for their riding style and comfort preferences.An additional reason for the truncated design of the wing was to improve hand comfort when sitting up on the bar tops

Specifications:

Weight: 265g (38cm) Width: 36cm (centre to centre) Center Clamp Diameter: 31.8mm Clamp Width: 100mm (on all bar sizes) Clip Compatible: Yes Material: 6061-T6 AL Finish: Matte Black Pursuit Reach: 160mm (centre to tip) Grip Offset: ± 5mm Pursuit OD/ID: 23.7 / 20.3mm Drop Outsweep: No Maximum cut distance on grip: 30mm Grip Stack High position: 15.9mm Grip Stack low position: 5.9mm Only compatible with internally routed brake levers Di2 Compatible UCI 3:1 compliant Stem Clamp: 6Nm Aerobar Clamp: 6Nm

GTIN: 723660007317
