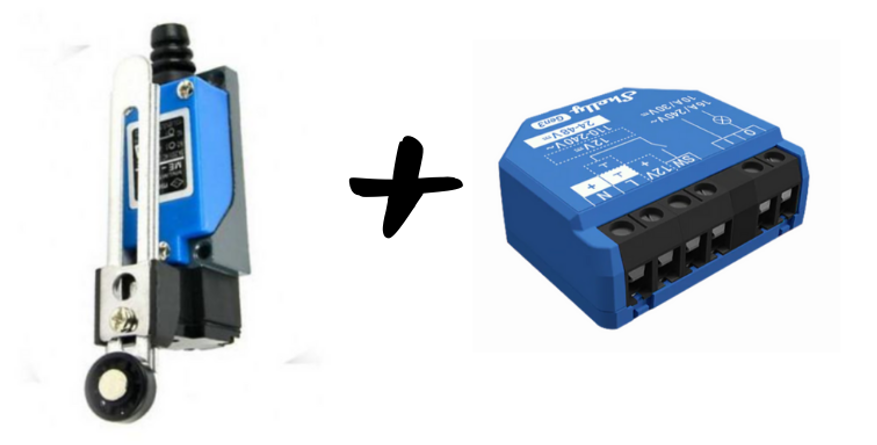

Wifi Garage Door Opener includes 1x Shelly 1 Plus and 1x Garage Roller Limit Switch
The Garage Roller Limit Switch can be connected with the Shelly 1 to report the status of your garage door to your Wifi gateway.

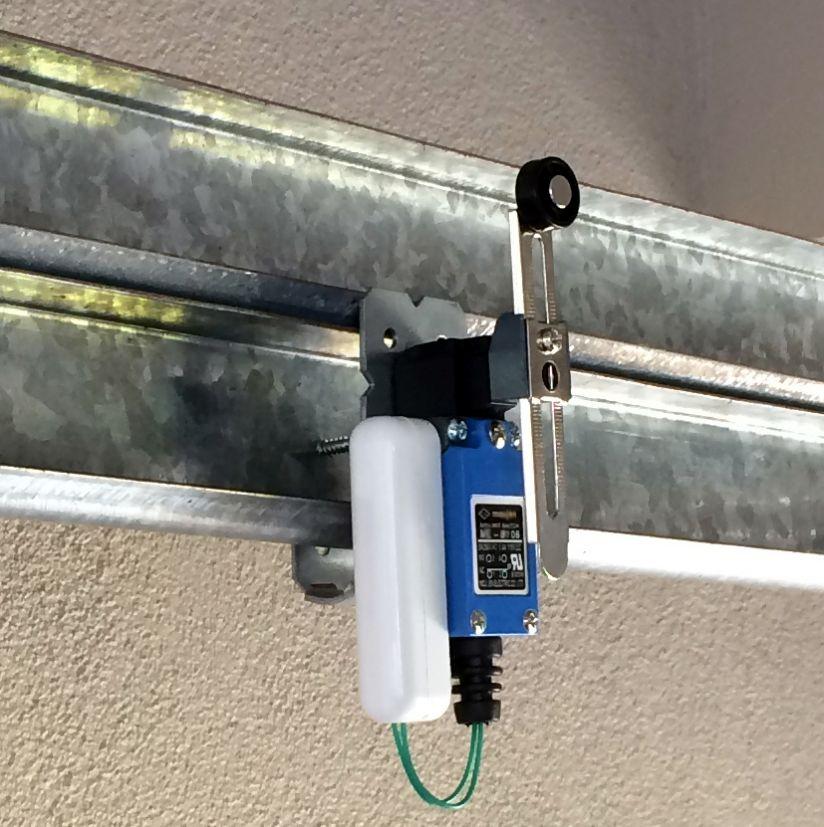

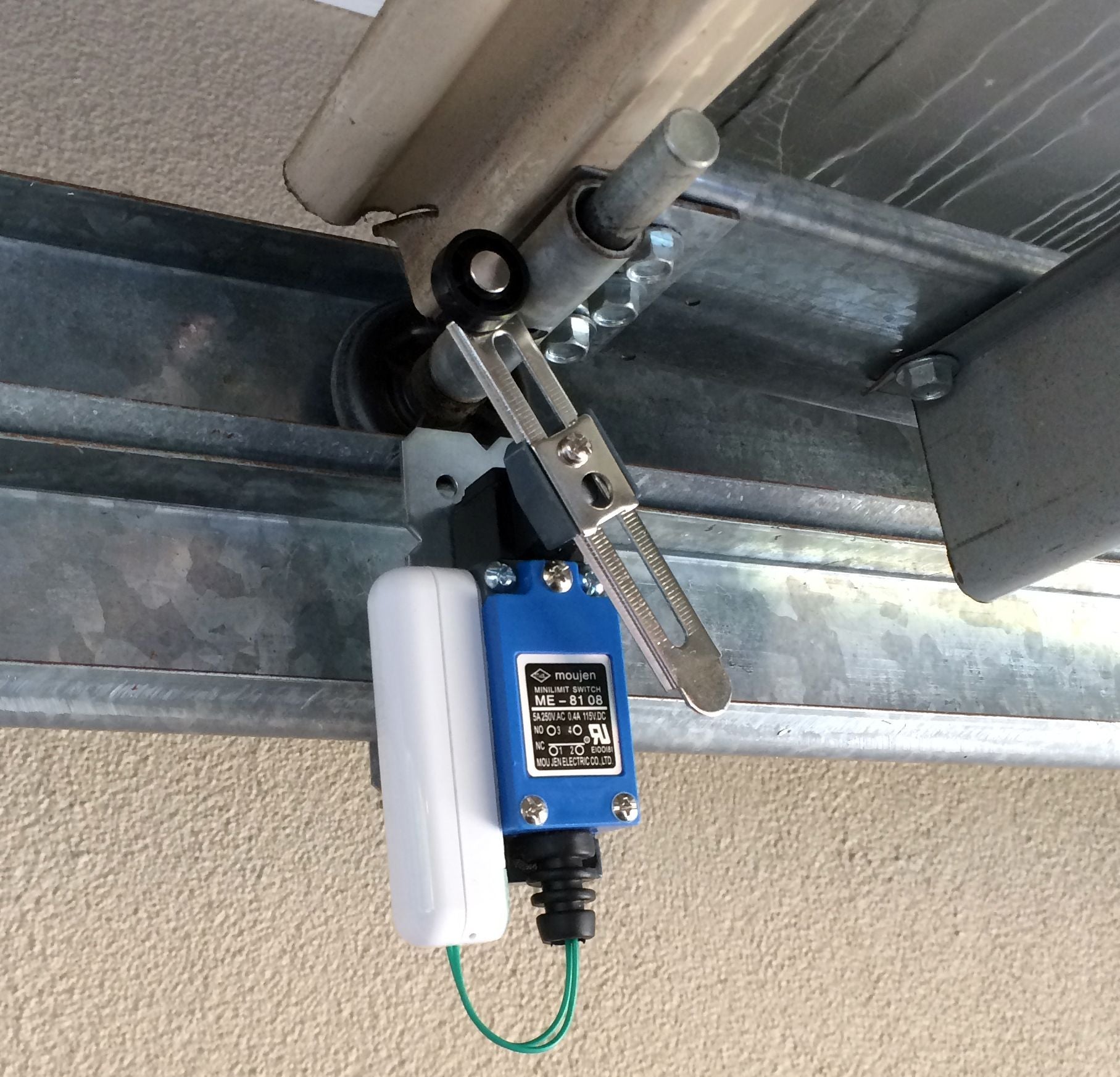

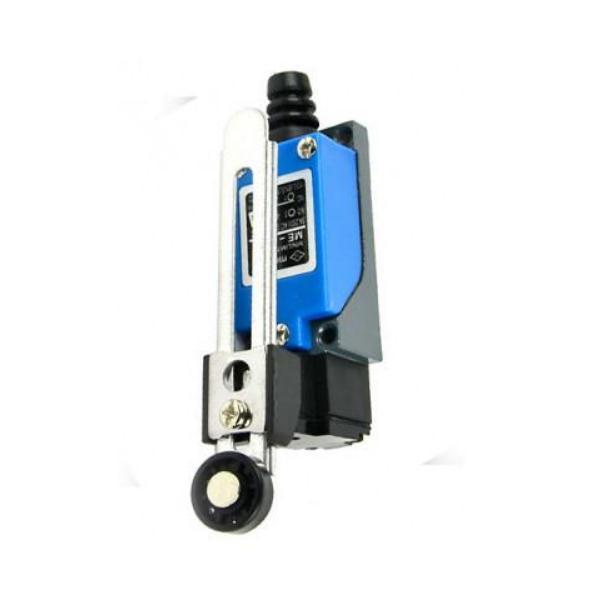

The Garage Roller Limit Switch is an industrial quality mechanical switch activated by the motion of garage doors, gates, windows etc.
Shelly 1 Plus Wifi Smart Home Automation WiFi Switch Compatible with Alexa and Google Home
- Schedule Function: Set timer and countdown, create scenes, you can set timer schedules to automatically turn on/off your light, fans, or appliances according to your daily habits with the Shelly 1 Wifi Switch. For example, you can set the corridor lights to turn on when you come back home at night and to turn off when you leave home
- Voice Control: Shelly 1 Wifi Switch works with Alexa, Google Home and IFTTT, instead of reaching for switch button every time, you can easily turn on/off the home appliances by your voice command, no hub required, create scenes on Alexa or Google Home, very convenient especially when your hands are full
- App Control from Anywhere: You can control light, router, fans, TV, coffee maker or any other appliance under 16A/3500W remotely with a single press on the mobile app Shelly even you're away. No hub required, compatible with most Wifi routers (only with 2.4GHz wireless network)
- Group Control: Create a group for all smart relays for one press control, one smart relay can be controlled by multiple mobile phones, share it with your family, everyone can control it easily. Perfect for hard-to-reach appliances & devices without ON/OFF switches
- Compact Design: Compact smart relay switch can be installed in the junction box and make your outlet and switch smart, while retaining manual control buttons. An essential accessory for your home automation system.
WiFi-operated Relay Switch
Control a wide range of home appliances and office equipment (lights, power lines, garage doors, curtains, security systems, heating radiators, air conditioners, etc.) from anywhere with the smallest WiFi-operated relay switch.
Shelly 1 Wifi Switch Open Source
- has an embedded webserver
- has been designed for installation in a limited space, such as wall mounts, electrical control panels, etc.
- can function as a standalone device, as an accessory to a home automation controller, or it may be used as another automation system's component.
Check out other products in the Shelly range:
Shelly 1PM Wifi Module
Shelly 2.5 Double Relay Switch
Shelly i3
Shelly RGBW2
Shelly 1L
Shelly Dimmer 2
Shelly Bypass
Shelly humidity and temperature sensor (black / white )
Shelly door & window Sensors
Shelly flood sensor
Shelly wifi button ( white / black )
Shelly 1+ Is not yet approved for sale in Australia, however, we hope to have this done by mid 2022. Sign up for our newsletter below!
| POWER |
| Power supply AC |
110-230V 10%, 50/60Hz |
| Power supply DC |
12V, 24 - 60V |
| SPECIAL FUNCTIONS |
| Dry contacts |
Yes |
| Roller shutter mode |
No |
| Device temperature protection |
No |
| Overload protection |
No |
| Power measurement |
No |
| Working without a neutral line |
No |
| FEATURES |
| Channels |
1 Channel |
| Maximum load |
16A |
| Operational temperature |
-40 to + 40 oC |
| Device power consumption |
< 1 W |
| Intelligent On/Off |
Yes |
| Local and remote control |
Yes |
| Sunrise/Sunset |
Yes |
| Weekly Schedule |
Yes |
| UL Listed option |
Yes |
| CONNECTIVITY |
| Wireless/WiFi Protocol |
802.11 b/g/n |
| Radio-frequency |
2400 - 2500 MHz |
| Radio signal power |
1mW |
| Range |
up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
| DIMENSIONS |
| Size |
41mm x 36mm x 17mm |
WARNING: All electrical work must be carried out by a licensed electrician under the electrical safety act and AS/NZS300. Doing your own electrical can be dangerous.
Shelly 1 Wifi Switch how to install video:
Certificate of compliance , Instruction Manual , Comparison Table
Works with: Home Assistant, FIBARO using Skaro, Control4, SmartThings, Google Home, Alexa, and now works with Apple Homekit with Custom Firmware. *Please note we nor Shelly will support the device when flashed with custom firmware.
