Wedgetail Mounting for - Volkswagen Amarok 2011-2023 - WTM-VA-1413

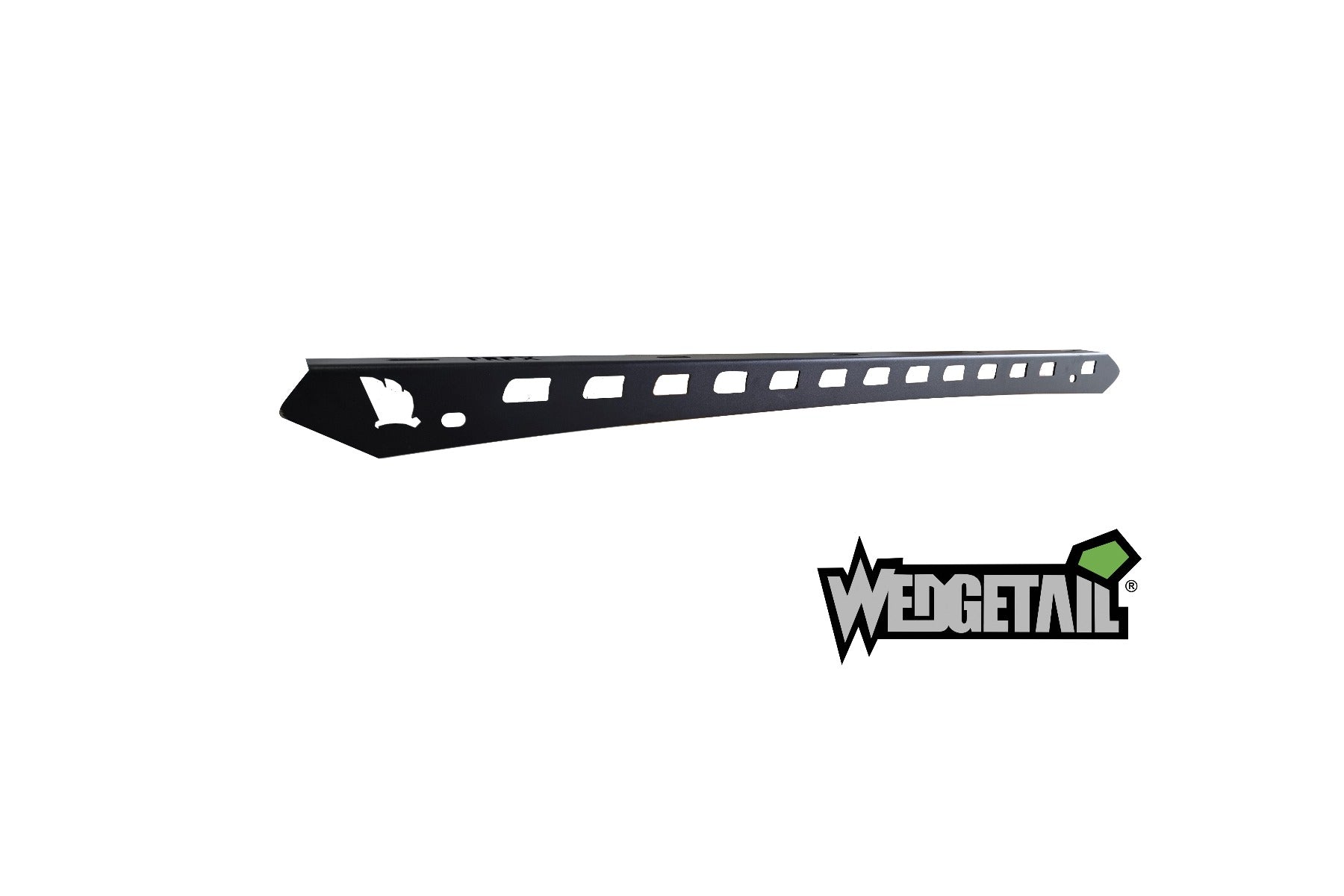

Wedge-wing mounting rails

The mounting rails are custom designed for each vehicle so that the weight of the platform and load is evenly spread over the vehicle roof. The mounting rails are laser cut from 3 mm steel and then zinc electro-plated and powder coated with a matt black finish.

The mounting rails for all utes and wagons are a single piece and for vans each side is made up of two sections.

The mounting rails and lugs and all bolts required are packed into cartons for shipping.

Mounting lugs

The mounting lugs are used to attach to mounting points built into the sub-structure of the vehicle roof. Once the fixing lugs are installed the mounting rails are bolted to the lugs. The lugs are designed for individual models of vehicle and a variety of fixing devices are used for the lugs. Most vehicles with factory fitted rails will have bolt in points so they are used.

If bolt in points are not available we will drill through to the sub-structure of the roof and use stainless steel rivets to fix the tabs. All holes are then water proofed using a commercial grade silicon sealant.
