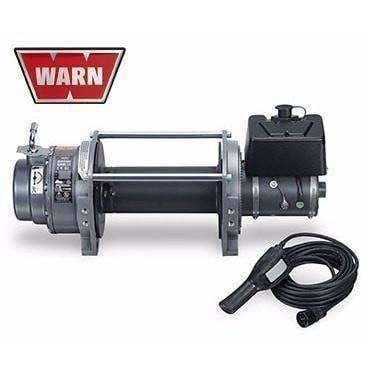

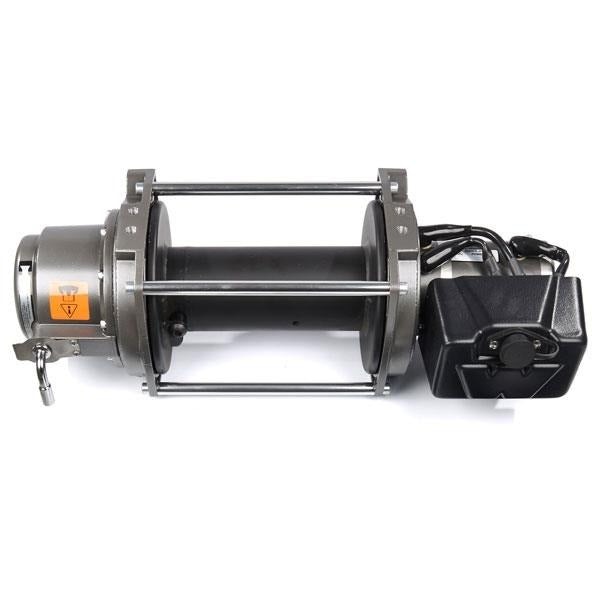

Warn Industrial Dc Hoist 9000lbs Series 9 Dc

Industrial Grade Winch Pulls up to 9,000 lbs.

Dependable high-torque series-wound electric motor, available in 12 or 24V configurations
SAE J706-compliant disc brake designed for extended power-out use
Rugged 32′ (10 m) industrial remote control
Higher gear ratio for fastest line speed
Weatherproof industrial contactor control pack
Thermal protection device protects motor from overheating
Wire rope, roller fairlead, and tensioner sold separately

SERIES 9 DC SPECIFICATIONS

Part Number: W9000-30283 (12V)

Part Number: W9000-30284 (24V)

Rated Pulling Force: 9000 lbs (4082kg)

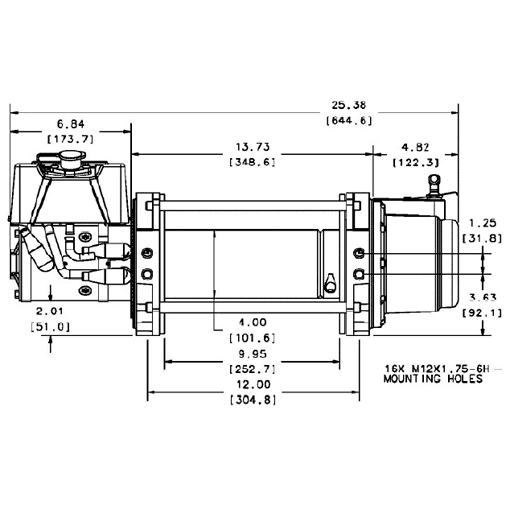

Drum Barrel Diameter: 4.0″ (102mm)

Drum Flange Diameter: 8.24 in (209mm)

Distance Between Flanges: 9.95″ (253mm)

Recommended Maximum Wire Rope Diameter: 1/2 in (12.7 mm)

Recommended Minimum Wire Rope Breaking Strength: 15,100 lbf (6849 kgf)

Approximate Shipping Weight: 95.0 lbs (43.1 kg)

Duty Cycle (intermittent per SAE J706 section 6.2): 75 ft (22.9 m)

Mounting Bolt Torque: 35 – 40 ft*lbf (47 – 54 N*m)

Maximum Layers of Wire Rope: 4 (with 3/8″ rope)

Gear Reduction: 199:1

Brake Type: Disk

Contactor / Remote Type: Industrial contactor with 33′ (10m) heavy duty remote

Standard Compliance:
SAE J706
CE Machinery Directive 98/37/EC and 2006/42/EC
CE Electromagnetic Compatibility 2004/108/EC

12V PERFORMANCE DATA BY LAYER – 3/8″ (9.5 MM) DIA. ROPE

Drum Layer	Line Load *	No Load Line Speed	Drum Capacity
	lbf	kgf	kN	ft/min	m/min	ft	m
1	9000	4082	40.0	26.0	7.9	25	7.6
2	7518	3410	33.4	31.1	9.5	54	16.5
3	6455	2928	28.7	36.3	11.1	88	26.8
4	5655	2565	25.2	41.4	12.6	126	38.4

12V FIRST LAYER PERFORMANCE

Line Load	Current Draw	Line Speed	Duty Cycle
lbf	kgf	Amps	ft/min	m/min	min/10min
0	0	101.0	26.0	7.9	4.1
1500	680	169.1	17.2	5.2	2.1
3000	1361	233.0	12.8	3.9	1.4
4500	2041	296.9	9.5	2.9	1.1
6000	2722	362.9	5.5	1.7	0.9
7500	3402	424.7	5.2	1.6	0.7
9000	4082	486.0	2.9	0.9	0.6

24V PERFORMANCE DATA BY LAYER – 3/8″ (9.5 MM) DIA. ROPE

Drum Layer	Line Load *	No Load Line Speed	Drum Capacity
	lbf	kgf	kN	ft/min	m/min	ft	m
1	9000	4082	40.0	31.3	9.5	25	7.6
2	7518	3410	33.4	37.4	11.4	54	16.5
3	6455	2928	28.7	43.6	13.3	88	26.8
4	5655	2565	25.2	49.8	15.2	126	38.4

24V FIRST LAYER PERFORMANCE

Line Load	Current Draw	Line Speed	Duty Cycle
lbf	kgf	Amps	ft/min	m/min	min/10min
0	0	54.5	31.3	9.5	4.8
1500	680	91.9	19.7	6.0	2.4
3000	1361	120.2	15.3	4.7	1.7
4500	2041	150.4	12.6	3.8	1.3
6000	2722	185.5	10.4	3.2	1.0
7500	3402	215.9	8.9	2.7	0.9
9000	4082	237.9	8.1	2.5	0.8
