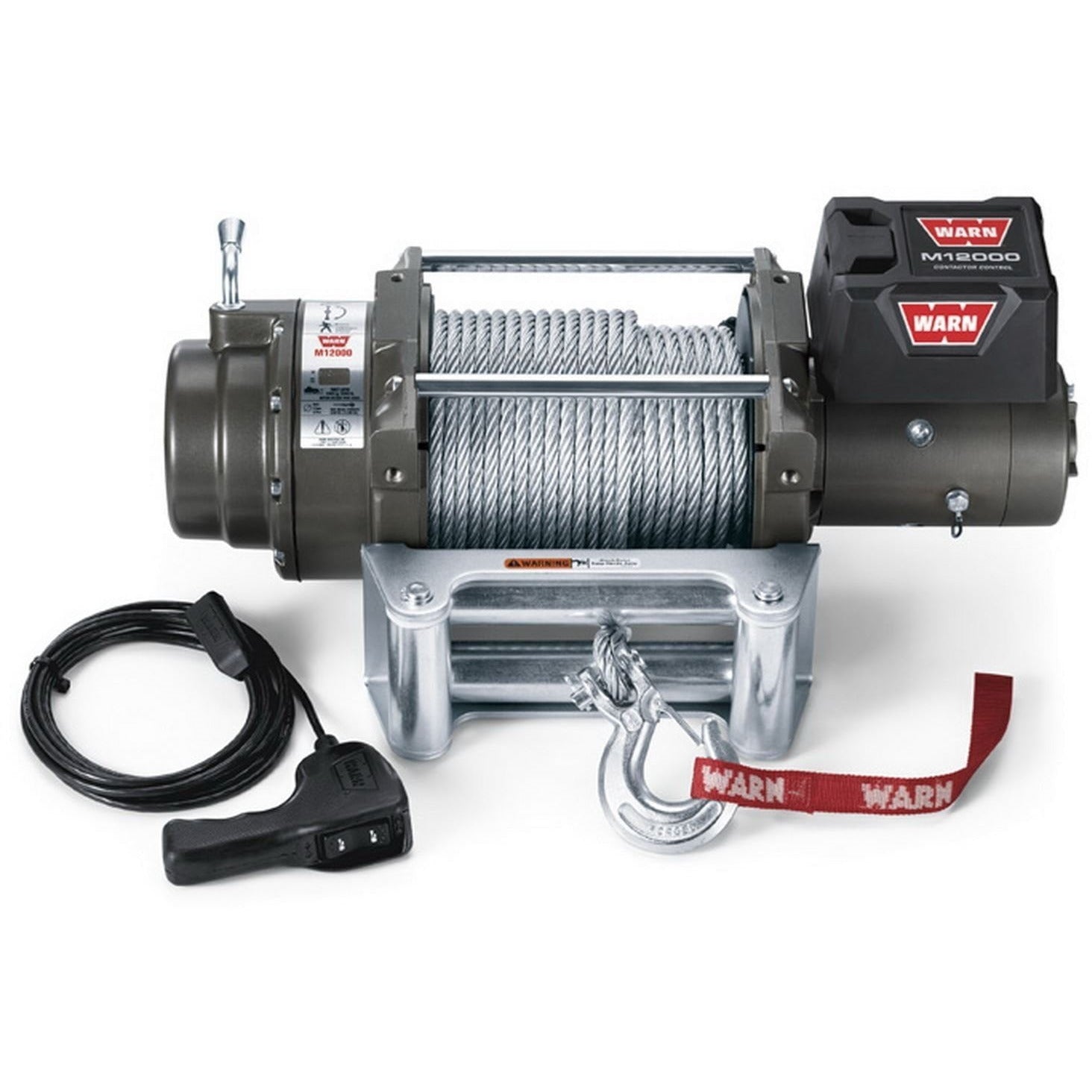

Warn 12v self recovery winch 38m wire rope, cem12000-87801

A reliable workhorse to meet heavy winching needs

Champion workhorse for heavy-duty winching. 3-stage planetary gear train combined with a 4.6hp series wound motor produce 12,000 lbs. of pulling power. Design is low profile so it fits where you want it.

12,000 lb. (5,440 kg) pulling capacity (single line)
Large frame winch design is designed to handle heavier winch loads
Series-wound, high-speed motor provides fast line speed and strong pulls
Brake provides superior control while winching
Remote-mount control box allows for various mounting options
Durable 3-stage planetary geartrain for smooth, reliable, operation
Remote control with 12′ (3.7m) lead
Chip-resistant powder-coated finish
125′ of 3/8″ (38m of 9.5mm) diameter wire rope

M12000 SPECIFICATIONS

Part Number: CEM12000-87801 (12V)

Rated line pull: 12000 lbs., (5440 kgs.) single-line

Motor: Series Wound, 12V 4.6 hp, 24V 2.5 hp

Electrical controls: Contactor

Remote Control: Remote switch, 12 in (3.7m) lead

Geartrain: 3-Stage Planetary

Gear ratio: 261:1

Clutch (freespooling): Rotating Ring Gear

Brake: Automatic mechanical cone

Drum diameter/Length: 3.5 in /8.2 in (9cm/21cm)

Weight: 136 lbs. (62kgs.)

Wire rope: 125 ft , 3/8 in diameter (38m, 9.5mm diam.)

Fairlead: Roller

Recommended Battery: 650 CCA minimum for winching

Battery leads: 2 gauge, 72 in (1.83m)

Finish: Argent Gray Powder Coat

Winch Dimensions: 24.37 in L. x 8.45 in D. x 11 in H. (619mm L. x 214.63mm D. x 279mm H.)

Mounting Bolt Pattern: 10.0 in x 4.5 in (254mm x 114.3mm)

12V DC PERFORMANCE SPECIFICATIONS (1ST LAYER OF DRUM)

Line Pull Lbs.(Kgs.)	Line Speed FT./min(M/min.)	Motor Current	Pull by layer layer/Lbs(Kgs.)
0	30(9.14)	67 amps	1/12000(5443)
2000(910)	14(4.27)	140 amps	2/11120(5044)
4000(1810)	8.62(2.63)	210 amps	3/10340(4690)
6000(2720)	6.92(2.11)	250 amps	4/9770(4432)
8000(3630)	5.80(1.77)	320 amps	5/9250(4196)
10000(4540)	4.39(1.34)	370 amps
12000(5440)	3.86(1.18)	440 amps

24V DC PERFORMANCE SPECIFICATIONS (1ST LAYER OF DRUM)

Line Pull Lbs.(Kgs.)	Line Speed FT./min(M/min.)	Motor Current	Pull by layer layer/Lbs(Kgs.)
0	31.94(9.57)	24 amps	1/12000(5443)
2000(910)	11.7(3.57)	105 amps	2/11120(5044)
4000(1810)	9.5(2.90)	129 amps	3/10340(4690)
6000(2720)	8.5(2.59)	152 amps	4/9770(4432)
8000(3630)	7.5(2.29)	175 amps	5/9250(4196)
10000(4540)	6.5(1.98)	198 amps
12000(5440)	6.0(1.83)	221 amps

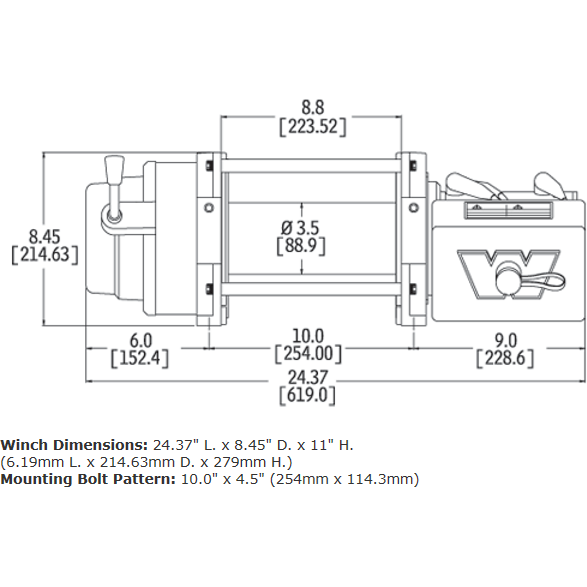

WINCH DIMENSIONS

Dimensions	24.37″ L. x 8.45″ D. x 11″ H. (6.19mm L. x 214.63mm D. x 279mm H.)
Mounting Bolt Pattern	10.0″ x 4.5″ (254mm x 114.3mm)
