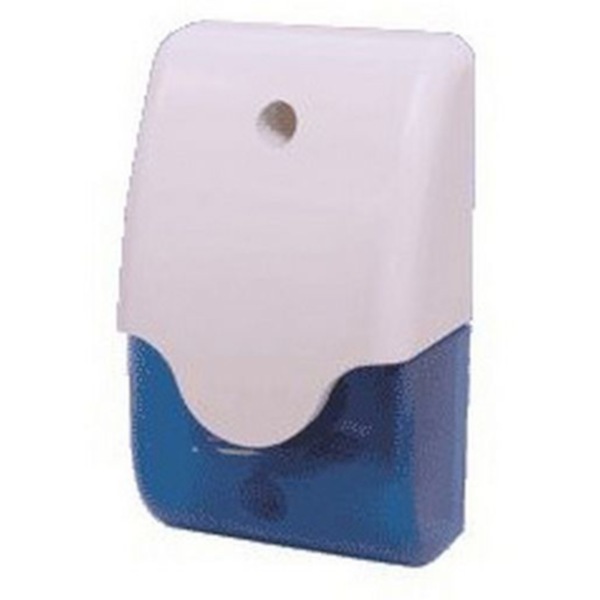

Wall mount alarm Compact 75x120mm Weather resistant 100dB SPL output Blue strobe 1.25Hz Separate input for Strobe and Siren. 10-14Vdc 280mA.
Wiring
Black - Common
Blue -Strobe
White -Siren
Power: 15W
Rated Voltage: DC12/24V
Working Voltage: DC6-15V/9-28V
Piezo Current: 150 mA
Piezo Frequency: 2.3-4.3KHz
Sound: 1 Tone
SPL: 110dB
Strobe Source:Bulbs/LEDs
Strobe Current:50mA(average)
Strobe Frequency:120-150 times/minute
Plastic Material: ABS/AS/PC
Lens color: Blue
Product Size: 72W x 123L x 45H mm
Specifications
Code | KPE5415 |
SPL | 100dB |
Input | 10-14Vdc |
Voltage | 12Vdc |
Output | 2.3-4.3KHz |
Size | 75x120x45mm |
Price Type | each |
