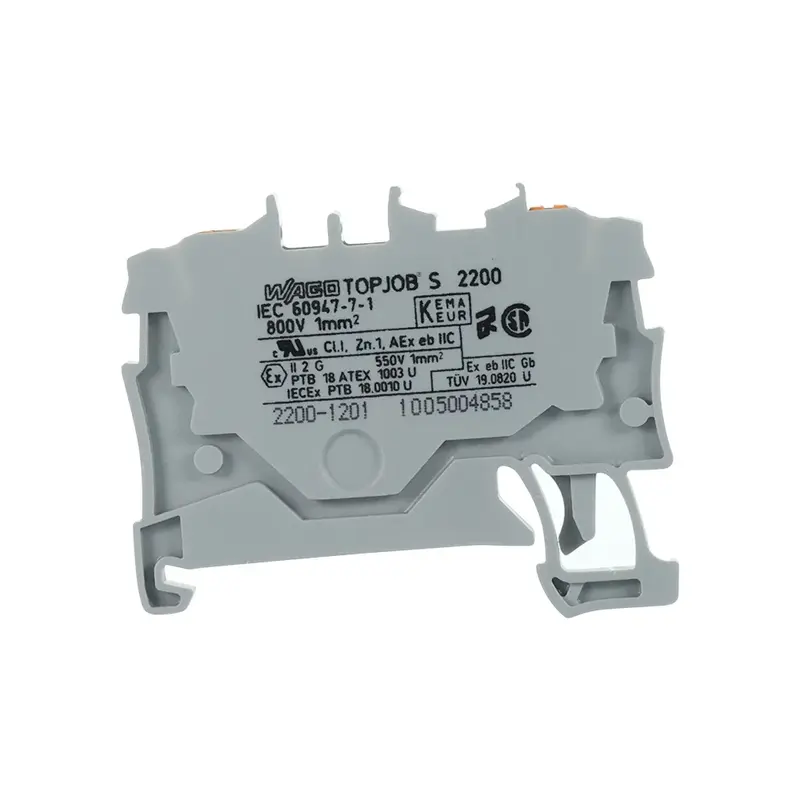

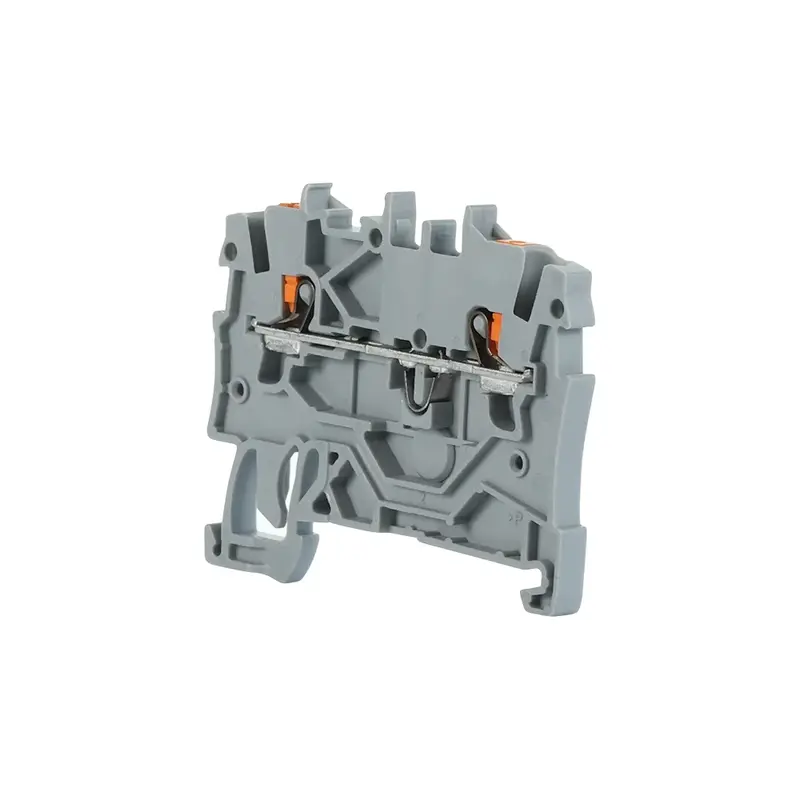

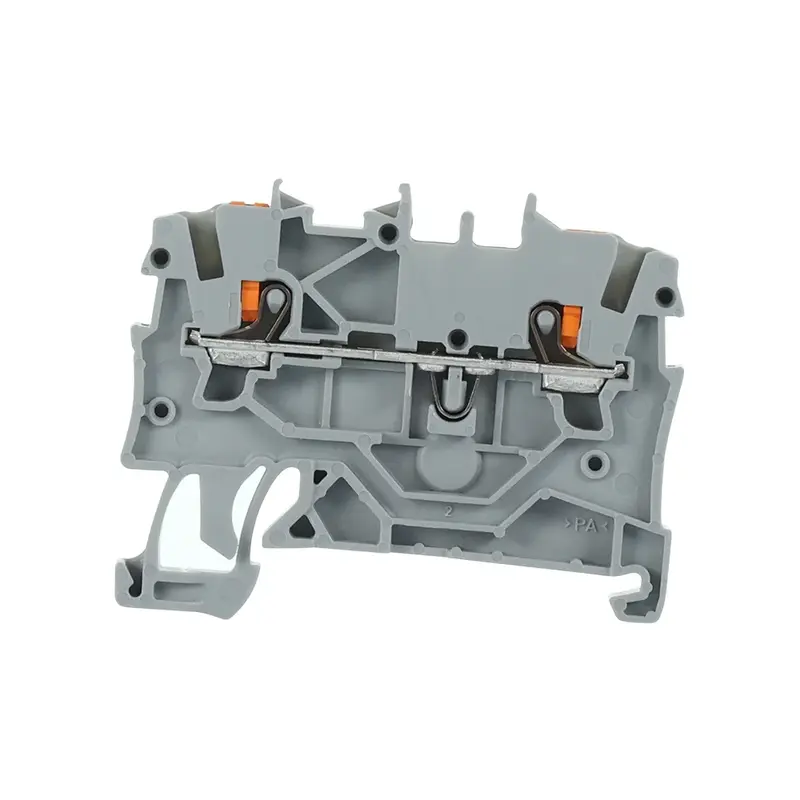

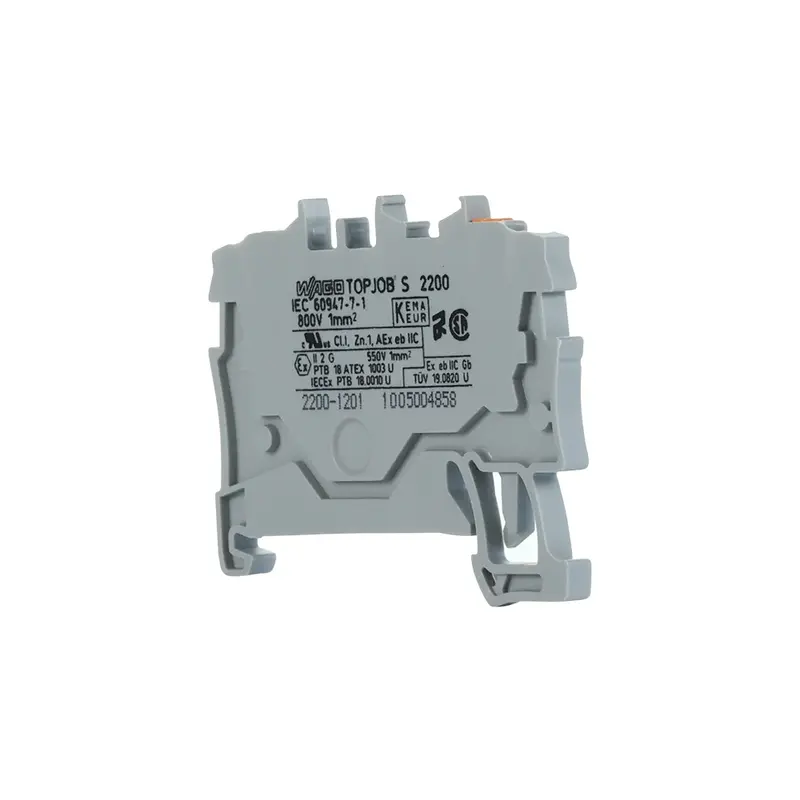

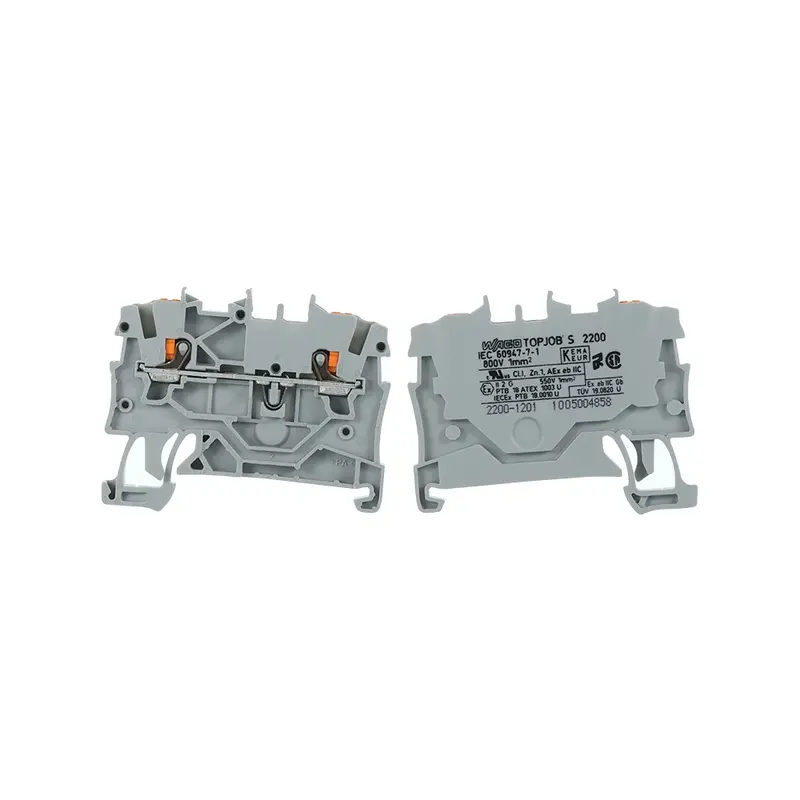

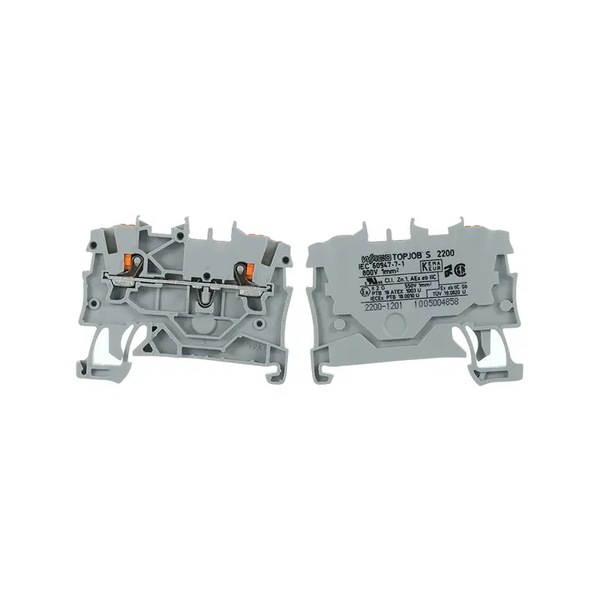

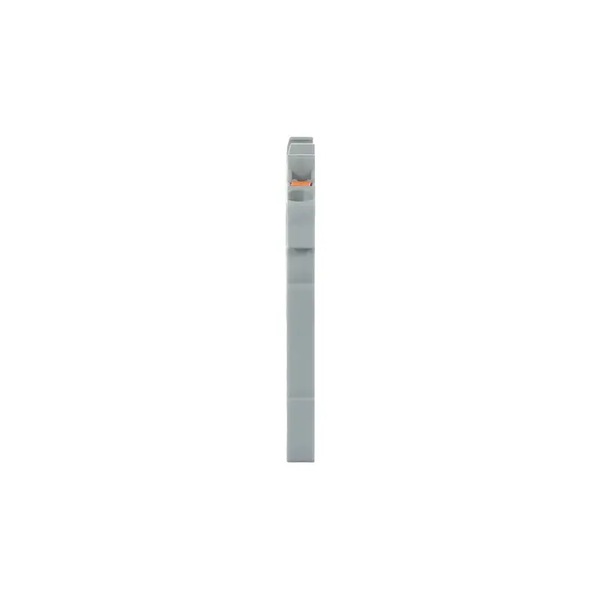

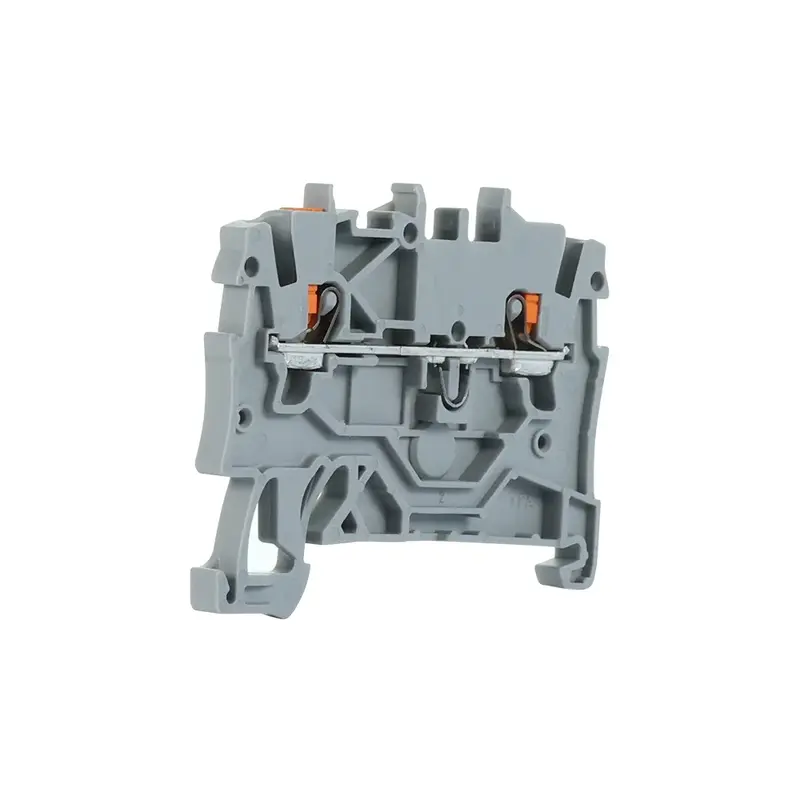

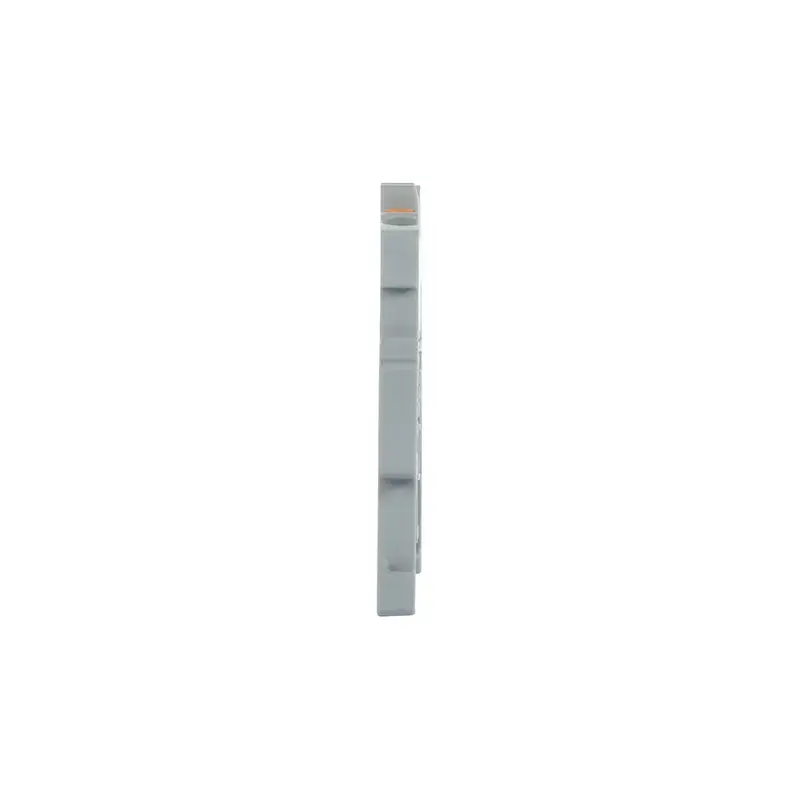

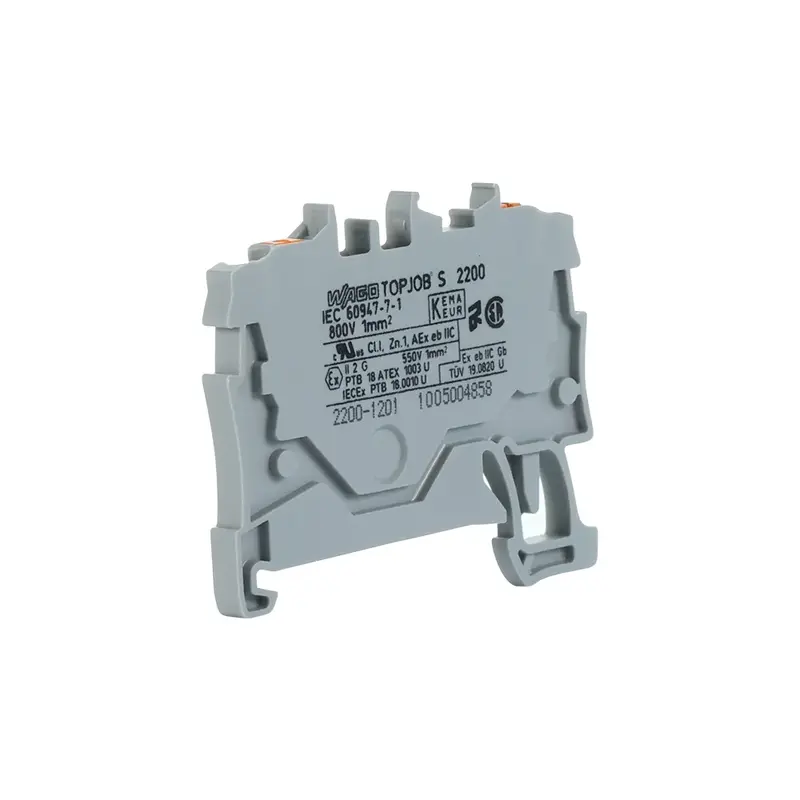

The Wago 2200-1201 is a 2-conductor through terminal block designed for efficient wiring on DIN-35 rails. Using push-button actuation, it features Wago’s CAGE CLAMP® connection technology, enabling fast, secure push-in wiring for conductors from 0.14 to 1.5mm². Ideal for streamlined installations, it includes a 2mm test port for easy testing and troubleshooting.

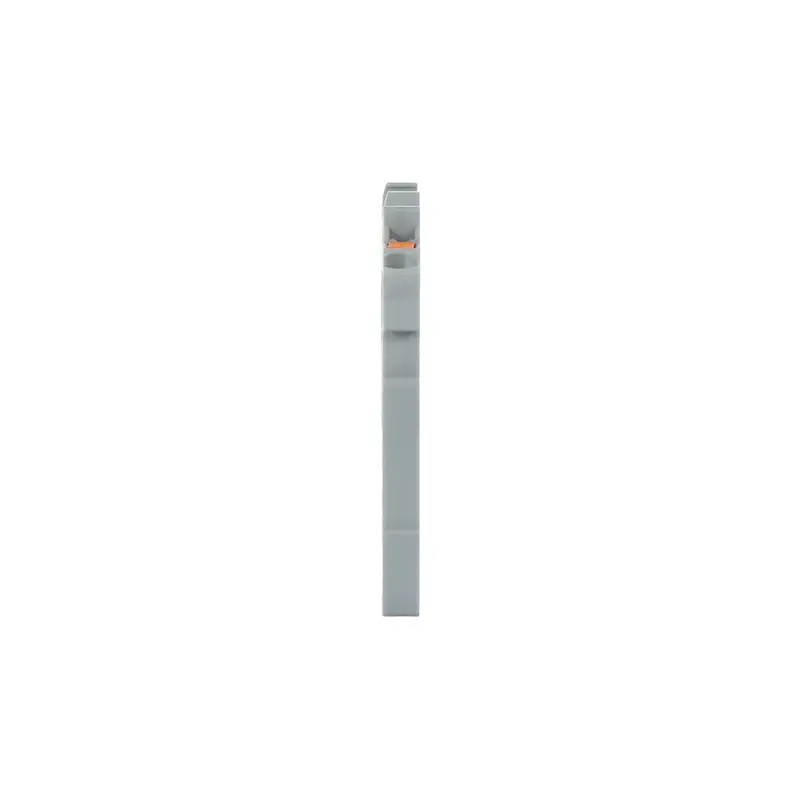

Constructed with durable polyamide (PA66) housing, the 2200-1201 operates within a wide temperature range from -60°C to +105°C, making it suitable for demanding environments. It supports side and centre markings for clear identification and has a slim 3.5mm width, optimizing space in distribution panels.
Q: What wire sizes are compatible with this terminal block?
A: It supports conductors from 0.14 to 1.5mm², suitable for both solid and fine-stranded wires.
Q: Can this terminal block be mounted on a standard DIN rail?
A: Yes, it’s compatible with DIN-35 rails (35 x 15 and 35 x 7.5mm).
Q: Does it include a test port for troubleshooting?
A: Yes, a 2mm test port is integrated for easy testing.
Q: What is the operating temperature range?
A: It operates from -60°C to +105°C, suitable for various environments.
Specification | Details |
---|---|
Item Number | 2200-1201 |
Connection Technology | Push-in CAGE CLAMP® |
Rated Voltage | 800 V |
Rated Surge Voltage | 8 kV |
Rated Current | 13.5 A |
Dimensions (WxHxD) | 3.5 x 48.5 x 39.5 mm |
Operating Temperature | -60°C to +105°C |
Material | Polyamide (PA66) |
Flammability Class | UL94 V0 |
Weight | 3.7 g |
