Wago 207-5485-316-000 | Multicore Cable Repair Set 8-24mm² With Heat Shrink and Splicing Connectors
The Wago 207-5485-316-000 Multicore Cable Repair Set offers a dependable solution for fixing damaged cables in fixed installations. Designed for multicore cables with diameters from 8mm to 24mm², it includes heat shrink tubing and 10 inline splicing connectors for safe and efficient repairs. The glue-sealed, medium-walled tubing makes it perfect for environments requiring sturdy, insulated cable repairs. However, it is not suitable for underwater or underground applications due to the lack of longitudinal water tightness.

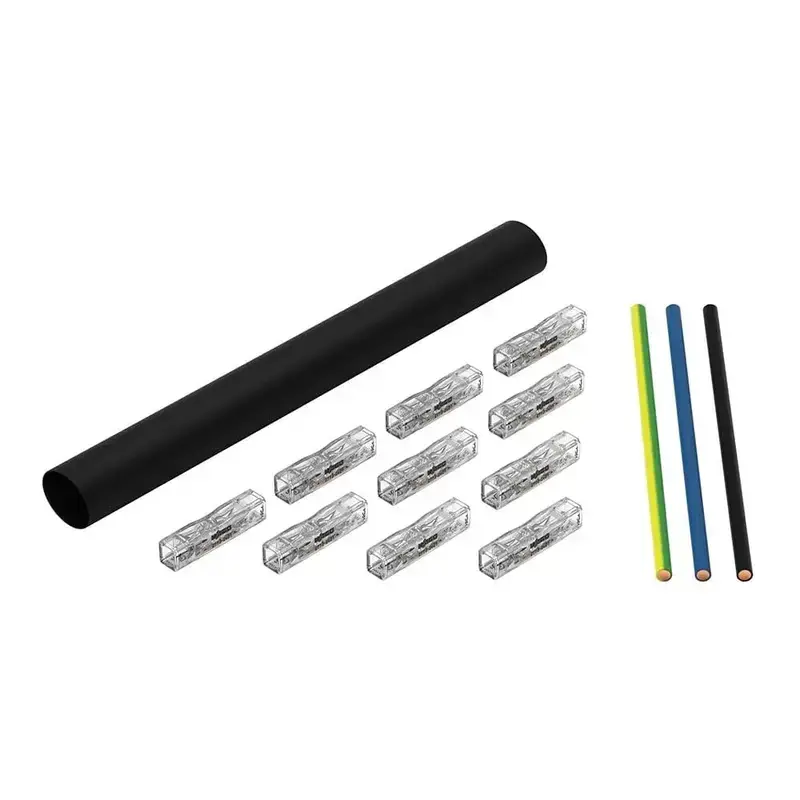

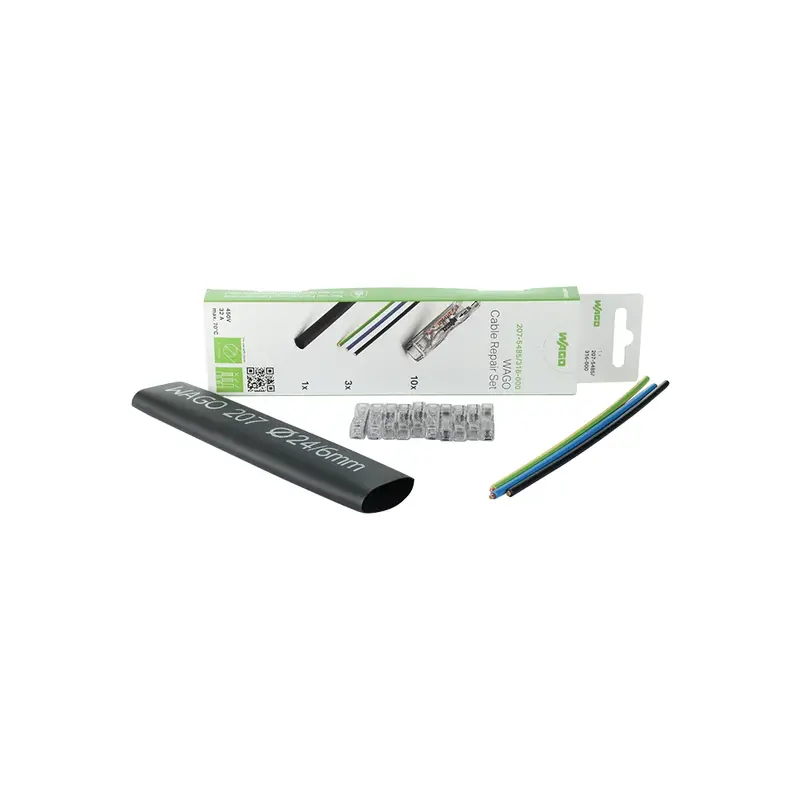

The kit comes with H07 V-U conductors in black, green/yellow, and blue, as well as Wago’s PUSH WIRE® Inline Splicing Connectors, which ensure secure connections for both solid and stranded conductors. The heat shrink tubing, with a 4:1 shrink ratio, provides a strong seal that insulates and protects the repaired area.
Wago 207-5485-316-000 Features:
- Multicore Cable Repair Set: Suitable for cables sized 8-24mm² in fixed installations.
- Includes Heat Shrink Tubing: Medium-walled tubing with a 4:1 shrink ratio for secure sealing.
- Inline Splicing Connectors: Comes with 10 Wago 2773-2401 connectors for solid and stranded conductors.
- Durable Materials: High-quality polyolefin insulation and H07 V-U conductors ensure long-lasting performance.
- Safe and Reliable: Ideal for indoor repairs, with a heat shrink temperature range of 110°C to 200°C.
- Not for Underground or Underwater Use: Lacks water tightness, making it unsuitable for such environments.
Wago 207-5485-316-000 FAQ:
Q: What cable sizes can this kit repair?
A: This set is designed for multicore cables with diameters from 8mm to 24mm².
Q: Can this repair set be used underground?
A: No, it is not suitable for underground or underwater use, as it does not provide longitudinal water tightness.
Q: What is the shrink factor of the heat shrink tubing?
A: The tubing has a 4:1 shrink factor, ensuring a secure, insulated seal over damaged cables.
Q: What types of conductors can the splicing connectors handle?
A: The included Wago 2773-2401 connectors are compatible with both solid and stranded conductors up to 4mm².
