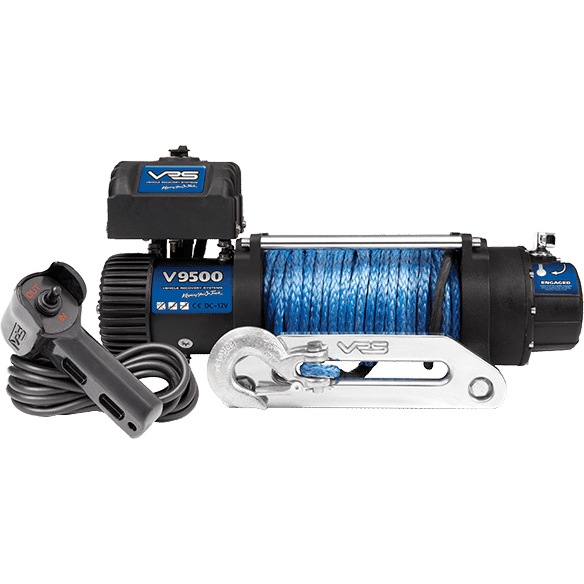

VRS V9500S winch with synthetic rope V9500S
When you’re out there in the thick of it, you need some serious machinery on your side. With an impressive 4300kgs of pulling power and fast line speed under load, the VRS 9500lb winch is the one vehicle recovery winch no driver, from the novice to the serious off-roader, should be without. Even in the most extreme conditions, this tough nut has the muscle to haul your vehicle back on track-fast. Get serious with your safety and get yourself a VRS winch.
SPECIFICATIONS
| Line Pull |
9,500lb / 4,310 kg |
| Motor 12V |
Series Wound 5.3hp/3.9kw 12v DC |
| Gear Train |
3 stage planetary gears |
| Gear Ratio |
216 : 1 |
| Freespool |
Sliding ring gear |
| Brake |
Automatic, in the drum |
| Battery |
Recommended 650 CCA minimum for winching |
| Battery Lead |
25mm, 72″ (1.83M) |
| Synthetic Rope Size |
9mm x 30m |
| Drum Size |
2.5″ x 9.0″ (64mm x 224mm) |
| Mounting Bolt Pattern |
10″ x 4.5″ (254mm x 114.3mm) |
| Dimensions |
23″ x 6.6″x 8.4″ (552mm x 168mm x 214mm) |
LINE PULL AND ROPE CAPACITY
| Layer of wire rope |
Line Pull kg / lb |
Total Rope on the Drum m/ft |
| 1st Layer |
4,310 / 9,500 |
6 / 19.6 |
| 2nd Layer |
3,629 / 8,000 |
13.2 / 43 |
| 3rd Layer |
3,266 / 7,200 |
22 / 72 |
| 4th Layer |
2,994 / 6,000 |
30 / 100 |
LINE SPEED AND AMP. DRAW (1ST LAYER OF ROPE ON THE DRUM)
| Line Pull kg/lb |
Line Speed mpm/fpm |
Amp. Draw 12V |
| No Load |
10.8 / 35.4 |
80 |
| 907 / 2,000 |
4.5 / 14.76 |
160 |
| 1,814 / 4,000 |
3.7 / 12.14 |
220 |
| 2,722 / 6,000 |
2.98 / 9.79 |
280 |
| 3,629 / 8,000 |
2.6 / 8.53 |
320 |
| 4,310 / 9,500 |
2.2 / 7.2 |
360 |
PACKAGE
| Winch Weight |
31 kg |
| Box Dimension |
620 x 220 x 400 mm |
STANDARD ACCESSORIES
Detachable Contactor Pack
Remote control
Synthetic Rope with Hook
Hawse offset fairlead
1.83m (6′) 25mm battery lead
Handsaver strap
ITEM NUMBER
V9500S
WARNING
Winches are not to be used for the lifting or moving of persons.
LIMITED LIFETIME WARRANTY
Warrants the original purchaser that the mechanical components will be free of defects in material and workmanship for the lifetime of the winch and the electrical components will be free of defects in material and workmanship from a period of 1 year
VRS LImited Lifetime Warranty
