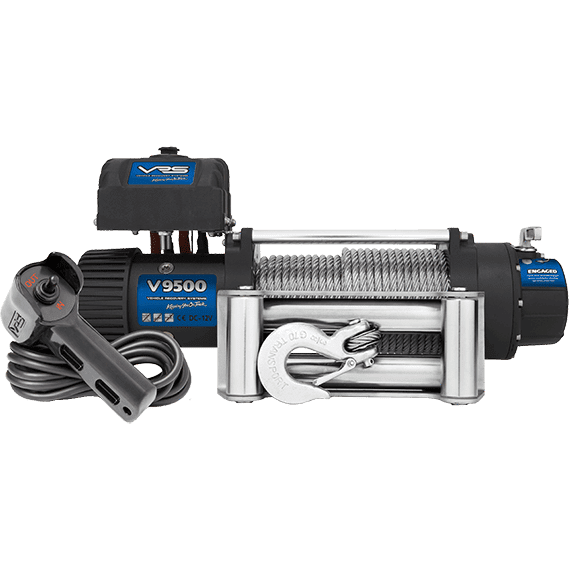

In a tight spot, the VRS winch can be depended on to deliver.
When you’re out there in the thick of it, you need some serious machinery on your side. With an impressive 4300kgs of pulling power and fast line speed under load, the VRS 9500lb winch is the one vehicle recovery winch no driver, from the novice to the serious off-roader, should be without. Even in the most extreme conditions, this tough nut has the muscle to haul your vehicle back on track-fast. Get serious with your safety and get yourself a VRS winch.
Features
- Heavy duty sealed high amperage contactor controller
- Textured UV and corrosion resistant finish
- Sealed to resist water penetration
- Stainless steel hardware and fittings
- Multi-segmented cam activated brake
- Designed in Australia for the World
Specifications
- 9500lb/4310kg rated line pull
- Series wound 5.3hp/3.9kw 12 volt motor
- 3 stage planetary gear train 216:1 ratio
- Sliding ring gear clutch
- Automatic in the drum brake
- Stainless steel hardware and fittings
- Heavy duty high amp contactor
- 5/16" x 92" - 8.3mm x 30M wire rope with roller fairlead
- Weight 39kg with wire cable
- Dimensions 23”x 6.6”x8.4” – 552x68x214mm
- Mounting bolt pattern 10”x 4.5” - 254x114.3mm
- 2 year mechanical components warranty
- 1 year electrical warranty
LINE PULL AND ROPE CAPACITY
| Layer of wire rope |
Line Pull kg / lb |
Total Rope on the Drum m/ft |
| 1st Layer |
4,310 / 9,500 |
6 / 19.6 |
| 2nd Layer |
3,629 / 8,000 |
13.2 / 43 |
| 3rd Layer |
3,266 / 7,200 |
22 / 72 |
| 4th Layer |
2,994 / 6,000 |
30 / 100 |
LINE SPEED AND AMP. DRAW (1ST LAYER OF ROPE ON THE DRUM)
| Line Pull kg/lb |
Line Speed mpm/fpm |
Amp. Draw 12V |
| No Load |
10.8 / 35.4 |
80 |
| 907 / 2,000 |
4.5 / 14.76 |
160 |
| 1,814 / 4,000 |
3.7 / 12.14 |
220 |
| 2,722 / 6,000 |
2.98 / 9.79 |
280 |
| 3,629 / 8,000 |
2.6 / 8.53 |
320 |
| 4,310 / 9,500 |
2.2 / 7.2 |
360 |
STANDARD ACCESSORIES
Detachable Contactor Pack
Remote control
Wire Rope with Hook
Roller fairlead
1.83m (6′) 25mm battery lead
Handsaver strap
ITEM NUMBER
V9500
WARNING
Winches are not to be used for the lifting or moving of persons.
LIMITED LIFETIME WARRANTY
Warrants the original purchaser that the mechanical components will be free of defects in material and workmanship for the lifetime of the winch and the electrical components will be free of defects in material and workmanship from a period of 1 year from the original date of purchase.
VRS LImited Lifetime Warranty
