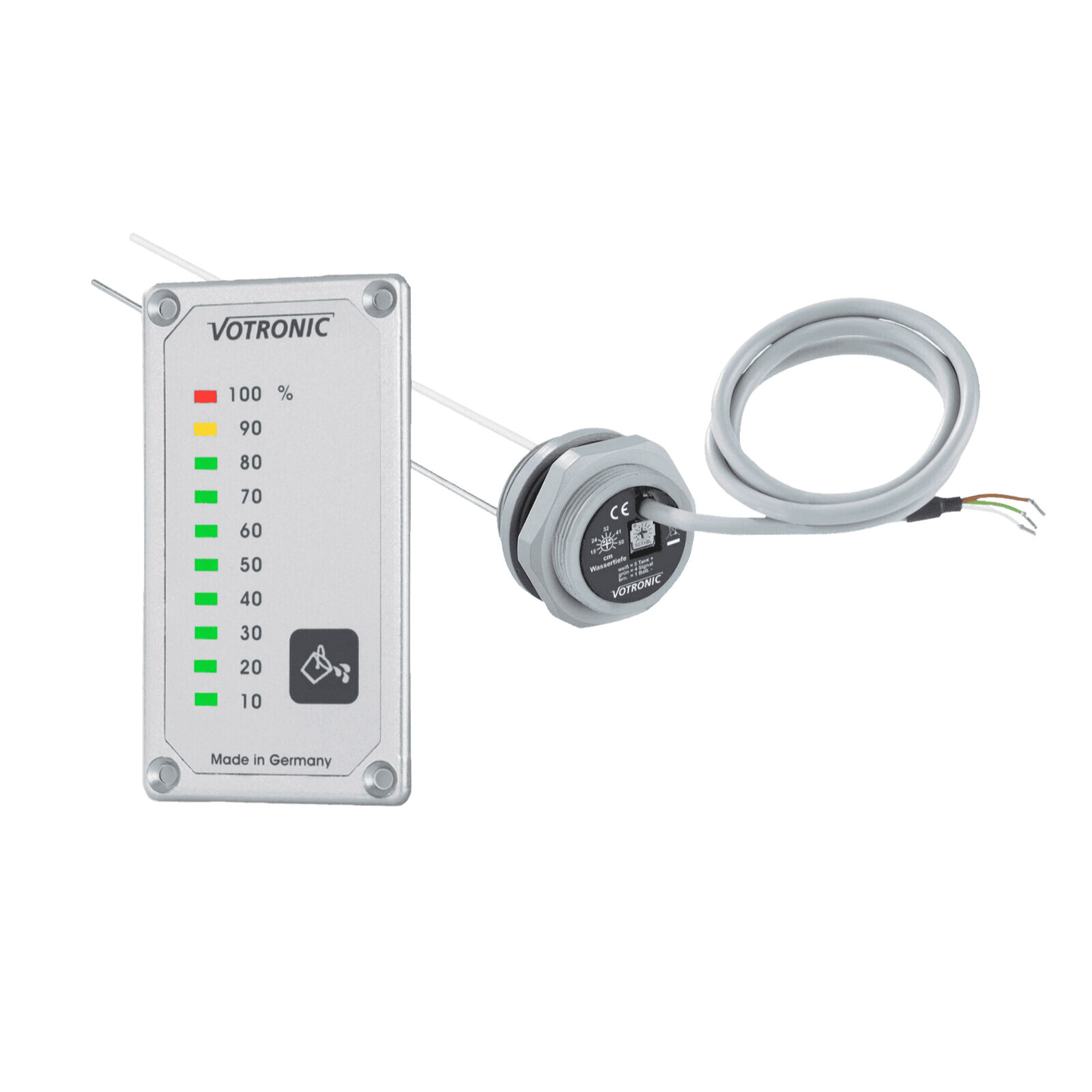

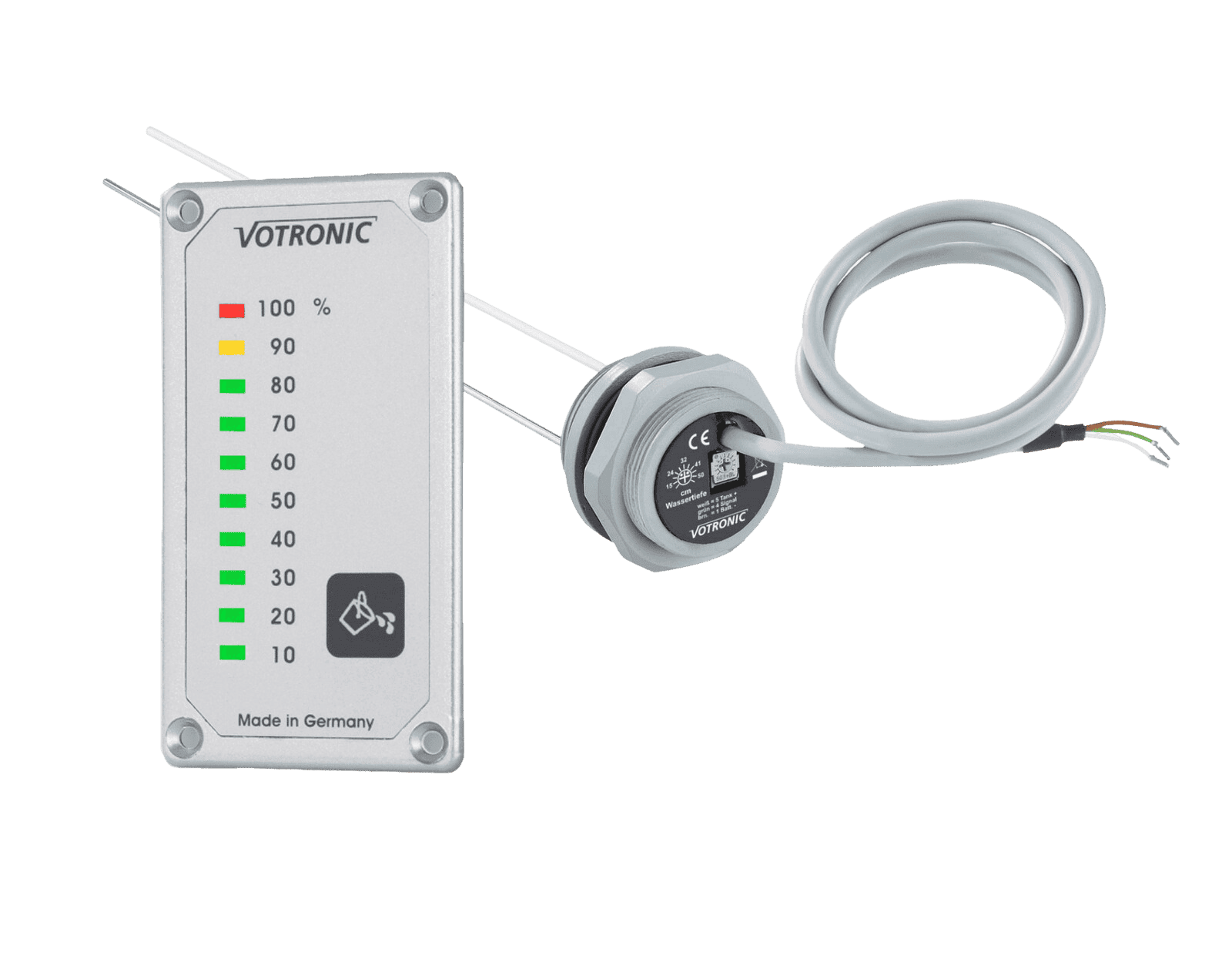

Votronic Tank Level Sensor Electrode 15-50K plus Tank Display S - Grey Water

Votronic Tank Level Sensor Electrode 15-50K plus Tank Display S - Grey Water

Be the first to review this product

Hurry! 1 items left!

Price	$169.61
	Collect 507 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	See delivery details

Quantity

Add to wishlist

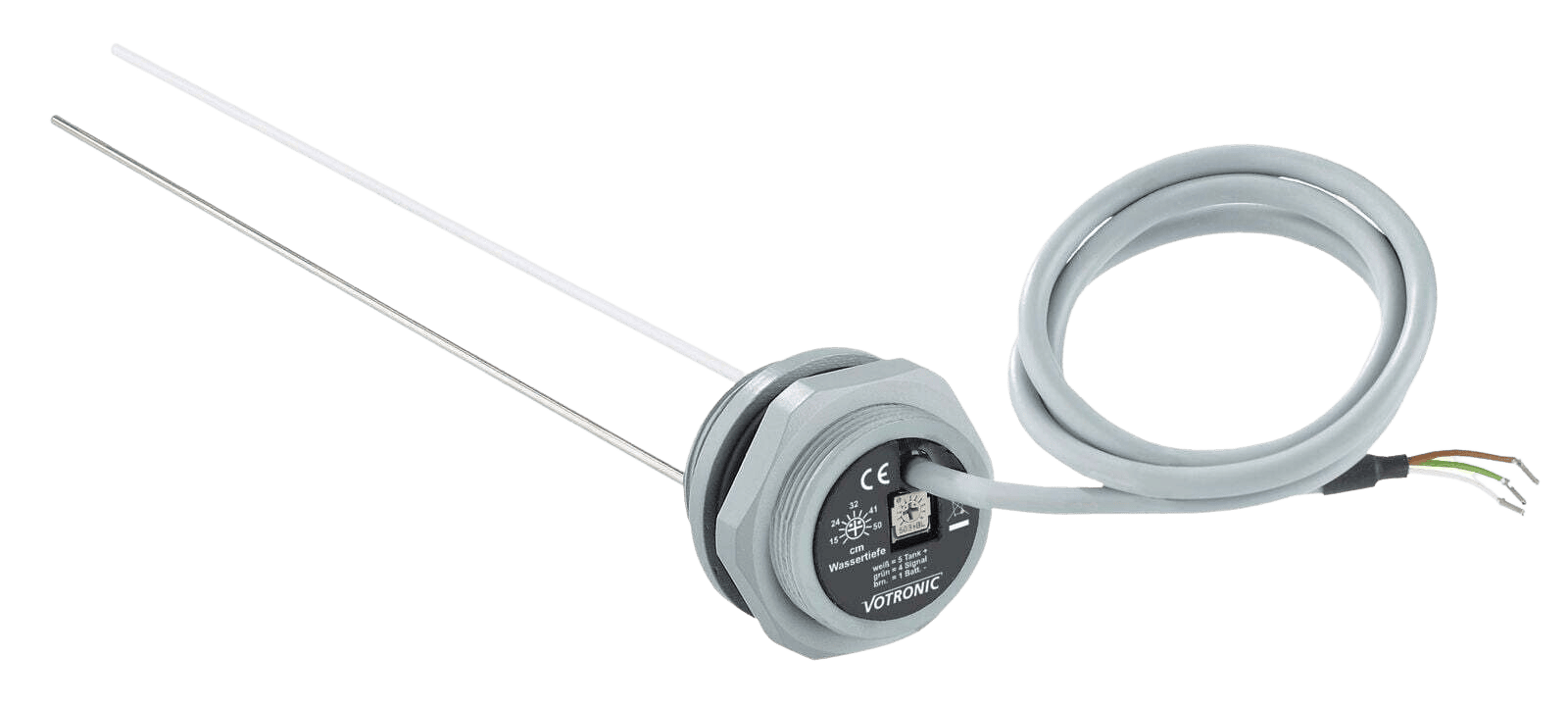

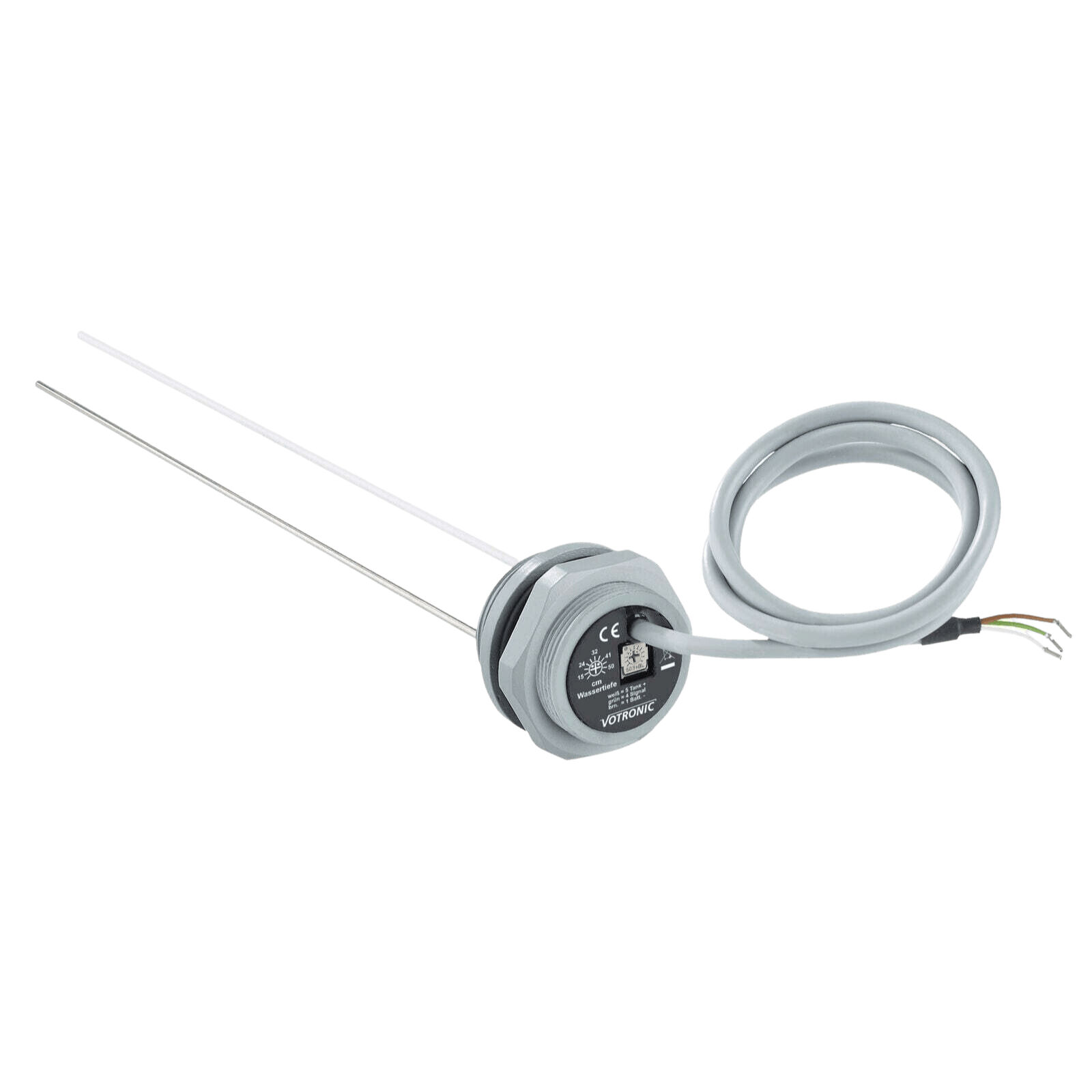

TANK SENSOR ELECTRODE

For precise level measuring of fresh water, grey water or toilet water in metal or plastic tanks. Combined with the display it provides precise level measurement information. The measured value is sensed electronically and the signal sent to the display unit via 2 cables.

Included: Tank electrode, packing ring, nut PG 29, connection cable 75cm and manual.

All Votronic measuring sensors work with the capacitive measuring method and independently of pressure. Therefore, a falsification of the measured values in case of overpressure in the tank, pressure filling etc. is avoided. They include a protection against reverse battery, overvoltage, short-circuit and overload.

TANK LEVEL DISPLAY

These tank displays have been designed for precise level measuring, and they are suitable for any tank material and tank size. Combined with the tank sensor it provide precise level measurement information.

The tank levels have clearly arranged luminous bar with 10 light emitting diodes in three colours so the tank levels can be read conveniently at a glance. The displays are working continuously; the intermediate results are displayed in variable brightness. Tendencies can be recognised at once.

During filling and emptying of the tanks, the continuously raising or dropping display shows a direct image of the instantaneous level allowing complete control of the procedure. The continuous operation of the display contributes to this control. At the touch of a button, the display can be switched-on or -off, or it is switched-off automatically after approx. 10 minutes.

The display units are executed as panel version matching to the VOTRONIC modular system. The appearance (identical height 85 mm) is adapted to the other VOTRONIC display units. Of course, it is possible to retrofit a single display in the vehicle. The small dimensions of the front panel and the particularly small mounting depth of only 15 mm allow an installation at almost any location. Thus, storage space, which is located behind, can be used further.

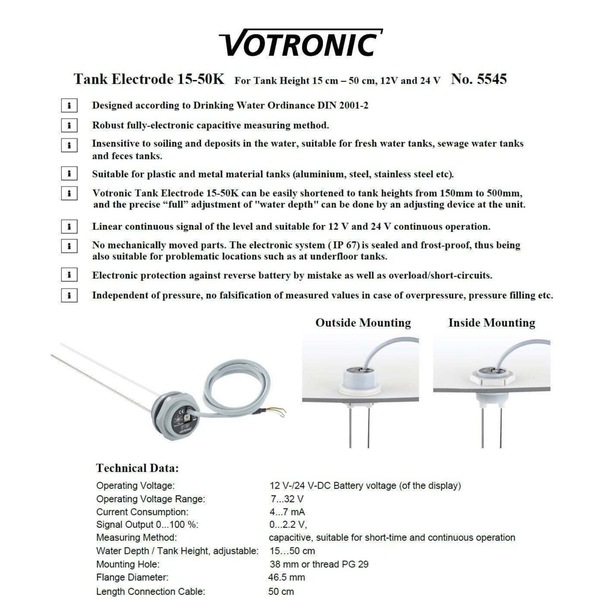

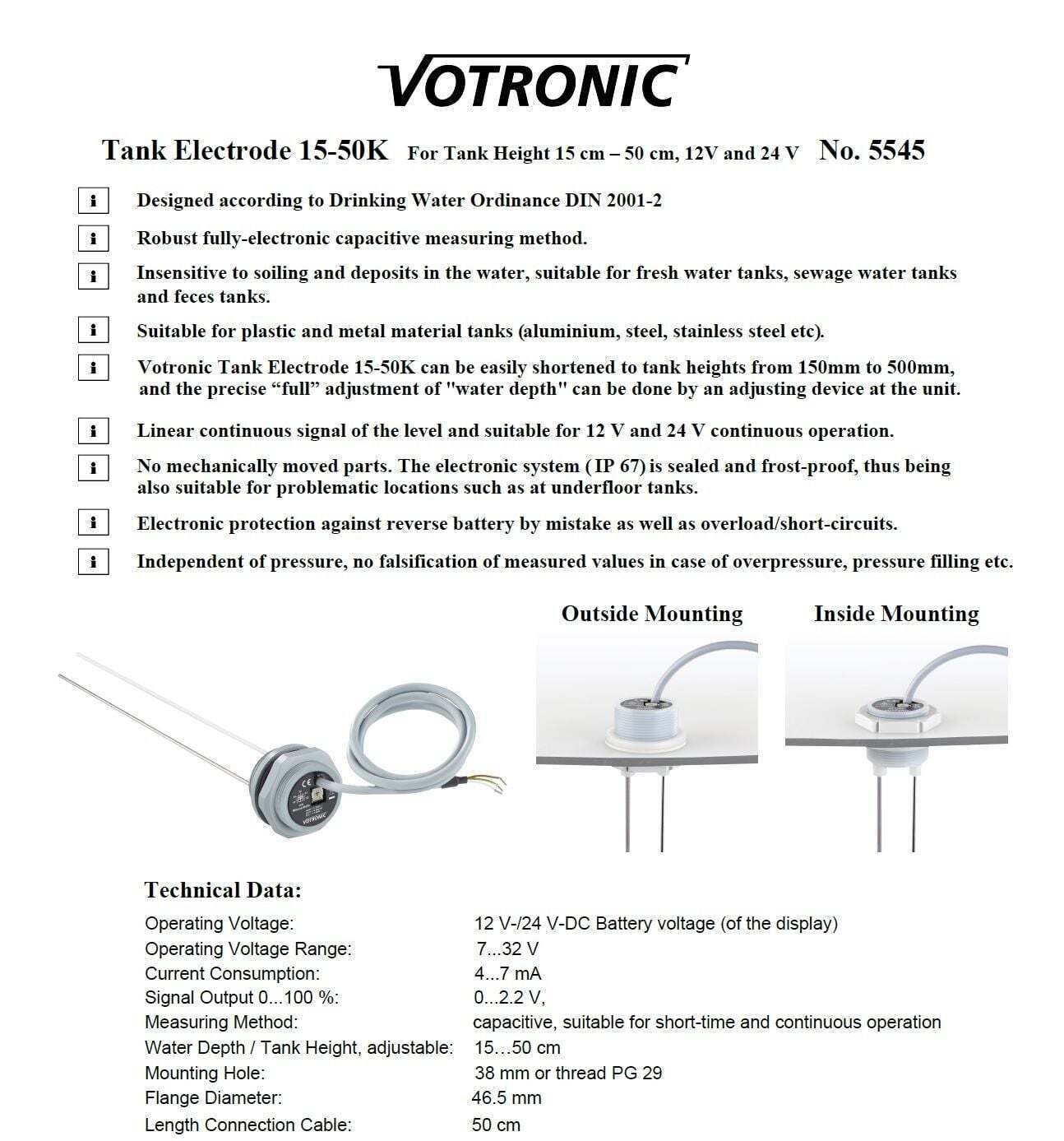

Specifications:

The stick can be easily cut to tank height.

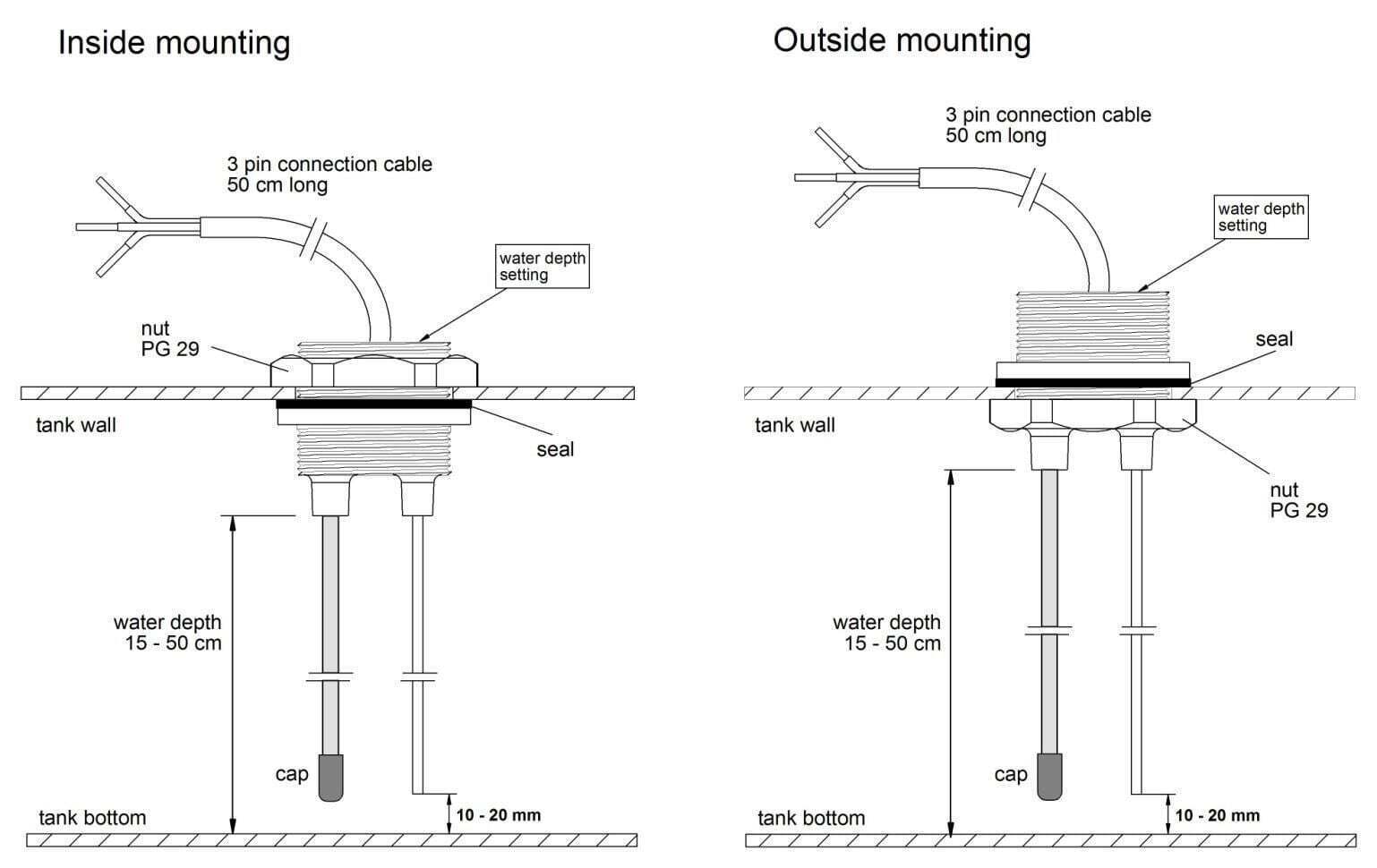

Possibility to install the tank electrodes from inside as well as from outside on the tank top.

In case of fresh water tanks, the installation is also possible at the tank bottom.

Insensitive to soiling and deposits in water;

No mechanical moving parts;

Robust fully-electronic capacitive measuring method.

The electronic system (IP 67) is sealed and frost-proof, so is suitable for problematic locations, such as at underfloor tanks.

We are liable for material defects of all our products within 36 months from the purchase date against representation of the sales slip or of the invoice, proper handling, intended use and consideration of the installation and operating manual provided. If the buyer or third execute modification and repair tasks to the product (external intervention) or will the electronic or the entire product damaged by moisture, any claims for defects for these tasks and the results being involved will be void. Claims will also be void for any service being performed by third, which has not been ordered by us in writing. Service is exclusively allowed to be performed by Votronic GmbH & Co. KG Lauterbach.

SKU: Vot-5545-5313
