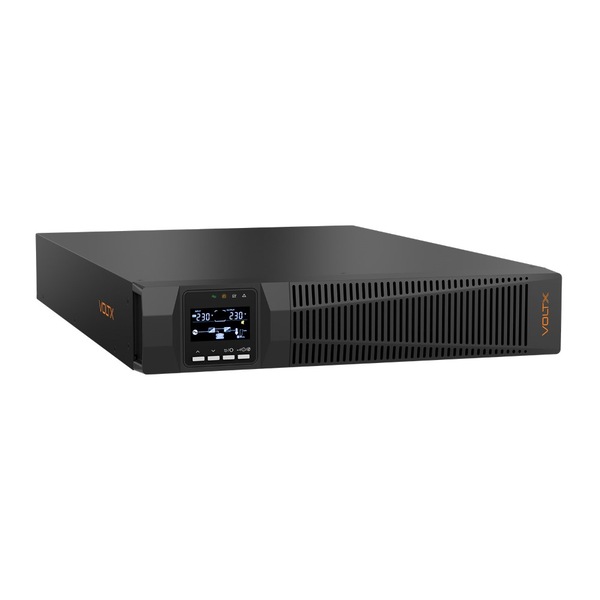

VoltX UPS 3000VA 3000W LiFePO4 Lithium Battery Charger Uninterruptible Power Supply LED LCD Display Home Network 5 Years Warranty

VoltX UPS 3000VA 3000W LiFePO4 Lithium Battery Charger Uninterruptible Power Supply LED LCD Display Home Network 5 Years Warranty

Be the first to review this product

Limited Stock!

Price	$2999
	Collect 2999 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Efficient protection, continuous power - VoltX UPS 3000VA UPS

Multiple usage scenarios: Whether playing computer games, processing important documents in the office, or maintaining the normal operation of your home network, VoltX UPS can provide you with stable and reliable power support. You no longer have to worry about data loss or equipment damage caused by sudden power outages.

5-year extended warranty: Enjoy the extended 5-year warranty service, allowing you to use it worry-free and with full confidence.

Advanced display technology: Equipped with LED and LCD dual display screens, real-time monitoring of power status, clear at a glance, and full control.

Support remote monitoring: Through the remote monitoring function, you can control the operation of the device anytime and anywhere, providing more convenience for your work and life.

Intelligent battery management, comprehensive protection: The intelligent battery management system has overcharge and over-discharge protection functions to extend battery life and ensure equipment safety.

To provide lasting power for your critical equipment, choose VoltX high-quality UPS to ensure stability and worry-free every moment.

PHASE: Single phase with ground
Capacity: 3000VA /3000W

INPUT
Nominal voltage: 220/230/240VAC
Operating voltage range (Ambient Temp. <40)
Low line transfer: 176Vac±5% @100%-50% load; 110Vac±5% @50%-0% load;
Low line comeback: 186Vac±5% @100%-50% load; 120Vac±5% @50%-0% load;
High line transfer: 300Vac±5% @100%-0% load;
High line comeback: 290Vac±5% @100%-0% load;
Operating frequency range: 40-70Hz
Input Power factor: >0.98@100% load(Nominal Input Voltage)
Bypass voltage range:
Bypass high voltage point
230-264: setting the high voltage point in LCD from 230Vac to 264Vac (Default: 264Vac)
Bypass low voltage point
176-220: setting the low voltage point in LCD from 176Vac to 220Vac. (Default: 176Vac)
Generator input: Support

OUTPUT
Output voltage: 200/208/220/230/240Vac
Power factor: 1.0
Voltage regulation: ±1%
Frequency
Line Mode (synchronized range): 46-54Hz or 56-64Hz
Bat. Mode: (50/60±0.1)Hz
Crest factor: 3:1
Harmonic distortion (THDv):
≤3% THD with linear load
≤5% THD with non linear load
Waveform: Pure Sine Wave
Transfer time
AC mode <->Batt. mode: 0ms(Typical)
Inverter <-> bypass: 4ms(Typical)
On Line Efficiency: 92%
Economy mode efficiency: 96.50%

BATTERY
Battery Type(Lithium): 76.8V6AH
Backup time: 9min @ full Load
Typical recharge time(standard model): 4 hours recover to 90% capacity (Typical)
Charging voltage: 84.0 VDC ±0.2VDC
Charge current: 2A

SYSTEM FEATURES
Over Load Capability (Online mode):
105%-125%: UPS transfer to bypass after 1 minute when the utility is normal
125%~130%: UPS transfer to bypass after 30 seconds when the utility is normal
>130%:UPS transfer to bypass after 0.2 second when the utility is normal
Over Load Capability (Battery mode):
105%-125%: UPS after 1minute shut down
125%~130%: UPS after 10 seconds shut down
>130%: UPS after 0.2 second shut down
Short Circuit: Hold Whole System
Overheat: Line Mode: Switch to Bypass; Backup Mode: Shut down UPS immediately
Low battery voltage: Alarm and Switch off
EPO (optional): Shut down UPS immediately
Audible & Visual alarms: Line Failure, Battery Low, Overload, System Fault

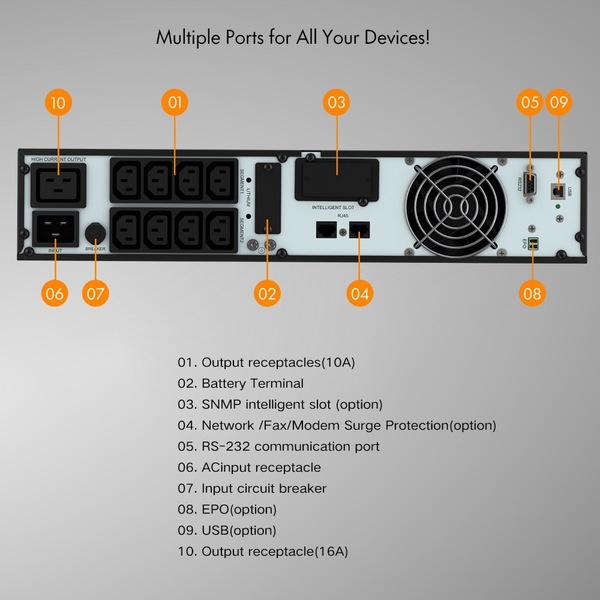

Communication interface: USB(or RS232), SNMP card(optional), Relay card (optional)

ENVIRONMENTAL
Operating temperature 0°C~40°C
Storage temperature -25°C~55°C
Humidity range 0~95% (non-condensing)
Altitude: Up to 1000m (no derating)
Noise level: <50 dB at 1m

PHYSICAL

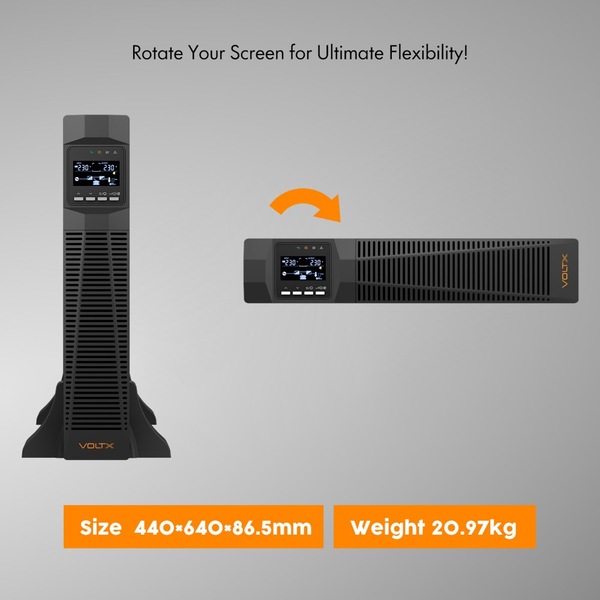

Dimension WxDxH(mm): 440*640*86.5
Net Weight(kg): 20.97

STANDARDS
Safety: CB: IEC 62040-1:2017, CE-LVD: EN 62040-1:2008+A1:2013
EMC: IEC 62040-2-2016, EN 62040-2-2018 C2
Transportation: ISTA Procedure 2A
Surge protection: IEC 61000-4-5

GTIN: 9355348069792
