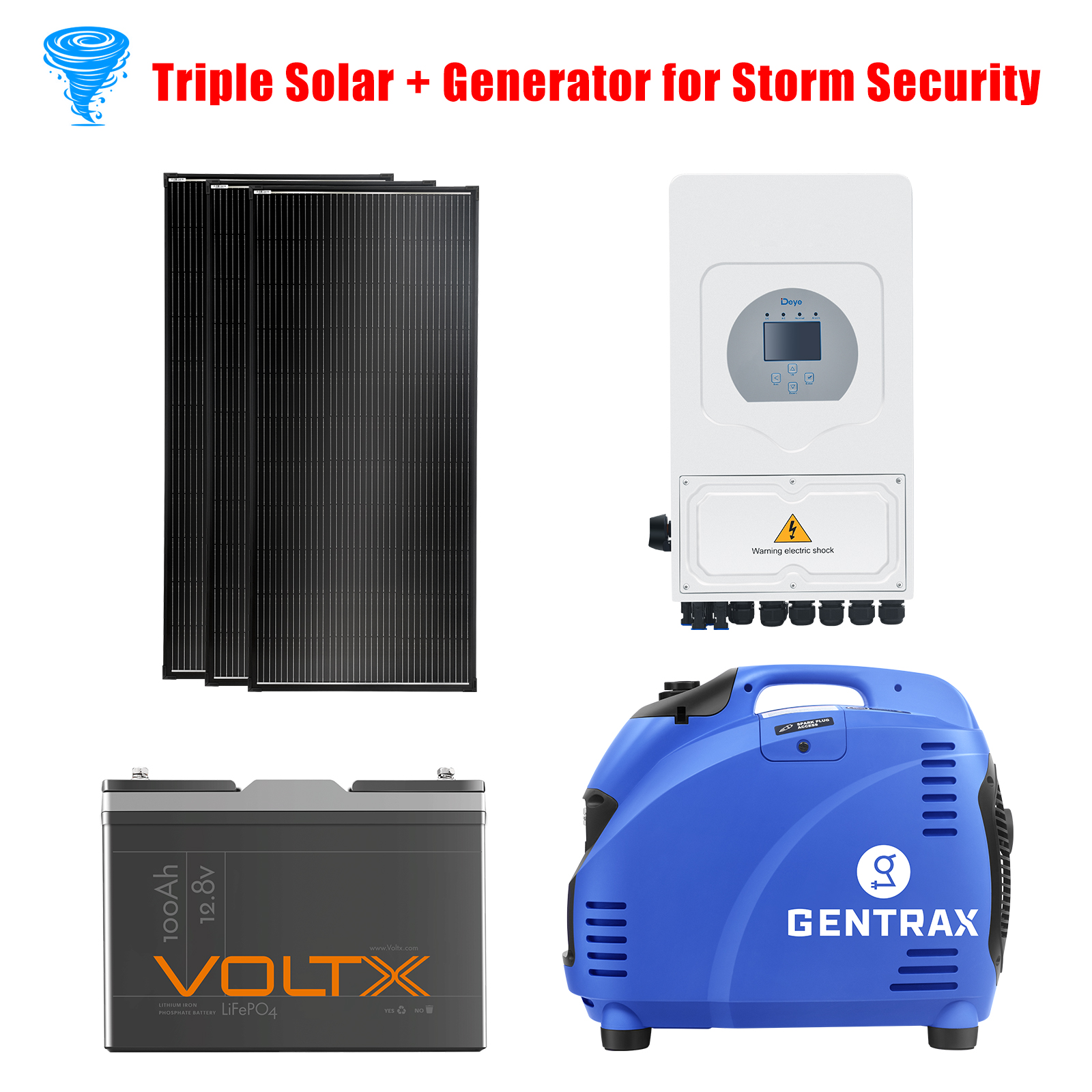

VoltX 12V 100AH Lithium Battery + 8KW Inverter + 3* 200W Fixed Solar Panel + 3.5KW Generator

VoltX 12V 100AH Lithium Battery + 8KW Inverter + 3* 200W Fixed Solar Panel + 3.5KW Generator

Hurry! 11 items left!
Price
$6699
Collect 6699 Everyday Rewards points
Log in to MyDeal to link your card
Shipping
Unable to calculate delivery for , please Contact Us Delivery unavailable to Change

24-48 hour dispatch
Quantity
Maximum item limit (11) has been reached.

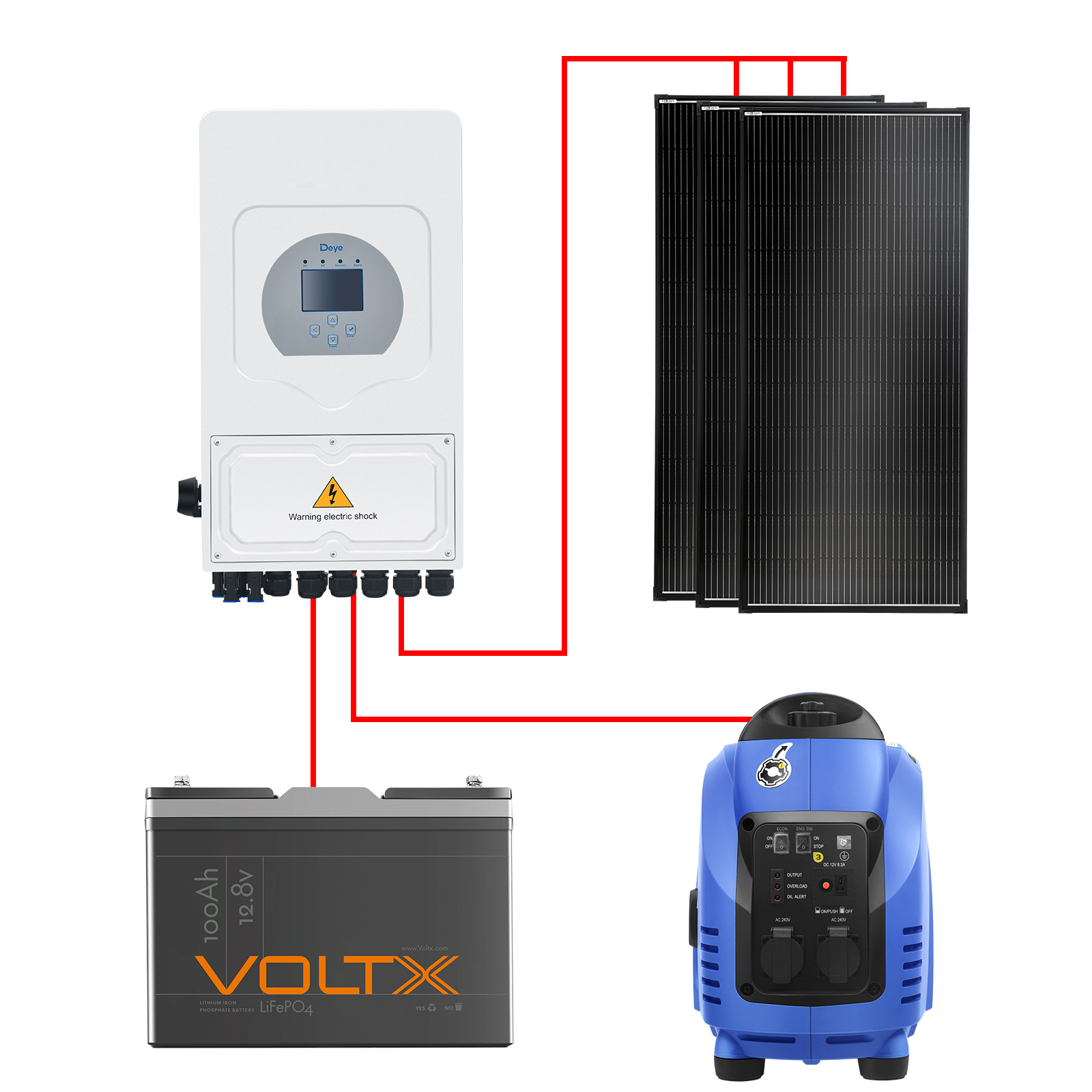

Agricultural & Livestock Disaster-Resistant System -- 8kW Hybrid Power Station

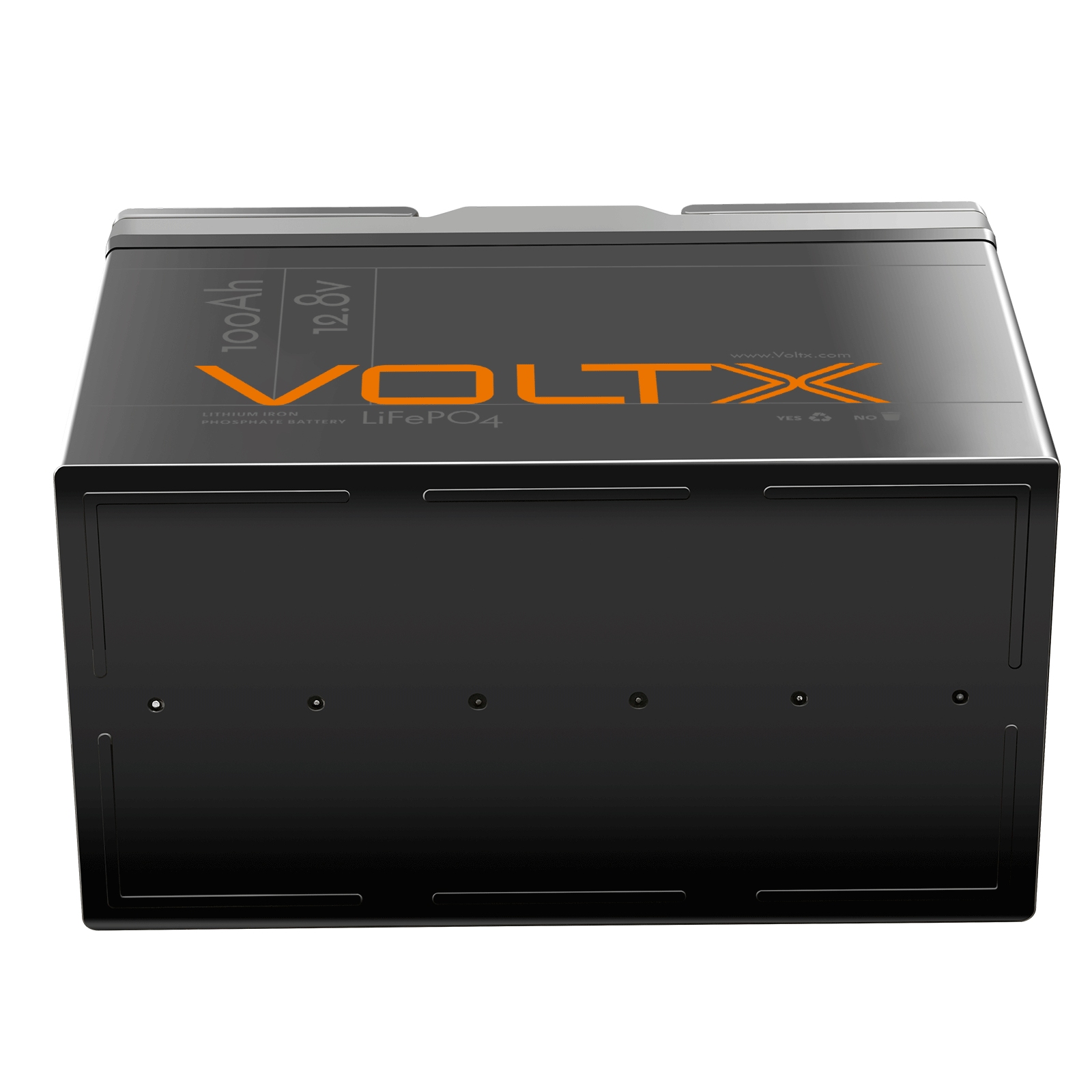

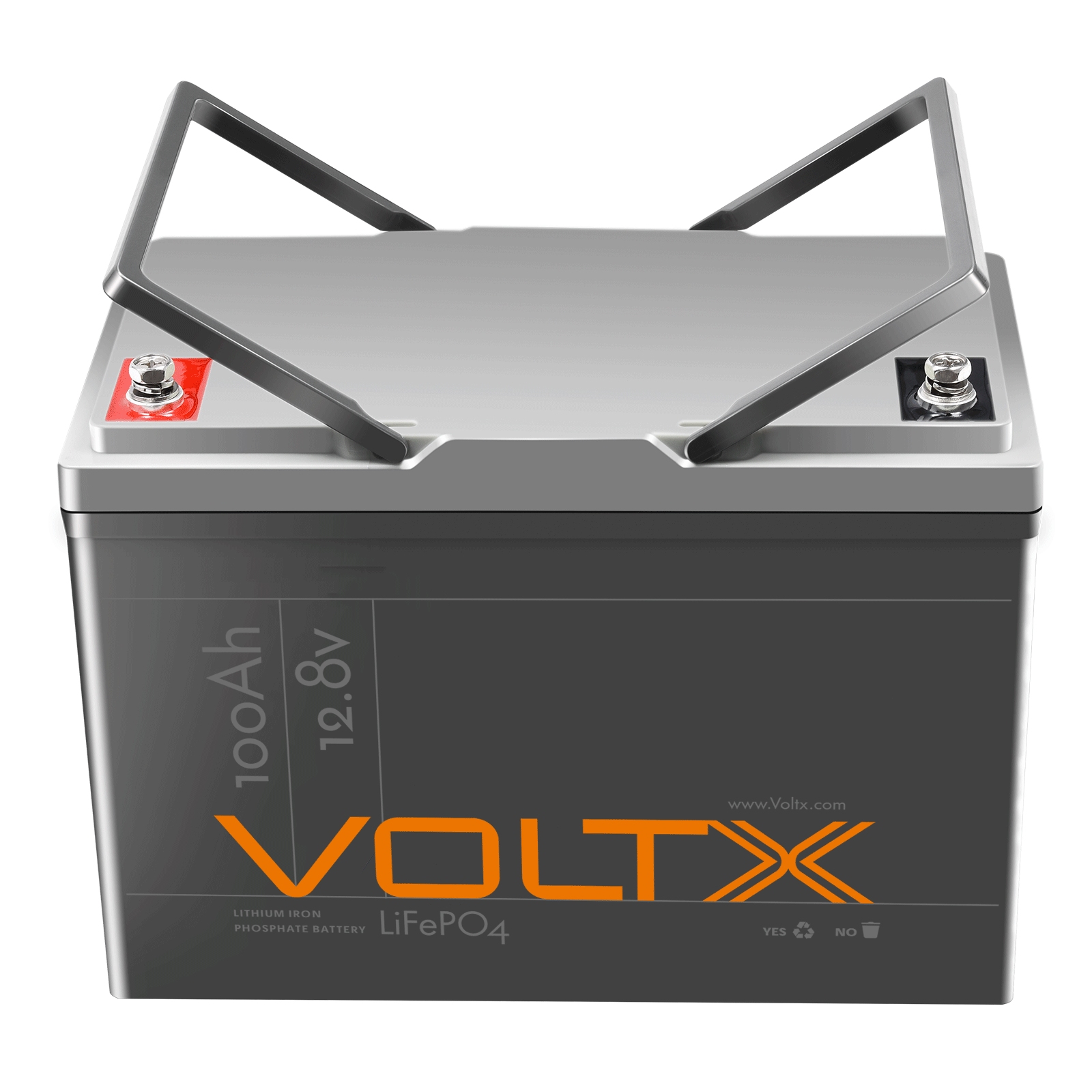

MODEL1: 1* VoltX 12V 100AH Lithium Battery
Nominal Capacity: 100Ah
Usable Capacity: 100Ah
Nominal Voltage: 12.8V
Energy: 1280Wh
Charge Voltage: 14.6V
Discharge Cut-off Voltage: 10V
Charge Method: CC/CV
Charger: 14.5V 50A
Standard Discharge Current: 100A
Max. Continues Discharge Current: 100A
Max. Discharge Current 5 Sec: 200A
Standard Charge Current: 50A
Max. Charge Current: 100A
Dimensions: L:306xW:171xH:210mm
Net Weight: 10.8kg
Working Temperature Range: Charge: 0°C to 45°C; Discharge: -20°C to 60°C
Storage Temperature: -10°C to 50°C
Warranty: 3 years

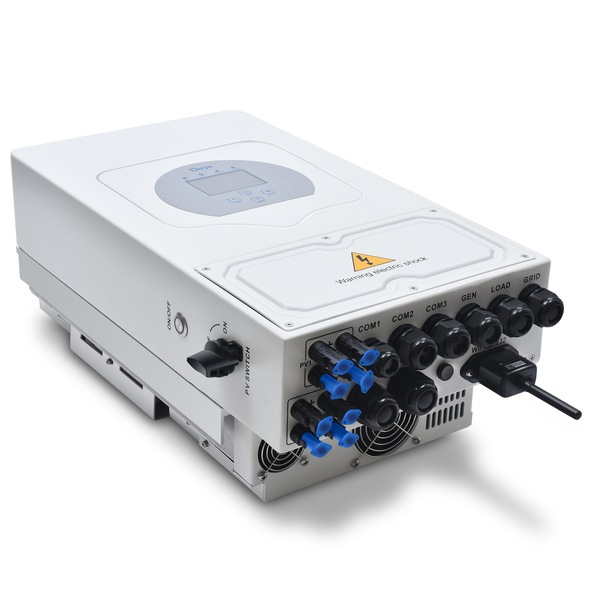

MODEL2: 1* Deye 8KW Hybrid Solar Inverter
Model : dy-ivt-8k-sg05lp1
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40~60
Max. Charging Current (A): 190
Max. Discharging Current (A):190
Charging Curve: 3 Stages / Equalization
External Temperature Sensor:Yes
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W):10400
Rated PV Input Voltage (V):370 (125~500)
Start-up Voltage (V):125
MPPT Voltage Range (V):150-425
Full Load DC Voltage Range (V):200-425
PV Input Current (A):26+26
Max. PV ISC (A): 34+34
Number of MPPT / Strings per MPPT: 2/1+1
AC Output Data
Rated AC Output and UPS Power (VA): 8000
Max. AC Output Power (W): 8000
AC Output Rated Current (A):34.8
Max. AC Current (A):34.8
Max. Continuous AC Passthrough (A):50
Peak Power (off grid) :2 time of rated power, 10 S
Power Factor:0.8 leading to 0.8 lagging
Output Frequency and Voltage:50Hz/45Hz-55Hz; L/N/PE 230V/ 195.5V-253V, 240V/204V-264V
Grid Type: Single Phase
DC injection current (mA):THD<3% (Linear load<1.5%)
Efficiency:
Max. Efficiency:97.60%
Euro Efficiency:97.00%
MPPT Efficiency: 99.90%
Protection: PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
Output Shorted Protection, Surge protection
Output Over Voltage Protection: DC Type II/AC Type III
Certifications and Standards
Grid Regulation : AS/NZS 4777.2
Safety EMC / Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range (°C):-40~60°C, >45°C derating
Cooling : Nature Cooling
Noise (dB): <30 dB
Communication with BMS:RS485; CAN
Weight (kg):24
Size (mm):330W x 580H x237D
Protection Degree: IP65
Installation Style: Wall-mounted
Warranty: 5 Years

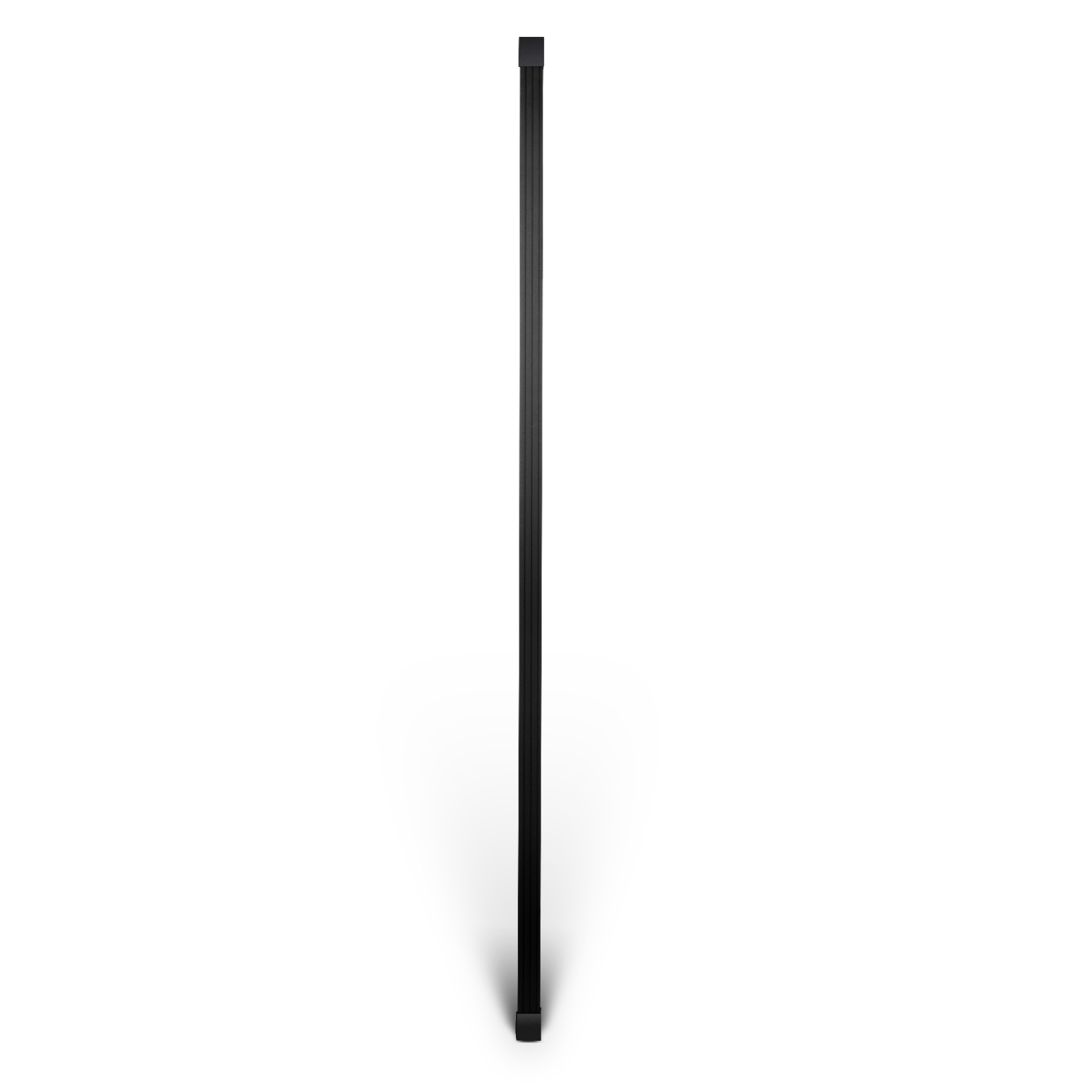

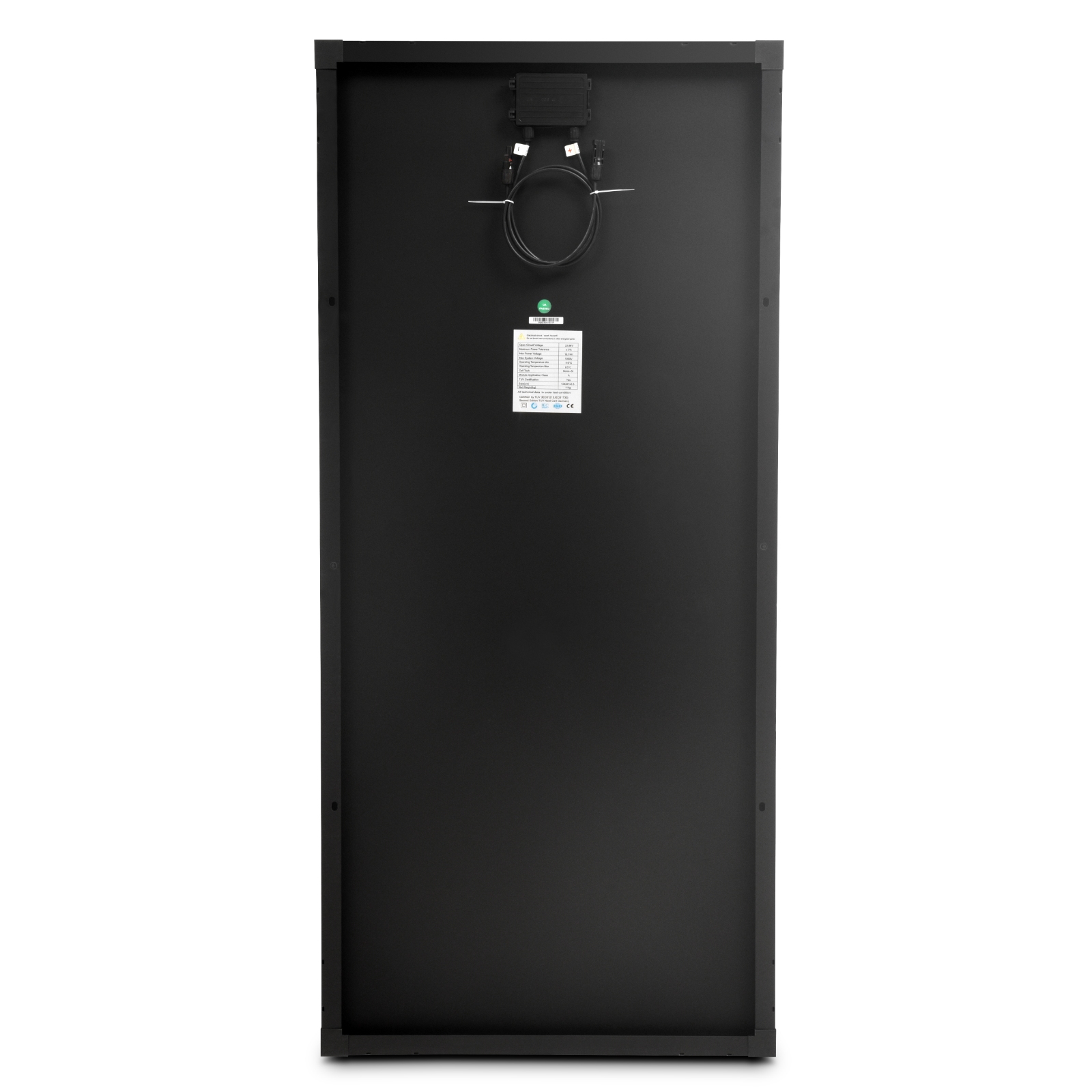

MODEL3: 3* VoltX 200W Fixed Solar Panel
Open-Circuit Voltage (Voc): 22.86V
Maximum Power Voltage (Vmp): 18.74V
Module Efficiency STC (%): 19.66%
Maximum System Voltage: 1000V
Power Tolerance: 0-5W
Operating Temperature Min: -40°C
Operating Temperature Max: 85°C
Temperature Coefficients of Pmax: -0.34%°C
Temperature Coefficients of Voc: -0.28%°C
Temperature Coefficients of lsc: +0.05%°C
Nominal Operating Cell Temperature (NOCT): 45±2°C
Cell: Mono grade A
Cell Tech: PERC
Module Application Class: A
Cell Efficiency: ≥23%
IP level: IP65
Product Size(mm): 1480*670*35mm
Box Size (mm): 1500*690*50mm
N.W(KG): 11KG
G.W(KG): 11.9KG
Certifications: CE/ISO
Warranty: 5 years
Solar Panel Product Size(mm): 1480*670*35mm
Solar Panel Box Size (mm): 1500*690*50mm

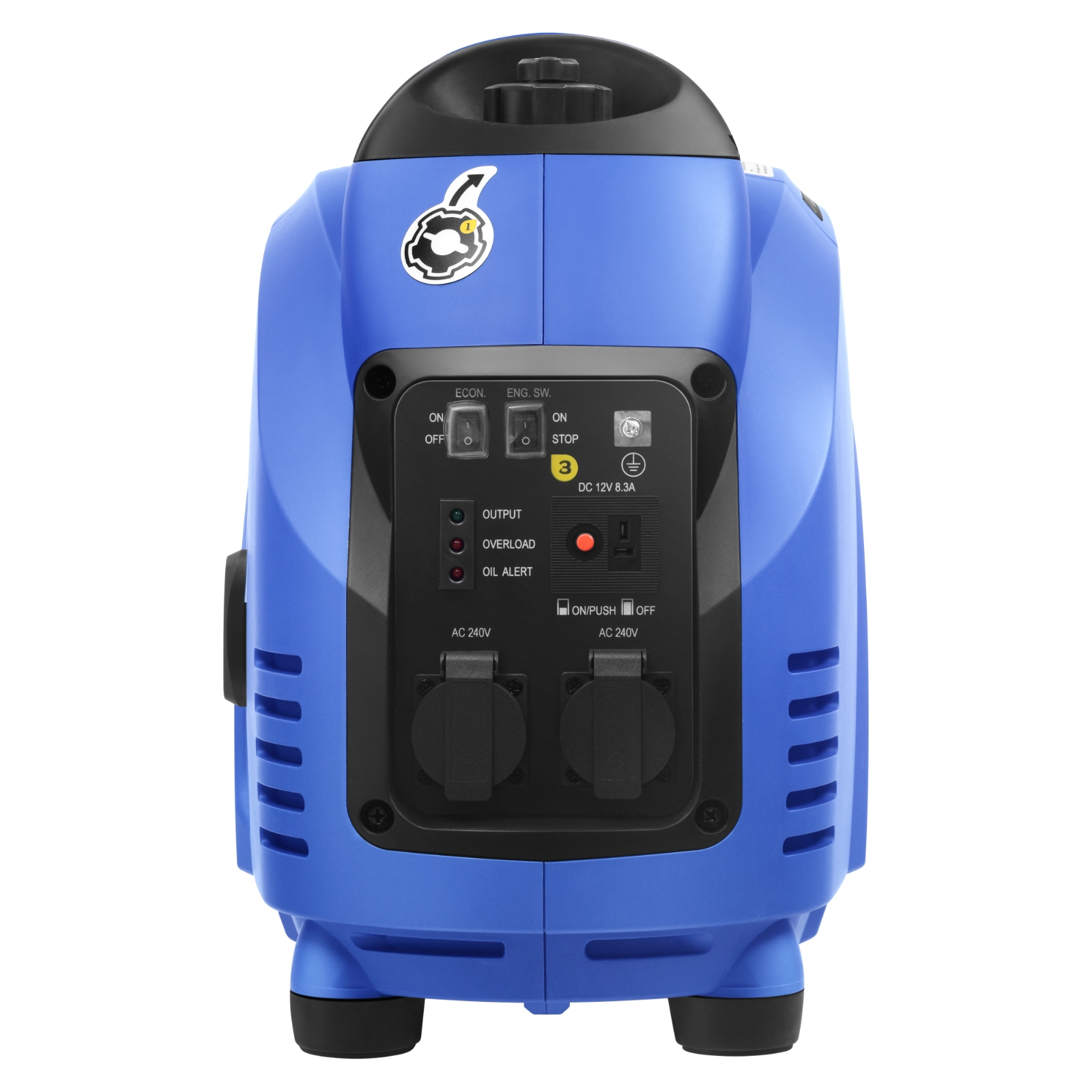

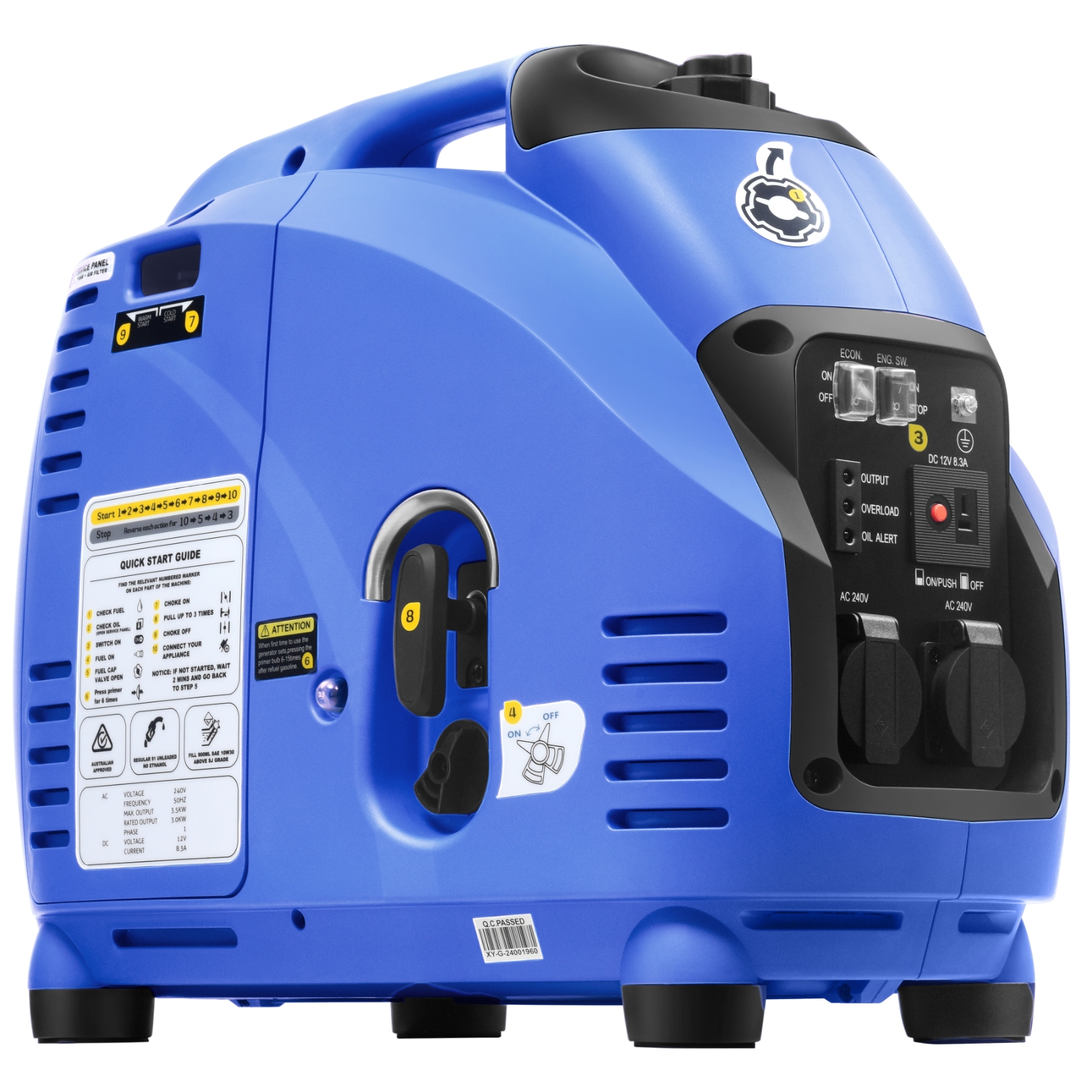

MODEL4: 1* GenTrax 3.5KW Inverter Generator
PRODUCT
Max AC output 3.5kW
Rated AC output 3.0kW
Rated Voltage 240V
DC output Voltage 12V
DC output Current 8.3A
AC outlet double
DC outlet single 'T' Type
Type Air-cooled, 4 cycle, OHV, Gasoline Engine
Displacement 149.5cc
Engine Speed 5500rpm
Ignition Mode T.C.I
Fuel Type Regular Mobile Gasoline
Fuel Capacity 5.7Liters
Oil Type SAE 10W30
Oil Capacity 1 Liter
Spark Plug A7RTC(TORCH)

DIMENSIONS & WEIGHT
Dimension: 565*320*470
Weight: 28KG

FEATURES
100% Pure Sine Wave - Tested with sensitive equipment
Dual Australian Approved weather proof 15Amp AC outlets
Single 12V DC 8.3Amp outlet. (Free DC Cable)
Super Quiet - 58Db@7m
8 hours (economy mode)
Computerized overload protection
Low oil/ tip over protection
5.7 Litre fuel capacity
Economy mode option - Fuel efficiency
Super easy recoil start
RCM Australian standard Approvals
Easy service - 2m oil change
Automatic output adjustment
12 months warranty
GTIN: 9355348087079
