VIP Vision Residential Series Touchscreen IP Intercom Monitor (Black)

The INTIPMONKB is a touch screen indoor monitor that integrates into IP video intercom solutions. The monitor is used for two-way talk with an apartment door station, featuring live-view of the door station camera.

Features

• Record and snapshot video calls/messages
• All calls and messages logged
• Prevent unwanted calls with Do Not Disturb mode
• Alarm system integration
• 7" TFT capacitive touch screen
• Power over Ethernet (12VDC, 802.3af)
• MicroSD storage (up to 32GB)

Monitor

• Main Processor: Embedded Microprocessor
• Display Size: 7” Colour TFT LCD (1024 x 600) Captive Touchscreen
• Video Compression: H.264 ; H.265
• Alarm Support: 6 Input channels / 1 output channel
• Internal Capacity: Built-in 8GB, MicroSD slot up to 32GB
• Ethernet / Network: 1 x RJ45, 10/100Mbps Self-adaptive

Audio

• Audio / 2-Way Talk: Omni-directional Microphone / Embedded Loudspeaker
• Bidirectional Talk: Support
• Audio Enhancement: Supports echo suppression
• Audio Compression: G.711a, G.711Mu, G.711u, PCM

General

• Installation: Surface Mount
• Material: PC + ABS Plastic
• Operating Temperature: -10 ~ +55°C / 10 ~ 95%RH (max.)
• Power Input / Use: 12VDC / 1A, PoE (802.3af) / Operation <6W

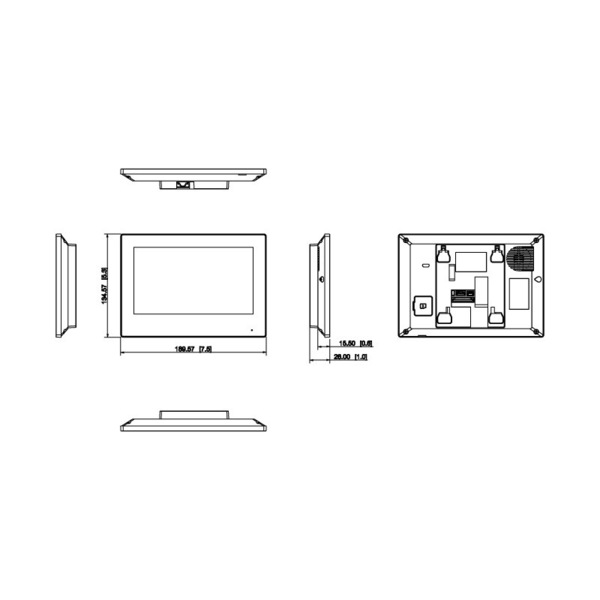

• Weight / Dimensions: 0.34kg / 189.6 x 134.6 x 26mm
