Specifications:

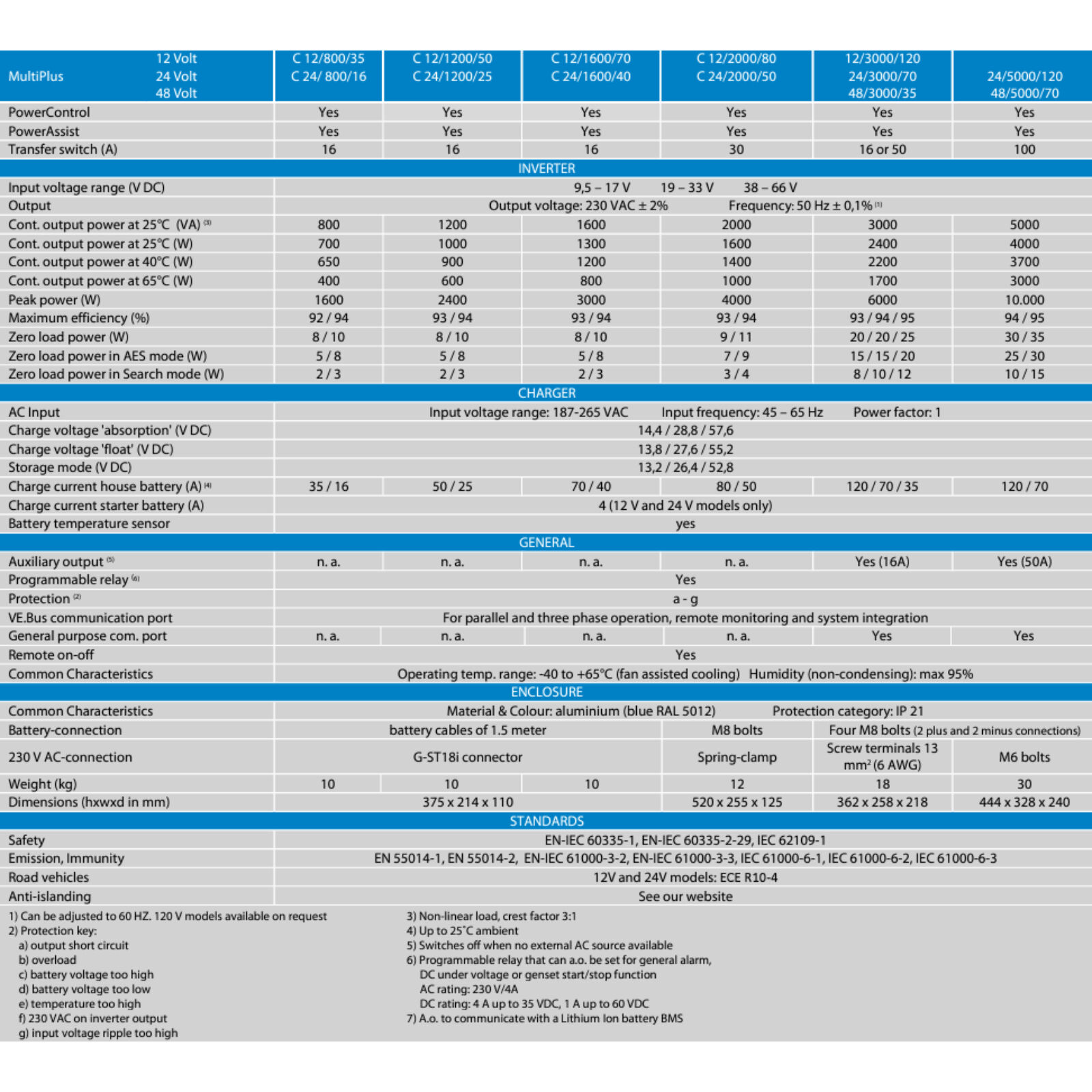

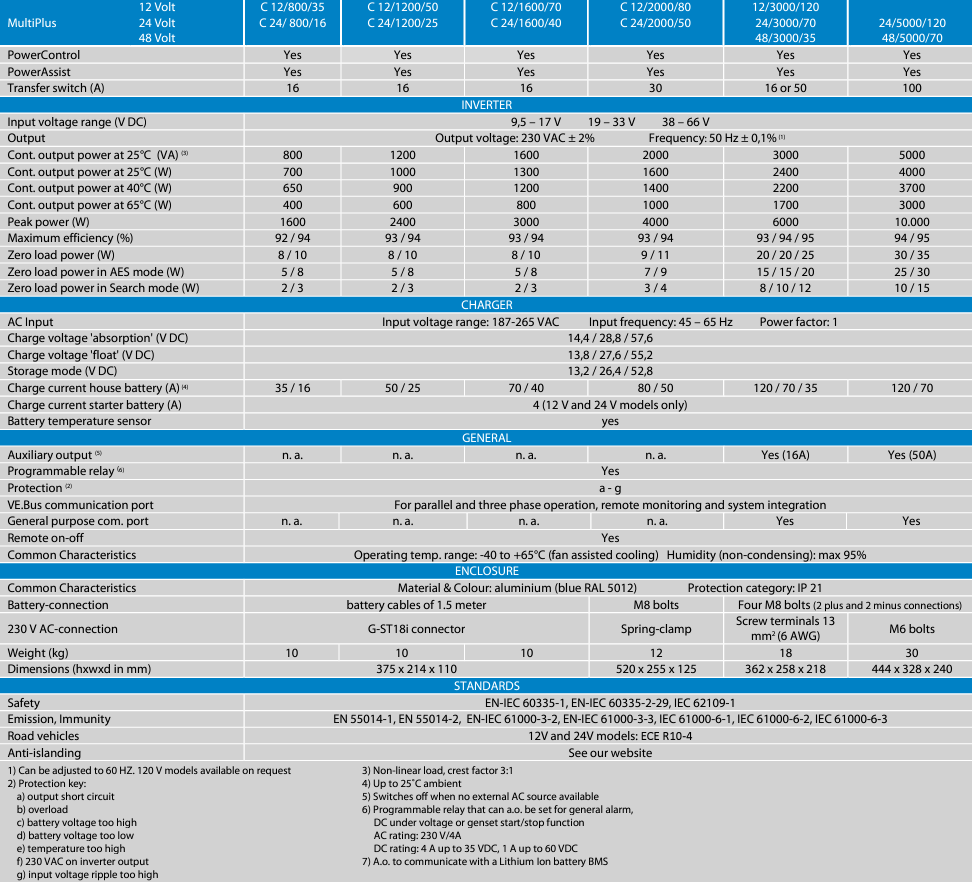

Specifications
| MultiPlus |
12/3000/120 |
| PowerControl |
Yes |
| PowerAssist |
Yes |
| Transfer switch (A) |
16 |
| INVERTER |
|
| Input voltage range (V DC) |
9.5 – 17 V |
| Output |
Output voltage: 230 VAC ± 2%
Frequency: 50 Hz ± 0,1%^{(1)} |
| Cont. output power at 25°C (VA) (3) |
3000 |
| Cont. output power at 25°C (W) |
2400 |
| Cont. output power at 40°C (W) |
2200 |
| Cont. output power at 65°C (W) |
1700 |
| Peak power (W) |
6000 |
| Maximum efficiency (%) |
93 |
| Zero load power (W) |
20 |
| Zero load power in AES mode (W) |
15 |
| Zero load power in Search mode (W) |
8 |
| CHARGER |
|
| AC Input |
Input voltage range: 187-265 VAC
Input frequency: 45 – 65 Hz
Power factor: 1 |
| Charge voltage 'absorption' (V DC) |
14.4 |
| Charge voltage 'float' (V DC) |
13.8 |
| Storage mode (V DC) |
13.2 |
| Charge current house battery (A)^{(4)} |
120 |
| Charge current starter battery (A) |
4 |
| Battery temperature sensor |
Yes |
| GENERAL |
|
| Auxiliary output (5) |
Yes (16A) |
| Programmable relay^{(6)} |
Yes |
| Protection (2) |
a - g |
| VE.Bus communication port |
For parallel and three phase operation, remote monitoring and system integration |
| General purpose com. port |
Yes |
| Remote on-off |
Yes |
| Common Characteristics |
Operating temp. range: -40 to +65°C (fan assisted cooling)
Humidity (non-condensing): max 95% |
| ENCLOSURE |
|
| Common Characteristics |
Material & Colour: aluminium (blue RAL 5012)
Protection category: IP 21 |
| Battery-connection |
Four M8 bolts (2 plus and 2 minus connections) |
| 230 V AC-connection |
Screw terminals 13
mm^{2} (6 AWG) |
| Weight (kg) |
18 |

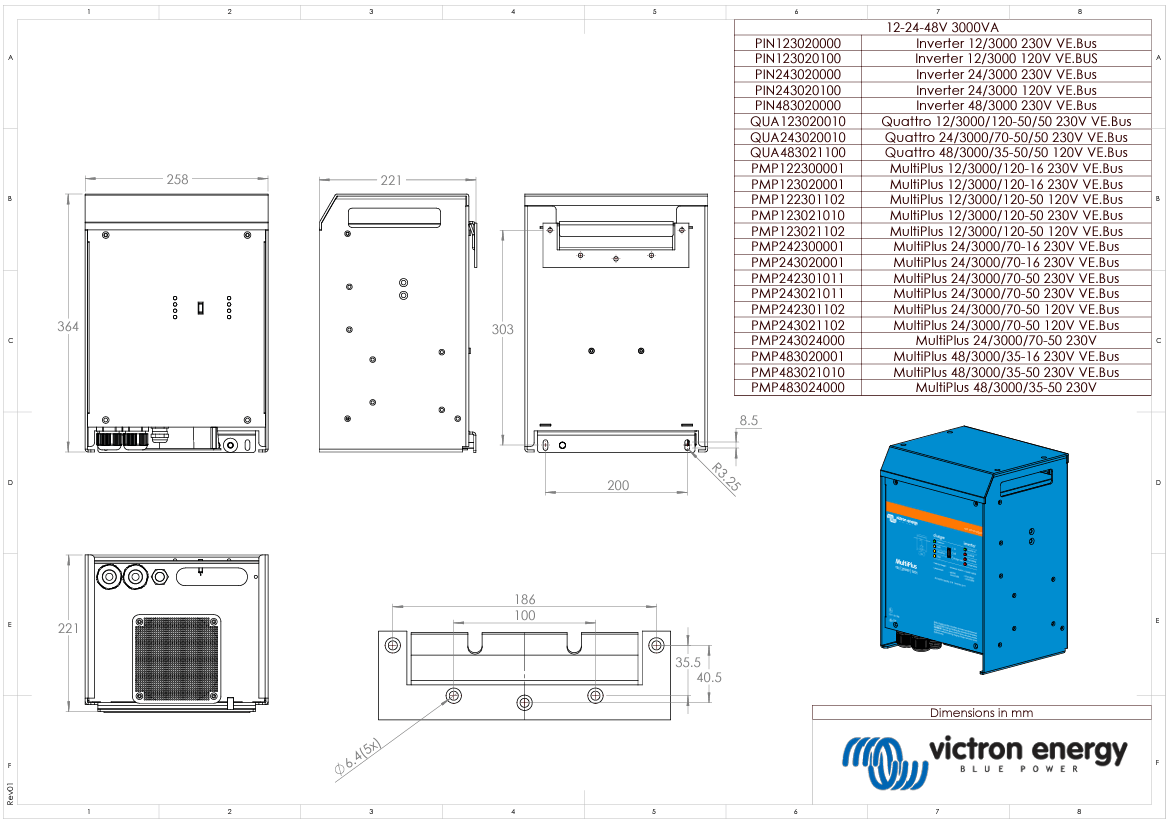

| Dimensions (hxwxd in mm) |
362 x 258 x 218 |
| STANDARDS |
|
| Safety |
EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 |
| Emission, Immunity |
EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
| Road vehicles |
12V and 24V models: ECE R10-4 |
1) Can be adjusted to 60 HZ. 120 V models available on request 3) Non-linear load, crest factor 3:1
2) Protection key: 4) Up to 25˚C ambient
a) output short circuit 5) Switches off when no external AC source available
b) overload 6) Programmable relay that can a.o. be set for general alarm,
c) battery voltage too high DC under voltage or genset start/stop function
d) battery voltage too low AC rating: 230 V/4A
e) temperature too high DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC
f) 230 VAC on inverter output 7) A.o. to communicate with a Lithium Ion battery BMS
g) input voltage ripple too high
