Specifications:
Specifications

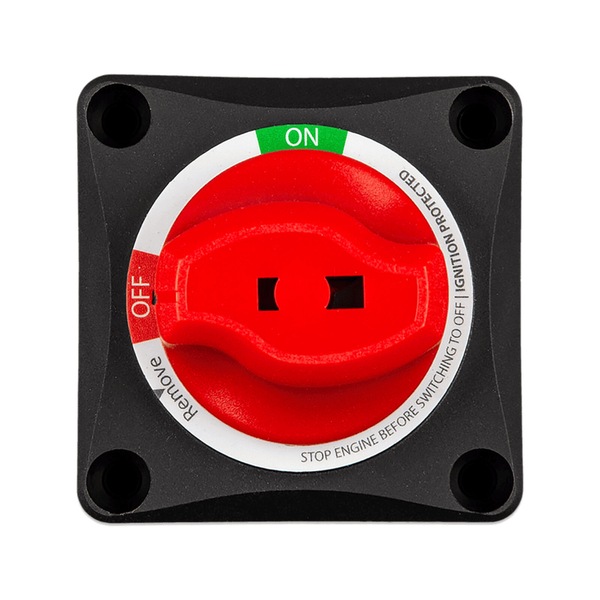

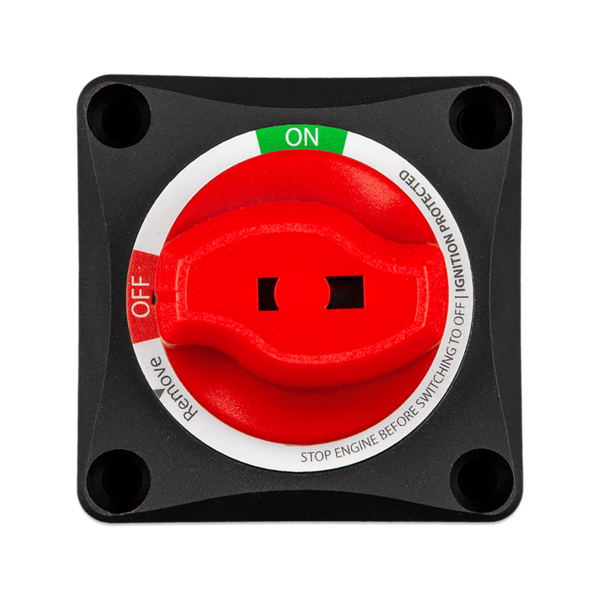

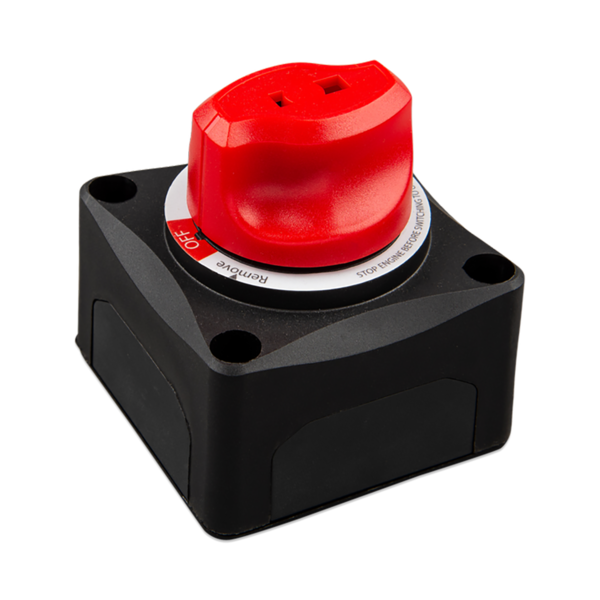

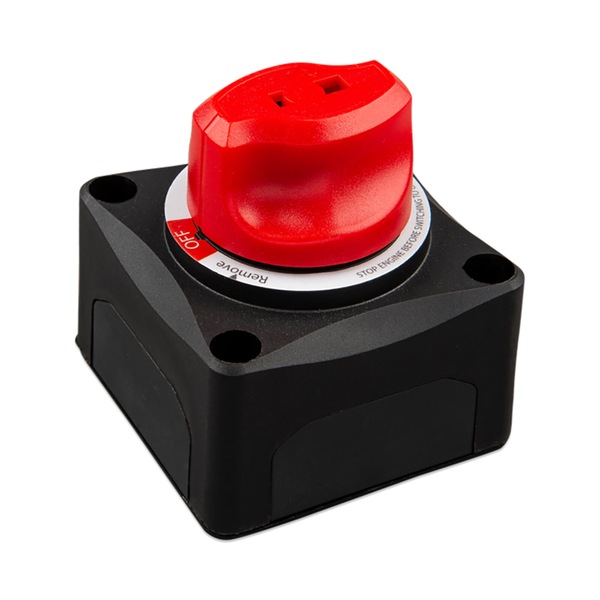

| Battery Switch |
|
| Max. Continuous Current |
275 A |
| One Minute Rating |
455 A |
| Cranking Rating |
1250 A |
| Voltage Rating |
48 V |
| Terminal Material |
Tin-plated copper |
| Hex Nut Material |
Tin-plated copper |
| Terminal Diameter |
3/8 inch / 9.53 mm |
| Recommended Torque |
70 lbf·inch / 8 N·m |
| Base Material |
Glass fiber reinforced nylon |
| Weight |
0.4 lb / 0.2 kg |

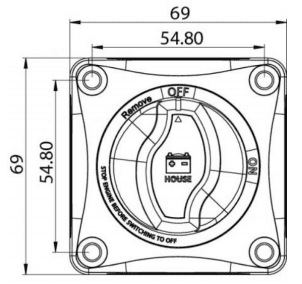

| Dimensions (HxWxD) |
1.8 x 6.0 x 1.25 inch / 69 x 69 x 73 mm |
| Mounting |
Surface or rear panel mount |
| Ignition Protected |
ISO8846 / SAE J1171 |
