VGA Camera Module OV7670 for Arduino Projects
Low cost camera solution & easily interfaces to Arduino

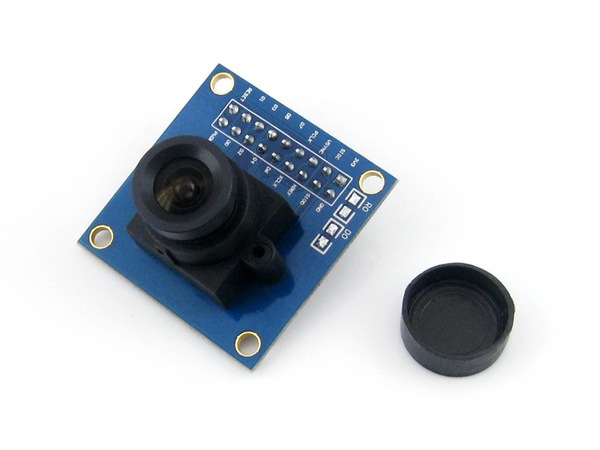

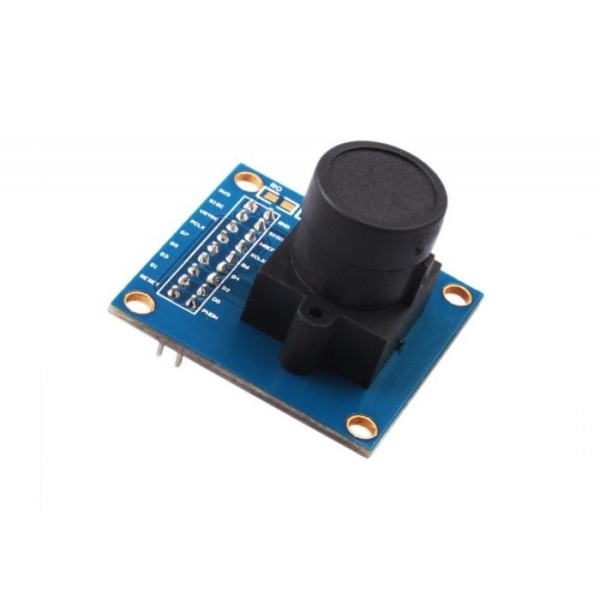

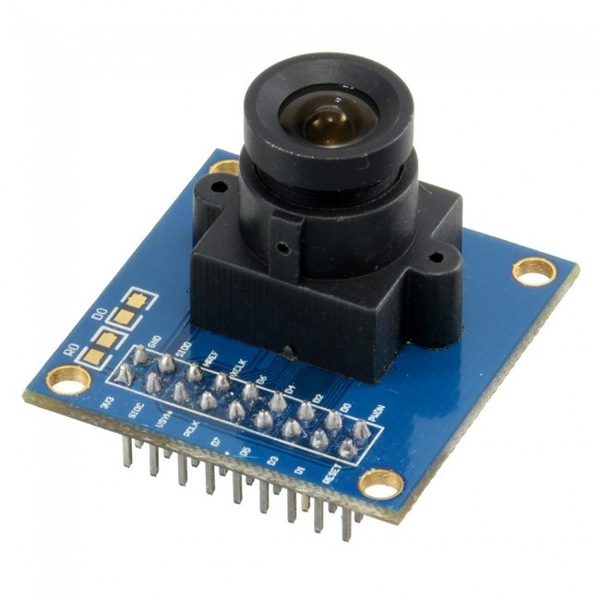

The OV7670 Camera Module is a compact VGA image sensor with low operating voltage perfect for Arduino Projects.

This single chip of VGA camera and image processor can reach up to a maximum of 30 frames per second.The image quality, data format and transmission mode can be adjusted via SCCB programming interface, including gamma curve, white balance, saturation and chroma .

Overview:

  • High sensitivity for low-light operation.
  • Low operating voltage for embedded application.
  • Standard SCCB interface compatible with I2C interface.
  • Raw RGB, RGB (GRB4:2:2, RGB565/555/444),YUV(4:2:2) and YCbCr(4:2:2) output format.
  • Support VGA, CIF and from CIF to 40 x 30 format.
  • Vario Pixel method for sub-sampling.
  • Auto Image Control: AEC, AGC, AWB, ABF, ABLC.
  • Image Quality Control: Color saturation, hue, gamma, sharpness and anti-blooming.
  • ISP includes noise reduction and defect correction.
  • Support image scaling.
  • Lens shading correction.
  • Flicker 50/60Hz auto detection.
  • Color saturation level auto adjust.
  • Edge enhancement level auto adjust.
  • De-noise level auto adjust.

Features:

  • Photosensitive Array: 640 x 480.
  • IO Voltage: 2.5V to 3.0V.
  • Operating Power: 60mW/15fpsVGAYUV.
  • Sleeping Mode: <20μA.
  • Operating Temperature: -30 to 70 deg C.
  • Output Format: YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data (8 digit).
  • Lens Size: 1/6".
  • Vision Angle: 25 degree.
  • Max. Frame Rate: 30fps VGA.
  • Sensitivity: 1.3V / (Lux-sec).
  • Signal to Noise Ratio: 46 dB.
  • DynamicRange: 52 dB.
  • Browse Mode: By row.
  • Electronic Exposure: 1 to 510 row.
  • Pixel Coverage: 3.6μm x 3.6μm.
  • Duck Current: 12 mV/s at 60℃.
  • PCB Size (L x W): Approx. 1.4 x 1.4 inch / 3.5 x 3.5 cm.
