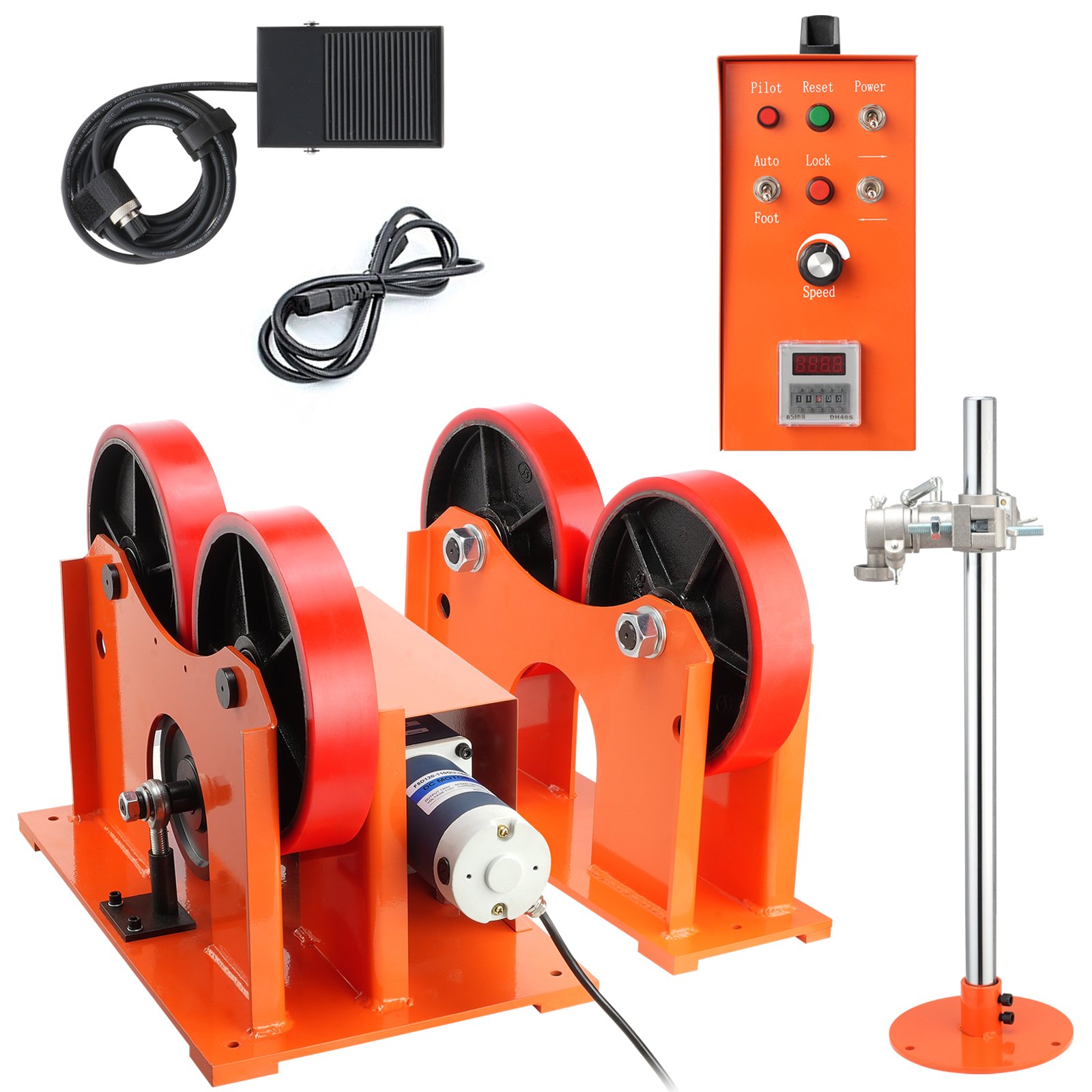

Turning Rolls Linkage Roller, 1000KG/2205LBS Loading Welding Turning Roll, 25-1400mm Diameter, 80-1600 mm/min Rotary Welding Positioner & Welding Torch Stand for Welding Equipment Support

About this item

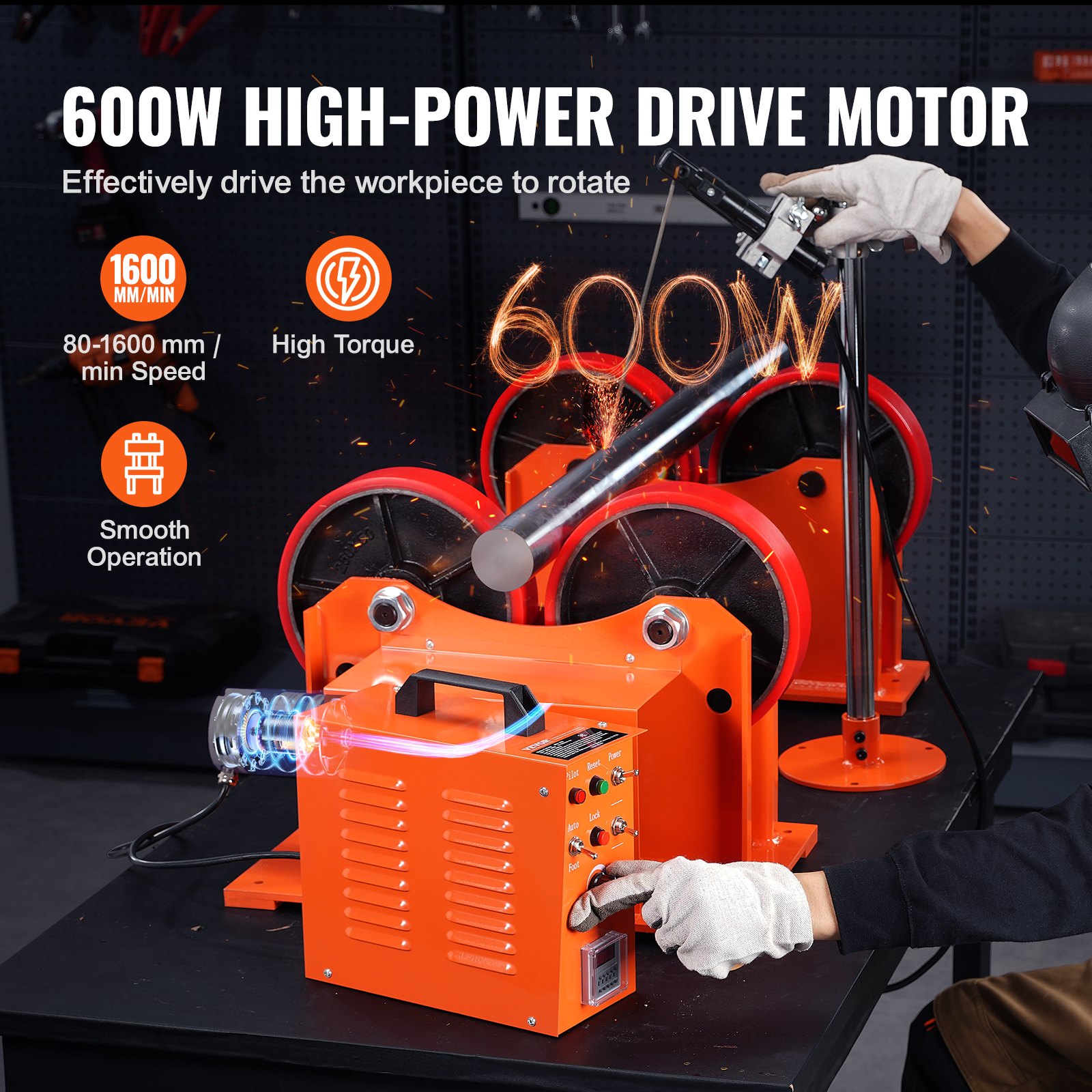

Enhance Welding Efficiency: turning rolls linkage roller boasts 600w high-torque motor that runs at high speed, providing 2205 lbs / 1000kg strong loading and 80-1600mm/min speed adjustment. It offers exceptional stability and effortless support and rotation of large workpieces.

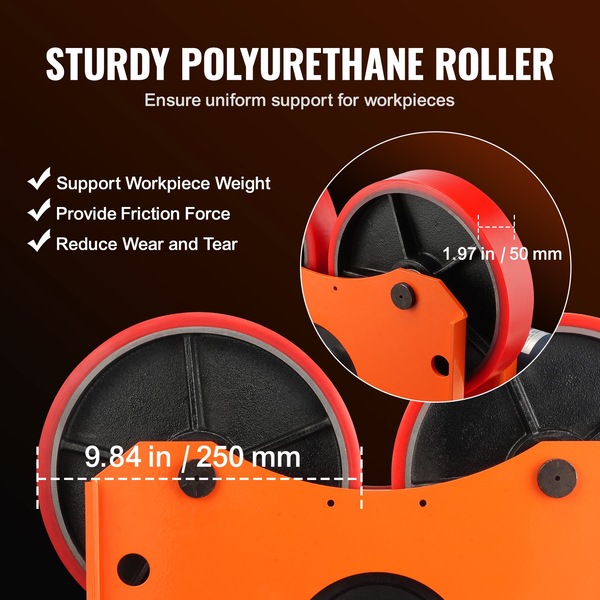

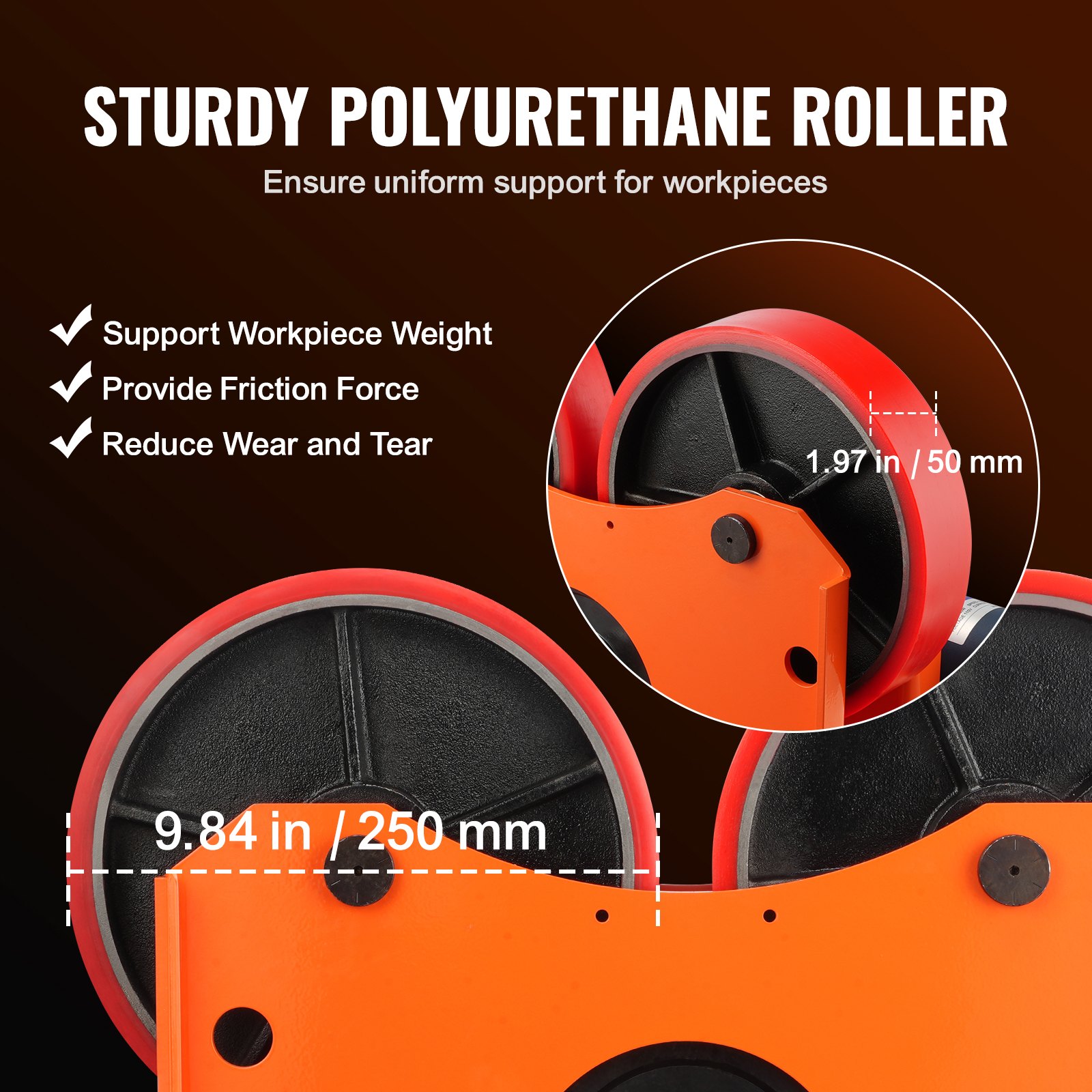

Handle Different Sized Workpiece: The 9.84-inch large PU roller comes with inner and outer holes, offering flexibility to adjust the roller gap for different workpiece sizes. The inner holes suit 25-800mm O.D. workpieces, and the outer holes are ideal for 600-1400mm O.D. workpieces.

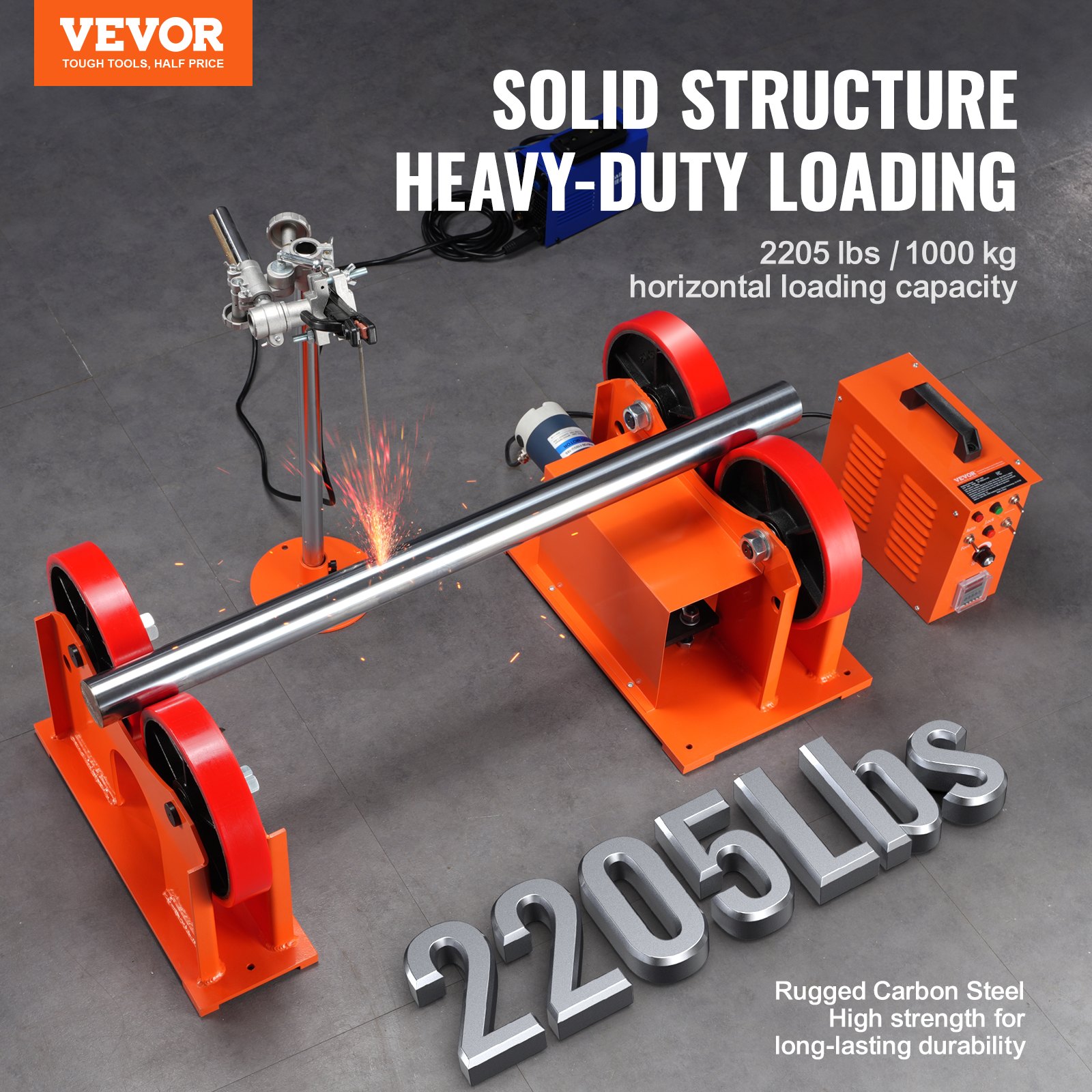

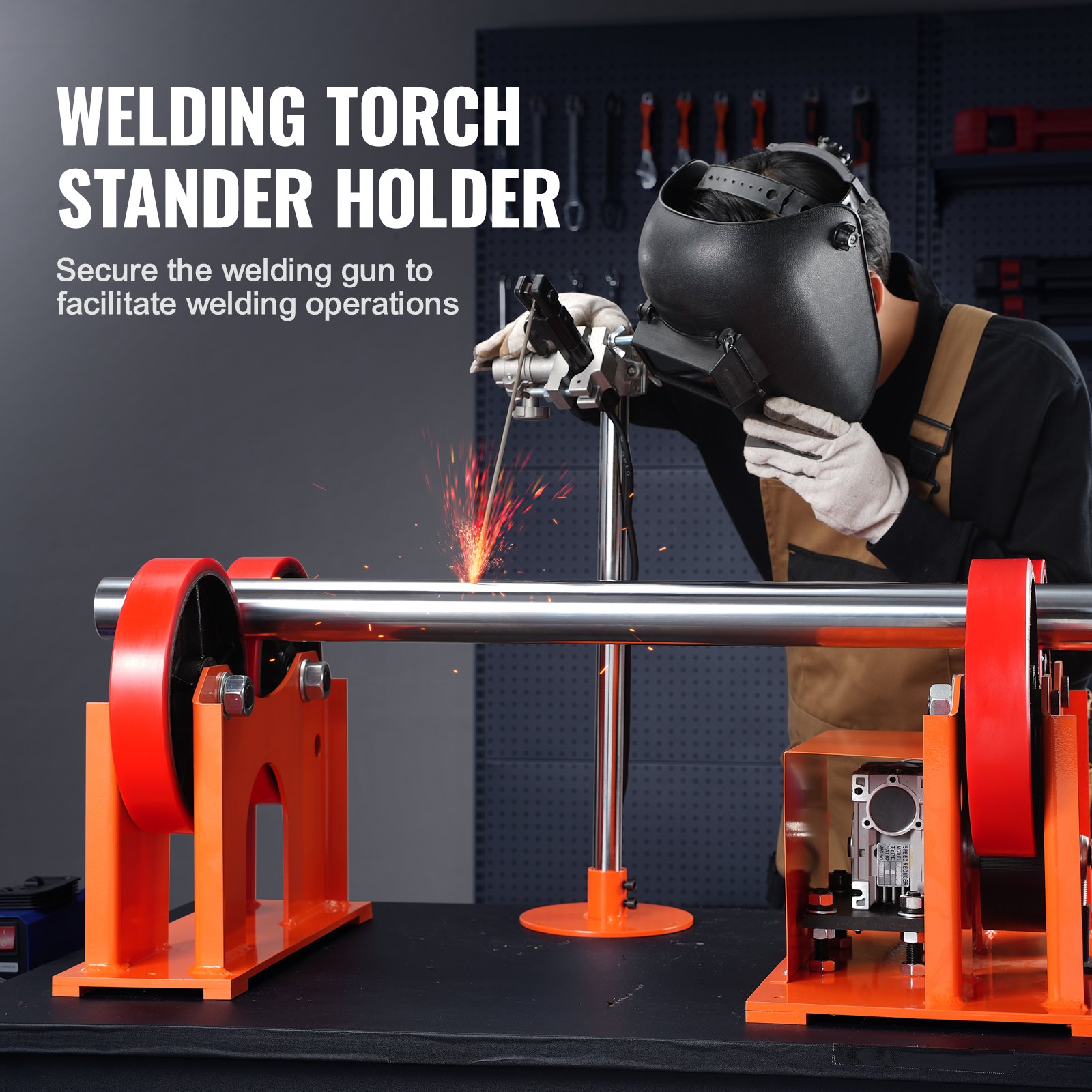

Sturdy & Stable Construction: Our welding turning roll has a rugged carbon steel construction for high load capacity and longtime use. High quality wear-resistant PU rollers offer greater friction and more stable support for workpiece. Also includes a welding torch stand to secure the welding gun in place.

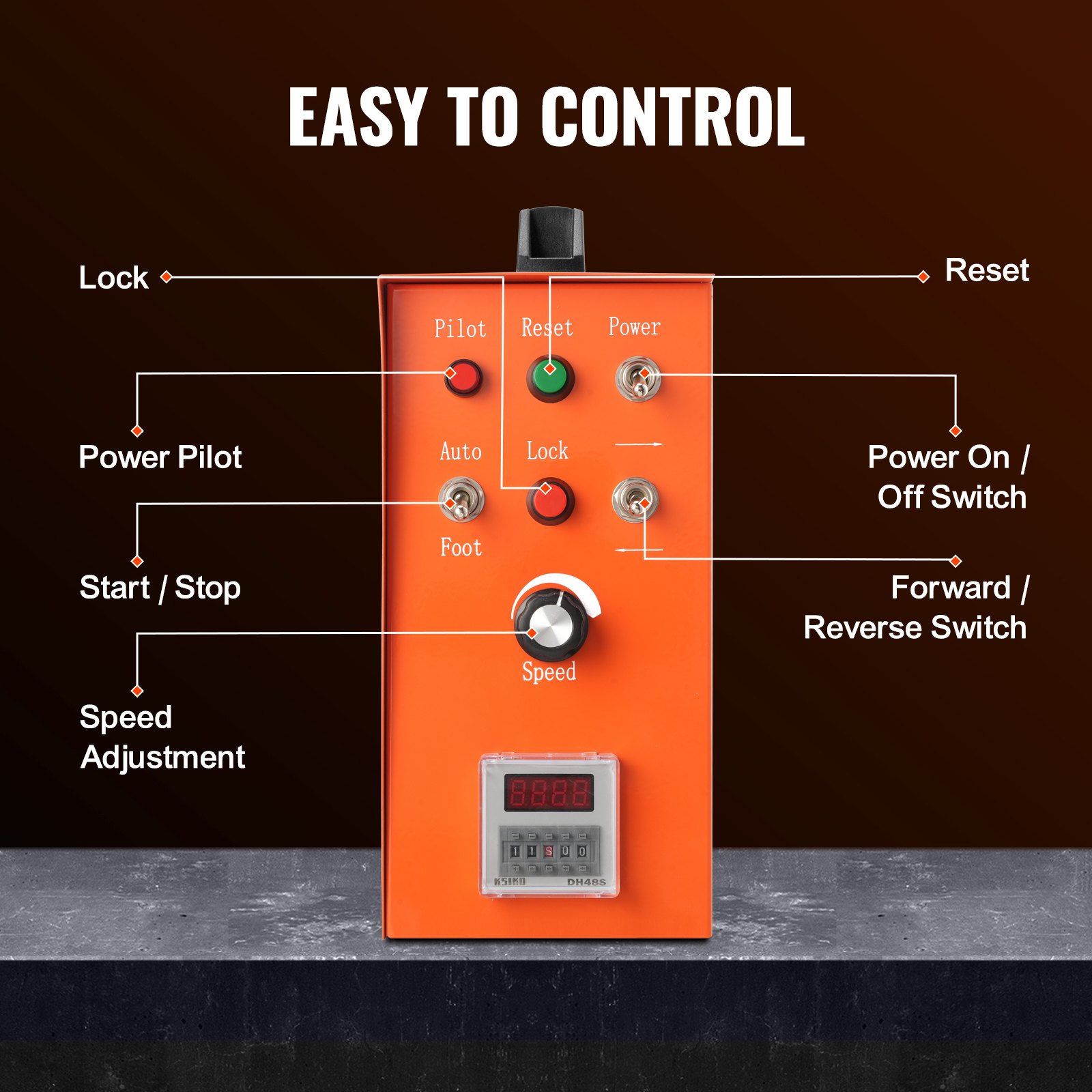

2 Control Modes, Easy to Operate: The rotary turning rolls comes with a manual control box and a foot switch: 1. Select the auto mode, then the rollers will keep rotating at the set speed; 2. Select the foot mode, through the foot switch, the rollers can rotate in a small range, so that the workpiece can move slightly or fine-tune.
Versatile Applications: Our rotary welding positioner finds utility across a wide spectrum of industries and applications, including tank manufacturing, bridge construction, pipe welding, and more. It provides essential support for a diverse welding tasks, making it an ideal choice for welding professionals.

Robust Construction
Stable and Durable PU Rollers
2 Control Modes
Improve Welding Efficiency
Accommodate Varied Workpiece Sizes
Widely Applied

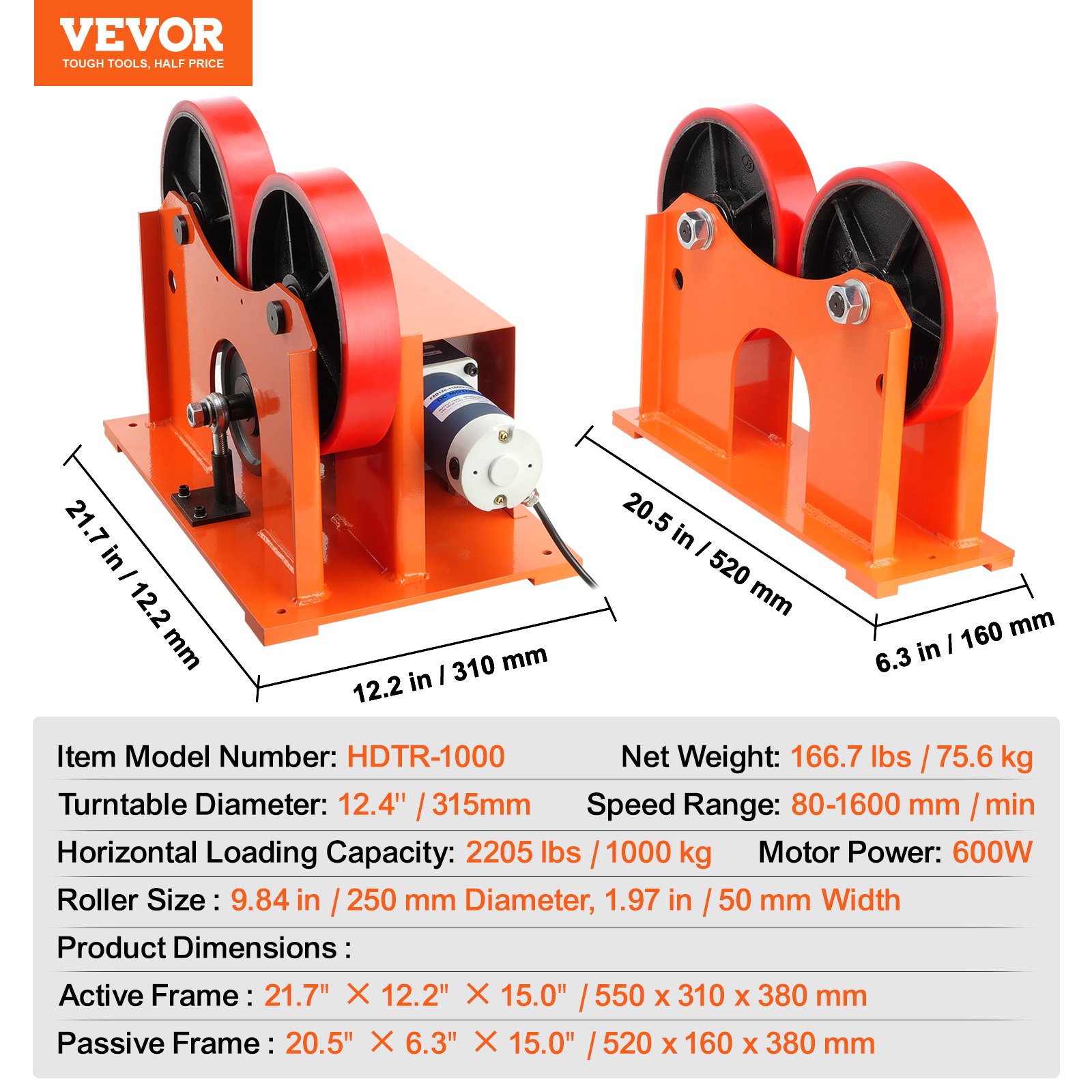

Turntable Diameter: 12.4'' / 315mm,Item Model Number: HDTR-1000,Roller Size: 9.84 in / 250 mm Diameter, 1.97 in / 50 mm Width,Motor Power: 600W,Speed Range: 80-1600 mm/min,Net Weight: 166.7 lbs / 75.6 kg,Horizontal Loading Capacity: 2205 lbs / 1000 kg

SKU: HJGLJX1000KGVKNQDV3
