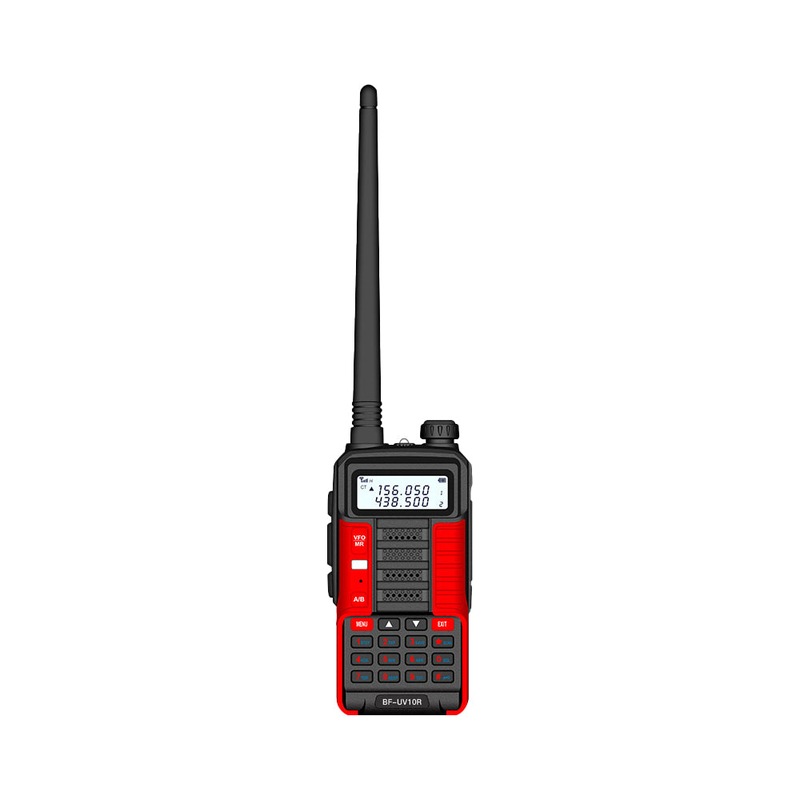

UV-10R 8W 128 Channels Dual Band FM Transceiver Two Way Radio

UV-10R 8W 128 Channels Dual Band FM Transceiver Two Way Radio

Hurry! 2 items left!
Price
$94.99
Collect 94 Everyday Rewards points
Log in to MyDeal to link your card
Shipping
Free Shipping

24-48 hour dispatch
Quantity
Maximum item limit (2) has been reached.

UV-10R 8W 128 Channels Dual Band FM Transceiver Two Way Radio
FEATURES AND FUNCTIONS:


  • Tri-band handheld transceiver.
  • DTMF encoded.
  • Lithium-ion battery with high capacity.
  • Commercial FM radio receiver (65 MHz 〜108 MHz).
  • Incorporates 105 codes "DCS" and 50 privacy codes "CTCSS" programmable.
  • Function "VOX" (voice-operated transmission).
  • Alarm function.
  • Up to 128 memory channels.
  • Broadband (Wide) / Narrowband (Narrow), selectable.
  • High power / low (5 W/l W) selectable.
  • Display illumination and programmable keyboard.
  • Function "beep" on the keyboard.
  • Dual Watch/dual reception.
  • Selectable Frequency Step 2.5/5/6.25/10/12.5/25 kHz.
  • Function“OFFSET”(frequency offset for repeater access)
  • Battery Saver mode
  • Timer transmission "TOT" programmable.
  • Selecting the Scan Mode.
  • Function Busy Channel Lock "BCLO"
  • Built-in RX CTCSS/DCS scan
  • Built-in LED flashlight.
  • Programmable by PC.
  • Level Threshold "Squelch" adjustable from 0 to 9.
  • Crossband reception
  • Tone end of transmission
  • Built-in key lock

Technical Specifications:



  • Frequency range 65MHz-108MHz(Only commercial FM radio reception)
  • VHF:136MHz 174MHz (Rx/Tx)
  • UHF:400MHz-480MHz (Rx/Tx)
  • Memory channels Up to 128 channels
  • Frequency stability 2.5ppm
  • Frequency step 2.5kHz/5kHz/6.25kHz/10kHz/12.5kHz/25kHz
  • Antenna impedance 50Ω
  • Operating temperature -20 ℃ to +60 ℃
  • Supply voltage Rechargeable Lithium-Ion 7.4V/1800 mAh
  • Consumption in standby <=75mA
  • Consumption in reception 380mA
  • Consumption in transmission <=1.4A
  • Mode of operation Simplex or semi-duplex
  • Duty cycle 03/03/54 min. (Rx/Tx/Standby)
  • Dimensions 58mm x 110mm x 32mm
  • Weight 130g (approximate)


TRANSMITTER:


  • RF power 8W
  • Type of modulation FM
  • Emission class 16KΦF3E/11KΦF3E (W/N)
  • Maximum deviation <=±5kHz/<=±2.5 kHz(W/N)
  • Spurious emissions <-60 dB


RECEIVER:


  • Receiver sensitivity 0.2μV(at 12 dB SINAD)
  • Intermodulation 60dB
  • Audio output 1000mW
  • Adjacent channel selectivity 65/60dB

Package Included:


  • 1x UV-10R Two Way Radio
  • 1x Battery
  • 1x Clip
  • 1x Manual
  • 1x Lanyard
  • 1x Antenna
  • 1x Charger Adapter
  • 1x Seat Charger
