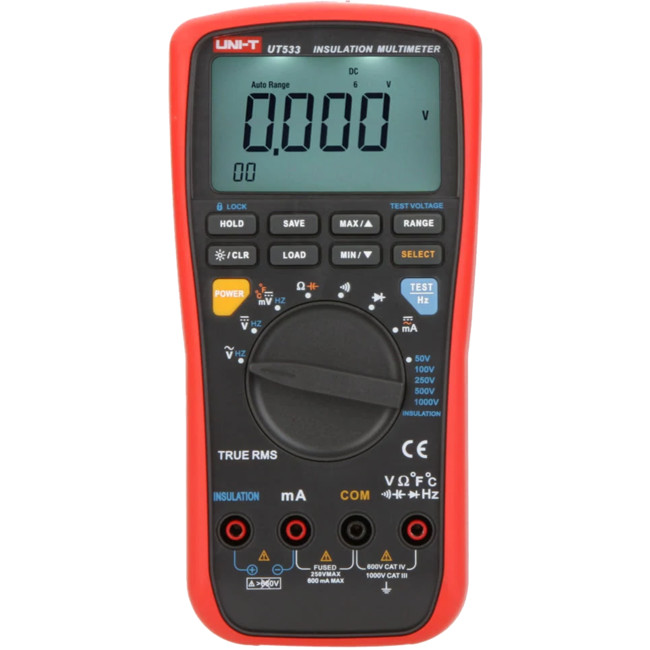

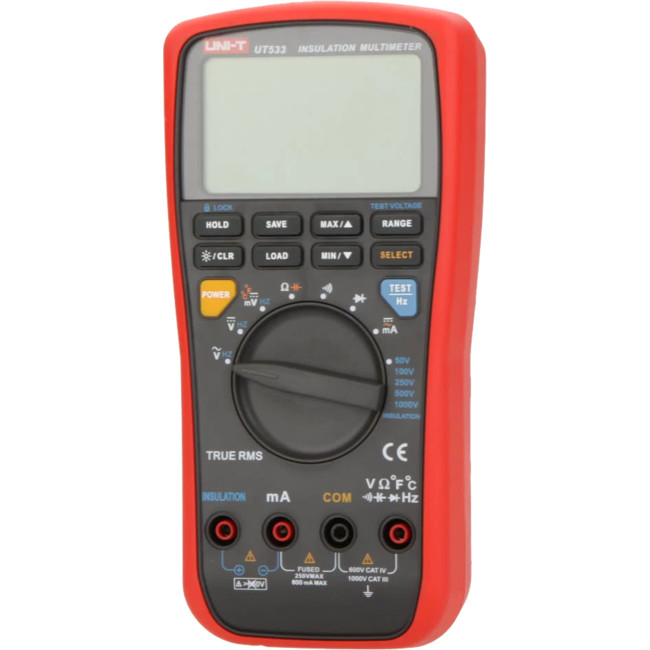

UNI-T UT533 Insulation True Rms Multimeter Auto Ranging Resistance Temp
3x

UNI-T UT533 Insulation True Rms Multimeter Auto Ranging Resistance Temp

Hurry! 18 items left!
Price
$306
Collect 918 Everyday Rewards points
Score 3x points on every order
Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply
Log in to MyDeal to link your card
Shipping
Unable to calculate delivery for , please Contact Us Delivery unavailable to Change

24-48 hour dispatch
Quantity
Maximum item limit (18) has been reached.


_

This battery-powered, true RMS insulation multimeter with6000 count display can measure or test the following:

  • AC/DC voltage and current
  • Resistance
  • Voltage and current frequency
  • Diode
  • Continuity
  • Capacitance
  • Temperature
  • Insulation testing
What is in the box?
  • UT533 x 1pc
  • Manual x 1pc

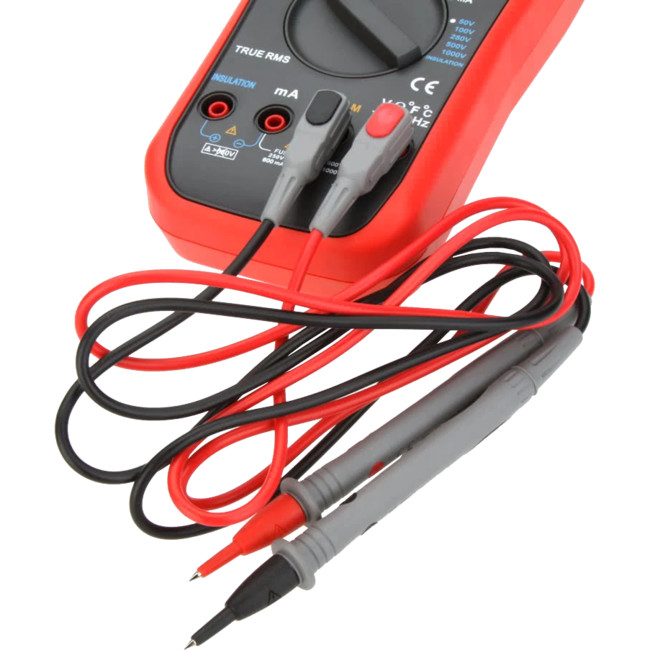

  • Test lead x 1 pair
  • Short lead x 1 pair
  • Alligator clip x 1 pair
  • K Type thermocouple x 1pc
  • AA Battery x 6pcs
  • Carry bag x 1pc
Specifications:

Maximum Voltage Applied to any Terminal

1000V rms

mA Input Terminal

1A/240V Fast Fuse, High breaking capacity Fuse

Maximum display

6000, updates 5 times per second

Operating temperature

0°C ~40°C (32°F ~104°F)

Storage temperature

-10°C ~50°C (14°F ~122°F)

Relative humidity

≤ 75% @ 0°C to below 31°C
≤ 50% @ 31°C to above 40°C

Altitude

Operating: 2000 meter
Storage: 10000 meter

Batteries

Six AA 1.5V batteries (included) AM3/LR6 standard capacity around 2450mAh

Low battery

LCD display

Auto power off

The meter will be automatically off when the meter is not in use for more than 15 minutes

LCD size

81mm x 46mm

Size

97mm x 202mm x 46mm

Weight

Around 505g (including batteries)

Electrical Specifications

Accuracy: ±(a % of rdg + b digits), guarantee for 1 year
Operating Temperature: 23°C ± 5°C
Relative humidity: < 75%

AC Voltage Measurement
Range Resolution Accuracy Input protection
50Hz - 60Hz 60Hz - 1KHz
6.000V 1mV ± (1%+3) ± (2%+3) 1000Vp
60.00V 10mV
600.0V 100mV ± (2%+6)
1000V 1V ± (2%+3)

Remarks:

  • Input Impedance: ≥ 10MQ
  • Displays effective value of sine wave
  • Frequency Response: 50Hz-1kHz
DC Voltage Measurement
Range Resolution Accuracy Input protection
6.000V 1mV ± (0.3%+4) 1000Vp
60.00V 10mV
600.0V 100mV
1000V 1V

Remark:

  • Input Impedance: ≥ 10M
DC Millivolts Measurement
Range Resolution Accuracy Input protection
60.00mV 10µV ± (0.4%+4) 600Vp
600.0mV 100µV

Remark:

  • Input Impedance: ≥ 4000M
AC Current Measurement
Range Resolution Accuracy Input protection
60.00mA 10µA ± (1.5%+2) Fuse, Fast, 1A, 240V
600.0mA 100µA

Remark:

  • Displays True RMS value
  • Frequency Response 50Hz - 1KHz
DC Current Measurement
Range Resolution Accuracy Input protection
60.00mA 10µA ± (1.0%+2) Fuse, Fast, 1A, 240V
600.0mA 100µA
Ohms Measurement
Range Resolution Accuracy Input protection
600.0 0.1 ± (0.9%+2) 600Vp
6.000k 1
60.00k 10
600.0k 100
6.000Mk 1k
40.00Mk 10k ± (1.5%+3)
Capacitance Measurement
Range Resolution Accuracy Input protection
10.00nF 10pF ± (3%+5) 600Vp
100.0nF 100pF
1000nF 1nF
10.00µF 10nF
100.0µF 100nF
Diode Test:
  • Resolution: 1mV
  • Input Protection: 500Vp
  • Open circuit voltage: around 3V
  • Display approximate forward voltage drop nearest value
Continuity Test
  • Continuity Indication: Continuous audible tone fortest resistance below 30
  • Open circuit voltage: around 3V
  • Input Protection: 500Vp
  • Resolution: 0.1
Temperature Measurement
Range Resolution Accuracy Input protection
-40°C ~537°C 1°C ± (1%+10) 600Vp
-40°F ~998°F 2°F ± (1%+18)
Frequency Measurement

At mV Range

Range Resolution Accuracy Input protection
60.00Hz 0.01Hz ± (0.1%+3) 600Vp
600.0Hz 0.1Hz
6.000kHz 1Hz
60.00kHz 10Hz
600.0kHz 100Hz
1.000MHz 1kHz

Remark:

  • Input Sensitivity:
    ≤ when 100kHz: ≤ 100mV rms
    ≥ 30mV rms
    > when 100kHz: ≥ 100mV rms
    ≤ 30V rms

At DCV/ACV Range

Range _ Accuracy Input protection
10Hz - 100kHz ± (0.1%+3) 600Vp

Remark:

  • Input amplitude: ≥ 600mV rms
Insulation Specifications
<>

Aussie Stock
All our stock is kept in our Melbourne based warehouse. Our stock levels are also updated every 10 minutes! So if it says 10 units in stock, you can trust that it is accurate.

No PO Boxes or Parcel Lockers
At this stage we only use couriers and can only deliver to a road-side address. This means PO Boxes and Parcel Lockers cannot be accepted as StarTrack do not deliver to these addresses.
In instances where a PO Box or Parcel Locker address in entered, we may ask for an alternative road-side address, or cancel and refund your order immediately and urge you to replace your order with an alternative delivery address.

Delivery times
We typically dispatch our goods same day or next day. From there, you can expect 2 - 8 business days Australia wide. Most capital cities can expect 1-2 day delivery times.
Any RTS (Return to Sender) orders due to missing or incorrect address information entered by the buyer may incur an additional charge for redelivery.
Testing Voltages Measurement Range Resolution Accuracy
50V 0.1M to 50.0M 0.1M ± (3%+5)
(0% to 10%)
100V 0.1M to 100.0M 0.1M
(0% to 10%)
GTIN: 6935750553305
