UNI-T UTI712S 2.4" Tft LCD Professional Thermal Imager IR 120X90 Ip54 25Hz -20°C ~ 400°C
3x

UNI-T UTI712S 2.4" Tft LCD Professional Thermal Imager IR 120X90 Ip54 25Hz -20°C ~ 400°C

Limited Stock!
Price
$386
Collect 1158 Everyday Rewards points
Score 3x points on every order
Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply
Log in to MyDeal to link your card
Shipping
Unable to calculate delivery for , please Contact Us Delivery unavailable to Change

24-48 hour dispatch
Quantity
Maximum item limit (28) has been reached.


UTi712S is a compact thermal imager with a quality build. It is one of the best prices for performing thermal imagers in the market today. Some special features include temperature compensation (which allows more accurate readings under different temperature environments). This rugged thermal imager has IP54 protection and can withstand 2 meters drop. UTi712S also supports 5 languages: English, German, French, Russian, and Spanish.

Features
  • IR resolution: 120x90 pixels
  • 2.4" TFT LCD display (320*240 Resolution)
  • 6 Palettes (White hot, Black hot, Iron, Rainbow HC, Rainbow, Lava)
  • Emissivity: Adjustable (0.01-1.00)
  • Display mode: Thermal
  • Temperature compensation
  • Image capture
  • Laser indicator
  • LED flashlight
  • Auto tracking for Lo/Hi temperature
  • Auto Lo/Hi temperature alarm
  • Storage: 32GB Micro SD Card supplied
  • PC software Analysis
  • Multi-languages: English, German, French, Russian, Spanish
  • Protection: IP54 waterproof and dustproof, 2m drop proof
  • USB Type-c Charging

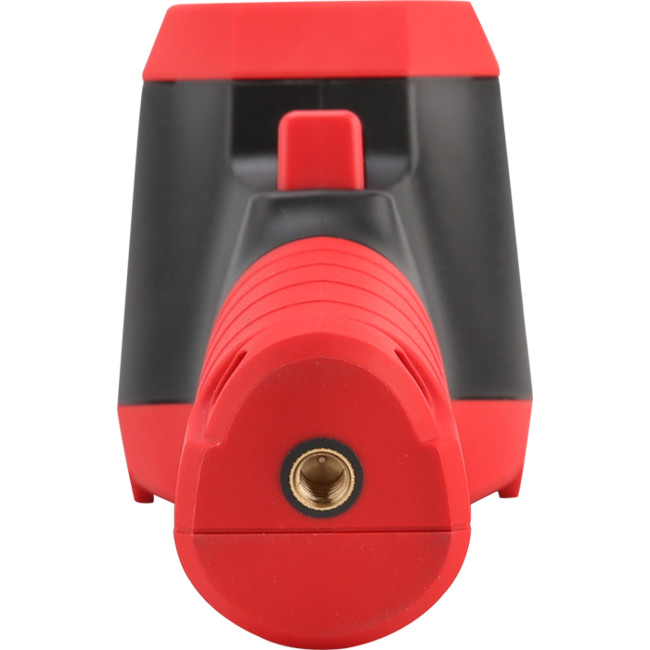

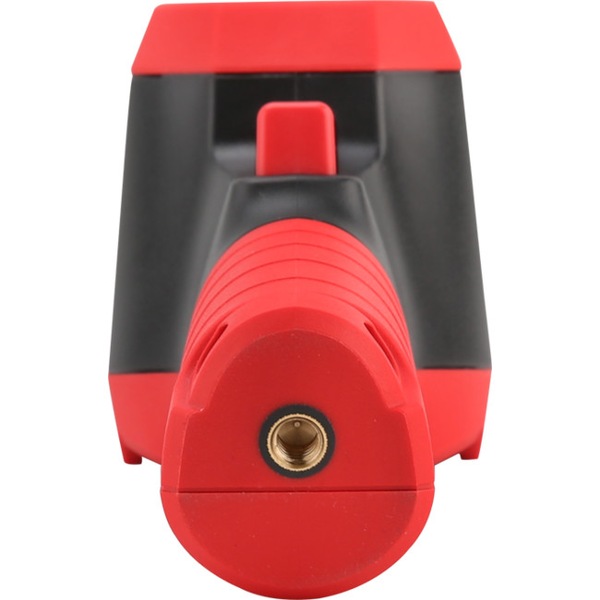

  • 1/4" tripod mounting hole
  • Rechargeable Li-ion battery built-in.
What is in the box?
  • UTi172S x 1
  • Hand strap x 1
  • 32G Micro SD card x 1
  • USB-A to USB-C Charging cable x 1
  • Manual x 1
  • Download operation guide card x 1
Applications
  • Building & HVAC,
    Pipeline inspection, House water leakage inspection, Air conditioner outlet inspection, Sealing of doors and windows inspection.
  • Automotive Maintenance, Engine Inspection,
  • Electricity
    Power distribution cabinet inspection, Electric power tower inspection, Solar panel inspection
  • Outdoor
    Animal observation, Security
Specifications
Technical Data
IR resolution (Pixels) 120×90 (10800)
Sensor Uncooled infrared focal plane
_ thermal imaging sensor
Pixel size 17µm
Minimum imaging distance 0.1m
_ _
Display 2.4" TFT LCD (320×240)
Field of view(FOV) 50°H×38°V
Thermal sensitivity(NETD) ≤60mK
Spatial resolution(IFOV) 7.3mrad
Frame rate ≤25Hz
Infrared spectrum bandwidth 8~14µm
Focus Focus Free
Temperature measurement range _-20°C~400°C
Accuracy ±2°C or ±2% whichever is greater
Emissivity 0.01~1.00 adjustable (0.95 default)
Measurement units °C/°F
Resolution 0.1°C
Functions
Color palettes 6
(White hot, Black hot, Ironbow, Rainbow HC , Rainbow, Lava)
Image modes Thermal
Hi/Lo temperature alarm Icon,LED flashlight,Buzzer
Temperature display Center point temperature,
_ high/low temperature tracking
Buttons 4 buttons (power, up, down, OK) 1 trigger
PC software analysis Yes
Laser pointer Yes (Class 2)
LED light Yes
General Characteristics
Battery Fixed Li-ion battery (3.7V 2600mAh) 18650
Battery operation time _≥8 hours
Charging time ≤2.5h
Charging voltage/current 5V /2A
Power on speed 0s (wake up) / 5s (power on)
Auto power off 5min/10min/30min(default)/off
USB Type-C
IP rating IP54
Drop proof 2m
Operating temperature 0-50 °C ( 32-140 °F)
Storage temperature -20 -60 °C (-4 -140 °F)
Operating humidity < 85%RH
Image storage 16GB Micro SD card
Image/Video storage format BMP
Certificates CE,UKCA,FCC,RoHS
Product net weight 310g
Product size 197mm×72mm×60mm

_

_


Weight: 0.54

Aussie Stock
All our stock is kept in our Melbourne based warehouse. Our stock levels are also updated every 10 minutes! So if it says 10 units in stock, you can trust that it is accurate.

No PO Boxes or Parcel Lockers
At this stage we only use couriers and can only deliver to a road-side address. This means PO Boxes and Parcel Lockers cannot be accepted as StarTrack do not deliver to these addresses.
In instances where a PO Box or Parcel Locker address in entered, we may ask for an alternative road-side address, or cancel and refund your order immediately and urge you to replace your order with an alternative delivery address.

Delivery times
We typically dispatch our goods same day or next day. From there, you can expect 2 - 8 business days Australia wide. Most capital cities can expect 1-2 day delivery times.
Any RTS (Return to Sender) orders due to missing or incorrect address information entered by the buyer may incur an additional charge for redelivery.
GTIN: 6935750571217
