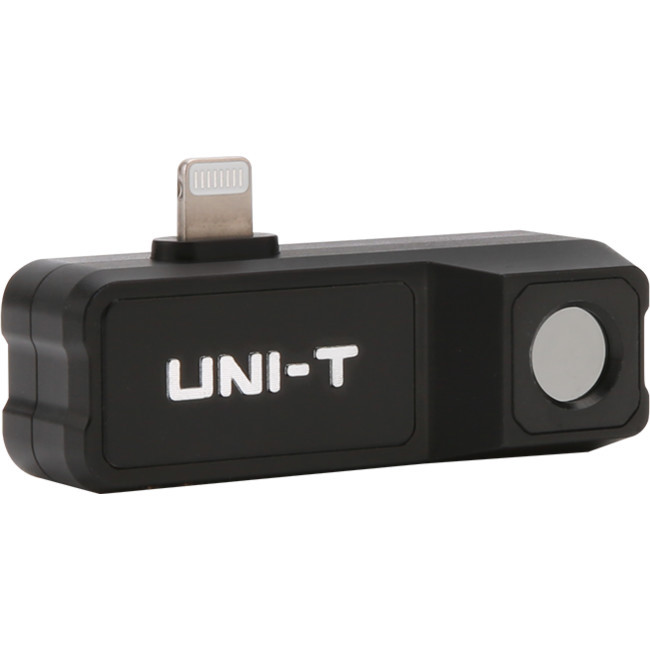

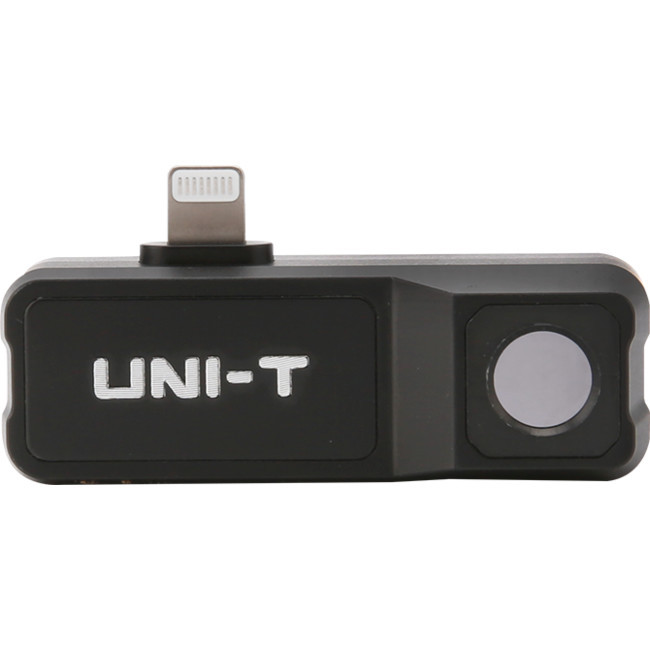

UTi120MS Thermal Camera Module for iPhone

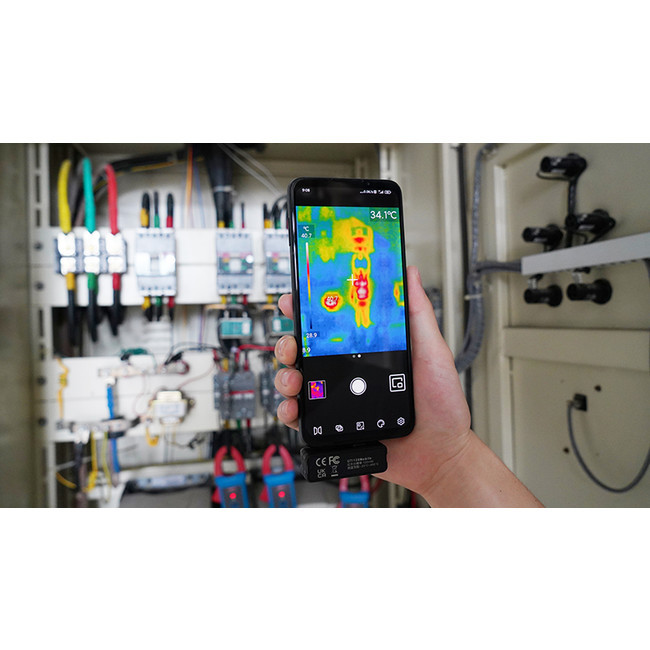

UTi120MS is a professional smartphone thermal camera module for iPhone with lightning socket, which is compact, portable, and easy to operate through connecting with mobile phones. UTi120MS provides clear image with a fast response, and can also detect temperature up to 400oC. Users can troubleshoot HVAC problems or investigate heat source issues around the house faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders etc.
FEATURES
APPLICATIONS
SPECIFICATIONS
Technical Data | |
IR resolution (Pixels) | 120x90 |
Field of view(FOV) | 50 Hx38 V |
Thermal sensitivity(NETD) | 60mK @25oC |
Spatial resolution(IFOV) | 7.3mrad |
Frame rate | 25Hz |
Spectral range | 8~14um |
Focus | Focus free |
Lens focal length | 2.28mm |
Temperature measurement range | -20oC ~ 400oC |
Temperature display | Center Spot, High Spot, Low Spot |
Accuracy | For temperature > -10'C, 2% or2'C(whichever is greater, ambient temperature 25'C) |
Emissivity | 0.01~1.00 adjustable (0.95 default) |
Functions | |
Color palettes | 7 (White hot, Lava, Ironbow,Black hot, Red hot, Rainbow, Rainbow HC) |
Temperature units | oC, F |
Temperature resolution | 0.1 |
Image modes | Thermal,Fusion,PIP |

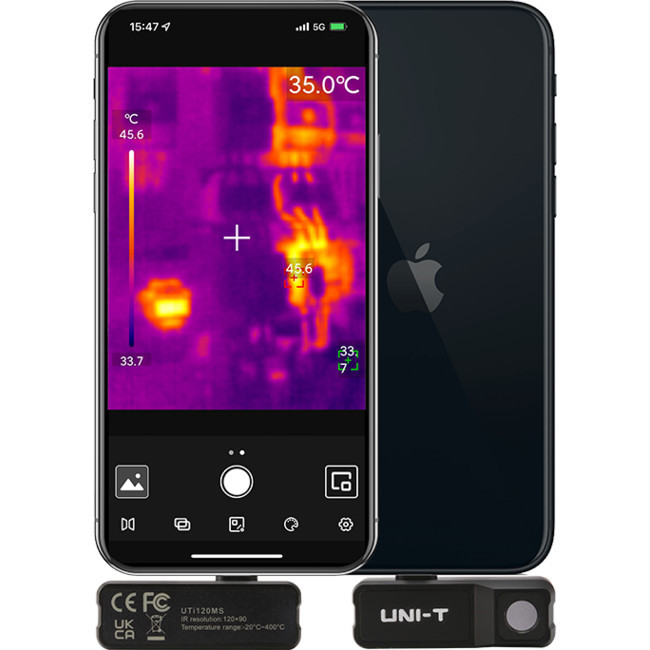

PIP | Display visual image (on phone) and infrared image simultaneously |
On screen analyzer | 6 Points/6 Lines/6 Rectangles/6 Circles |
Hi/Lo temperature alarm | Yes |
Hi/Lo tracking | Real-time tracking of Hi/Lo spot in the thermal images |
Image editing | Saved images can be edited, but videos cannot |
Video recording | Yes (via the phone) |
General Characteristics | |
USB | Lightning |
Operating temperature | 0- 45 C |
Storage temperature | -20- 60 C |
Relative humidity | 10%-85%RH, non-condensing |
Altitude | 2000m |
Drop proof | 1m |
Image/Video storage format | JPEG, MP4 |

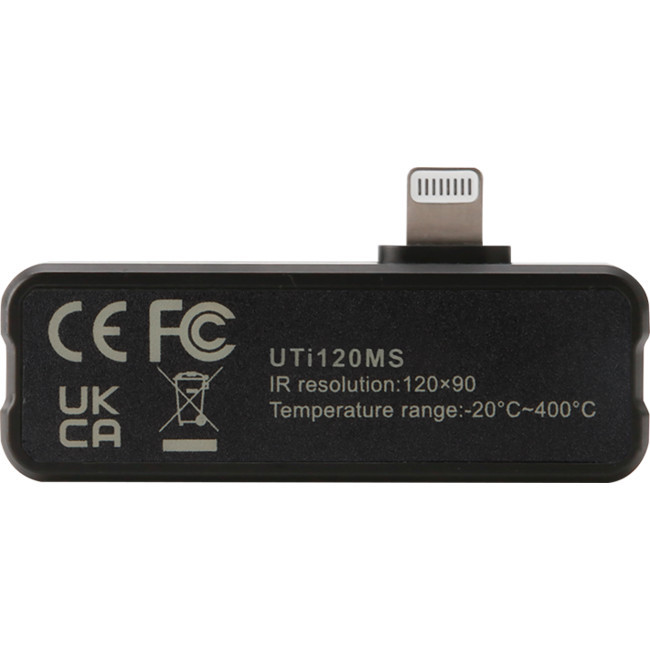

Certificates | CE,UKCA,FCC,RoHS,MFi |
Product net weight | 25g |
Product size | 53mmx18.2mmx18.5mm |
WHAT IS IN THE BOX?
