Uni-T UTI120MS Apple Ios Smartphone Thermal Imager IR 120X90 Lightning Plug

Uni-T UTI120MS Apple Ios Smartphone Thermal Imager IR 120X90 Lightning Plug

Be the first to review this product

Hurry! 7 items left!

Price	$306
	Collect 918 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

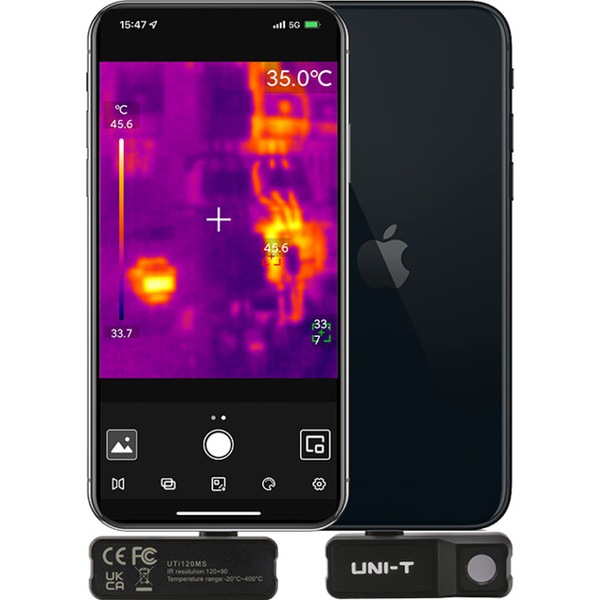

UTi120MS Thermal Camera Module for iPhone

UTi120MS is a professional smartphone thermal camera module for iPhone with lightning socket, which is compact, portable, and easy to operate through connecting with mobile phones. UTi120MS provides clear image with a fast response, and can also detect temperature up to 400°C. Users can troubleshoot HVAC problems or investigate heat source issues around the house faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders etc.

Features

Designed for iOS device with lightning port
Plug and play with "Thermal Mobile" APP
IR Resolution: 120×90
Temperature measurement range: -20°C to 400°C / -4°F to 752°F
Compact size and easy to carry
Auto alarm for high/low temperature
Auto tracking for hot spot/cold spot
On display screen analyzer: 6 Points / 6 Lines / 6 Rectangles / 6 Circles
Image capture
Video recording
Color palettes: 7 (White hot, Black hot, Red hot, Ironbow, Lava, Rainbow, Rainbow HC)
Phone: USB Lightning (iPhone)
1m drop proof
Create report with on screen analyzer in the APP

Applications

Manufacturing Machine Inspection
PCBA Inspection
Freezer Inspection

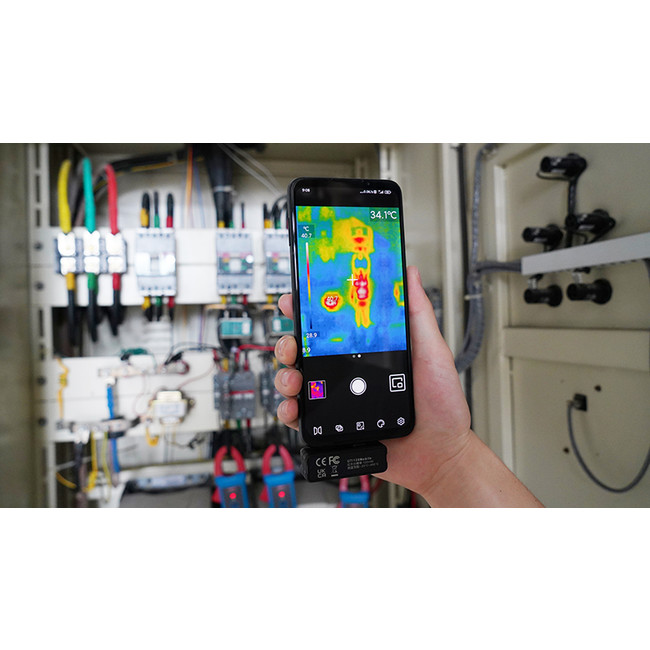

Electricity Inspection
Pipeline Inspection
Motor Inspection

Specifications

Technical Data
IR resolution (Pixels)	120×90
Field of view(FOV)	50° H×38° V
Thermal sensitivity(NETD)	≤60mK_ @25°C
Spatial resolution(IFOV)	7.3mrad
Frame rate	≤25Hz
Spectral range	8~14µm
Focus	Focus free
Lens_focal_length	2.28mm
Temperature measurement range	_-20°C ~ 400°C
Temperature display	Center Spot, High Spot, Low Spot
Accuracy	For temperature > -10'C, ±2% or±2'C(whichever is greater, ambient temperature 25'C)
Emissivity	0.01~1.00 adjustable (0.95 default)
Functions
Color palettes	7 (White hot, Lava, Ironbow,Black hot, Red hot, Rainbow, Rainbow HC)
Temperature units	°C, °F
Temperature resolution	0.1°
Image modes	Thermal,Fusion,PIP
PIP	Display visual image (on phone) and infrared image simultaneously
On screen analyzer	6 Points/6 Lines/6 Rectangles/6 Circles
Hi/Lo temperature alarm	Yes
Hi/Lo tracking	Real-time tracking of Hi/Lo spot in the thermal images
Image editing	Saved images can be edited, but videos cannot
Video recording	Yes (via the phone)
General Characteristics
USB	Lightning
Operating temperature	0-+45°C
Storage temperature	-20-+60°C
Relative humidity	10%-85%RH, non-condensing
Altitude	2000m
Drop proof	1m
Image/Video storage format	JPEG, MP4
Certificates	CE,UKCA,FCC,RoHS,MFi
Product net weight	25g
Product size	53mm×18.2mm×18.5mm

What is in the box?

UTi120MS x 1
UTi120MS case x 1
English manual x 1
Documents download operation guide card x 1
Cleaning cloth x 1

Weight: 0.185
