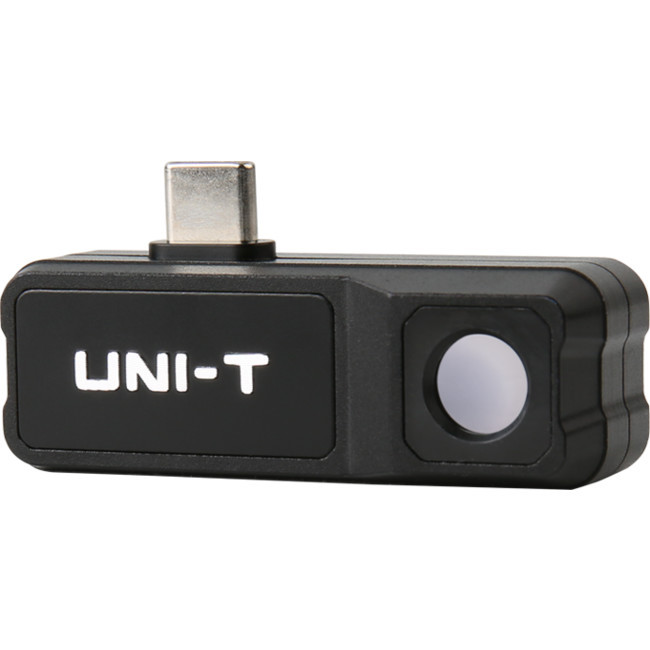

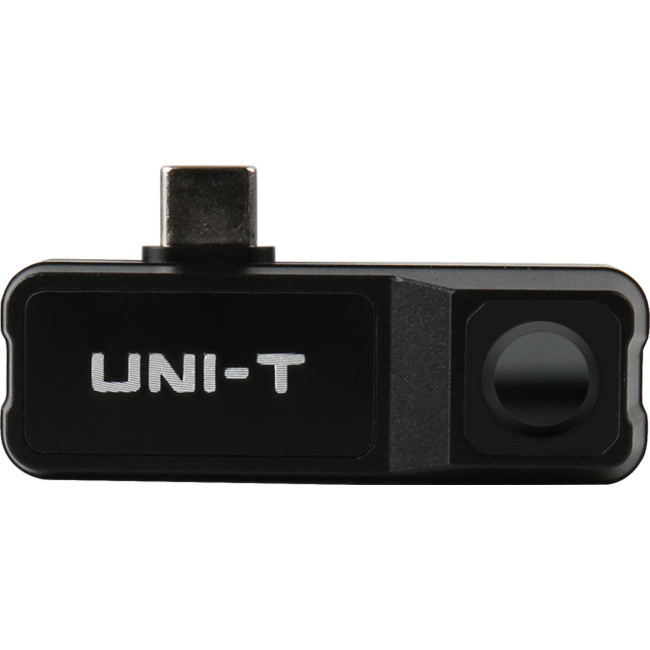

UTi120Mobile Thermal Camera Module for Andriod

UTi120Mobile is a professional smartphone thermal camera module for Andriod devices, which is compact, portable, and easy to operate by connecting with mobile phones. UTi120Mobile provides a clear image with a fast response, and can also detect temperatures up to 400oC. Users can troubleshoot HVAC problems or investigate heat source issues around the house faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners, outdoor lovers, engineers, contractors builders, etc.

FEATURES

  • Designed for Andriod smartphone
  • Plug and play with "Thermal Mobile" APP
  • IR Resolution: 120x90
  • Temperature measurement range: -20oC to 400oC / -4oF to 752oF
  • Compact size and easy to carry
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • On display screen analyzer: 6 Points / 6 Lines / 6 Rectangles / 6 Circles
  • Image capture
  • Video recording

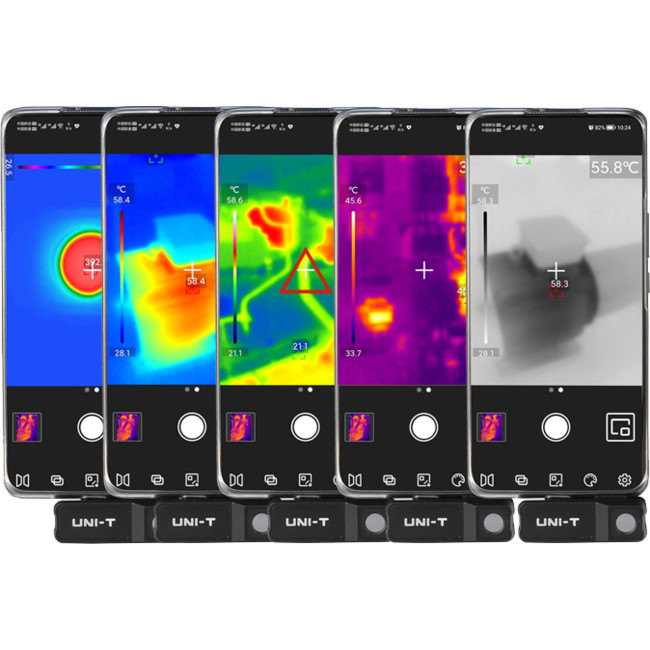

  • Color palettes: 7 (White hot, Black hot, Red hot, Ironbow, Lava, Rainbow, Rainbow HC)
  • Phone: Android USB Type-C interface
  • 2m drop-proof
  • Create report with on screen analyzer in the APP

APPLICATIONS

  • Manufacturing Machine Inspection
  • PCBA Inspection
  • Freezer Inspection
  • Electricity Inspection
  • Pipeline Inspection

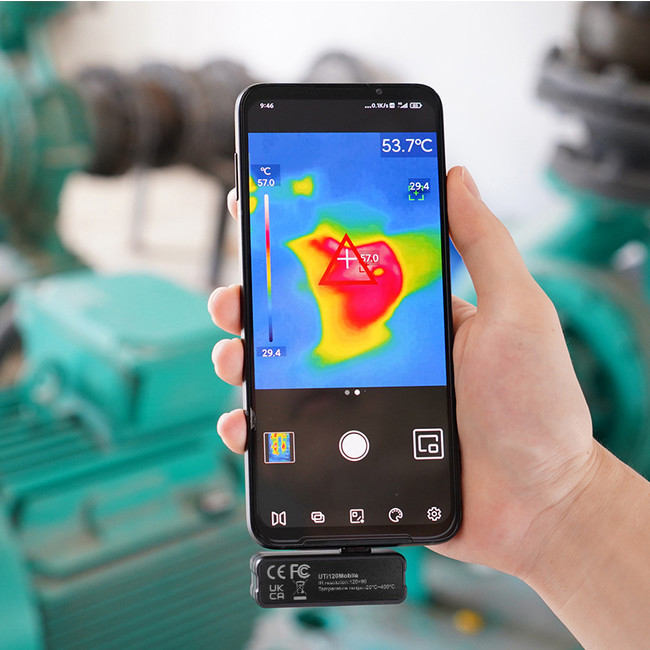

  • Motor Inspection

SPECIFICATIONS

Technical Data
IR resolution (Pixels) 120x90
Field of view(FOV) 50o Hx38o V
Thermal sensitivity(NETD) 60mK @25oC
Spatial resolution(IFOV) 7.3mrad
Frame rate 25Hz
Spectral range 8~14um
Focus Focus free
Lens focal length 2.28mm
Temperature measurement range -20oC ~ 400oC
Temperature display Center Spot, High Spot, Low Spot
Accuracy For temperature > -10'C, 2% or2'C(whichever is greater, ambient temperature 25'C)
Emissivity 0.01~1.00 adjustable (0.95 default)
Functions
Color palettes 7 (White hot, Lava, Ironbow,Black hot, Red hot, Rainbow, Rainbow HC)
Temperature units oC, oF
Temperature resolution 0.1o
Image modes Thermal,Fusion,PIP
PIP Display visual image (on phone) and infrared image simultaneously
On screen analyzer 6 Points/6 Lines/6 Rectangles/6 Circles
Hi/Lo temperature alarm Yes
Hi/Lo tracking Real-time tracking of Hi/Lo spot in the thermal images
Image editing Saved images can be edited, but videos cannot
Video recording Yes (via the phone)
General Characteristics
USB Type C
Operating temperature 0- 45oC
Storage temperature -20- 60oC
Relative humidity 10%-85%RH, non-condensing
Altitude 2000m
Drop-proof 2m
Image/Video storage format JPEG, MP4
Certificates CE,UKCA,FCC,RoHS,MFi
Product net weight 25g
Product size 53mmx18.2mmx18.5mm

WHAT IS IN THE BOX?

  • UTi120MS x 1
  • UTi120MS case x 1
  • 1M USB Type C plug to socket extension cable x 1
  • Micro USB to Type C adapter x 1
  • English manual x 1
  • Documents download operation guide card x 1
  • Cleaning cloth x 1
GTIN: 6935750512616
