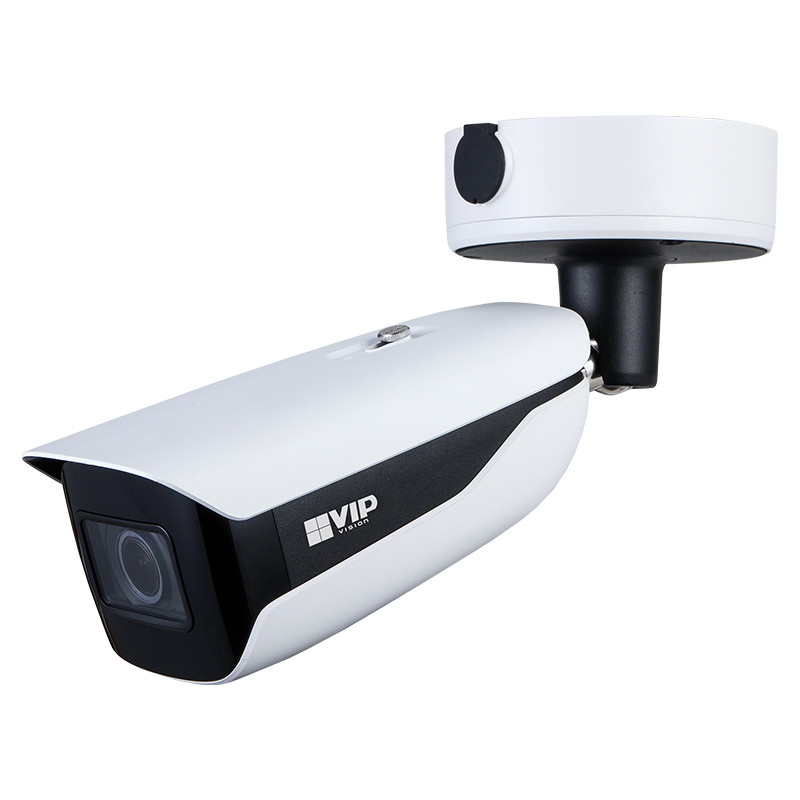

Applying a deep learning algorithm, the VSIPU-4BIRM-I detects and captures both faces and vehicles to use in face recognition, intelligent searching and perimeter protection, all while delivering superb image performance with low light colour and automatic image adjustment.
Camera features:
* Stream up to 8.0MP (3840 x 2160) at 25fps
* 2.7 ~ 12mm motorised lens with 114 ~ 47o viewing angles
* H.265 encoding for efficient storage & streaming
* Up to 60m infrared range; true day/night (auto ICR)
* MicroSD slot for recording at the edge up to 256GB
* Up to 10 channels of face recognition with an AI NVR
* Detect faces and receive face alerts in real time
* Search footage by face image or by facial attributes
* Set up AI powered tripwire & intrusion rules, receive alerts and search footage by people or vehicles
* Extend PoE up to 800m (requires ePoE NVR/switch)
Specifications
Camera Image Sensor 1/1.8'' 8.0MP Progressive Scan CMOS Effective Pixels 3840 (H) x 2160 (V) RAM / ROM 2GB / 4GB Min Illumination 0.003 Lux / F1.2 (Color) S/N Ratio > 50dB Infrared System 4 x Infrared LED, 60m range, Auto/manual on/off control Lens Lens / Iris 2.7 ~ 12.0mm F1.2 Motorised Varifocal Lens with Auto Iris Field of View Horizontal: 114o~47o, Vertical: 59o~27o Focus Auto Focus / 1.2m Min. Focus Distance DORI Detect (25px/m) 87m (wide) / 187m (tele) Observe (63px/m) 35m (wide) / 75m (tele) Recognise (125px/m) 17m (wide) / 37m (tele) Identify (250px/m) 9m (wide) / 19m (tele) Video Resolution 8.0MP (3840 x 2160) to CIF (352 x 288) Frame Rate (Main) 8.0MP (1 ~ 25fps) Frame Rate (Sub) 704 x 576 (1 ~ 25fps) Frame Rate (Third) 1080p (1 ~ 25fps) Video Compression H.265, H.264, H.264B, H.264H, MJPEG Bit Rate H.264: 32Kbps ~ 16384Kbps / H.265: 12Kbps ~ 16384Kbps Bit Rate Control Constant bit rate (CBR) / Variable bit rate (VBR) Day/Night Auto (ICR) / Color / B&W Lighting Compensation BLC / HLC / WDR (120dB) White Balance Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom Gain Control Auto / Manual Noise Reduction 3D DNR Picture Control Mirror / Flip (0o, 90o, 180o, 270o) (8.0MP supports 90o & 270o at 1080p resolution) IVS Intelligent Functions Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object Perimeter Protection Tripwire, Intrusion (Human/Vehicle Recognition), Fast Movement Detection, Loitering Detection, Parking and Gathering Detection Face Detection Face image recognition and detection up to 10 channels with AI NVR Face Attributes Age, gender, expression, glasses, mouth mask and facial hair People Counting Supports line crossing/region/queuing people counting. 4 independent access detection / 4 dependent access detection Heat Map N/A Event Trigger N/A Intelligent Search With a smart NVR intelligent search. Search tripwire / intrusion events by people or vehicle. Or search footage by face image and face attributes Network Ethernet RJ-45 (10/100Base-T) Protocol HTTP; Https; 8021.x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP; SFTP; RTMP; Genetec; Bonjour Streaming Method Unicast / Multicast Max. User Access 20 Users Interface Video Interface N/A Audio Interface 1 input (RCA Port) / 1 output (RAC Port) / Audio Compression: G.711a; G.711Mu; G726; G.723 Alarm Interface 3 channel in: 5mA 5VDC / 2 channel out: 1000mA 30VDC / 500mA 50VDC RS485 1 (Bit rate: 1200bps ~ 115200bps) Edge Storage MicroSD Card (up to 256GB) / NAS / FTP /SFTP Interoperability ONVIF / P2P / CGI / Milestone / Genetec Environmental Power Supply 12VDC / 24VAC / PoE (802.3af) (Class 4) Power Consumption <17.3W Operating Conditions -40oC ~ +60oC, 95% RH Ingress Protection IP67 Vandal Resistance IK10 Housing Metal, Plastic Pan/Tilt/Rotation Pan: 0o ~ 360o, Tilt: 0o ~ 90o, Rotation: 0o ~ 360o Dimensions 340mm x 109mm x 93mm Net Weight 1.60kg Other Series Ultimate AI Series Cameras Warranty (Years) 4Orders will be shipped within 2-5 business days and It will be delivered within 10-15 days.
Change of mind:
Customer can return the item if purchased by mistake within 14 days of the customer’s order being received.
Change of mind returns will only be eligible for a refund on the product’s sale price within receiving the item'. Return postage is paid by the customer.
Warranty
Without prejudice and to the extent allowed by the Trade Practices Act 1974, The Australian Consumer Law and Competition and Consumer Act 2010, all hardware sold by MAD Electronics Australia is covered by one year limited warranty and is also backed by Australian manufacturer warranty. Where the manufacturer warranty period exceeds one year, we will advise the customer to contact the manufacturer directly for warranty support after the first year of purchase. Due to the nature of consumables products and software, they are not returnable or refundable items.
Any defective products purchased from MAD Electronics Australia and affiliates that fall within the warranty period provided will be covered, unless they fall within the following conditions:
· Physical Damage on the product not caused in the event during transit or Dead on Arrival (DOA) but caused due to mishandling, incorrect use of product for its purposes, improper installation of product, by accident, insect or vermin infestation, improper method or failure to maintain service and handle the item with reasonable care.
· The product has been modified using unauthorised methods. Any modifications on the product including physical and software modifications using third party unauthorised software such as third party firmware updates will void the warranty of products.
· The warranty seal or serial number of the item has been tampered with.
· The item has been serviced by another party other than madelectronics
· Consequential loss including but not limited to data, programs, software or other information stored on storage products, computer or laptop systems.
· Software
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Estimated Delivery Time Frame: 2 - 15 business days
