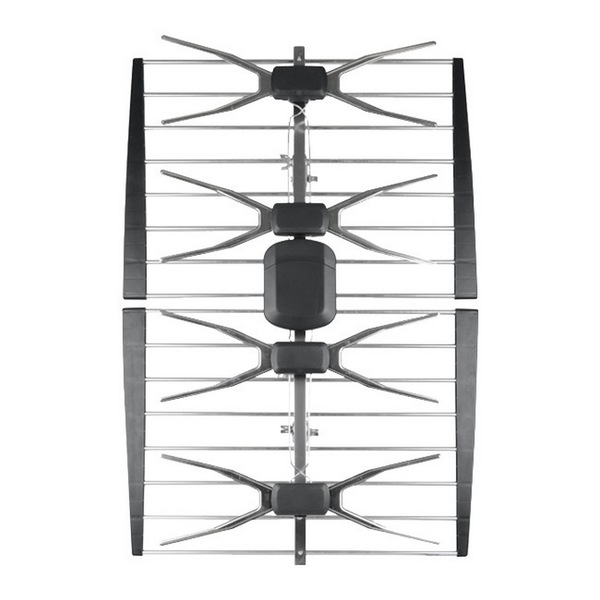

Kingray KPANEL UHF Phased Array Digital TV Antenna with 4G-LTE Filter

Flat Panel UHF Digital TV Antenna with 4G/LTE Filter.

• The KPANELLTE UHF Digital TV antenna is designed to cover the TV channel range of 21 to 51, which is 470-694 MHz frequency range.
• The design delivers the performance, reliability and ruggedness required in the harsh Australian environment.
• During the development, feedback from the installation industry was also considered, which resulting in the added improvement of a longer waterproof boot to accommodate the longest of compression connectors.
• The colour of UV stabilised plastics has been chosen to match the Kingray masthead housing to provide an aesthetically pleasing installation.

Features

• Frequency Range 470-694 MHz
• Channel Range 21 to 51
• 12.5dB Maximum Gain
• Rugged Construction Heavy Duty Mounting Bracket
• Horizontal and Vertical Operation
• UV Stabilized Plastics
• F-Type Connection
• Includes Twist-on F-Type Connector

Specifications

• Gain : 12.5dB
• Wind load (N): 78
• Frequency (MHz): 470-694
• Beamwidth (Hor): /-25 degrees
• Weight(Kg): 1.65
• Channel: 28-51
• Beamwidth (Ver): /-20 degrees
• Size (mm): 815 x 545
• F connector: yes
• Front to Back ratio: 22dB
• No of Elements: 4 Impedance: 75 ohm
• 4G 694 MHz low pass filter
