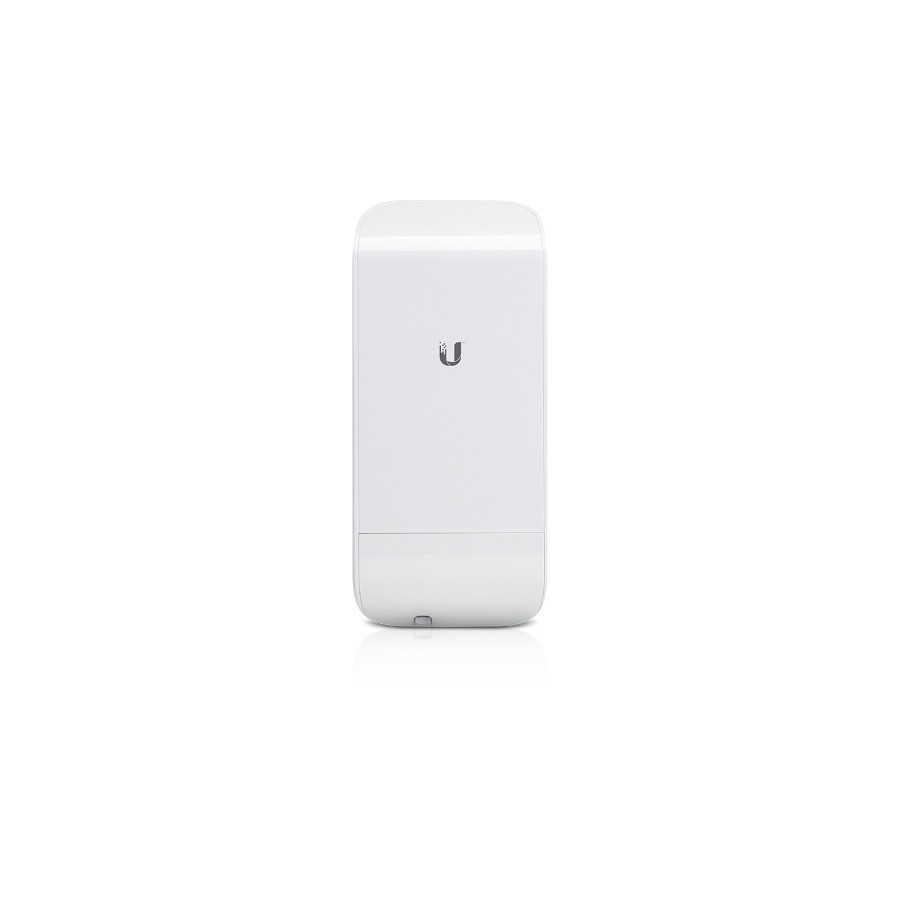

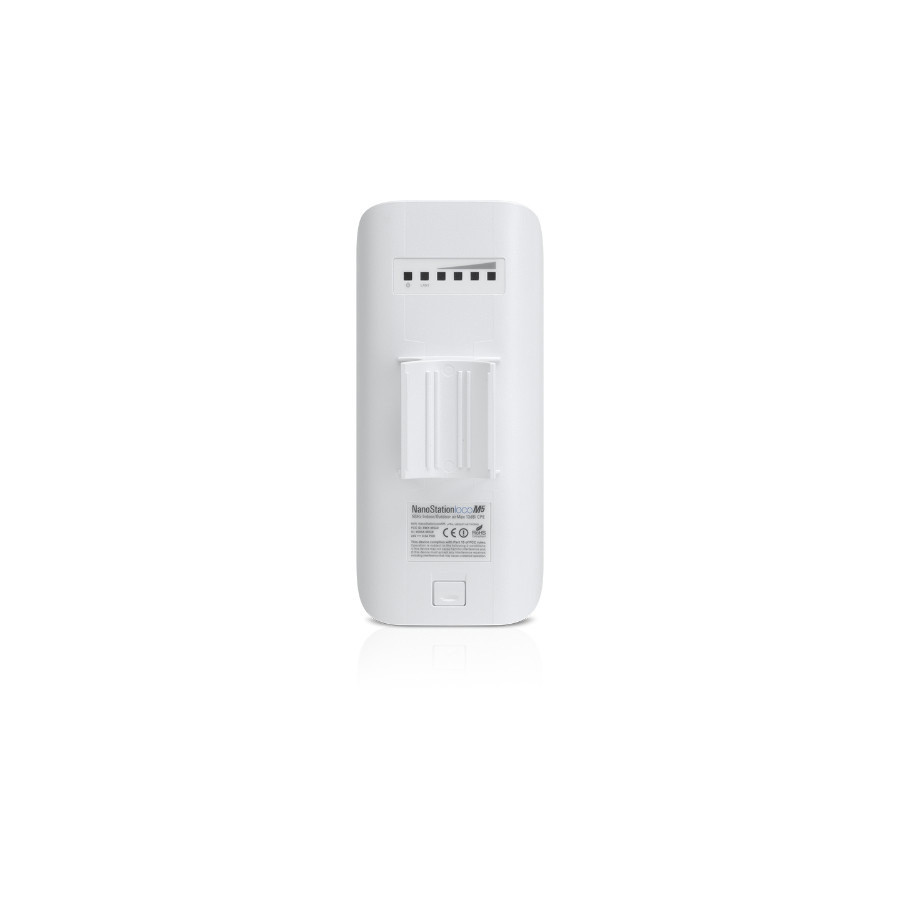

The original NanoStation set the bar for the world's first low-cost and efficiently designed outdoor broadband CPE. The NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors. 150+ Mbps real outdoor throughput and up to 15km+ range. Featuring 2x2 MIMO technology, the new NanoStation links significantly faster and farther than ever before. Easily mountable to a pole/mast with mounting straps provided. In addition, the LocoStation can be mounted and adjusted in any direction in a 90-degree angle through the use the NanoBracket. The NanoBracket is sold separately
Processor Specs: Atheros MIPS 24KC, 400 MHz
Memory: 32 MB SDRAM, 8 MB Flash

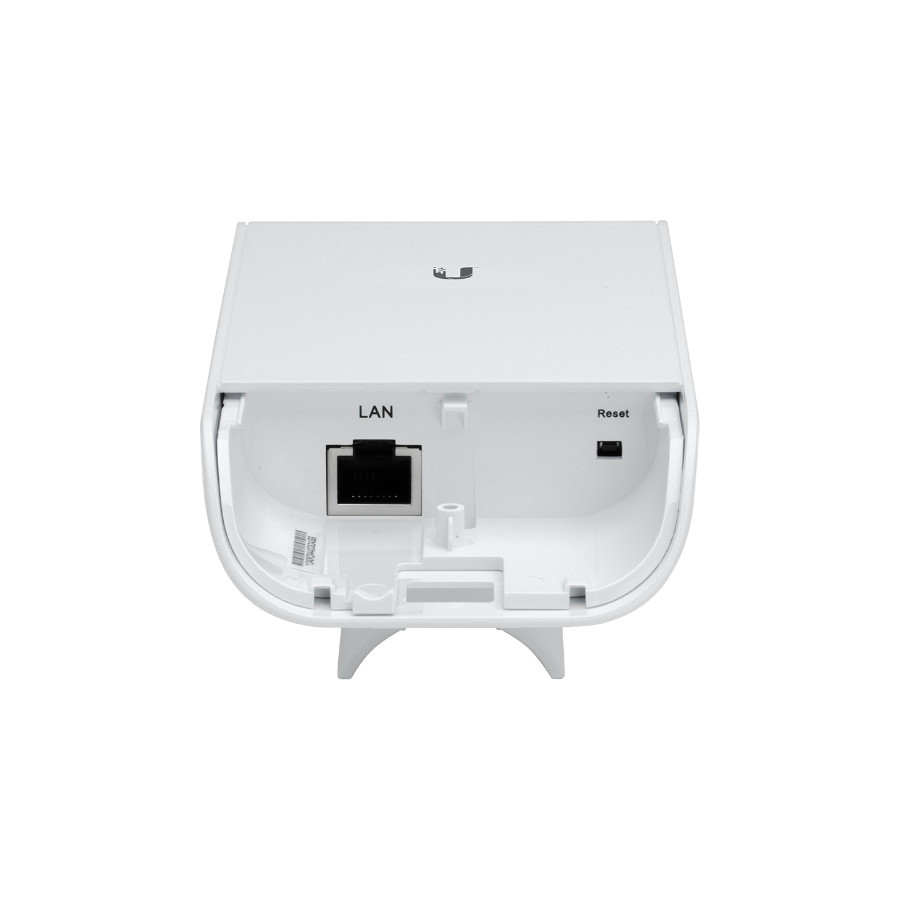

Networking Interface: 1x 10/100 Ethernet Port
Wireless transmission speed: up to 300 Mbps
Operating Frequency: 2412-2462 MHz
Wi-Fi Standards: 802.11b/g/n
Operation mode: AP, Client, WDS
Encryption: WEP 64/128/152, WPA, WPA2, 802.1X
Gain: 8 dBi
Polarization: Dual Linear
Max. Power Consumption: 5.5 W
Max.output power: 23 dBm
Sensitivity: -83 dBm
Dimensions: 163x31x80 mm
Weight: 0.18 kg
Power Supply (PoE): 24V, 0.5A
Power Method: Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)
Enclosure Characteristics: Outdoor UV Stabilized Plastic
Mounting: Pole Mounting Kit Included
Operating Temperature: -30 75o C
Operating Humidity: 5 - 95%
Supported OS: AirOS
Default IP: 192.168.1.20
Default name: ubnt
Default password: ubnt
