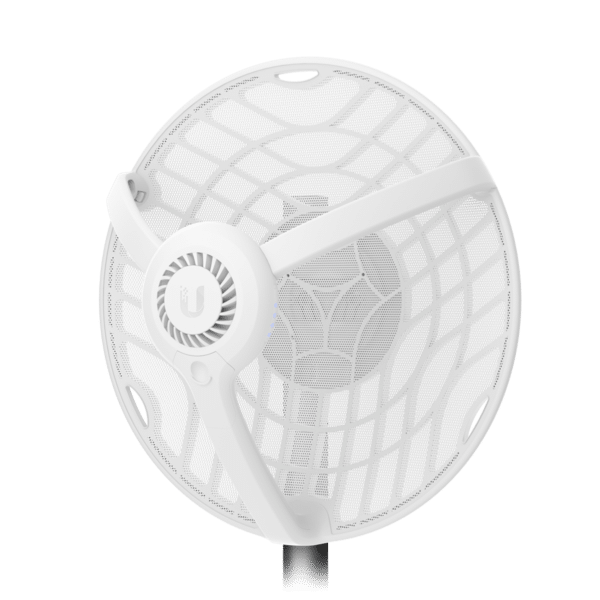

Ubiquiti AF60-LR - airFiber 60 GHz Radio System with Up to 1.8 Gbps Throughput, Up to 12km Range, True Duplex Gigabit Performance, Built In Bluetooth Management

Ubiquiti AF60-LR - airFiber 60 GHz Radio System with Up to 1.8 Gbps Throughput, Up to 12km Range, True Duplex Gigabit Performance, Built In Bluetooth Management

Hurry! 8 items left!

Price	$654.91
	Collect 654 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

AF60 is a 60 GHz radio for low-interference and high-throughput connectivity. It's integrated with a high-gain dish antenna for long range and high performance. For the 60 GHz link, the AF60 supports two channel width options: 2 GHz and 1 GHz – automatically switching between both options depending on link performance.

Mechanical
Dimensions Ø413 x 360 mm
(Ø16.3 x 14.2")
Weight Without Mount: 1.5 kg (3.3 lb)
With Mount: 2.7 kg (6 lb)
Enclosure Characteristics Aluminum / UV Stabilized Polycarbonate
Hardware
Processor Quad-Core ARM Cortex A7
Memory 256 MB DDR3
Networking Interface 10/100/1000 Mbps RJ45 Ethernet
RF Connections Internal
Max. Power Consumption 18W
Power Method Passive PoE (Pairs 4, 5+; 7, 8-)
Power Supply 48VDC, 0.65A Gigabit PoE Adapter
Supported Voltage Range 48VDC ± 10%
ESD/EMP Protection Air/Contact: ± 24kV
Operating Temperature -40 to 60° C (-40 to 140° F)
Operating Humidity 5 to 95% Noncondensing
Certifications FCC, IC, CE
LEDs
Power Flashing White: Bootup in Progress
White: Not Connected to Ubiquiti® Network Management System (UISP™)
Blue: Connected to UISP
Ethernet Flashing Blue: Ethernet Trafic Detected
GPS Blue: Receiving at Least (4) GPS Satellite Signals
60G Blue: Active Connection
System
Maximum Throughput 1.8 Gbps
Maximum Range 12 km
Encryption WPA2-PSK (AES)
Software
OS airOS®
Modes PtP Only
Services UISP, Ping Watchdog, NTP Client, System Log
Utilities Antenna Alignment Tool, Discovery Utility, Ping, Traceroute, Speed Test
Network Bridge Mode
Management interface Bluetooth management for easy setup over UISP™ App
WEB UI
Minimum Software Requirements Modern Web Browser or Android/iOS Smartphone
Technology Wave
RF
Operating Frequency* 57 to 71 Ghz
GPS Yes
Channel Bandwidth 2160, 1080 Mhz

GTIN: 810010073310
