Overview:

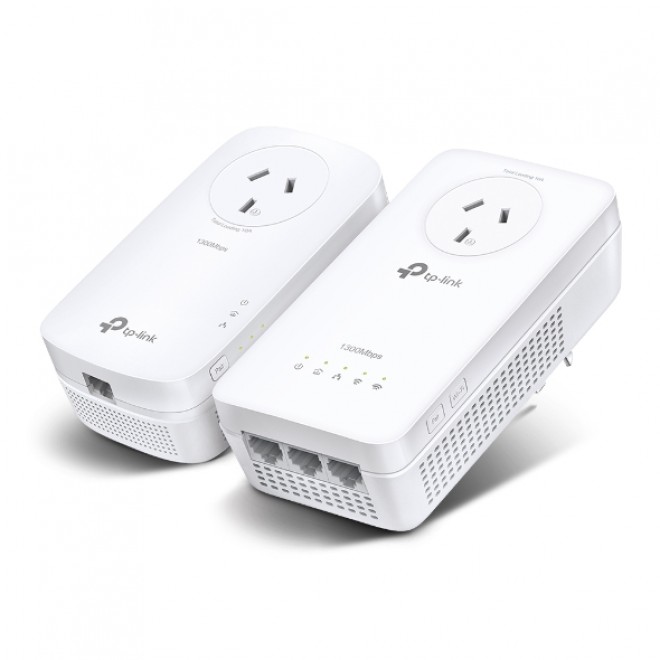

TP-Link TL-WPA8631P KIT AV1300 Wi-Fi Passthrough Powerline Range Extender
2X2 MIMO
3x Gigabit Ethernet Ports
Up to 1300Mbps (2.4GHz 300Mbps, 5GHz 867Mbps)
Standards:
- HomePlug AV2
- IEEE 1901
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.11b/g/n (2.4 GHz)
- IEEE 802.11a/n/ac (5 GHz)
300m in-house range
Extra Power Socket
128-bit AES Encryption
TL-WPA8631P KIT
3 Years Limited Warranty
Features:
Wall-Piercing Wi-Fi Extended to Every Outlet
AV1300 Gigabit Passthrough Powerline ac Wi-Fi Kit
Stable, Ultra-Fast Network in Every Room
- No need for drilling or wire installation.
- Network passes through walls and floors
Enjoy Stable, Seamless OneMesh™ Wi-Fi
Bothered by dropped connections while moving around your home?
With the newest OneMeshTM technology, the kit works with your existing OneMeshTM router to form a unified Mesh network. No more switching Wi-Fi network names, enjoy uninterrupted streaming and truly seamless AC1200 Wi-Fi.
2×2 MIMO Technology for Efficient Transmissions
More Stable Connections
2×2 MIMO is like adding extra lanes to a highway. It establishes multiple simultaneous connections for you to enjoy higher speeds and greater stability.
Enhanced Long-Distance Performance
2×2 MIMO with Beamforming technology also offers the benefit of improved coverage throughout the home, particularly for previously hard-to-reach outlets.
One-Touch Wi-Fi Configuration
Instantly copies your network name and password from your router for easy setup.
Wi-Fi Auto-Sync
Automatically applies any setting changes across the network. Your existing Wi-Fi settings will synchronize to the new extender instantly.
Plug and Play in Seconds!
Plug TL-PA8010P in the wall and connect it to the router. Then plug TL-WPA8631P into any desired power socket.
That’s it. You’re done!
Tip: Press ‘Pair’ for more security.
Don’t Lose an Outlet
The passthrough powerline kit can be used like a traditional electrical socket, ensuring no power socket goes to waste. The built-in noise filter helps prevent electrical signal noise from affecting powerline performance.
More Gigabit Ethernet Ports, More Devices
Equipped with 3× gigabit Ethernet ports, the kit provides wired connections for 4K video and IPTV streaming, lag-free gaming, and more.
Powerline Management on Your Smartphone
Manage your powerline WiFi through tpPLC app from your smartphone (Android, iOS), or download new tpPLC Utility on PCs to manage the powerline network.
- View real-time powerline speed
- LED control (also controlled by LED On/Off button)
- Guest network
Specifications:
|
HARDWARE FEATURES
|
|
Transmission Speeds
|
Powerline: up to 1300 Mbps
Ethernet: 10/100/1000 Mbps
|
|
Transmission Distance
|
Up to 300 meters/1000 feet over existing electrical wiring
|
|
Standards and Protocols
|
HomePlug AV2, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b/g/n (2.4 GHz), IEEE 802.11a/n/ac (5 GHz)
|
|
Compatibility
|
Compatible with all HomePlug AV & HomePlug AV2 standard
powerline adapters*
|
|
Plug Type
|
US
|
|
Interface
|
3 Gigabit Ethernet Ports, 1 Power Socket
|
|
Button
|
Pair, LED On/O?, Wi-Fi, Reset
|
|
Power Consumption
|
TL-WPA8631P: Maximum: 13W, Typical: 11W
TL-PA8010P: Maximum: 4.9W, Typical: 4.6W
|
|
LED Indicator
|
Power, Powerline, Ethernet, Wi-Fi (2.4 GHz), Wi-Fi (5 GHz)
|
|
Dimensions ( W x D x H )
|
TL-WPA8631P: 3.0 × 1.7 × 6.0 in. (75 × 42 × 152 mm)
TL-PA8010P: 2.8 × 1.7 × 5.2 in. (72 × 42 × 131 mm)
|
|
Range
|
Up to 300 meters/1000 feet over existing electrical wiring*
|
|
WIRELESS FEATURES
|
|
Wireless Standards
|
• TL-WPA8631P: IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz
• TL-PA8010P: N/A
|
|
Frequency
|
• TL-WPA8631P: 2.4 GHz and 5 GHz
• TL-PA8010P: N/A
|
|
Signal Rate
|
• TL-WPA8631P: 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
• TL-PA8010P: N/A
|
|
SOFTWARE FEATURES
|
|
Mesh Technology
|
EasyMesh-Compatible
Without replacing your existing devices or buying a whole new WiFi ecosystem, EasyMesh helps you create a more flexible network that covers your entire home with EasyMesh-compatible products.
Learn More>
All EasyMesh Products>
|
|
Quality of Service
|
• ToS
• Supports up to 4-level type QoS
• Support up to 8-level VLAN priority field
|
|
Security
|
Wireless: WPA-PSK/WPA2-PSK, WEP Encryptions,
Powerline: 128-bit AES Encryption
|
|
Management
|
TP-Link tpPLC App, or download new tpPLC Utility on PCs: www.tp-link.com/support/download
|
|
Modulation Technology
|
OFDM
|
|
IGMP
|
IGMP v1/v2/v3
|
|
SOFTWARE
|
|
OneMesh™
|
OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products>
|
|
PHYSICAL
|
|
Dimensions (W×D×H)
|
• TL-WPA8631P: 3.0 × 1.7 × 6.0 in. (75 × 42 × 152 mm)
• TL-PA8010P: 2.8 × 1.7 × 5.2 in. (72 × 42 × 131 mm)
|
|
Package Contents
|
• AV1300 Gigabit Passthrough Powerline ac Wi-Fi KIT: 1× TL-WPA8631P, 1× TL-PA8010P;
• 2× Ethernet Cables;
• 1× Quick Installation Guide
|
|
OTHERS
|
|
Certification
|
FCC, UL, RoHS
|
|
Package Contents
|
AV1300 Gigabit Passthrough Powerline ac Wi-Fi KIT:
1× TL-WPA8631P, 1× TL-PA8010P;
2× Ethernet Cables;
1× Quick Installation Guide
|
|
System Requirements
|
System Requirements:
Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux
System Requirements for tpPLC Utility:
Windows 10/8.1/8/7/Vista/XP and Mac OS X (10.7 or later)
|
|
Environment
|
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% non-condensing
|
