Overview:

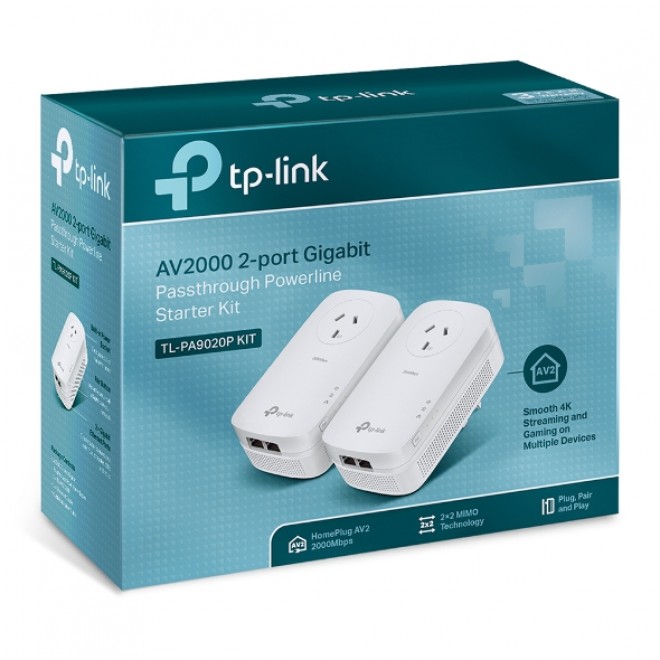

TP-Link TL-PA9020P KIT AV2000 2 Port Gigabit Passthrough Powerline Starter Kit
2x Gigabit Ethernet Ports, Power Socket
Powerline: up to 2000 Mbps
Ethernet: 10/100/1000 Mbps
Range: 300 meters in-house
Compatible with all AV2000, AV1200, AV1000, AV600, AV500 & AV200 powerline adapters
3 Years Limited Warranty
Features:
Take Your Powerline Network to the Next Level
With advanced HomePlug AV2 MIMO, TL-PA9020P delivers 4x faster speed than legacy Homeplug AV500 over Powerline to provide superior network performance, supporting all of your online needs. With a lag-free connection, you will never miss out again.
An Exclusive Fast Lane for Your Favorite Devices*
The TL-PA9020P creates fast, high performance wired connections that support all of your favorite devices, like 4K HDTV. Now you can plug in to enjoy an exclusive fast lane out of a crowded network without slowing down.
Fluid Streaming and Gaming with 2X2 MIMO
2X2 MIMO with Beamforming Technology significantly improves speeds, especially during peak hours.
More Stable Connections
2X2 MIMO is like adding extra lanes to a highway. It establishes multiple simultaneous connection for you to enjoy higher speeds and greater stability.
Enhanced Long Distance Performance
2X2 MIMO with Beamforming Technology also offers the benefit of improved coverage* throughout the home, particularly for previously hard to reach outlets.
Wiring up with Gigabit Speeds
Connect to Gigabit speeds for your smart TVs, game consoles, computers and network attached storage devices. Just use an Ethernet cable to attach your devices to the Powerline adapter to get started!
Simplified Network for a Better Life
Plug, Pair and Play!
1. First, connect your TL-PA9020P to the router
2. Then, plug in another one wherever you need extra coverage
3. Finally, press the “Pair” button on each adapter
Congratulations! You are ready to enjoying seamless wired connections.
No Power Outlet is Going to Waste
The integrated power socket means that you can still get power from the outlet for your other devices. Simply plug your device into the integrated socket the same way you would with a normal wall outlet. The built-in noise filter also helps to eliminate electrical signal noise that might otherwise affect powerline transmission performance.
Specifications:
|
HARDWARE FEATURES
|
|
Transmission Speeds
|
Powerline (Physical Layer Data Rate): up to 2000 Mbps Ethernet: 10/100/1000 Mbps
|
|
Standards and Protocols
|
HomePlug AV2, HomePlug AV, IEEE 1901,
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
|
|
Compatibility
|
Compatible with all AV2000, AV1200, AV1000, AV600, AV500 &
AV200 powerline adapters
|
|
Plug Type
|
US
|
|
Interface
|
2 * Gigabit Ethernet Port, Power Socket
|
|
Button
|
Pair
|
|
Power Consumption
|
Maximum: 5.8 W (100-240V, 50/60Hz)
Standby: 0.5 W (100-240V, 50/60Hz)
|
|
LED Indicator
|
Power, Powerline, Ethernet
|
|
Dimensions ( W x D x H )
|
5.2×2.8×1.7 in. (131×72×42 mm)
|
|
Range
|
Up to 300 meters/1000 feet over existing electrical wiring
|
|
SOFTWARE FEATURES
|
|
Quality of Service
|
ToS
Supports up to 4-level type QoS
Support up to 8-level VLAN priority
|
|
Security
|
128-bit AES Encryption
|
|
Modulation Technology
|
OFDM
|
|
OTHERS
|
|
Certification
|
RoHS, FCC, UL
|
|
Package Contents
|
AV2000 2-port Gigabit Passthrough Powerline Adapter, TL-PA9020P * 2
2-meter RJ-45 Ethernet Cable * 2
Quick Installation Guide
|
|
System Requirements
|
Windows 2000/XP/2003/Vista, Windows 7/8/8.1/10, Mac, Linux
|
|
Environment
|
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
