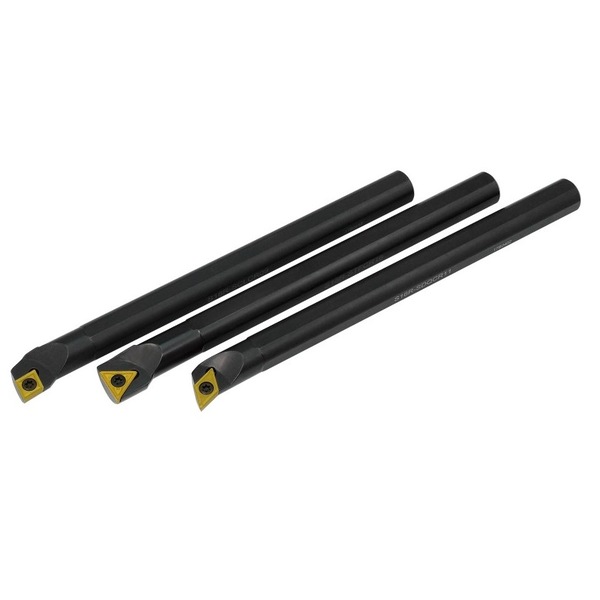

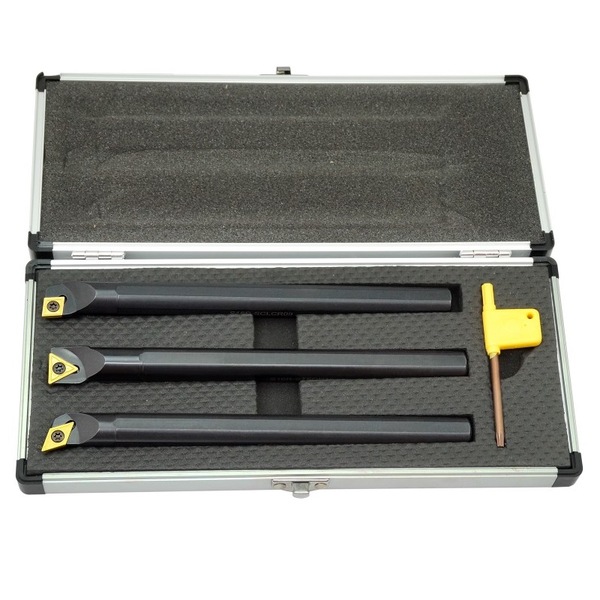

Set of 3 high quality Indexable Boring Bars with different cutting angle. Thanks to the flats on the shank, this product is easy to align and is suitable for general lathe tool post as well as round boring bar holders.
Supplied with inserts and a TORX wrench.
TiN Carbide Indexable Boring Bar 3pc Set - 8mm
Shank Size(D) | Cutter Included | F | L | Min. Bore | Insert | Screw | Key |
8mm | S08H-SCLCR-06 | 6mm | 125mm | 11mm | CCMT060204 | M2.5x6 | T8 |
S08H-STFCR-09 | 6mm | 100mm | 11mm | TCMT090204 | M2.2x6 | T6 | |
S08H-SDQCR-07 | 6mm | 100mm | 11mm | DCMT070204 | M2.5x6 | T8 |
Shank Size(D) | Cutter Included | F | L | Min. Bore | Insert | Screw | Key |
10mm | S10K-SCLCR-06 | 7mm | 125mm | 13mm | CCMT060204 | M2.5x6 | T8 |
S10K-STFCR-11 | 7mm | 125mm | 13mm | TCMT110204 | M2.5x6 | T8 | |
S10K-SDQCR-07 | 7mm | 125mm | 13mm | DCMT070204 | M2.5x6 | T8 |
Shank Size(D) | Cutter Included | F | L | Min. Bore | Insert | Screw | Key |
12mm | S12M-SCLCR-06 | 9mm | 150mm | 16mm | CCMT060204 | M2.5x6 | T8 |
S12M-STFCR-11 | 9mm | 150mm | 16mm | TCMT110204 | M2.5x6 | T8 | |
S12K-SDQCR-07 | 9mm | 150mm | 16mm | DCMT070204 | M2.5x6 | T8 |
TiN Carbide Indexable Boring Bar 3pc Set - 16mm
Shank Size(D) | Cutter Included | F | L | Min. Bore | Insert | Screw | Key |
16mm | S16R-SCLCR-09 | 11mm | 200mm | 20mm | CCMT09T304 | M4x8 | T15 |
S16R-STFCR-16 | 11mm | 200mm | 20mm | TCMT16T304 | M4x8 | T15 | |
S16R-SDQCR-11 | 11mm | 200mm | 20mm | DCMT11T304 | M4x8 | T15 |
