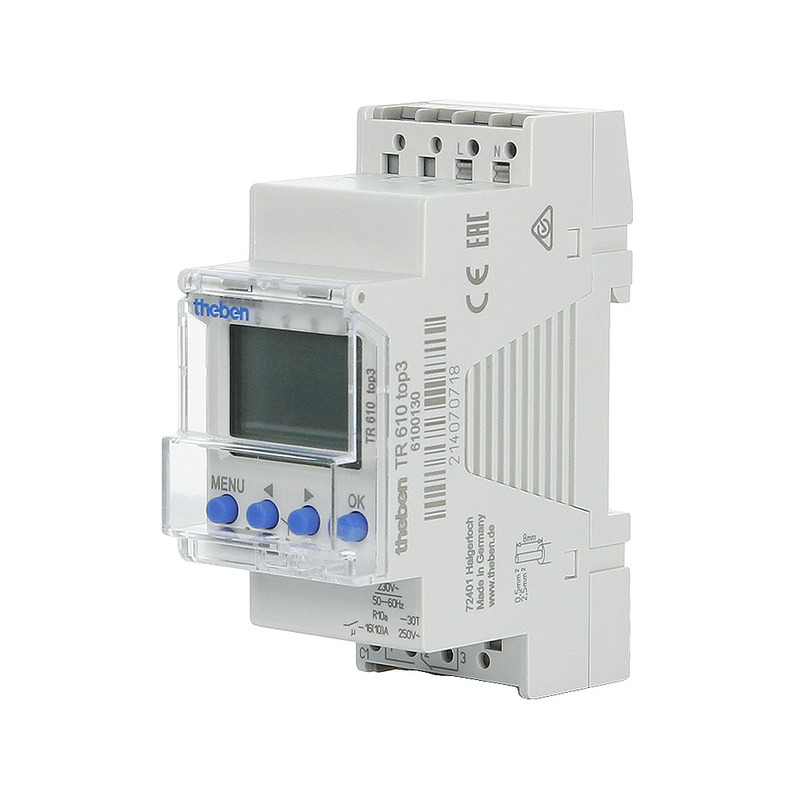

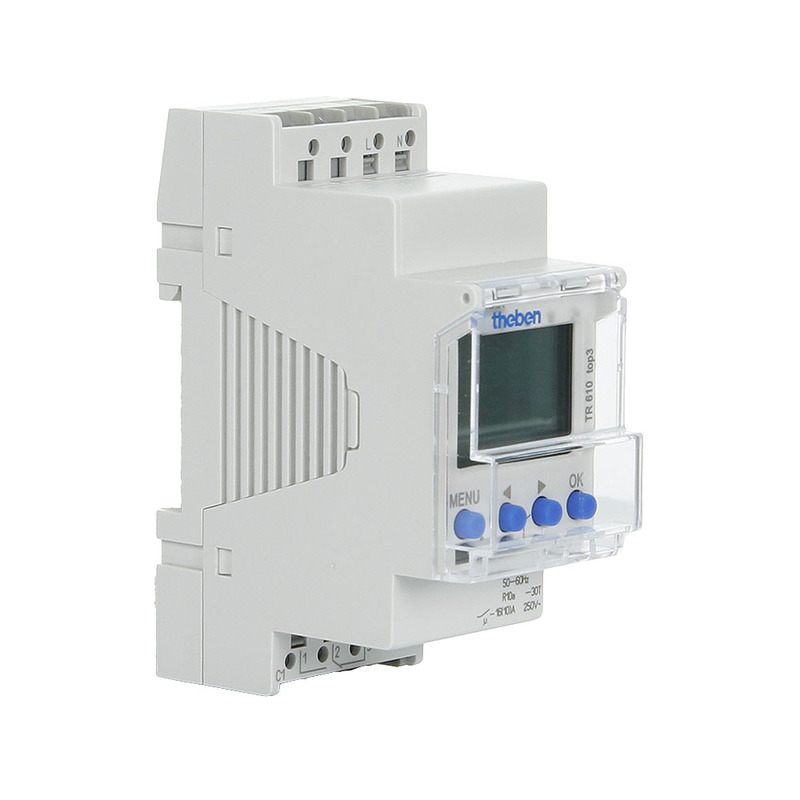

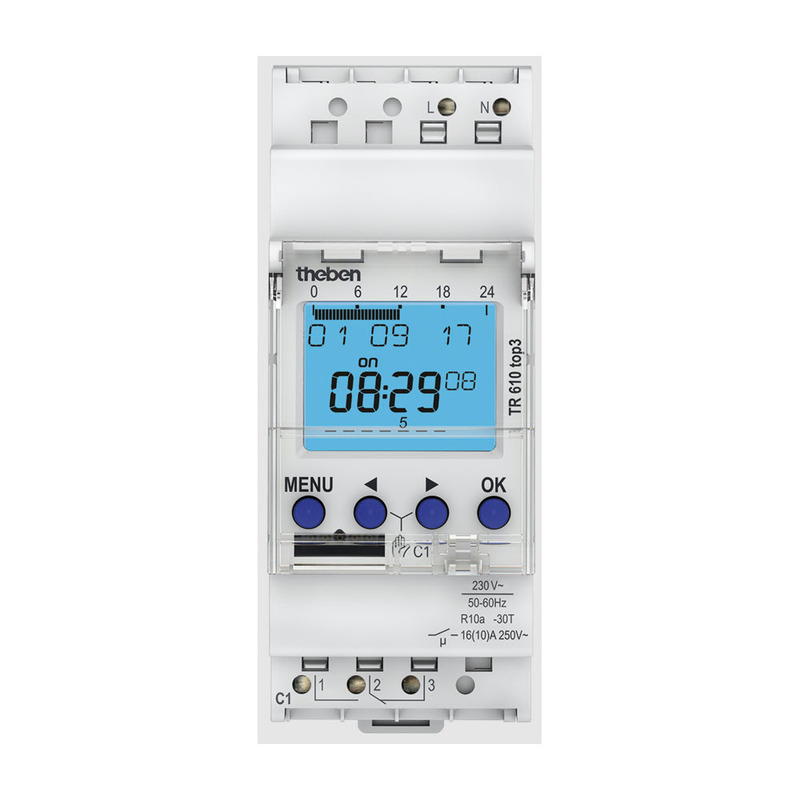

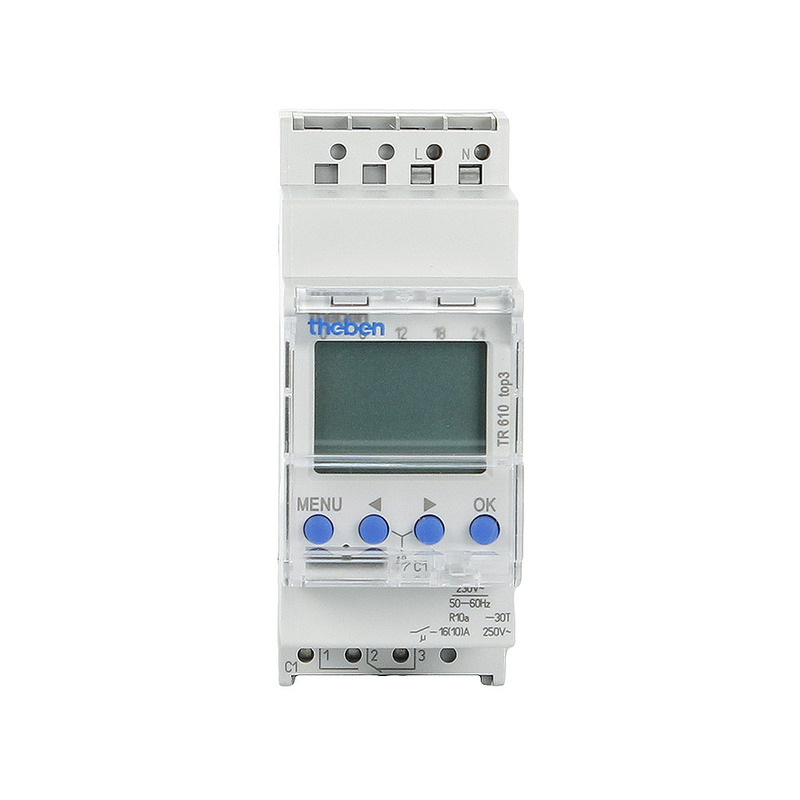

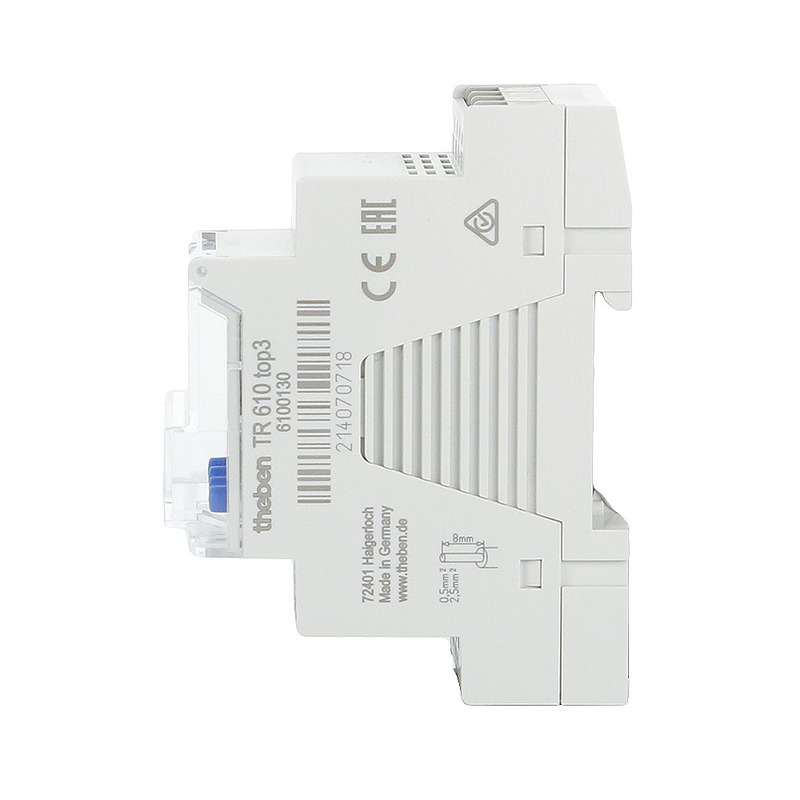

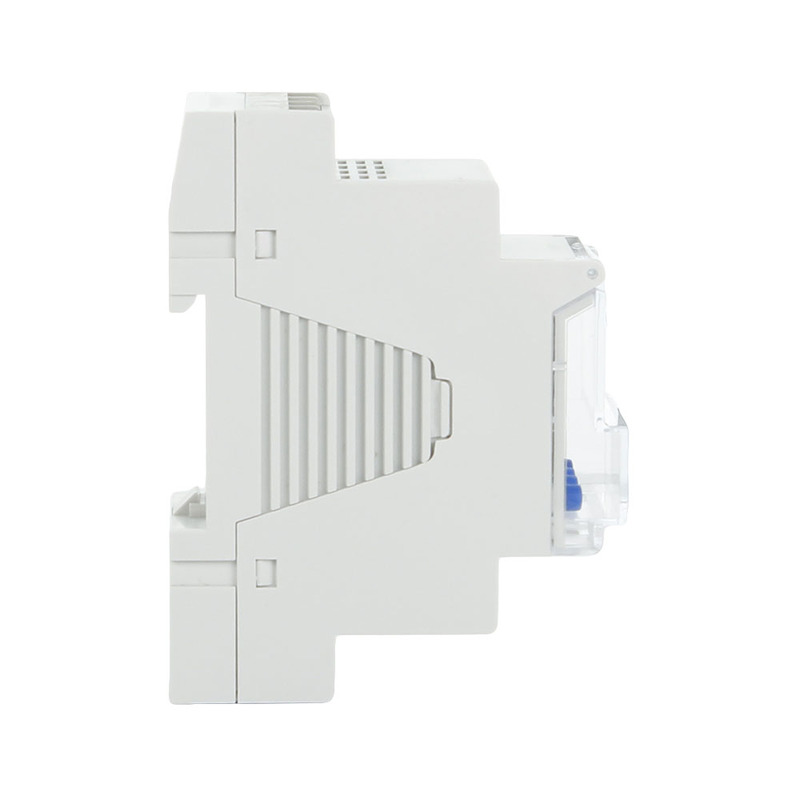

THEBEN TR610TOP3 | Digital time switch 1 channel | 24h 7day | Program by App | TOP3

If you are controlling a motor or element, you must use a contactor otherwise you may burn the timer out.

Features

Digital time switch with weekly program
1 channel
Programming by app possible
Safe transfer via optional Bluetooth Low Energy OBELISK top3
Maximum manipulation security, time switch programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the time switch
100 % compatible with top2
DuoFix spring terminals
For 2 conductors each
Wire or strand (with or without wire end sleeve)
Wire diameter: 0.5 - 2.5 mm²
Button for releasing plug-in connection
Text-oriented user guidance in display
Preset date and time
fully operable without mains connection
56 memory locations
Interface for OBELISK top2 memory card (PC programming)
2. insertable switching program
Copying programs
Storing programs
10 year power reserve (lithium battery)
Zero-cross switching for relay-saving switching and high lamp loads (not with 24 V devices)
ON-OFF switching times
Switching preselection
Permanent switching ON/OFF
Integrated operating hour counter
Reset option
Service function for monitoring maintenance intervals
Holiday program
Display back light (can be turned off)
Permanent switching ON/OFF
PIN coding
Automatic summer/winter time changeover
can be deactivated
Date rule options are already stored for Europe, the USA and other countries
own date rule options or changeover around set dates are available
Made in Germany

You may need to install a contactor so you do not burn out the timer especially if you are controlling motors or elements.

Operating voltage	230 V AC
Frequency	50 – 60 Hz
Width	2 modules
Installation type	DIN rail
Type of contact	Changeover contact
Switching output	Phase-independent
Opening width	< 3 mm
Program	Weekly program
Program functions	ON-OFF
Number of channels	1
Number of memory locations	56
Power reserve	10 years
Switching capacity at 250 V AC, cos φ = 1	16 A
Switching capacity at 250 V AC, cos φ = 0,6	10 A
Incandescent/halogen lamp load	2600 W
Energy saving lamps	1100 W
LED lamp < 2 W	50 W
LED lamp 2-8 W	600 W
LED lamp > 8 W	600 W
Fluorescent lamp load (conventional) not corrected	2600 VA
Fluorescent lamp load (conventional) series-corrected	2600 VA
Fluorescent lamp load (conventional) parallel-corrected	1300 VA 130 µF
Switching capacity min.	ca. 10 mA
Shortest switching times	1 min
Time accuracy at 25 °C	typical ± 0,25 s/day (quartz)
Time basis	Quartz
Stand-by consumption	~0.4 W
Type of connection	DuoFix spring terminals
Display	LCD
Keyboards	4 touch buttons
Housing and insulation material	High-temperature resistant, self-extinguishing thermoplastic
Type of protection	IP 20
Protection class	II according to EN 60 730-1
Voltage	230 V AC
Ambient temperature	-30°C ... 60°C
Predecessor	6100100, TR 610 top2

Watch Video on how to program here https://youtu.be/BlScXDZZkRU

Warranty starts from Invoice Date

Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct

GTIN: 4003468610299
