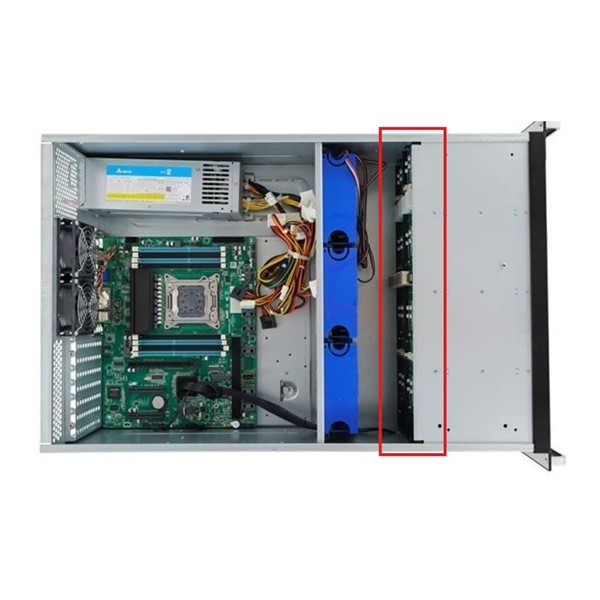

TGC 4024-12GB-BP case back plane

TGC 4824-6GB-BP case back plane

Specifications

• Supporting: Slide-rails for U-Style server
• Material: Metal
• Section: 3 sections
• Max loading: 25kgs
• Length:655mm
• Cabinet Cts
  Minimum closed length - 655mm
  Maximum open length - 1300mm
  Recommended for 1U of TGC models including TGC-H1-550, TGC-H1-650, TGC-1404, TGC-13400, TGC-H1-400,TGC-13250, TGC-F1-550, TGC-F1-650

Features:

• 1U height, heavy duty slide rail
• With stop-latch, lock chassis in extended position for easy access. Tapped screw holes on outer member for secure and easy mounting.
• Load rating up to 25kgs
• W/additional dia. 4.4mm x 45mm slotted mounting holes (2x).
• Standard screws #10-32 and Metric screws M4x6, M5x12 included, mountable to most chassis.
• Extendable to 51.18" depth.
• 25.78" (L) x 1.79" (H) x 0.5" (Thickness)
