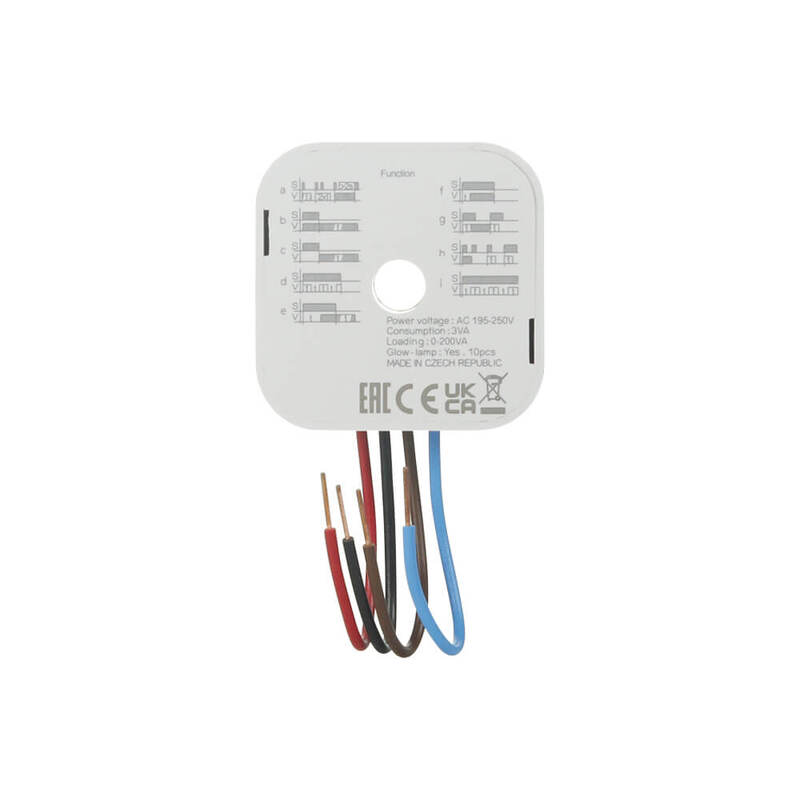

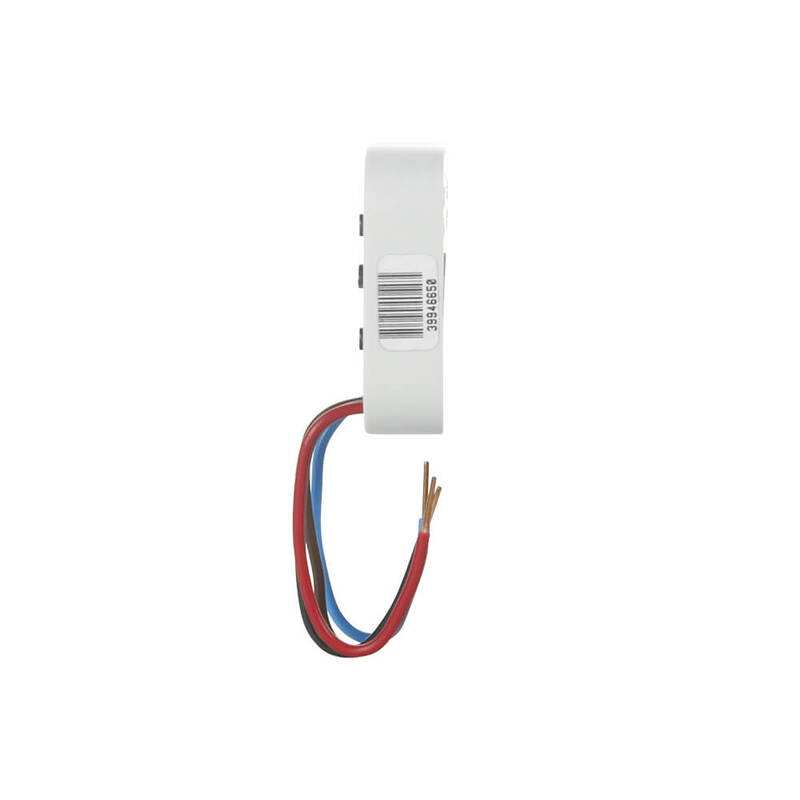

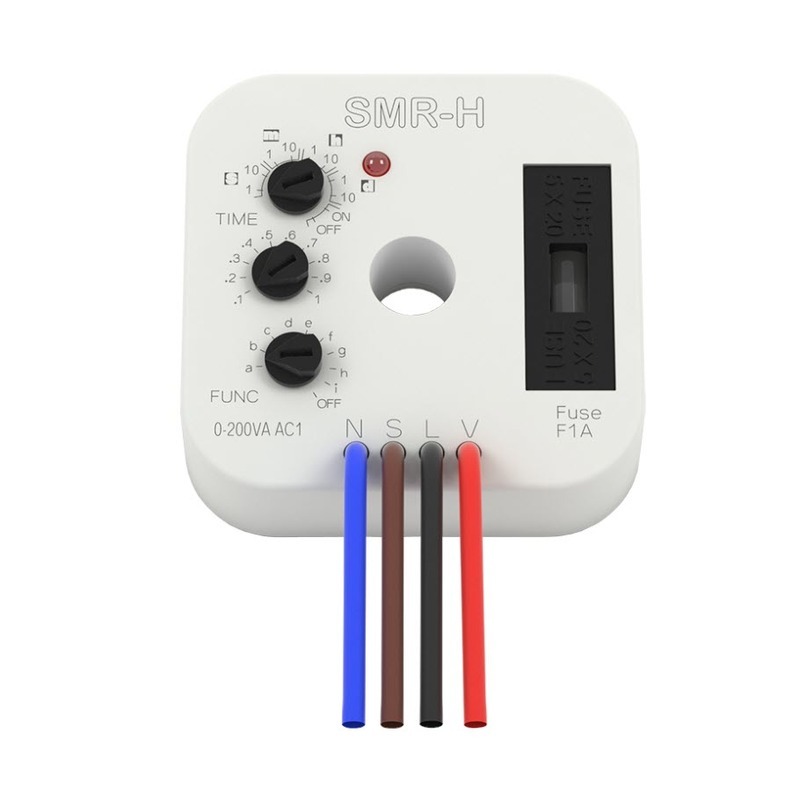

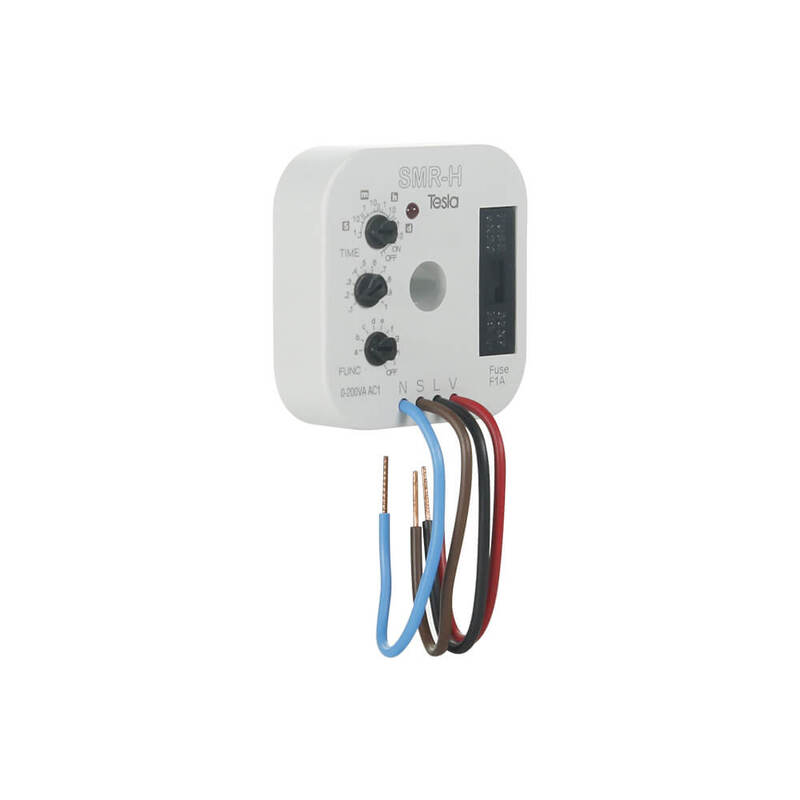

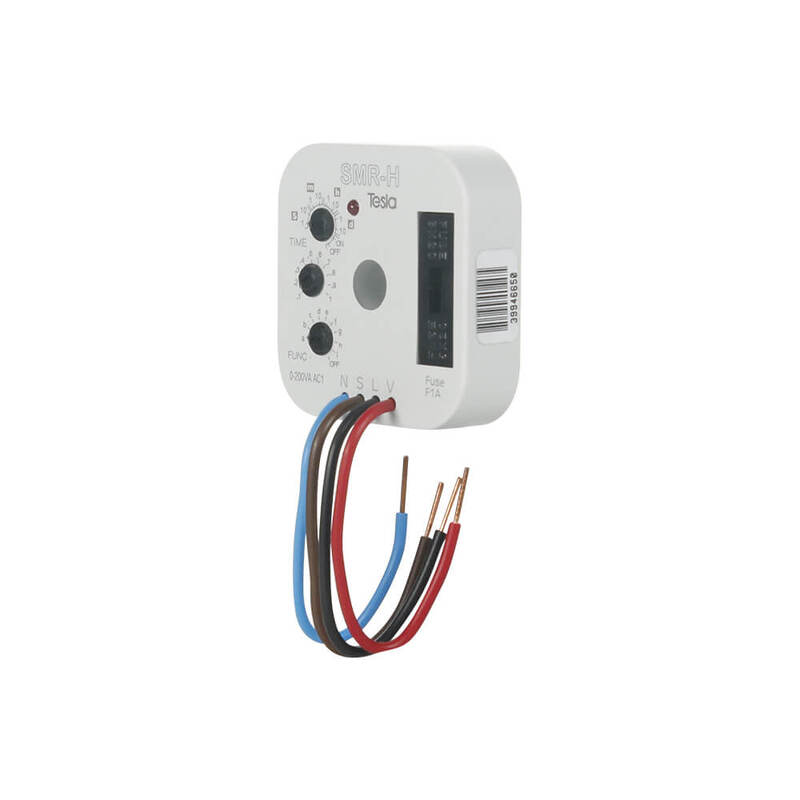

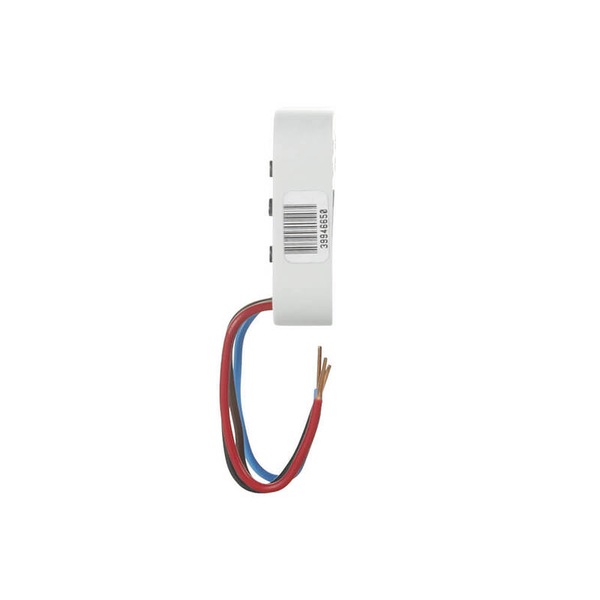

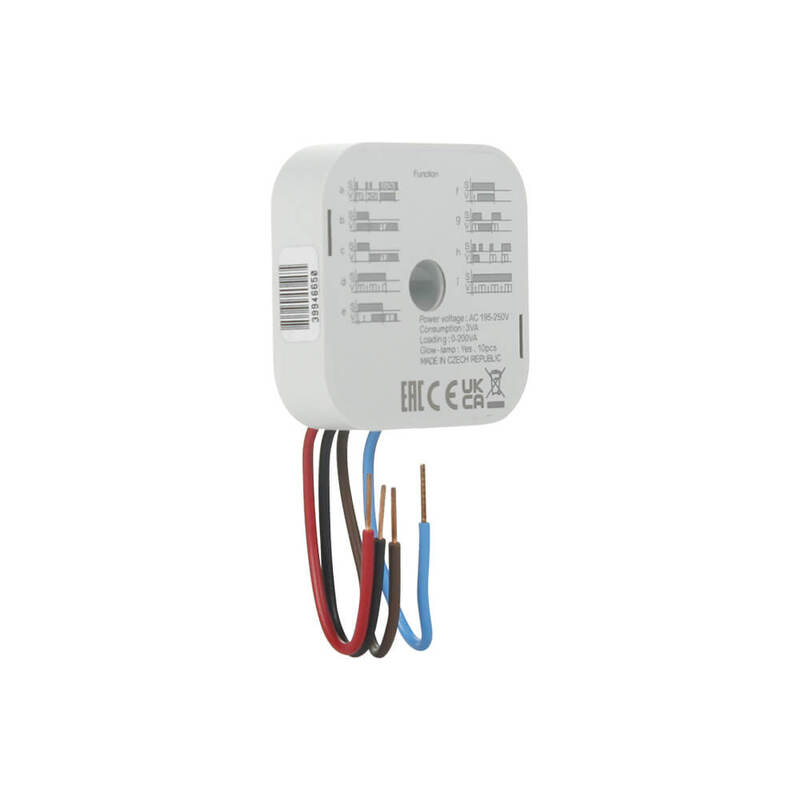

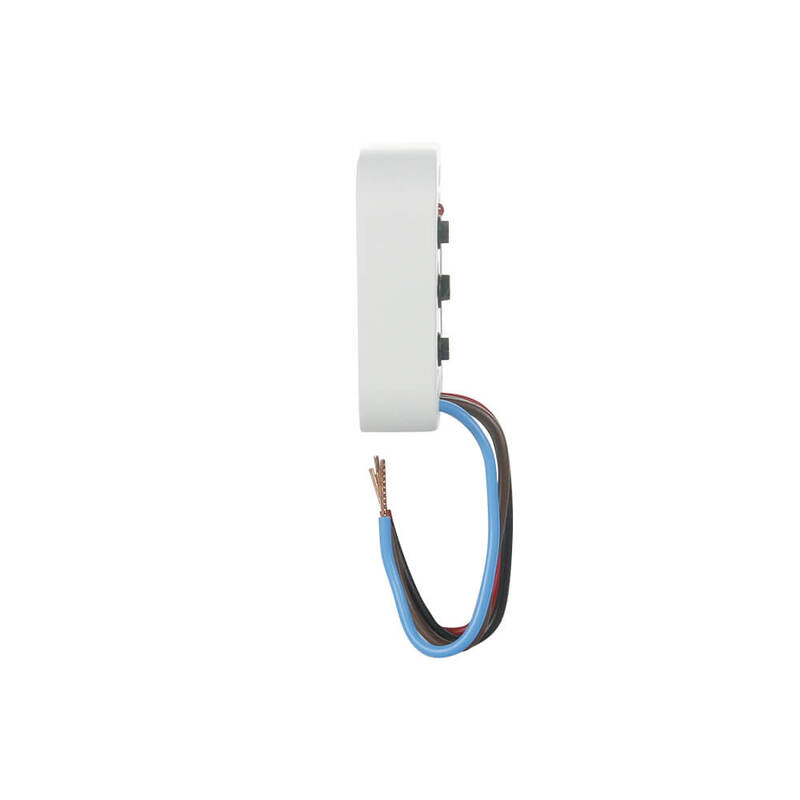

Tesla SMR-H - 4 Wire Super-Multifunction Time Relay 230V AC
3x

Tesla SMR-H - 4 Wire Super-Multifunction Time Relay 230V AC

Hurry! 6 items left!
Price
$76.94
Collect 228 Everyday Rewards points
Score 3x points on every order
Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply
Log in to MyDeal to link your card
Shipping
$11.80 Australia-wide

24-48 hour dispatch
Quantity
Maximum item limit (6) has been reached.

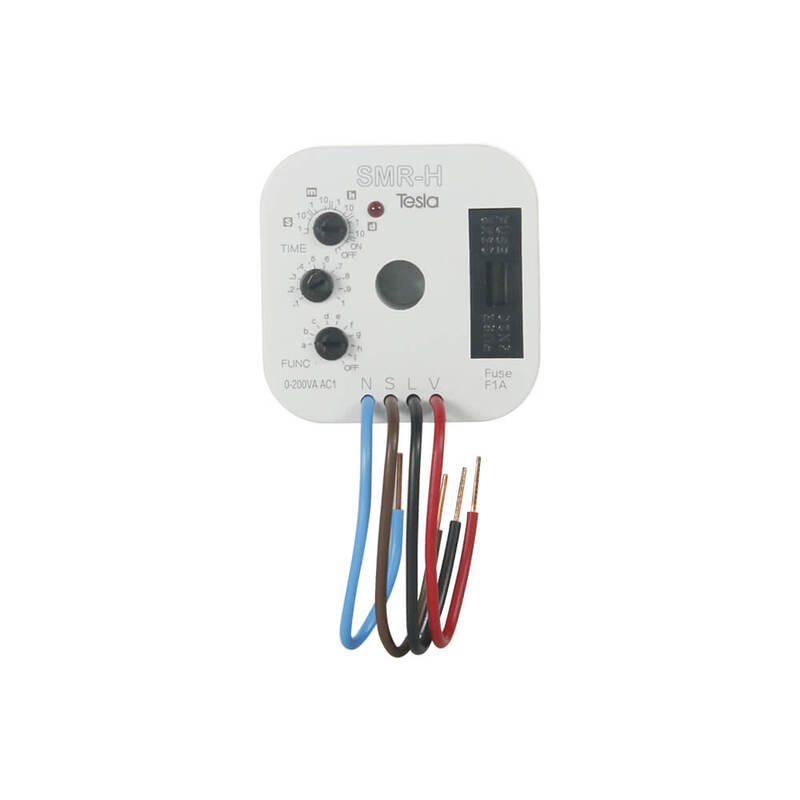

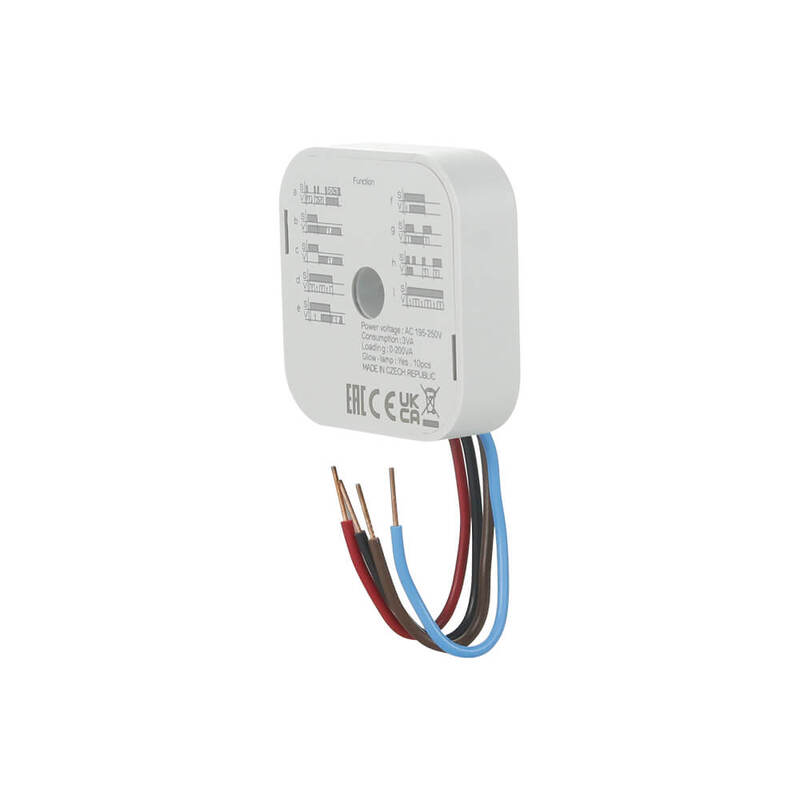

Tesla SMR-H | 4 Wire Super-Multifunction Time Relay 230V AC

Description:

The Tesla SMR-H | 4 Wire Super-Multifunction Time Relay is engineered to bring unparalleled efficiency and versatility to your electrical systems. Operating at AC 230V and designed with a 4-wire connection, including neutral, this relay is the epitome of performance and reliability. With its nine distinct functions and adjustable time ranges from 0.1 seconds to 10 days, the Tesla SMR-H meets a wide array of timing needs, making it an essential tool for any electrical project.

Features:

  • 4-Wire Connection with Neutral: Ensures a stable and secure installation in various electrical setups.
  • AC 230V Voltage Range: Compatible with standard electrical installations, supporting 50-60Hz.
  • Nine Functions: Offers versatility for different timing and control requirements.
  • Time Ranges from 0.1s to 10 Days: Provides flexibility for short-term or extended operations.
  • Power Output 0 - 200 VA: Capable of handling a range of power needs for different applications.

FAQ:

Q: How does the Tesla SMR-H integrate into existing installations?
A: It's designed for easy installation into wiring boxes or under-wall switches, offering a simple solution for switching to time-controlled or impulse relay systems.

Q: What makes the Tesla SMR-H stand out?
A: Its multifunctional capabilities, extensive time range options, and compatibility with standard electrical systems make it a top choice for professionals.

The Tesla SMR-H | 4 Wire Super-Multifunction Time Relay is not just a product; it's an upgrade to your electrical installations, ensuring efficiency, reliability, and control. Whether it's for a time-controlled switch or an impulse relay, the Tesla SMR-H delivers performance that professionals can rely on.

Specifications:

Technical Parameters
Number of Functions 9
Connection 4-wire, with neutral
Voltage range AC 230 V (50-60 Hz)
Power input (no operation/make) max. 0.8/3 VA
Supply voltage tolerance -15%, +10%
Time ranges 0.1s - 10 days
Time setting via rotary switch
Time deviation 10% - mechanical setting
Repeat accuracy 2% - set value stability
Temperature coefficient 0.1 %/°C, at = 20 °C
Output
Number of contacts 1 x triac
Resistive load 0 - 200 VA
Inductive load 4 W
Mechanical life 30,000,000 ops.
Electrical life (AC1) 100,000 ops.
Control
Control voltage AC 230 V
Control Current 3 mA
Impulse length min. 50 ms/max. unlimited
Glow tubes connections Yes
Max. amount of glow lamps connected to controlling input 230 V - max. amount 50 pcs (measured with glow lamp 0.68 mA/230 V A)
Other Information
Operating temperature 0 to +50
Operating position any
Mounting free at connecting wires
Protection degree IP30 in standard conditions
Overvoltage category III
Pollution degree 2
Fuse F 1A/250V
Connection Wires (cross-section/length) 4x sol. wir., 0.75 mm2 (AWG 18) 90 mm
Glow-lamps in control button max. 10
Dimensions 49 x 49 x 13 mm
Weight 28g
Standards EN 61812-1
