Description:

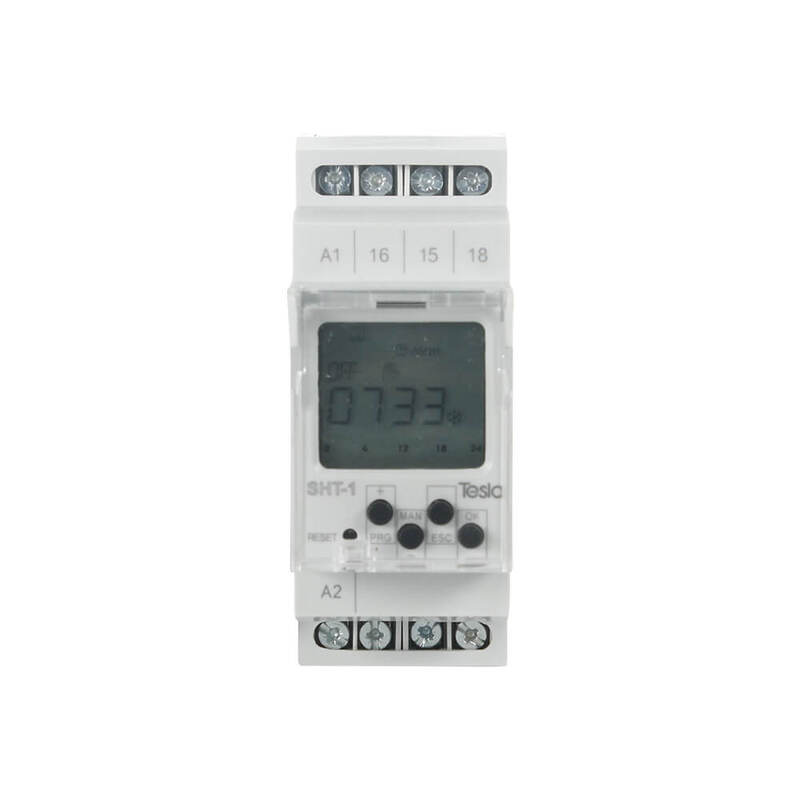

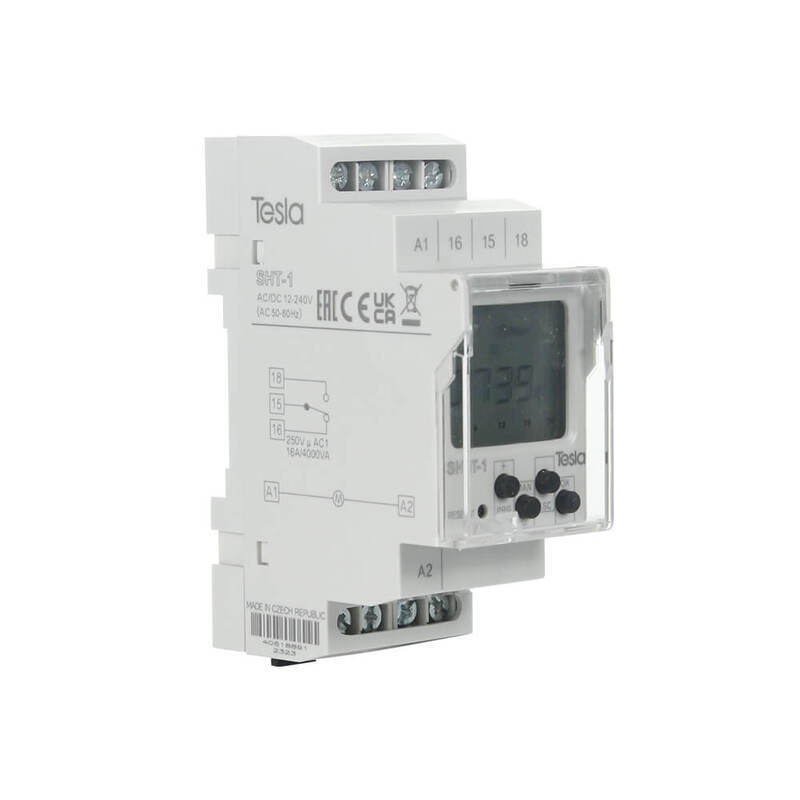

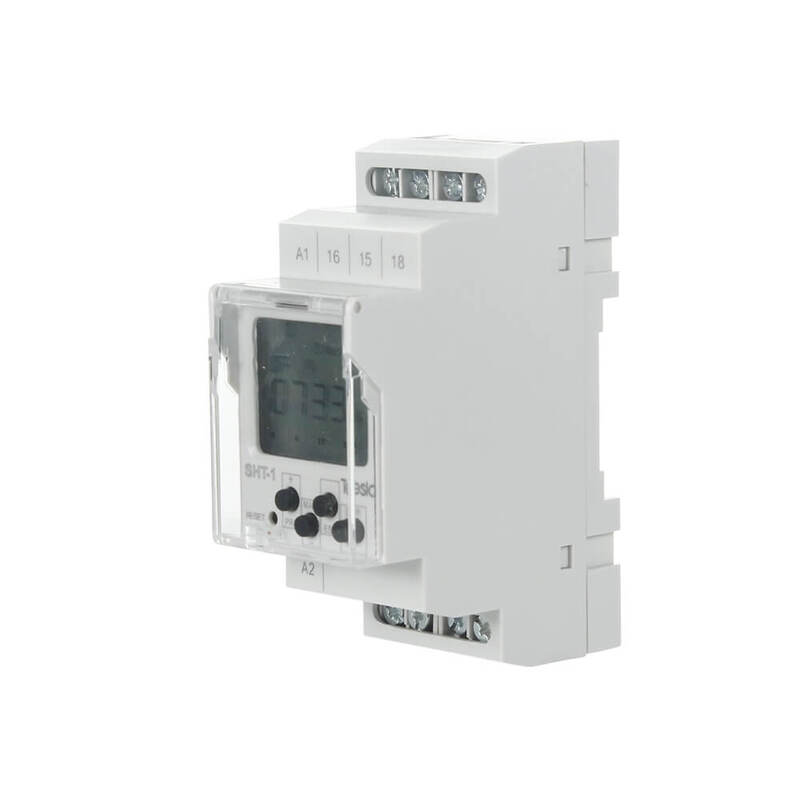

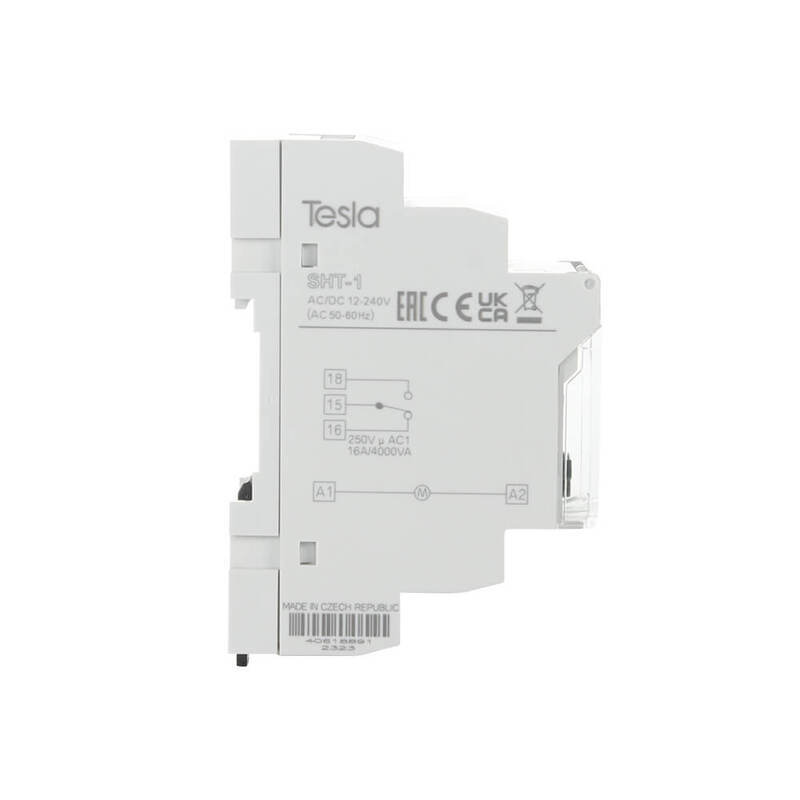

Discover the power of precise time management with the Tesla SHT-1 Digital Time Switch. Designed for homeowners seeking to enhance the control and efficiency of their home appliances, this innovative device offers customizable programming on a daily and weekly basis. With no need for a replaceable battery and a robust output of 1x CO, 16 A, the Tesla SHT-1 is both convenient and reliable.
Features:
FAQ:
Q: What makes the Tesla SHT-1 suitable for homeowners?
A: Its ability to program appliances according to a daily or weekly schedule makes it ideal for optimizing home energy use and convenience.
Q: How does the Tesla SHT-1 adapt to daylight saving time changes?
A: It includes automatic conversion for summer/winter time, ensuring your schedules always match local time without manual adjustments.
Q: What is the "Holiday program" feature?
A: This option allows you to set a period during which the device will not switch according to the standard program, providing peace of mind while you're away.
The Tesla SHT-1 Digital Time Switch stands out as a smart solution for managing your home's electrical appliances, offering both functionality and flexibility. Its programmable schedule, easy installation, and user-friendly controls make it an essential tool for any homeowner looking to optimize their appliance use and energy consumption.
Technical Parameters | |
---|---|
Supply terminals | A1 - A2 |
Voltage range | AC/DC 12 - 240 V (AC 50/60 Hz) |
Burden (max.) | AC 0.5 - 2 VA/DC 0.4 - 2 W |
Max. dissipated power (Un + terminals) | 5 W |
Supply voltage tolerance | -15 %; +10 % |
Back-up supply | Yes |
Summer/winter time | Automatic |
Output | |
Number of contacts | 1x changeover (AgSnO2) |
Current rating | 16 A/AC1 |
Breaking capacity | 4000 VA/AC1, 384 W/DC |
Inrush current | 30 A/< 3 s |
Switching voltage | 250V AC/24V DC |
Mechanical life | > 30,000,000 operations |
Electrical life (AC1) | > 70,000 operations |
Time Circuit | |
Power back-up | Up to 3 years |
Accuracy | Max. ±1s/day at 23 °C |
Minimum interval | 1 min |
Data stored for | Min. 10 years |
Cyclic output | 1 - 99 s |
Pulse output | 1 - 99 s |
Program Circuit | |
Number of memory places | 100 |
Program (SHT-1; SHT-1/2) | Daily, weekly |
Data readout | LCD display, with back light |
Other Information | |
Operating temperature | -20 °C to +55 °C |
Storage temperature | -30 °C to +70 °C |
Dielectric strength | 4 kV (supply - output) |
Operating position | Any |

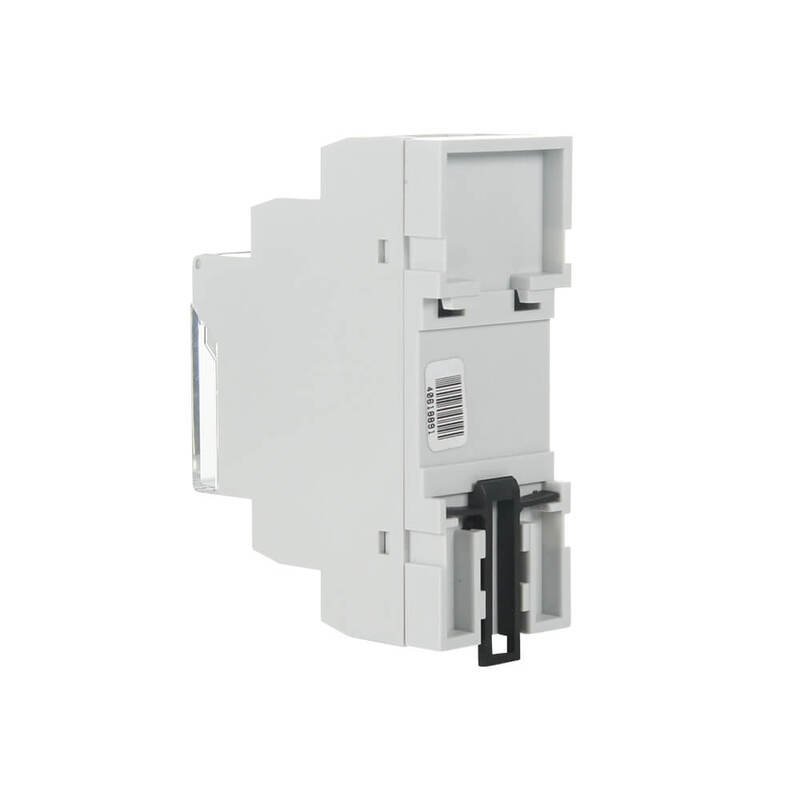

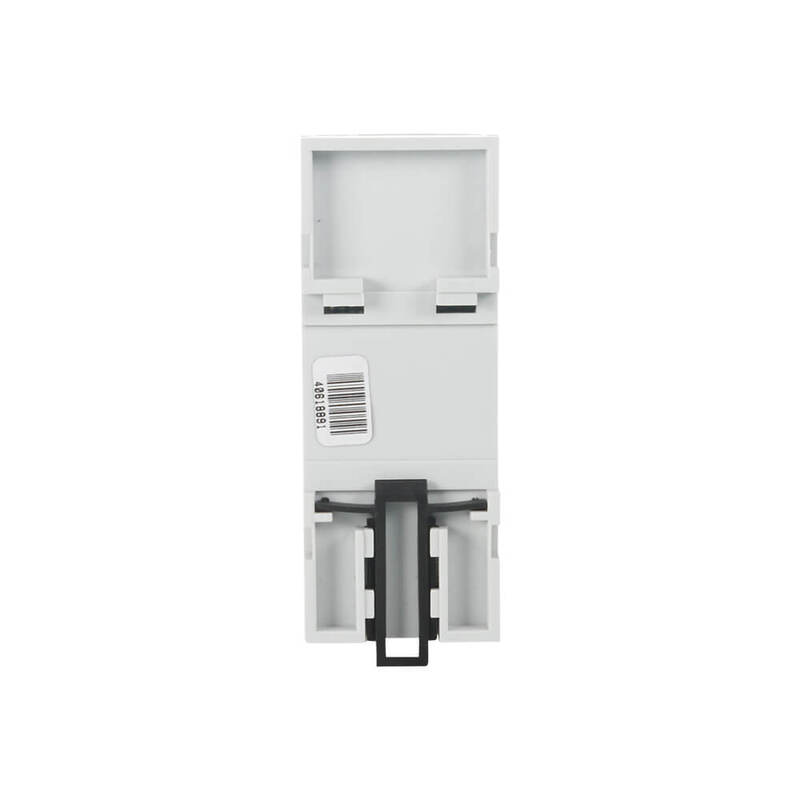

Mounting | DIN rail EN 60715 |
Protection degree | IP10 clips, IP40 from front panel |
Overvoltage category | III |
Pollution degree | 2 |
Max. cable size (mm2) | Solid wire max. 2x 2.5 or 1x 4 with sleeve max. 1x 2.5 or 2x 1.5 (AWG 12) |
Dimensions | 90 x 35 x 64 mm |
Weight | 128g |
Standards | EN 61812-1 |
