Description:

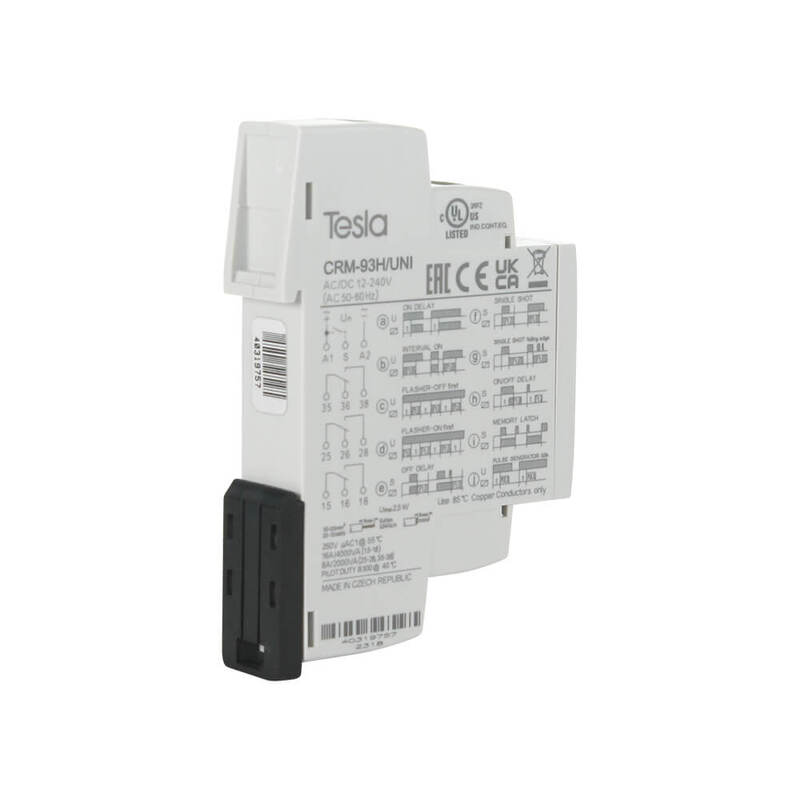

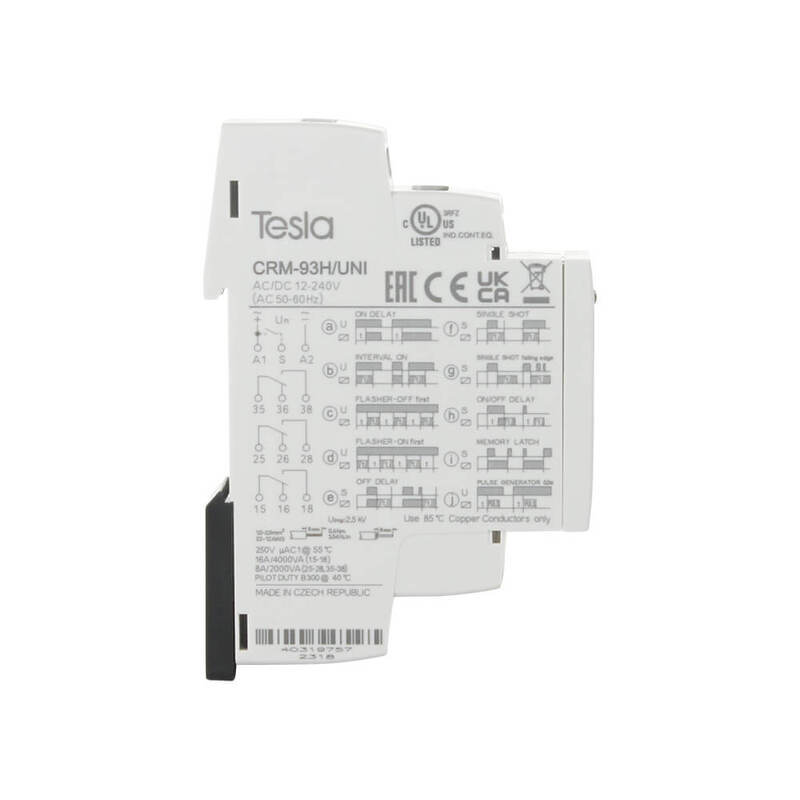

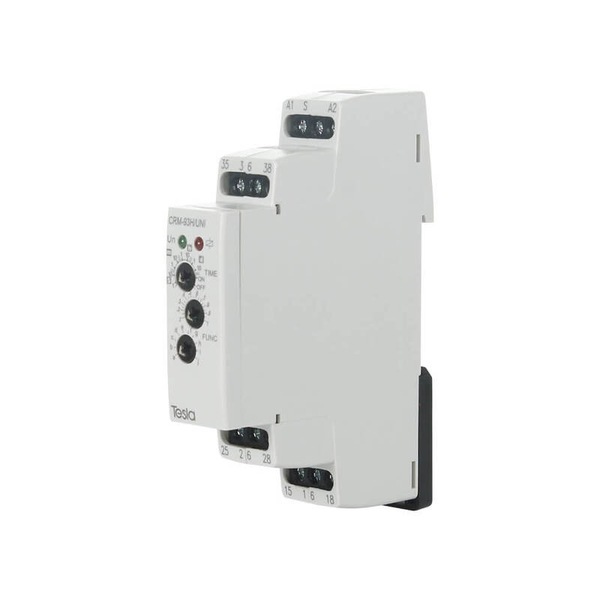

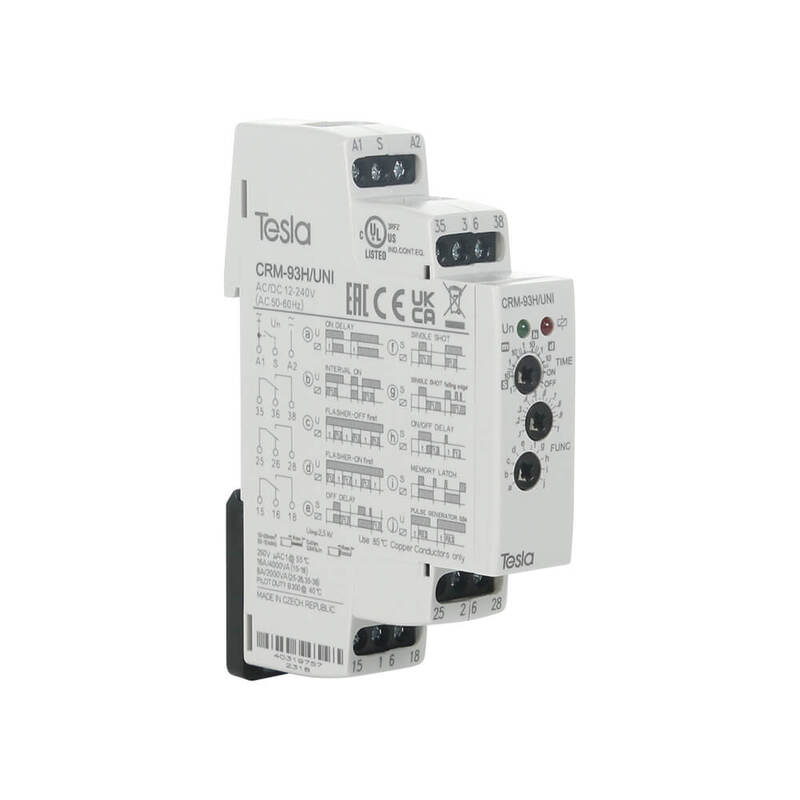

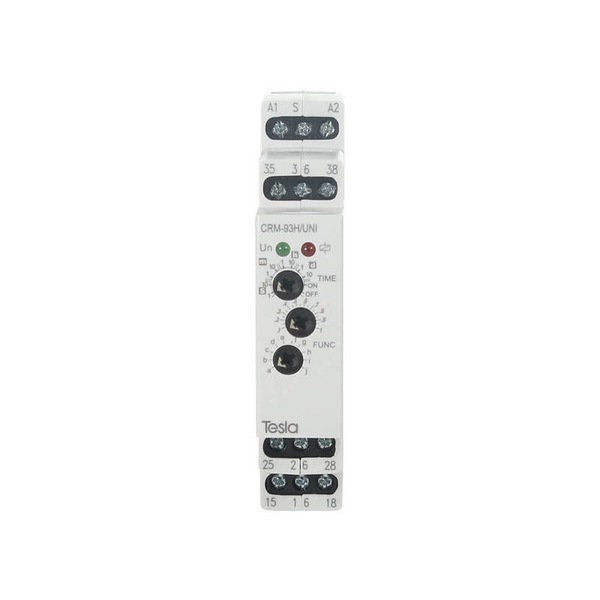

The Tesla CRM-93H/UNI Multifunction Time Relay is a versatile and robust solution designed to meet the sophisticated demands of modern households. With its universal power supply accommodating both AC and DC inputs across a wide range of 12-240V, this time relay is engineered to offer flexibility and reliability in various electrical applications. Its comprehensive timing functions, adjustable from 0.1 seconds to 10 days, ensure precision in control and operation.
Features:
FAQ:
Q: What makes the Tesla CRM-93H/UNI suitable for electricians?
A: Its versatility with a universal power supply, wide timing range, and slim design make it perfect for intricate electrical installations and applications.
Q: How does the Tesla CRM-93H/UNI ensure reliable performance?
A: With features like LED status indicators, a broad operating temperature range, and robust construction, it provides consistent and dependable operation.
Q: Can the Tesla CRM-93H/UNI be used in both residential and commercial settings?
A: Yes, its flexibility and durability make it ideal for a wide range of applications, from residential to commercial and industrial settings.
The Tesla CRM-93H/UNI Multifunction Time Relay is not just a tool but a game-changer for those looking to optimize their electrical systems with precision, efficiency, and reliability.
Technical Parameters | |
---|---|
Number of functions | 10 |
Supply terminals | A1 - A2 |
Voltage range | AC/DC 12 - 240 V (AC 50 - 60 Hz) |
Burden | AC 0.7 - 3 VA / DC 0.5 - 1.7 W |
Consumption (apparent/loss) | AC max. 12VA / 1.9W |
Supply voltage tolerance | -15 %; +10 % |
Supply indication | Green LED |
Time ranges | 0.1 s - 10 days |
Time setting | Rotary switch and potentiometer |
Time deviation | 5 % - mechanical setting |
Repeat accuracy | 0.2 % - set value stability |
Temperature coefficient | 0.01 % / °C, at = 20 °C |
Output | |
---|---|
Number of contacts | 3x changeover/ SPDT (AgNi / Silver Alloy) |
Current rating | 8A / AC1 |
Breaking capacity | 2000VA / AC1, 192W / DC |
Inrush current | 10A / <3s |
Switching voltage | 250V AC1 / 24V DC |
Min. breaking capacity DC | 500mA |
Output indication | Multifunction red LED |
Mechanical life | 30,000,000 |
Electrical life (AC1) | 70,000 |
Controlling | |
---|---|
Power on control input | AC 0.025 - 0.2 VA / DC 0.1 - 0.7 W (UNI), AC 0.53 VA (AC 230 V), AC 0.025 - 0.2 VA (AC 12 - 240 V) |
Load between S-A2 | YES |
Control. terminals | A1-S |
Glow tubes connections | YES |
Max. amount of glow lamps connected to controlling input | UNI - glow lamps cannot connected/NO, 230 V - max.20 pcs (Measured with glow lamp 0.68mA/230V AC) |
Impulse length | Min. 25 ms / Max. unlimited |
Reset time | Max. 150 ms |
Other Information | |
---|---|
Operating temperature | -20 °C to +55 °C |
Storage temperature | -30 °C to +70 °C |
Electrical strength | 4kV(supply-output) |
Operating position | Any |
Mounting/DIN rail | DIN rail EN 60715 |
Protection degree | IP 40 from front panel / IP 20 terminals |
Overvoltage category | III |
Pollution degree | 2 |
Max. cable size (mm2) | Solid wire max.1x 2.5 or 2x1.5/ with sleeve max. 1x2.5 (AWG 12) |
Dimensions | 90 x 17.6 x 64 mm |
Weight | (UNI) - 89 g (3.1 oz.); (230) - 87 g (3 oz.) |
Standards | EN 61812-1, EN 61010-1 |
