Description:

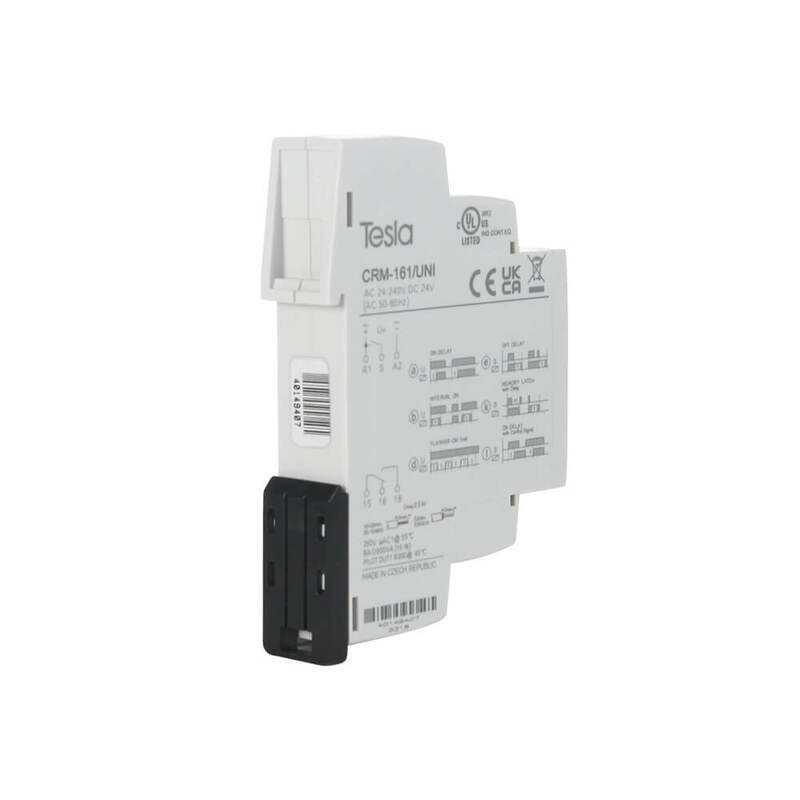

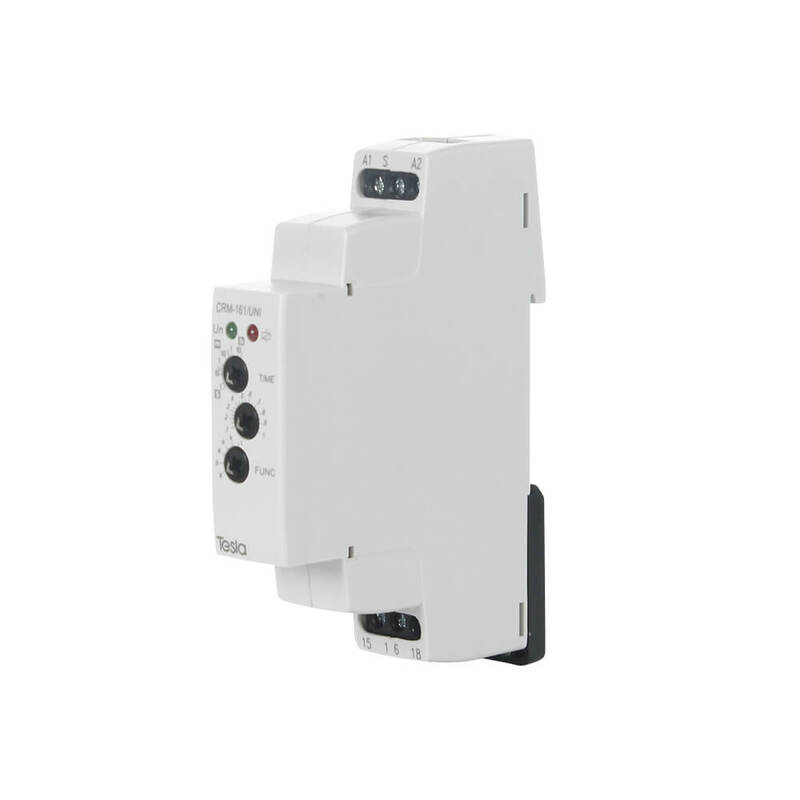

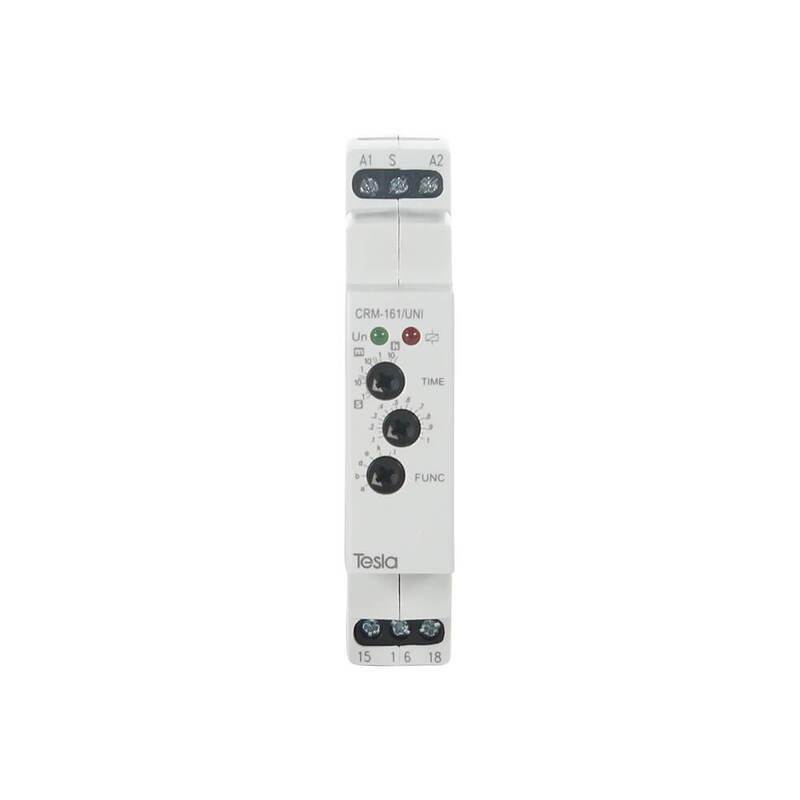

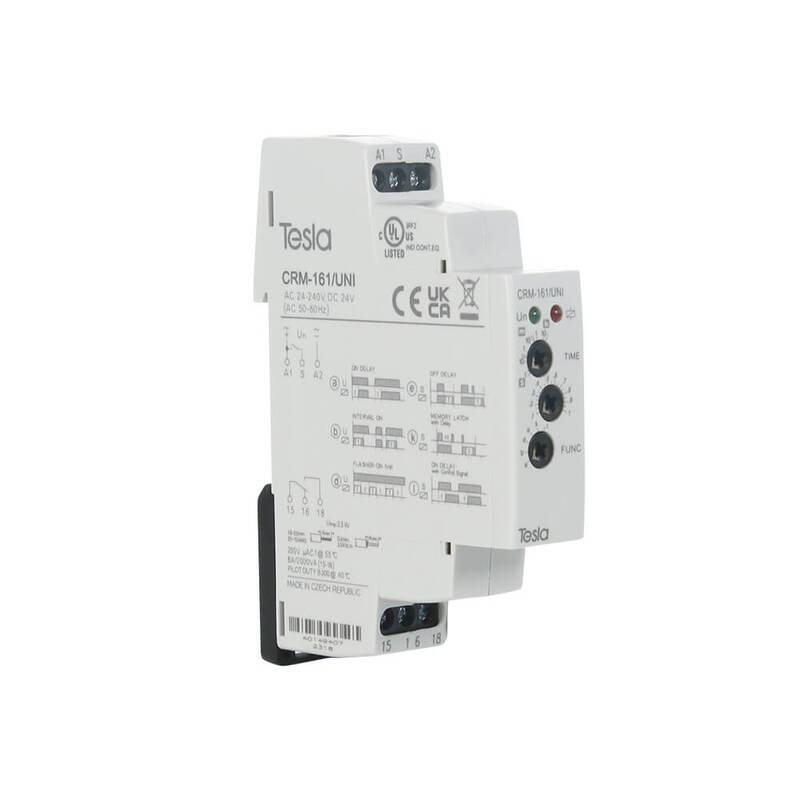

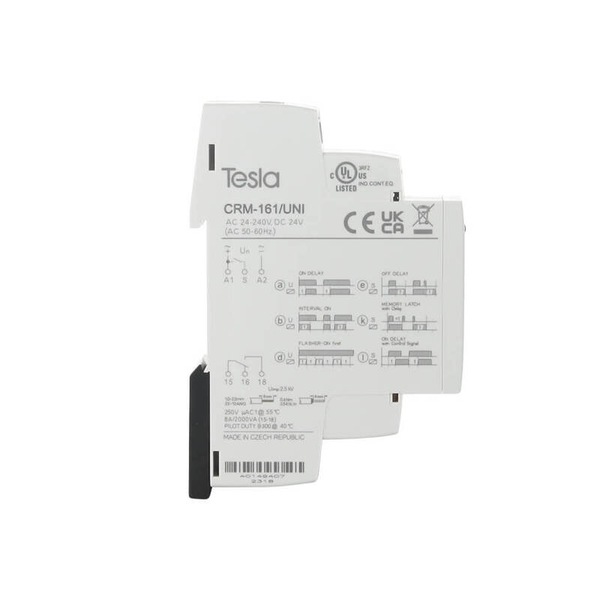

The Tesla CRM-161-UNI Multifunction Time Relay is an essential tool for electricians looking to implement precise timing functions in automation, control, regulation, or house installations. This economy version offers universal use with its wide voltage range support and multifaceted functionality. It's designed to cater to various applications with ease, providing a reliable solution for timing requirements.
Key Features:
FAQ:
Q: What types of applications is the Tesla CRM-161-UNI suitable for?
A: It's designed for a broad range of applications, including automation systems, control and regulation tasks, and household installations, offering flexibility and precision.
Q: How does the Tesla CRM-161-UNI indicate its operating status?
A: The relay utilizes a multifunction red LED that flashes or shines continuously to indicate different operating statuses, making it easy to monitor its activity.
Q: Can the Tesla CRM-161-UNI be used with different power supplies?
A: Yes, its universal supply voltage feature makes it adaptable to various power setups, from AC 24 – 240 V to DC 24 V, accommodating both household and industrial requirements.
Q: Is the Tesla CRM-161-UNI easy to install?
A: Absolutely. Designed for DIN rail mounting, it ensures a hassle-free installation process, fitting seamlessly into standard electrical panels.
The Tesla CRM-161-UNI Multifunction Time Relay emerges as an indispensable tool for electricians, offering precise timing control with versatile functionality and universal voltage support.
Specification | Details |
---|---|
Supply terminals | A1 - A2 |
Voltage range | AC 24 - 240V | DC 24 V (AC 50-60 Hz) |
Power input (max.) | 2 VA-1.5W |
Supply voltage tolerance | -15%;+10% |
Supply indication | Green LED |
Number of functions | 6 |
Time ranges | 0.1s - 10hrs |
Time setting | Rotary Switch and Potentiometer |
Time deviation | 5% - Mechanical Setting |
Repeat accuracy | 0.2% - Set Value Stability |
Temperature coefficient | 0.01 %/°C, at = 20 °C |
Number of contacts | 1x changeover/SPDT (AgNi) |
Current rating | 8 A/AC1; 1/2 HP|240 Vac, 1/3 HP|120 Vac; PD. B300 |
Breaking capacity | 2000 VA/AC1, 192 W/DC |
Switching voltage | 250 V AC/24 V DC |
Max. power dissipation | 0.6 W |
Output indication | Multifunction red LED |
Control terminals | A1-S |
Load between S-A2 | Yes |
Impulse length | min. 25 ms/max. unlimited |
Reset time | max. 150 ms |
Operating temperature | −20 .. +55 °C |
Storage temperature | −30 .. +70 °C |
Dielectric strength | 4kV AC |
Operating position | any |
Mounting | DIN rail EN 60715 |
Protection degree | IP40 from front panel/IP20 terminals |
Overvoltage category | III |
Pollution degree | 2 |
Max. cable size (mm²) | solid wire max. 1x 2.5 or 2x 1.5 with sleeve max. 1x 2.5 (AWG 12) |
Dimensions | 90 x 17.6 x 64 mm |
Weight | 62g |
