Description:

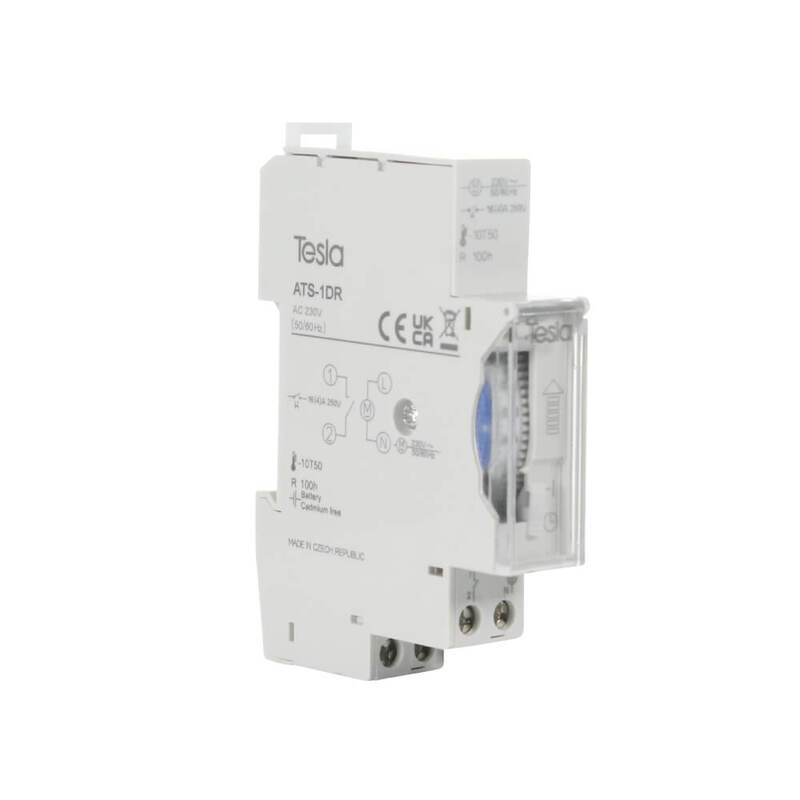

The Tesla ATS-1DR Analogue Time Switch is the perfect blend of simplicity and efficiency for managing your daily electrical system needs. Designed with electricians and their customers in mind, this mechanical time switch offers a straightforward and cost-effective solution to control heating, ventilation, cooling, lighting, or pump systems with a precise daily program.
Features:
FAQ:
Q: What are the benefits of the Tesla ATS-1DR?
A: It's designed to be a reliable, user-friendly time switch for your electrical systems, suitable for residential and commercial applications.
Q: How does the Tesla ATS-1DR ensure continuous operation during power outages?
A: With its power reserve feature, it can maintain its program for up to 100 hours after being fully charged, minimizing disruptions.
Q: What makes the Tesla ATS-1DR a good choice compared to digital time switches?
A: Its mechanical design offers simplicity and reliability, with fewer components that can fail, making it an inexpensive yet effective solution for many applications.
The Tesla ATS-1DR Analogue Time Switch is more than just a time control device; it's a testament to efficient and reliable electrical system management. Whether for residential or commercial settings, it delivers consistent performance, ensuring your heating, ventilation, cooling, and lighting systems operate seamlessly according to your daily schedule.
Supply | |
---|---|
Supply terminals | L-N |
Supply voltage | AC 230 V (50/60 Hz) |
Power consumption (max.) | 1.5 VA/1 W |
Supply voltage tolerance | −10 %; +10 % |
Time Circuit | |
---|---|
Program | Daily |
Number of switching segments | 96 |
Minimum switching interval | 15 mins |
Operating accuracy | ±2s/day at 25 °C |
Power reserve | Max. 100 hrs |
Output | |
---|---|
Number of contacts | 1x NO (AgCdO15) |
Rated current | 16 A/AC1 |
Breaking capacity | 4000 VA/AC1 |
Switching voltage | 250 V AC |
Mechanical life | 100.000 ops. |
Electrical life (AC1) | 30.000 ops. |
Other Information | |
---|---|
Operating temperature | −10 to +50 °C |
Storage temperature | −10 to +50 °C |
Dielectric strength | 4 kV (supply − output) |
Operating position | Any |
Mounting | DIN rail EN 60715 |
Protection degree | IP20 |
Overvoltage category | III |
Pollution degree | 2 |
Cross-wire section − solid/stranded with ferrule (mm2) | Max. 1× 4, 2× 2.5/ max. 1× 4 (12 AWG) |
Dimensions | 90 × 18 × 66 mm |
Weight | 70g |
Standards | EN 61812-1, EN 60730 |
