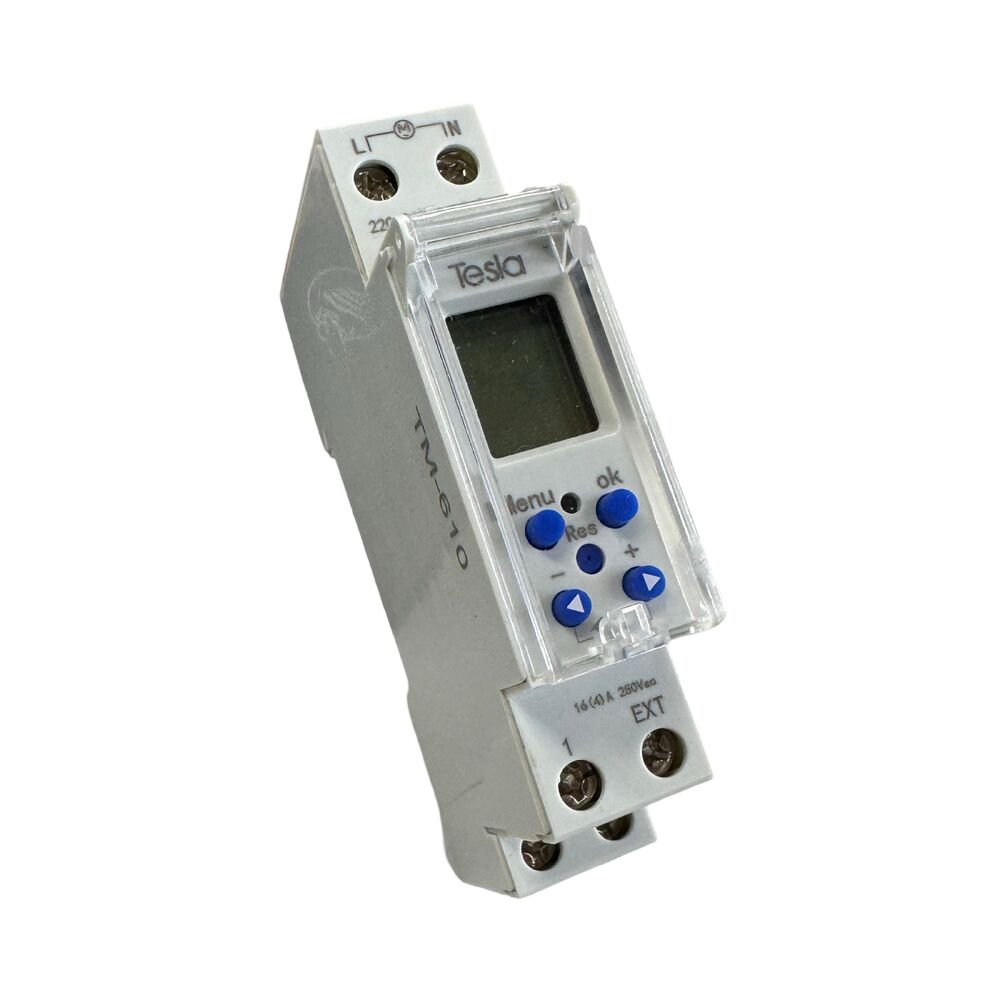

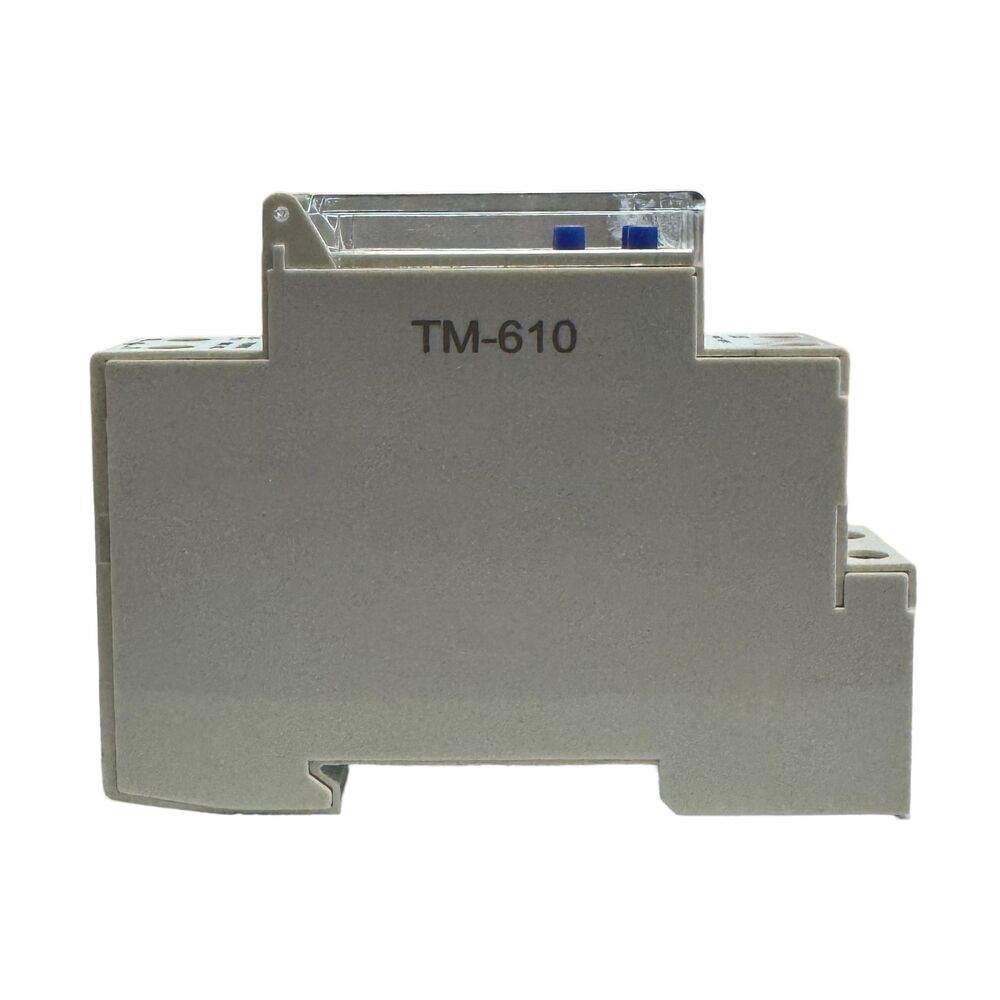

Tesla 24 Hour 7 Day Programmable Digital Timer

The Tesla TM-610 Programmable Digital Timer is a versatile 7-day programmable DIN rail timer designed for precise scheduling of electrical and industrial appliances. With multiple programmable functions, high precision, and built-in lithium battery backup, this timer ensures reliable automation for lights, pumps, HVAC systems, and more—even during power outages.

Key Features:

• 7-Day Weekly Programmable Operation: Supports multiple on/off cycles per day, programmable across any day or combination of days during the week.
• Multi-Function Programming: Offers a combination of up to:
  • 16 ON/OFF settings
  • 32 Pulse outputs
  • Count-down settings
  • Holiday mode settings (up to 10 programmable dates per year)
• DIN Rail Mounted Design: Standard 17.5mm width fits easily into 35mm DIN rail enclosures and switchboards.
• Lithium Battery Backup: Built-in lithium battery retains program settings and timekeeping during power loss.
• External Port Capability: Supports remote control input up to 100m distance via an external port.
• High Precision Timing: Accurate, microprocessor-based timing ensures reliable daily and weekly operations for connected loads.
• Digital LCD Display: User-friendly interface with a clear screen for programming and operational feedback.

Specifications:

• Model: TM-610
• Mounting: 35mm DIN rail (standard 17.5mm width)
• Programming: 7-day programmable
• ON/OFF Cycles: Up to 16 per week
• Pulse Outputs: Up to 32
• Holiday Settings: Up to 10 programmable holiday dates/year
• External Port Range: 100 metres
• Battery Backup: CR2032 Button Battery (Replaceable)
• Application Suitability: Electrical and industrial loads (e.g., lighting, ventilation, pumps, machinery)

Applications:

• Lighting Control: Automate interior and exterior lighting in commercial or residential buildings.
• HVAC Systems: Schedule fans, heaters, or ventilation systems.
• Irrigation Systems: Set automatic watering times on specific days.
• Industrial Machinery: Enable or disable equipment at precise times to increase efficiency or safety.
• Holiday Mode Use: Temporarily suspend regular programs during holidays or planned downtimes.

The Tesla TM-610 7-Day Programmable Digital Timer is a flexible and dependable time switch ideal for automating routine operations across a wide range of electrical and industrial applications. With advanced features like pulse output and holiday programming, it's a smart solution for efficient and consistent control.
